Krowne  |  Royal Series  |  SKU: KR19-63C  |  UPC: 822196887360

Krowne KR19-63C Royal Series Bar Equipment

$2,473.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

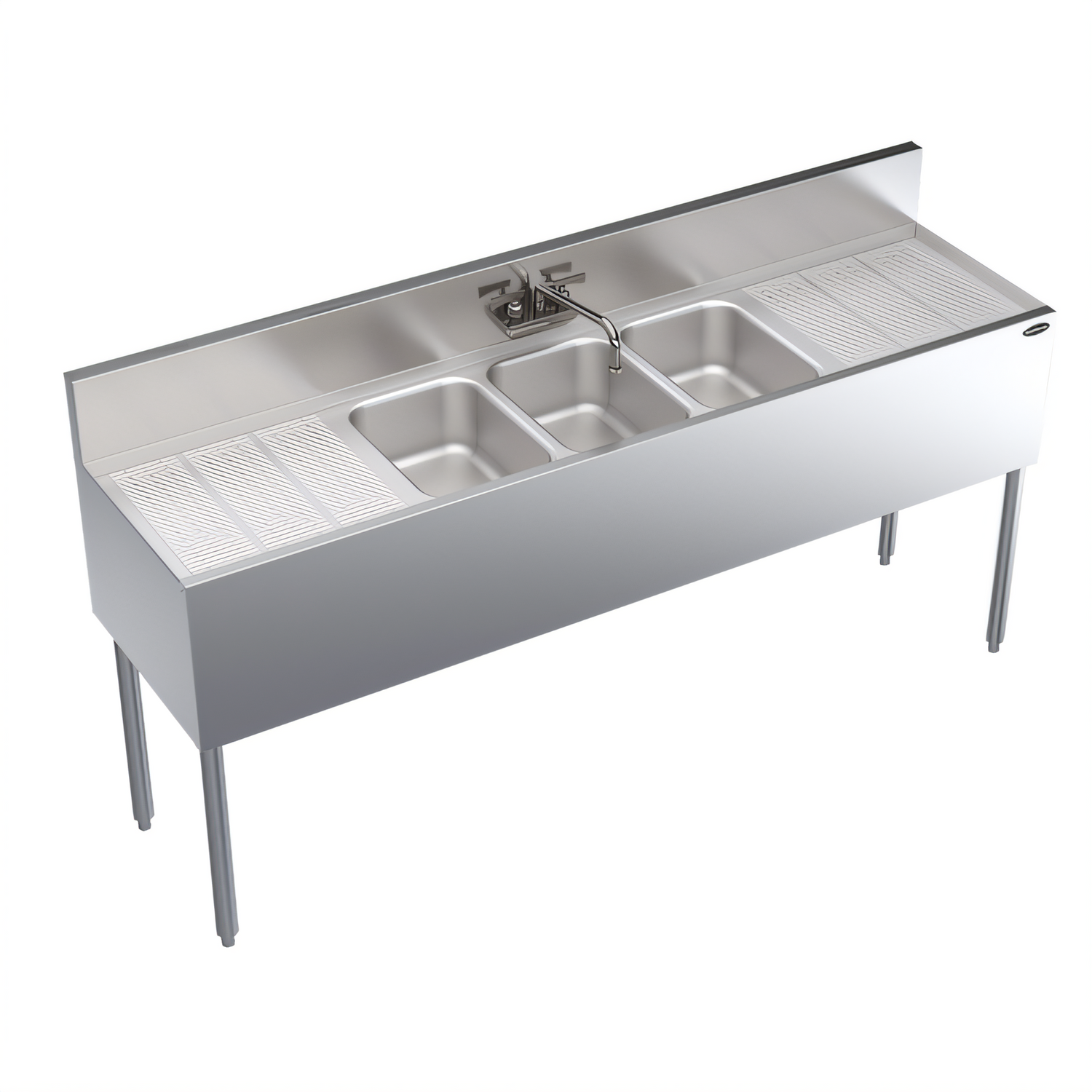

Krowne Royal Series 72" Three-Compartment Underbar Sink (KR19-63C)

19" deep • dual 18" drainboards • splash-mount faucet included

Engineered for high-volume beverage service, the Royal Series KR19-63C combines rugged stainless-steel construction with operator-focused details that keep the bar line moving. Three generously deep compartments tackle glassware, dump-sink and rinsing tasks, while integrated 18" drainboards on both ends provide ample landing space for clean and dirty wares. A factory-mounted Royal Series swing-spout faucet, removable overflow standpipes and adjustable bullet feet arrive ready for quick, code-compliant installation.

Key Features

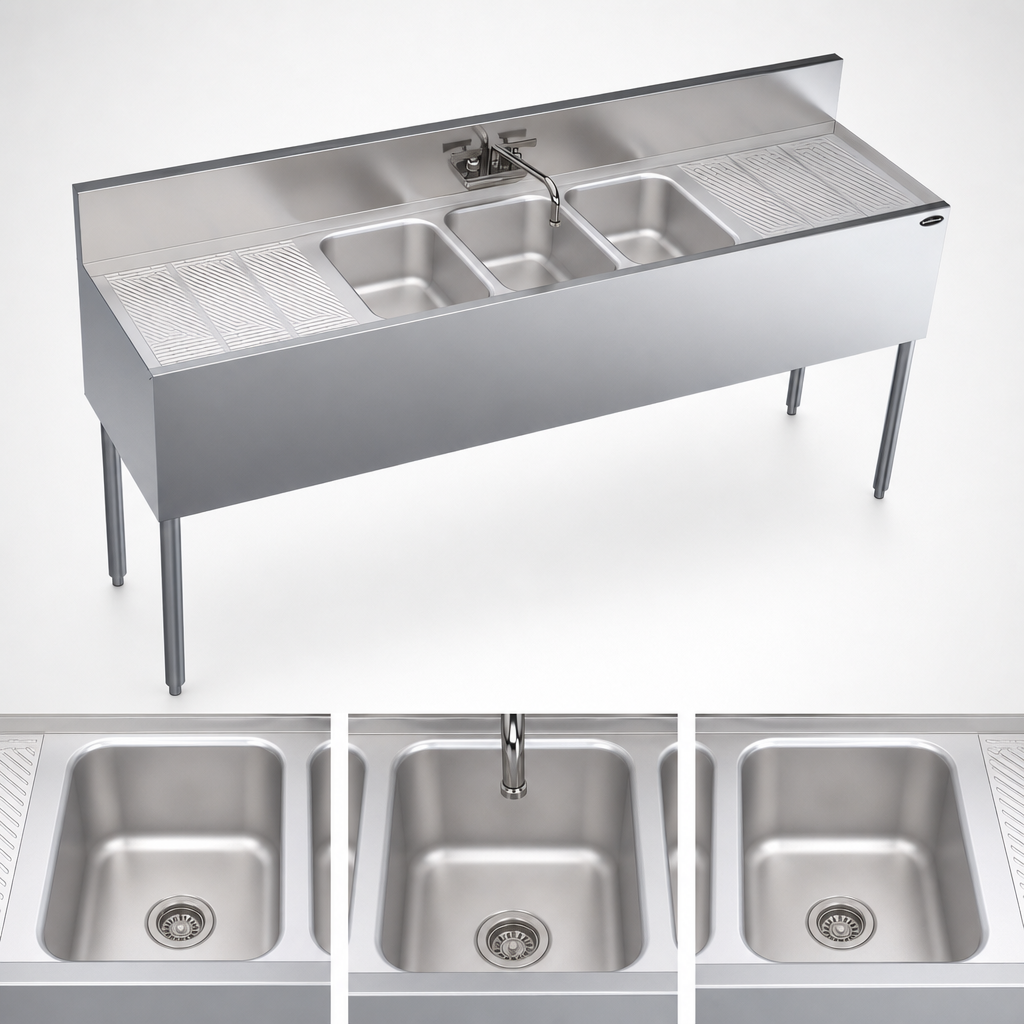

  • Three 10" W x 14" F-B x 10" D sink bowls formed from 20-gauge stainless steel

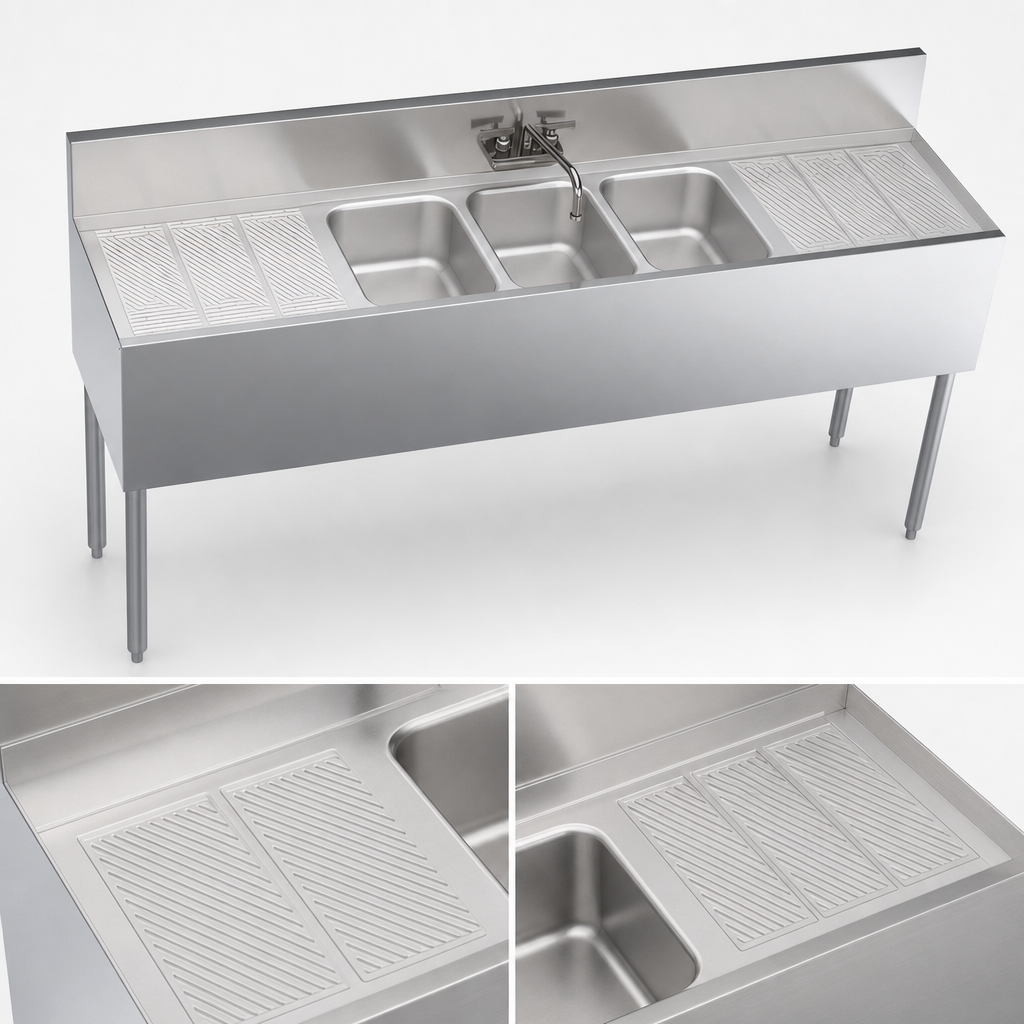

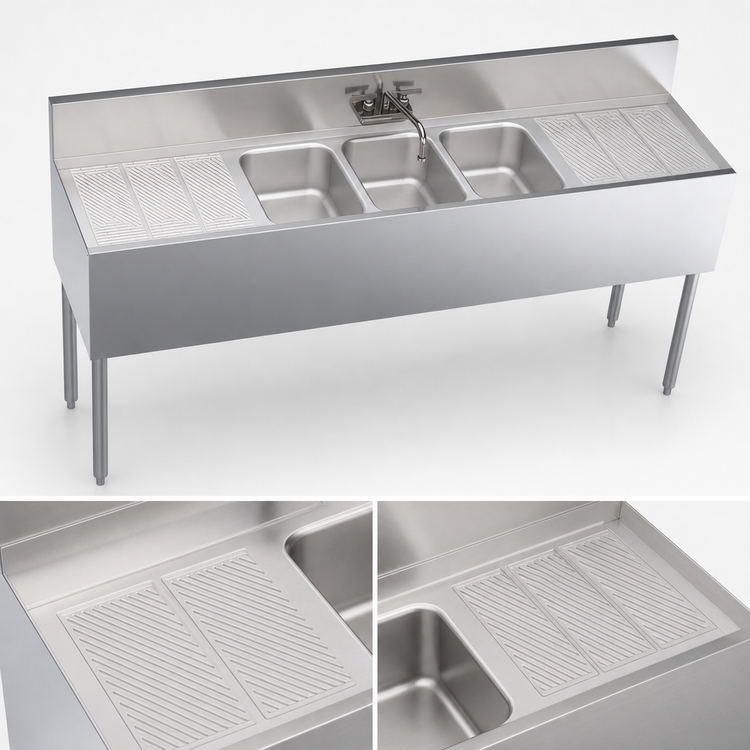

  • (2) 18" embossed integral drainboards (left & right) reinforced with welded braces every 6"
  • Splash-mount Royal Series faucet with 4" on-center ceramic cartridge valves and swing spout
  • (3) 1-½" IPS rear-corner drains with removable overflow standpipes for efficient draining
  • Full stainless top, front & sides with front/side apron; galvanized back & bottom
  • 1-⅝" Ø 16-gauge tubular stainless-steel legs with adjustable gray thermoplastic bullet feet
  • NSF/ANSI 2 and ASME A112.19.3 / CSA B45.4 certified for food-safe performance
Specifications
Model KR19-63C
Overall Width 72" (1829 mm)
Depth (Front - Back) 19" (483 mm)
Compartment Size 10" W × 14" F-B × 10" D (each)
Drainboards Left & Right, 18" L embossed stainless steel
Faucet Connection 4" O.C. hot/cold, ½" IPS inlet
Drain Connection 1-½" IPS
Legs / Feet 1-⅝" 16-ga. tubular S/S legs with adjustable thermoplastic bullet feet
Construction 20-ga. stainless top, bowls, apron & sides; galvanized back & bottom
Certifications NSF/ANSI 2; ASME A112.19.3 / CSA B45.4
Ideal For
  • Craft cocktail & sports bars
  • Hotel lounges and banquet service lines
  • Brewpub tasting rooms
  • Catering and portable bar setups
Installation Note: All plumbing connections must be completed by a licensed professional in accordance with local codes and regulations.

Krowne reserves the right to modify product specifications without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

72.0in

Depth

19.0in

Shipping Weight

135.0lbs

Splash

6"

Depth (front - back) OA

18" - 19"

Sink Compartments

(3)

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Drainboards

drainboards on left & right

Width (side - side) OA

67" - 72"

Specifications

Royal Series Underbar Sink Unit, three compartment, 72"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 18" embossed integral drainboards on left & right, splash mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
