Krowne KR19-53C Royal Series Bar Equipment
$2,337.50
Unit price
/
Unavailable
Description

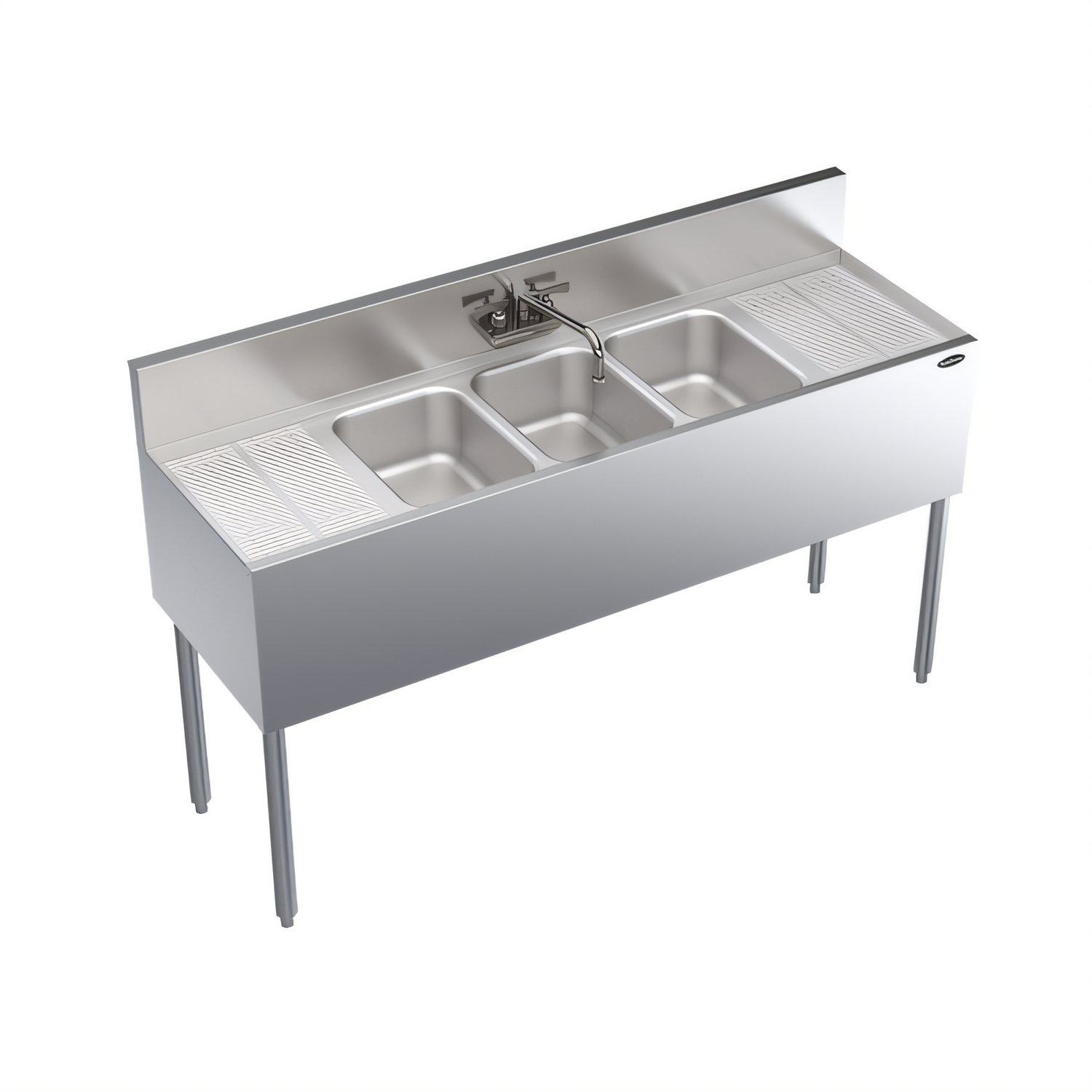

Krowne Royal Series 60" Underbar 3-Compartment Sink – KR19-53C
Dual 12" Drainboards • Splash-Mount Swing Faucet • NSFOutfit your bar with a full wash-rinse-sanitize station in just five feet. Engineered for high-volume beverage programs, the Krowne Royal Series KR19-53C pairs three deep sink bowls with embossed drainboards on both ends, delivering maximum productivity in a slim 19" front-to-back footprint.
Key Features

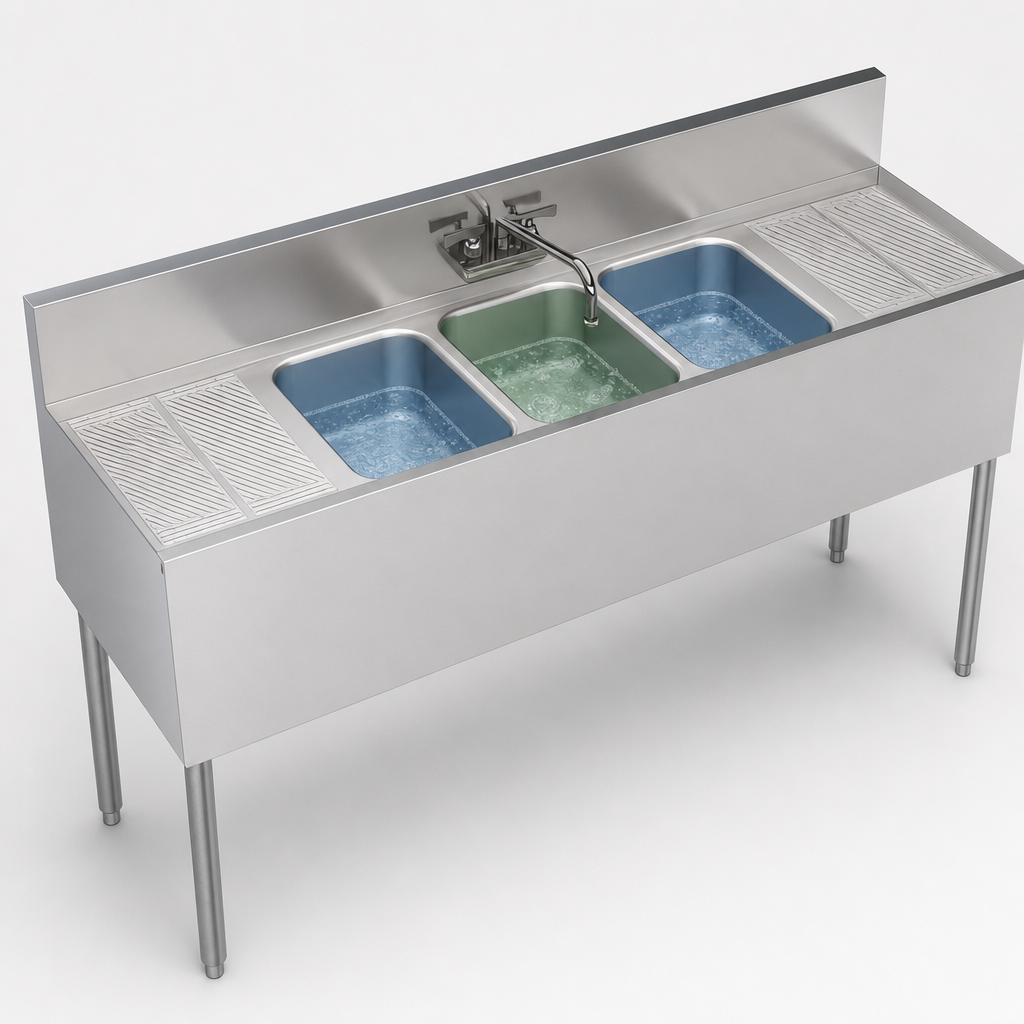

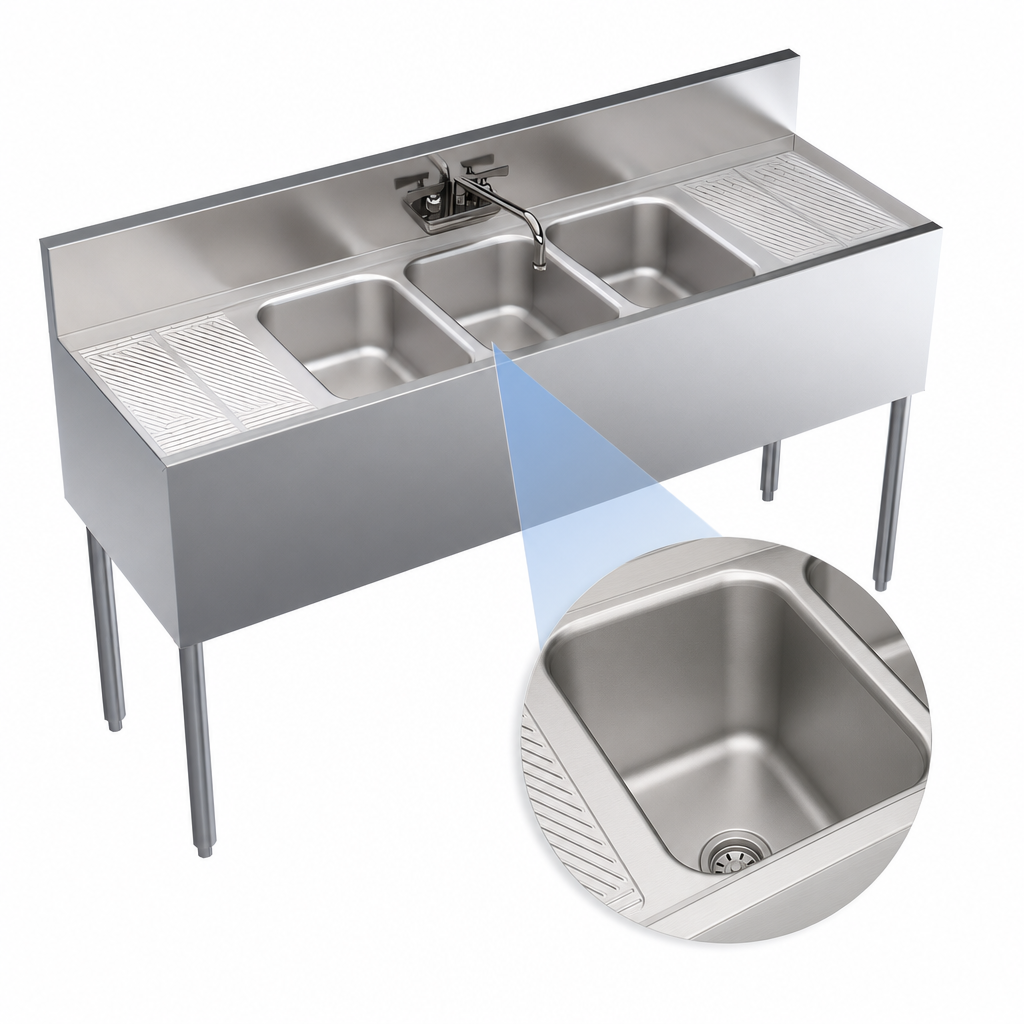

- (3) 10" W × 14" F-B × 10" D stainless-steel sink bowls
- (2) 12" embossed integral drainboards—left & right
- Royal Series 4" O.C. splash-mount faucet with swing spout & ¼-turn ceramic valves
- (3) removable 7-½" overflow standpipes + 1-½" IPS rear-corner drains
- 20 ga. stainless-steel top, bowls, front & sides with welded drainboard braces every 6"
- 1-⅝" Ø, 16 ga. stainless-steel legs with adjustable thermoplastic bullet feet
- Front & side aprons keep plumbing out of sight for a polished look
- NSF/ANSI 2 & ASME A112.19.3 / CSA B45.4 certified
Specifications
| Model | KR19-53C |
|---|---|
| Overall width | 60" / 1524 mm |
| Overall depth | 19" / 483 mm |
| Compartment count | 3 |
| Compartment size (W × F-B × D) | 10" × 14" × 10" (254 × 356 × 254 mm) |
| Drainboards | (2) 12" L embossed, left & right |
| Faucet connection | ½" IPS hot & cold, 4" O.C. |
| Drain connection | 1-½" IPS rear-corner |
| Material thickness | 20 ga. top & bowls; 16 ga. legs |
| Weight | 69 lbs / 31 kg |
| Certifications | NSF/ANSI 2, ASME A112.19.3 / CSA B45.4 |
Installation Notice: Water and waste connections must be completed
by qualified personnel in accordance with all applicable plumbing and sanitary codes.
Images may show optional accessories sold separately.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
60.0in
Depth
19.0in
Shipping Weight
115.0lbs
Splash
6"
Bowl Size
10" x 14" front-to-back
Sink Compartments
(3)
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
55" - 60"
Depth (front - back) OA
18" - 19"
Bowl Depth (rim - drain)
10"
Drainboards
drainboards on left & right
Specifications
Royal Series Underbar Sink Unit, three compartment, 60"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboards on left & right, splash mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
