Krowne KR19-48DP Royal Series Bar Equipment
Description
Krowne Royal Series 48" Underbar Ice Bin / Cocktail Unit
Model KR19-48DP | 194 lb Ice CapacityEngineered for demanding bar programs, the KR19-48DP delivers high-volume ice storage in a slim 19" front-to-back footprint. A full 15" deep stainless liner and heavy-duty foamed insulation hold up to 194 lbs of ice—keeping bartenders supplied through the busiest rush.
Key Features
- Extra-deep 15" stainless steel bin liner maximizes holding capacity.
- 48" wide workspan supports multiple bartenders at once.
- Foamed-in-place polyurethane insulation reduces melting and exterior condensation.
- 1" IPS drain with welded stainless outlet for fast, reliable drainage.
- 20-ga stainless steel top, front & sides for a seamless, professional look.
- Galvanized steel back & bottom add strength where it counts without added cost.
- 1-5/8" OD, 16-ga stainless legs with adjustable thermoplastic bullet feet for quick leveling.
- NSF certified—ready for code-compliant installation right out of the crate.
Technical Specifications
| Model | KR19-48DP |
|---|---|
| Overall Width | 48" (1219 mm) |
| Overall Depth | 19" (483 mm) |
| Overall Height | 30" (762 mm) to work surface |

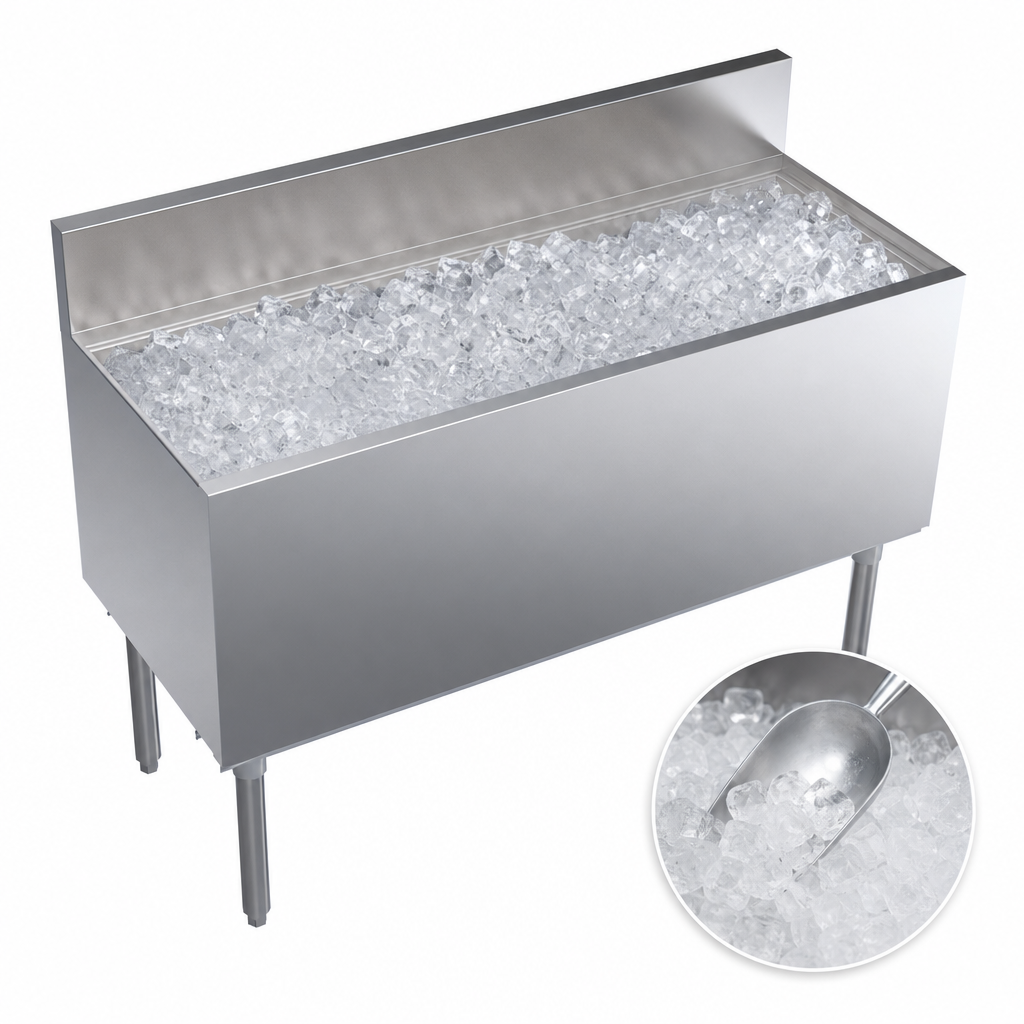

| Ice Capacity | 194 lbs (88 kg) |

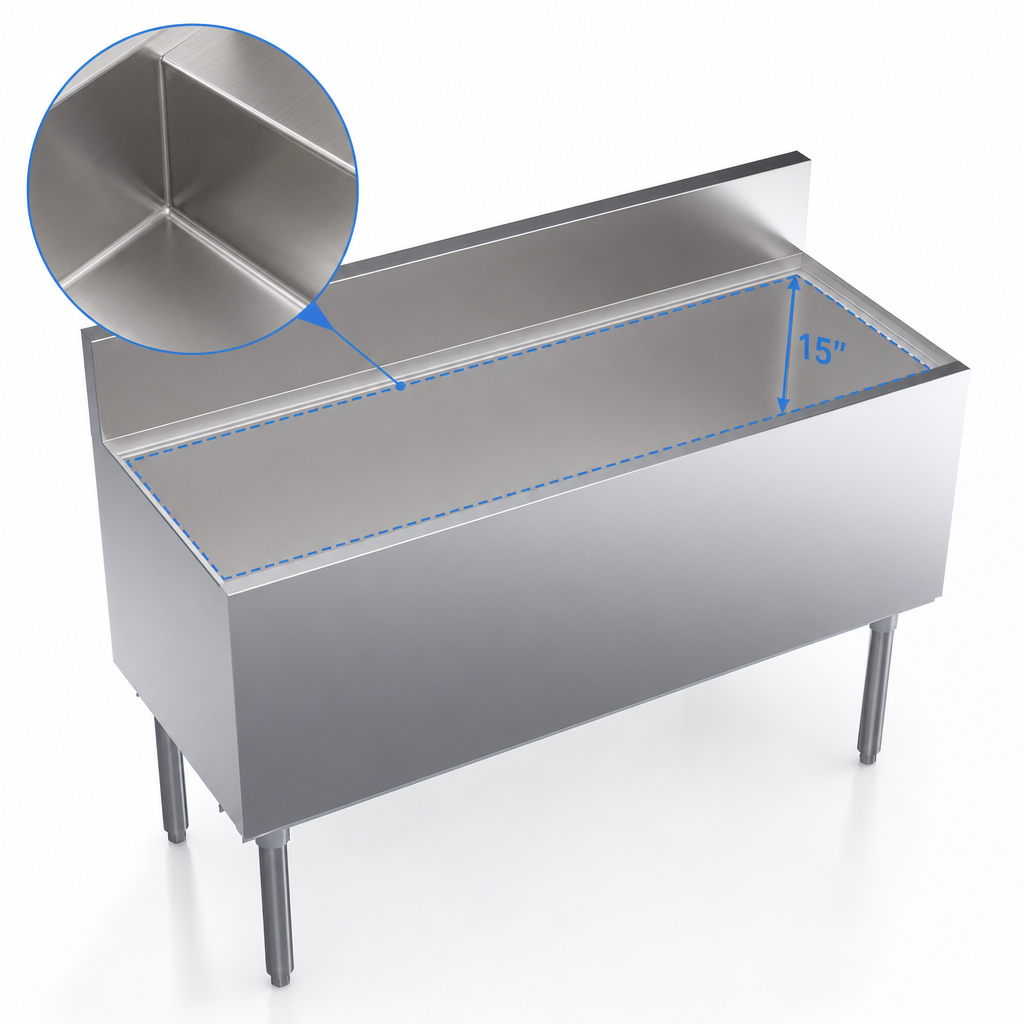

| Bin Liner Depth | 15" |
| Interior Dimensions | 15" × 46" |
| Drain Size / Location | 1" IPS centered |
| Liner / Interior Material | 20-ga type 300 stainless steel |
| Top / Front / Sides | Stainless steel |
| Back / Bottom | 20-ga galvanized steel |
| Legs & Feet | 16-ga stainless legs with gray adjustable bullet feet |
| Insulation | Foamed-in-place polyurethane |
| Approx. Weight | 119 lbs (54 kg) |
| Certifications | NSF |
Optional Accessories (sold separately)
- Full or partial sliding ice covers for 48" units
- Single or double speed rails
- Condiment trays & garnish stations
- Stainless steel dividers & side splashes
- Cap catcher & bottle opener kits
- Juice / mixer bottle wells
Need a built-in cold plate? Select model KR19-48DP-10 for an integrated 10-circuit post-mix cold plate.
Krowne continually improves products; specifications are subject to change without notice.
