Description

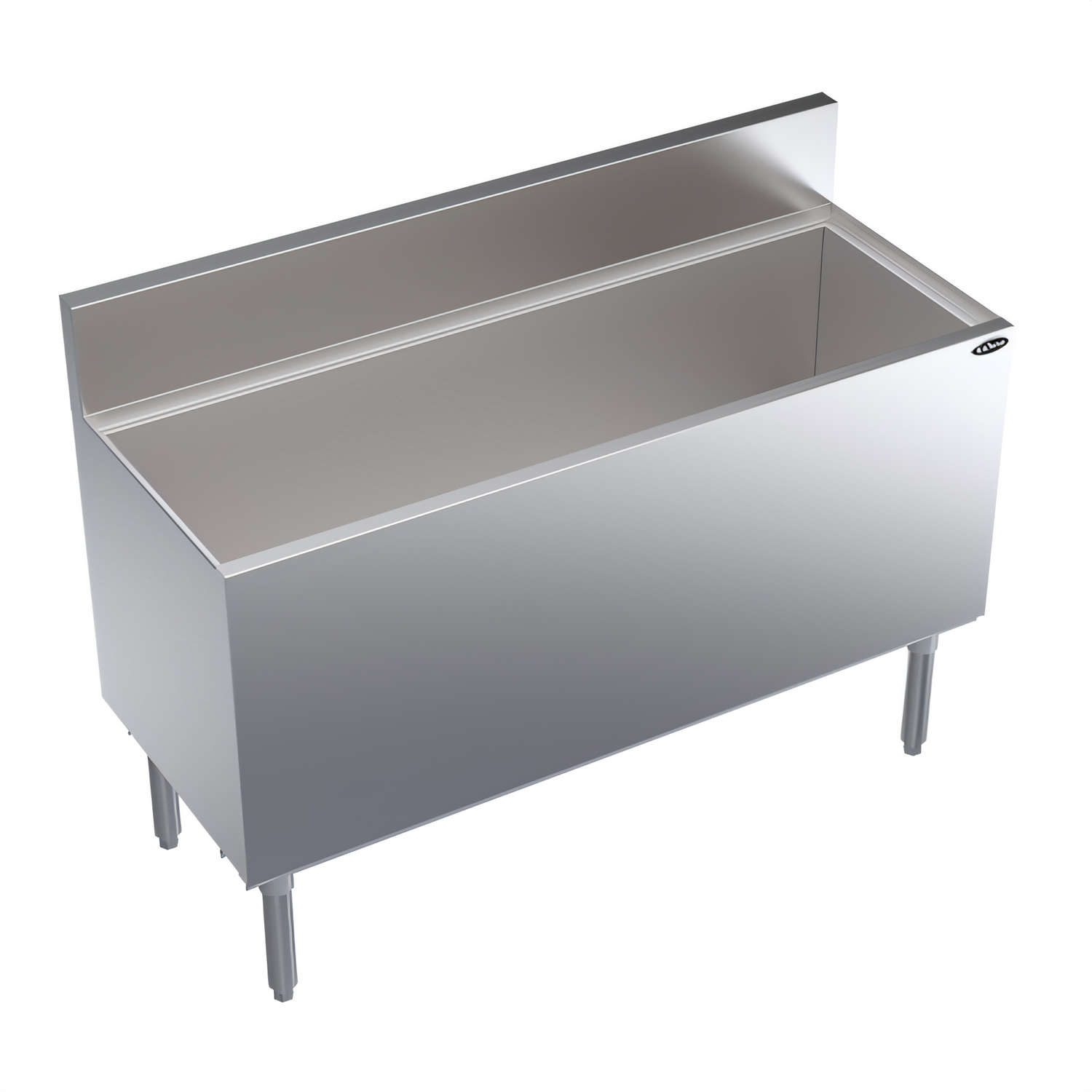

Krowne Royal Series 48" Underbar Ice Bin with 10-Circuit Cold Plate
Model KR19-48DP-10 | NSF CertifiedBuilt for the busiest bars, this Royal Series ice bin/cocktail station chills up to 194 lbs of ice and ten individual post-mix beverage lines—all within a compact 48" W × 19" D footprint. From craft cocktails to fountain sodas, every drink is served perfectly cold and refreshingly consistent.
Why You’ll Love It
- Integrated 10-circuit cold plate with 5/16" stainless-steel tubing for maximum thermal transfer.
- Generous 15"-deep, 20-ga stainless liner—foam-insulated to keep ice solid for hours.
- 3/4" × 3-1/2" soda-line cut-out in the backsplash for clean, tangle-free tubing routing.
- 1/2" drain with included 6" PVC tailpiece prevents condensation and simplifies installation.
- Durable stainless top, front & sides with galvanized back & bottom for long-life performance.
- 1-5/8" Ø, 16-ga stainless legs with adjustable thermoplastic bullet feet level easily on uneven floors.
- NSF listed to satisfy even the strictest health-department inspections.
Technical Specs
| Overall Dimensions | 48" W × 19" D (O.A.) |
|---|---|
| Bin Liner (W × L × D) | 15" × 46" × 15" |

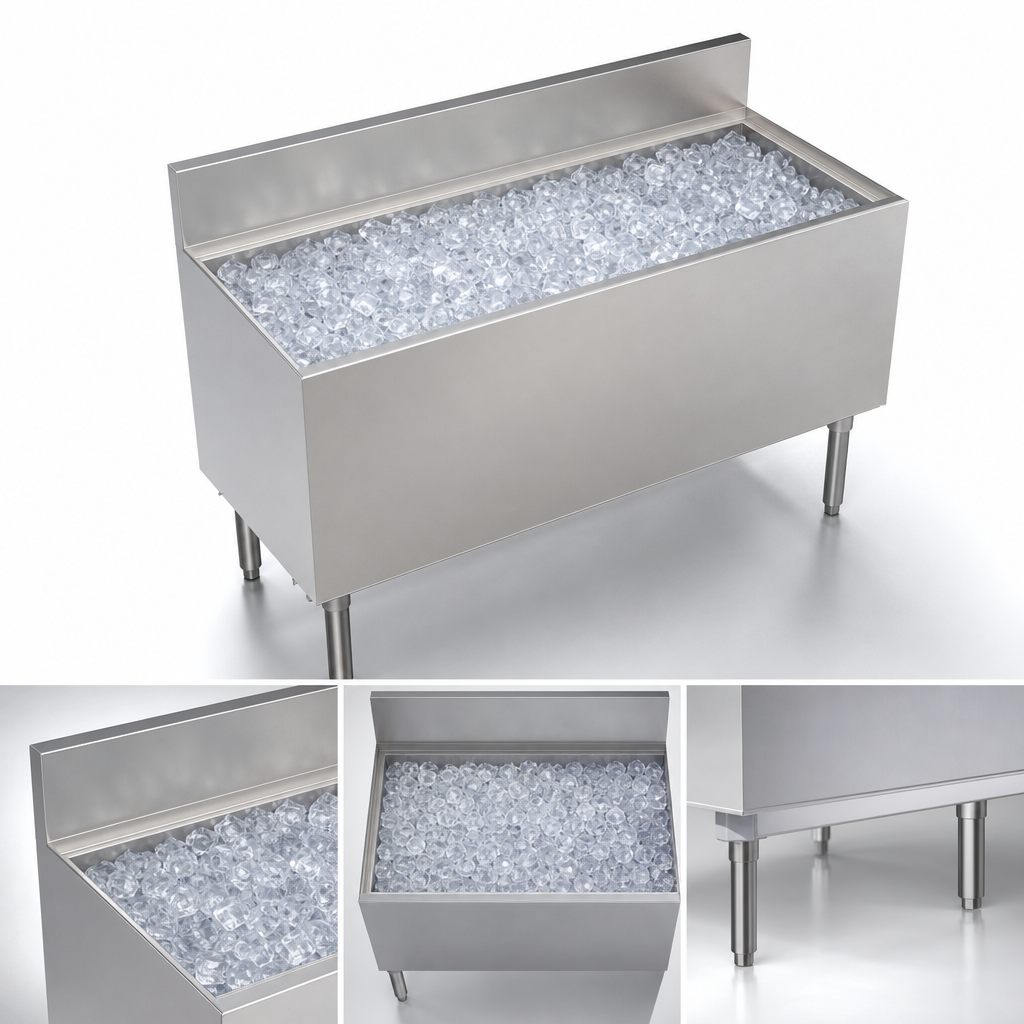

| Ice Capacity | 194 lbs |

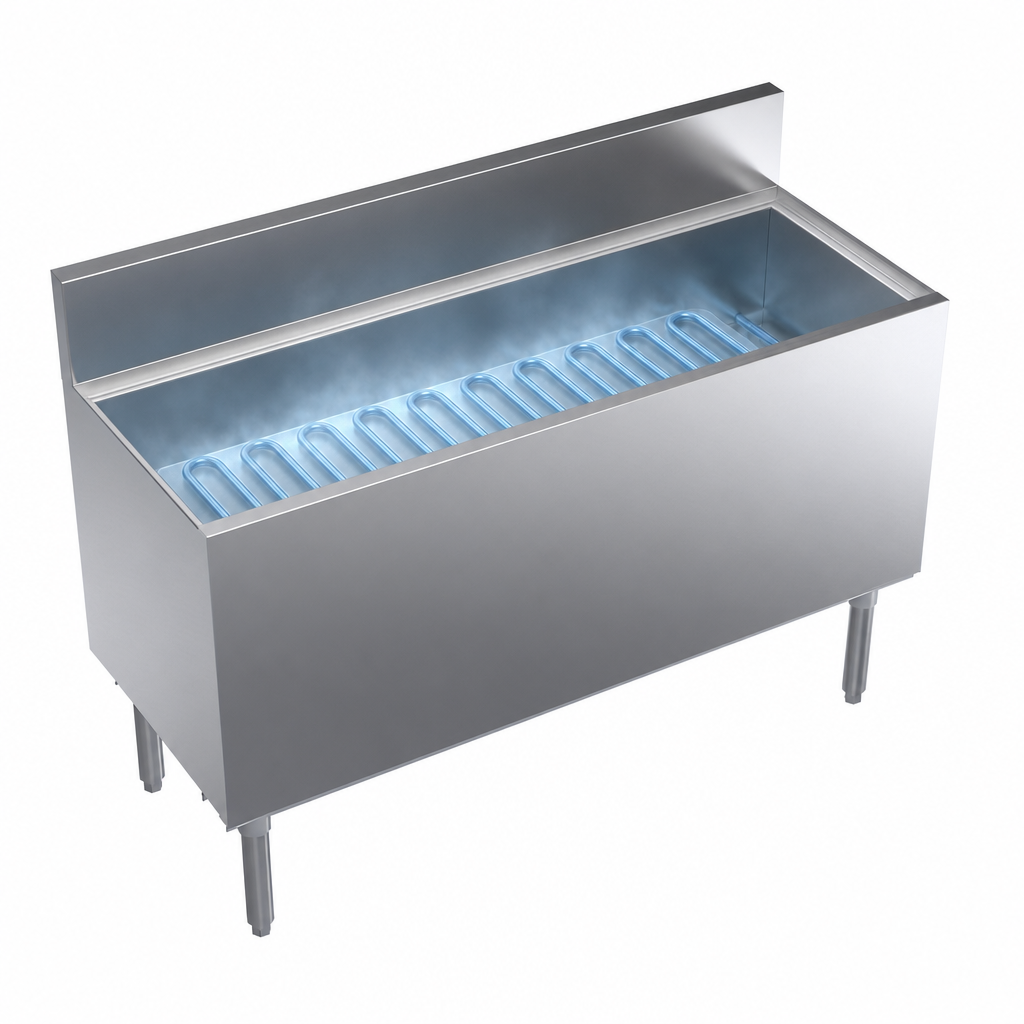

| Cold Plate | Built-in 10-circuit aluminum plate with stainless tubing |
| Drain Connection | 1/2" IPS (6" PVC tailpiece included) |
| Soda Line Access | 3/4" × 3-1/2" cut-out in backsplash (left side) |
| Construction – Top / Front / Sides | 20-ga stainless steel |
| Construction – Back / Bottom | 20-ga galvanized steel |
| Insulation | Foamed-in-place polyurethane |
| Legs & Feet | 1-5/8" tubular 16-ga stainless legs, adjustable thermoplastic bullet feet |
| Net Weight | 181 lbs |
Popular Add-Ons (Sold Separately)
- Single or double speed rails (lengths up to 48")
- Sliding ice-bin covers – partial or full
- Garnish stations (18"–36" widths)
- Stainless divider sets & condiment trays
- End-splash panels and towel rings
Cold Plate Notice: The cold plate is factory-sealed into the bottom of the ice bin and
cannot be added later. Order this model if you plan to use the unit with a soda gun.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
48.0in
Depth
19.0in
Shipping Weight
181.0lbs
Width (side - side) OA
43" - 48"
Bin Depth
15" deep ice bin
Construction
stainless steel & galvanized
Ice Capacity
150 - 199 lbs.
Depth (front - back) OA
18" - 19"
Splash
6"
Cold Plate
(10) circuit
Specifications
Royal Series Underbar Ice Bin/Cocktail Unit, built-in 10-circuit cold plate, 48"W x 19"D O.A., 194-lbs ice capacity, 15" deep stainless steel bin liner, 3/4" x 3-1/2” Soda Line cut out in backsplash, 1/2" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
