Krowne KR19-48-10 Royal Series Bar Equipment

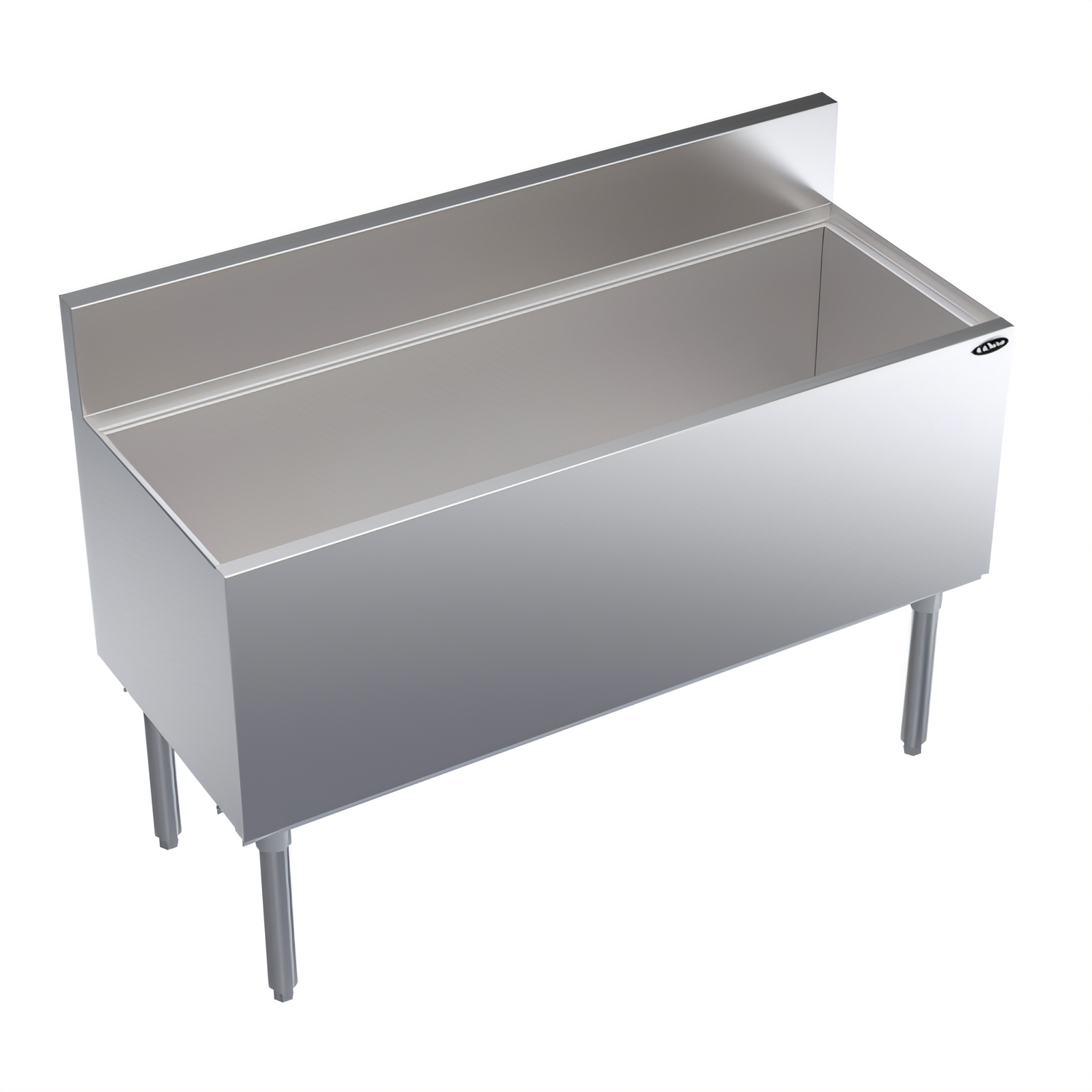

Royal Series 48" Underbar Ice Bin with 10-Circuit Cold Plate

Built for high-volume cocktail programs, this Krowne Royal Series ice bin delivers ice-cold beverage service in a rock-solid, space-saving footprint. A factory-sealed 10-circuit cold plate chills soda lines right inside the bin, keeping every pour frosty and consistent—no remote chillers or extra footprint required.

Key Features & Benefits

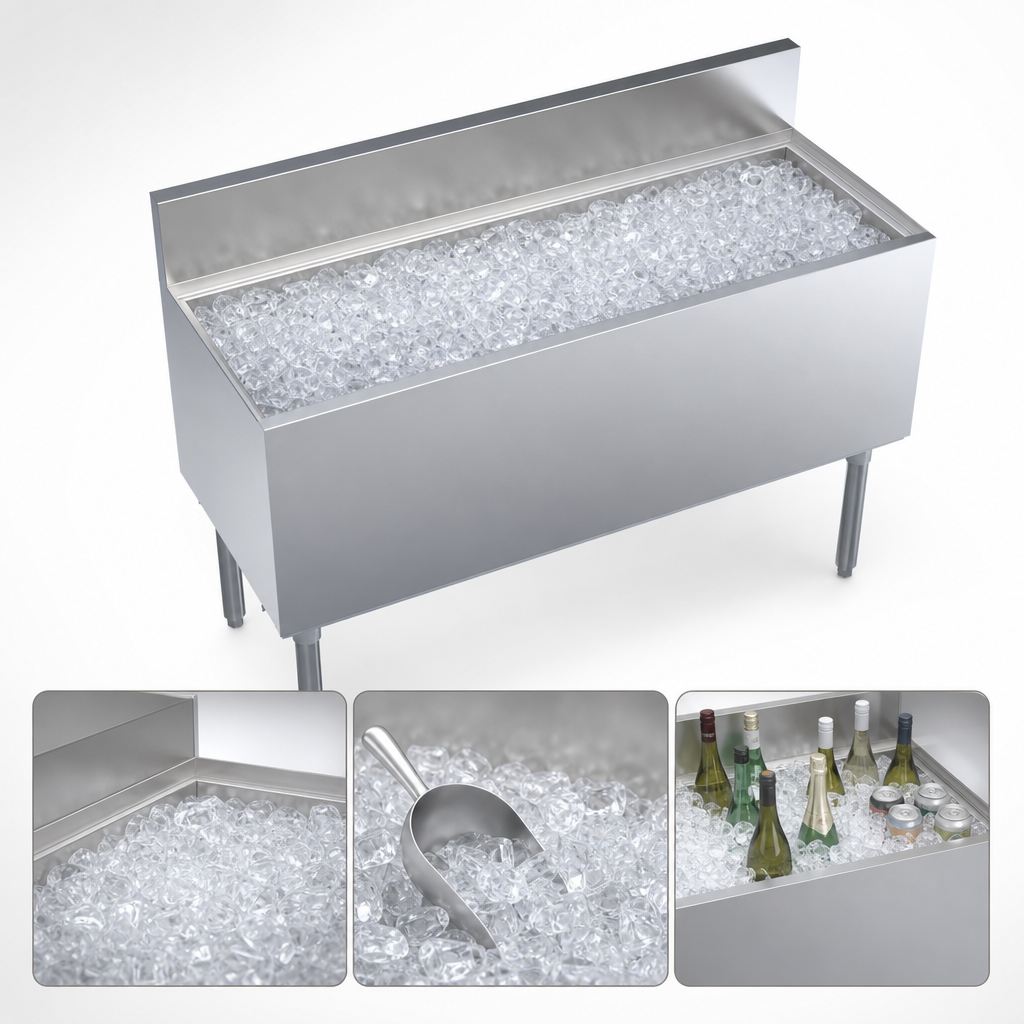

• Generous 147 lb ice capacity keeps service moving during the busiest rushes.

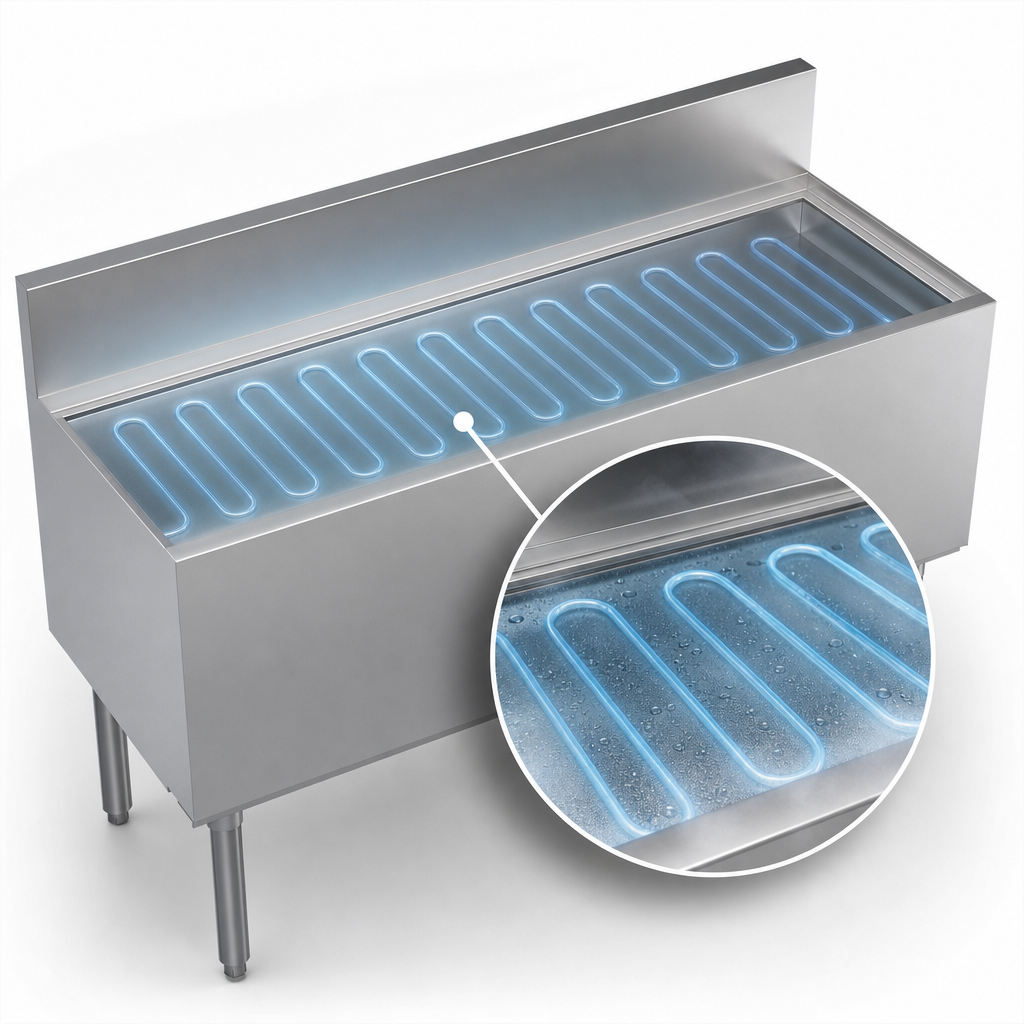

• 10-circuit stainless steel cold plate is integrally foamed into the base for maximum thermal transfer and durability.
• 48" wide x 19" deep overall—perfect for standard underbar line-ups.
• 12" deep, 20 ga stainless steel bin liner resists corrosion and cleans up fast.
• 3/4" x 3-1/2" soda-line access cut-out in backsplash speeds beverage system hook-up.
• Fully insulated with foamed-in-place polyurethane to slow ice melt and cut energy use.
• Heavy-duty 1-5/8" Ø, 16 ga stainless steel legs with adjustable grey thermoplastic bullet feet level quickly on uneven floors.
• All exposed surfaces (top, front, sides & backsplash) are 20 ga stainless steel for a polished, professional look.
• Galvanized back & bottom add structural strength while reducing cost.
• 1/2" OD x 6" PVC drain tailpiece (1/2"-20 male thread) supplied—prevents condensation issues common with metal-to-metal drains.

At-a-Glance Specifications

Popular Accessories (sold separately)

• Sliding stainless steel ice covers (partial or full length)
• Single & double speed rails for rapid bottle access
• Side splash kits to keep adjacent equipment dry
• Condiment trays & garnish stations (18" – 36")
• Bottle wells (3- or 4-bottle configurations)

Need help configuring your underbar line? Our bar specialists are ready—contact us for free layout support.
