Krowne Royal Series Three-Compartment Underbar Sink Unit with Left Drainboard, 48 x 19 Inches

SKU: KR19-43R
GTIN: 822196884147
$2,242.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

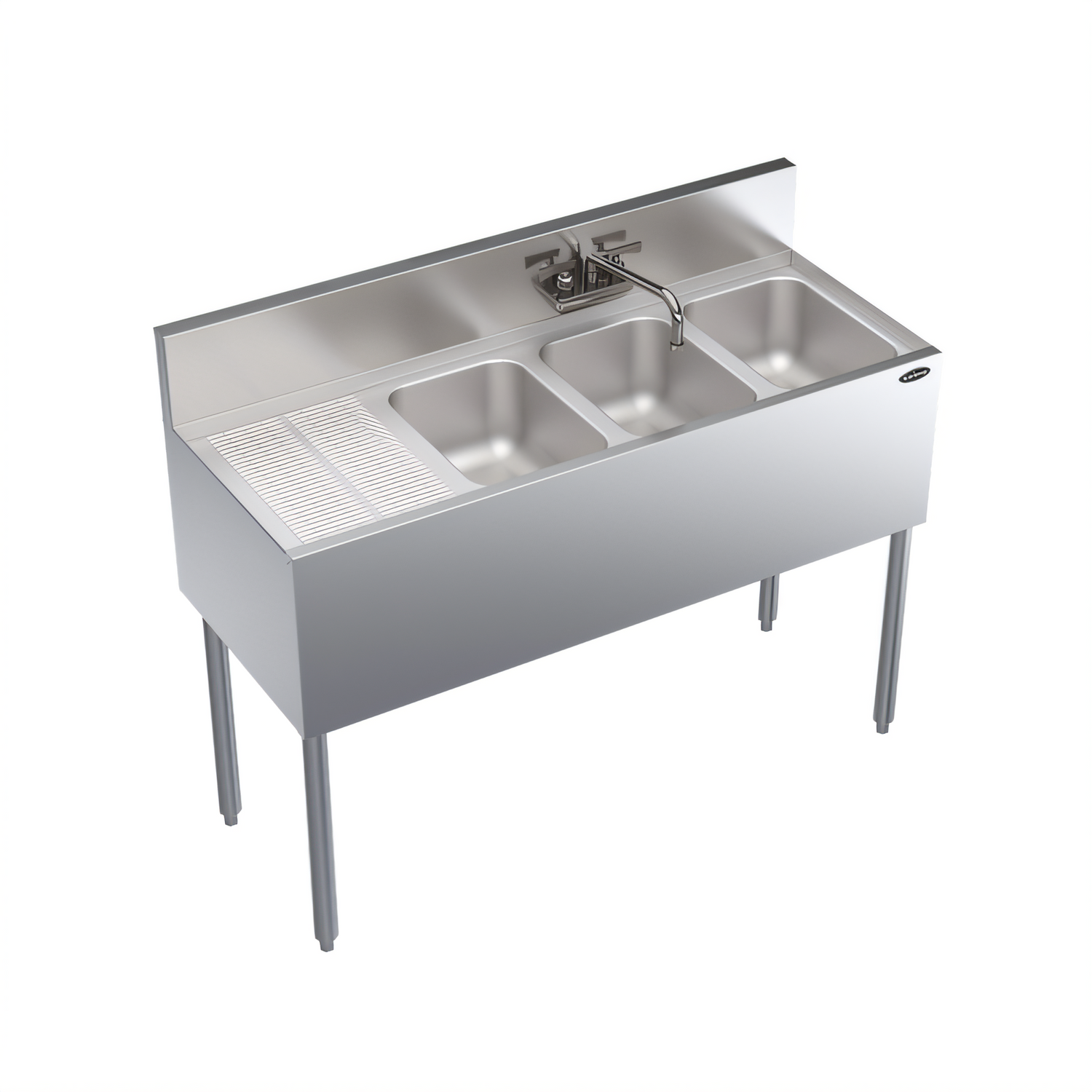

Krowne Royal Series Three-Compartment Underbar Sink Unit with Left Drainboard, 48 x 19 Inches

10 x 14 x 10-Inch Bowls, 6-Inch Backsplash

Built for busy bar service, this stainless steel three-compartment sink offers a left drainboard, durable construction, and a compact 48-inch footprint.

  • Three-compartment design supports washing, rinsing, and prep separation behind the bar.
  • 10 x 14 x 10-inch bowls provide practical working space for underbar service.
  • 12-inch embossed integral drainboard on the left keeps wet items draining off the main work area.
  • Stainless steel top, front, sides, and legs are built for commercial durability.
  • Includes a Royal Series faucet with swing spout, three removable overflow standpipes, and a front-and-side apron.
  • NSF/ANSI 2 compliant for commercial sanitation.

Overall Dimensions:

48.0"W x 19.0"D x 36.5"H

Product Weight:

105.0 lb

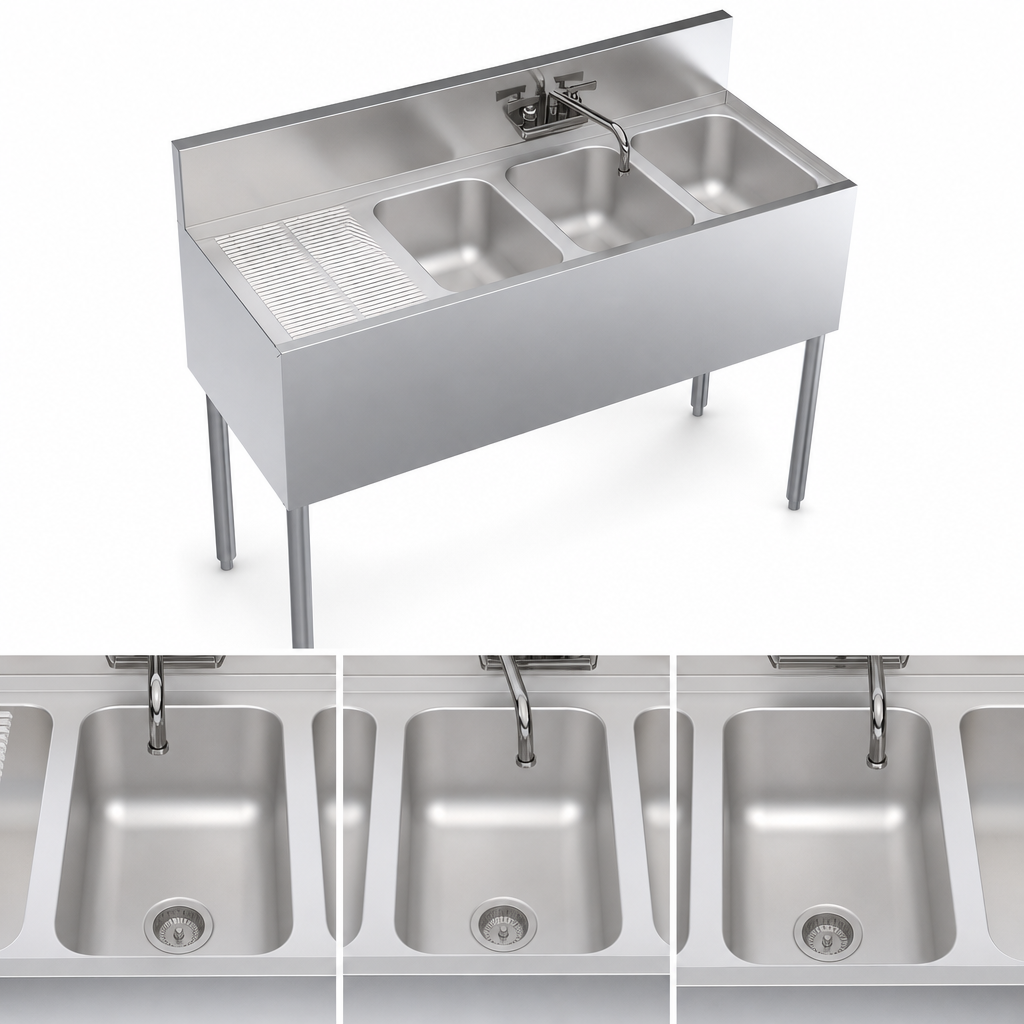

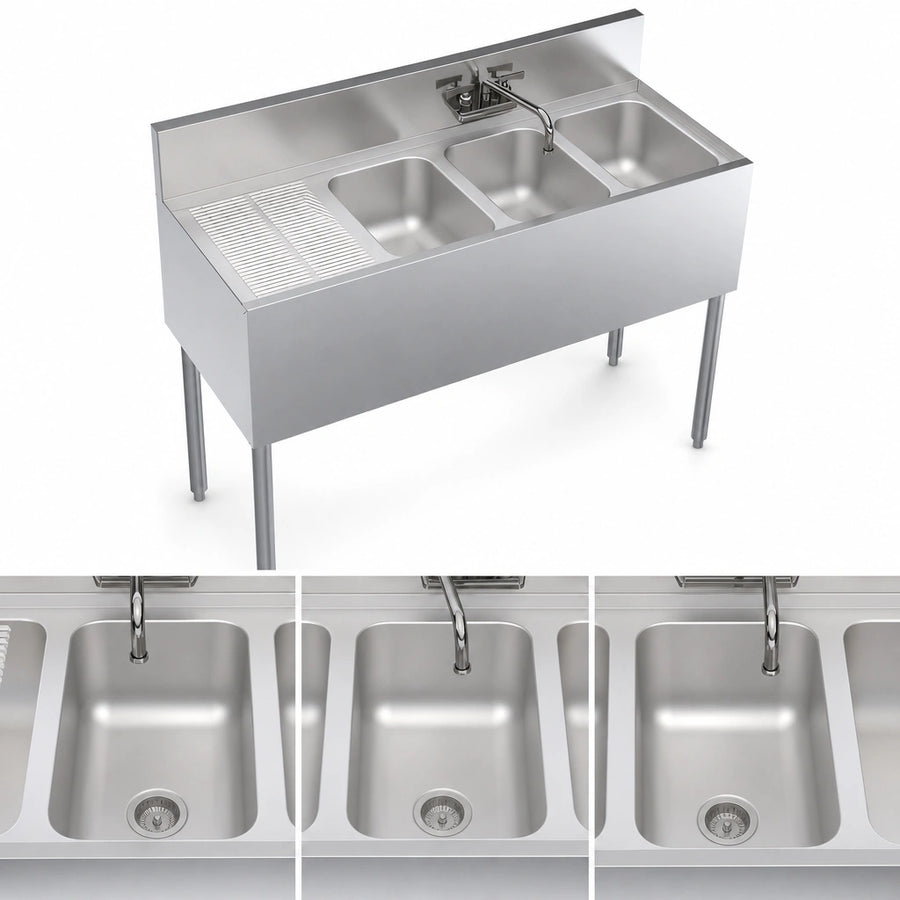

Three-Compartment Layout

Three 10-inch x 14-inch x 10-inch deep compartments support efficient bar washing and rinsing workflows.

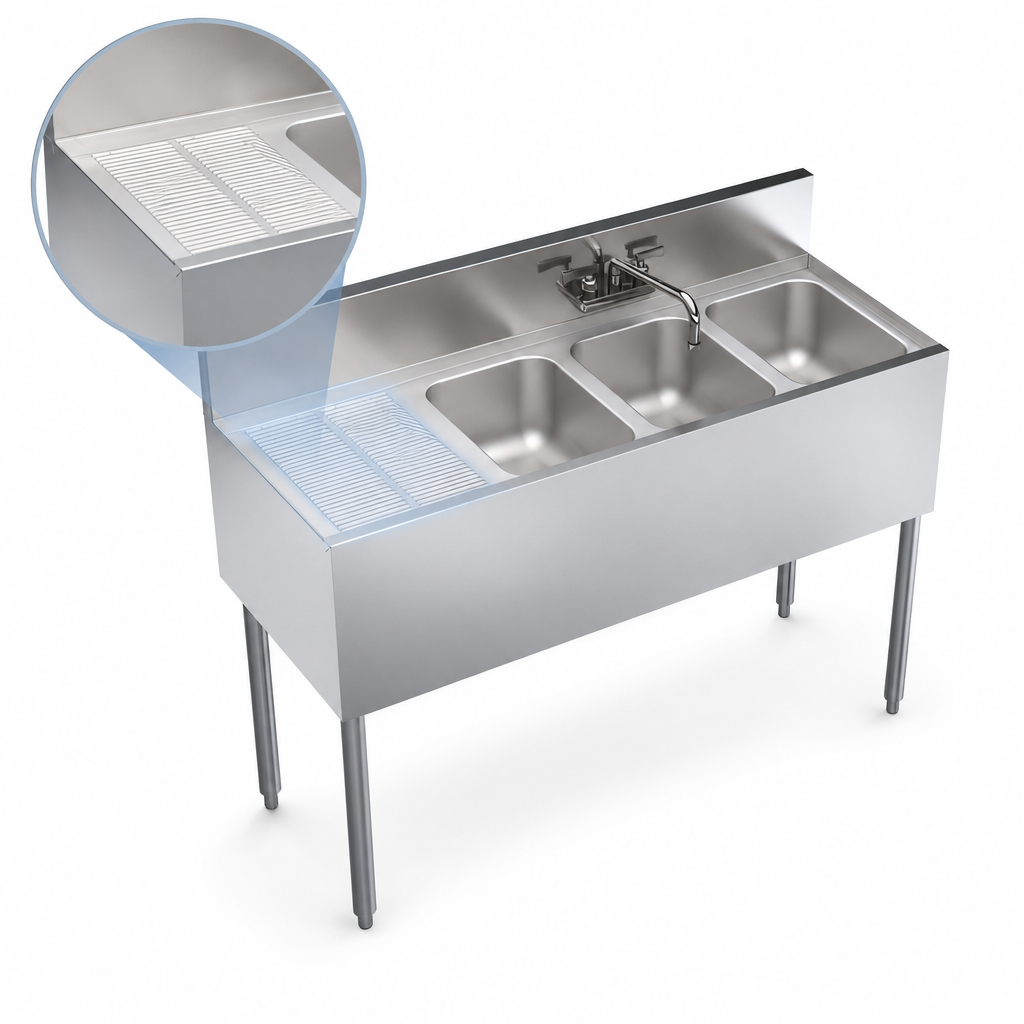

Left Integral Drainboard

A 12-inch embossed drainboard on the left side provides dedicated draining and staging space.

Right Bowl Location

The KR19-43R configuration places the bowl section on the right side of the unit.

Stainless Steel Construction

Stainless steel top, front, sides, and legs help the unit stand up to demanding commercial use.

Front And Side Apron

An apron on the front and sides adds protection and gives the sink a finished appearance.

Included Faucet

The product description specifies a Royal Series faucet with swing spout.

Removable Overflow Standpipes

Three removable overflow standpipes are included for overflow control.

NSF/ANSI 2 Compliance

Built to meet commercial sanitation requirements.

Type Underbar Sink Unit
Style Three Compartment
Installation Type Freestanding
Compartments 3
Bowl Location Right
Drainboard Location Left
Material Stainless Steel
Bowl Size 10 Inches Wide x 14 Inches Front-to-Back x 10 Inches Deep
Drainboard Size 12 Inches
Backsplash Height 6 Inches
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 105 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has 3 compartments.
Each bowl measures 10 inches wide x 14 inches front-to-back x 10 inches deep.
The integrated drainboard is on the left side.
The cutsheet lists 1/2 inch IPS hot/cold water and 1-1/2 inch IPS drain connections.
Yes, it includes 3 removable overflow standpipes.
Yes, the product is NSF/ANSI 2 compliant.
