Krowne  |  Royal Series  |  SKU: KR19-43L  |  UPC: 822196883157

Krowne KR19-43L Royal Series Bar Equipment

$2,135.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

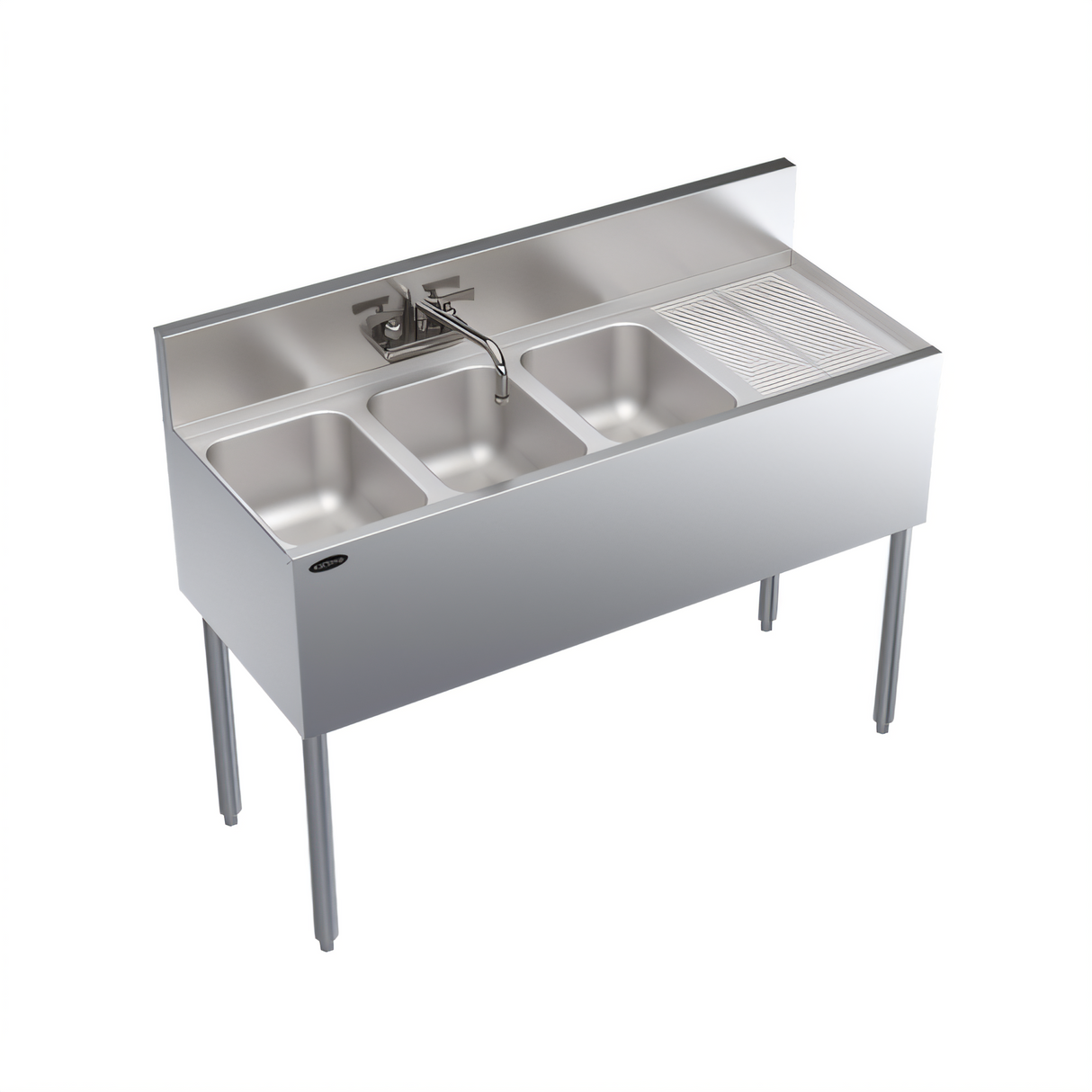

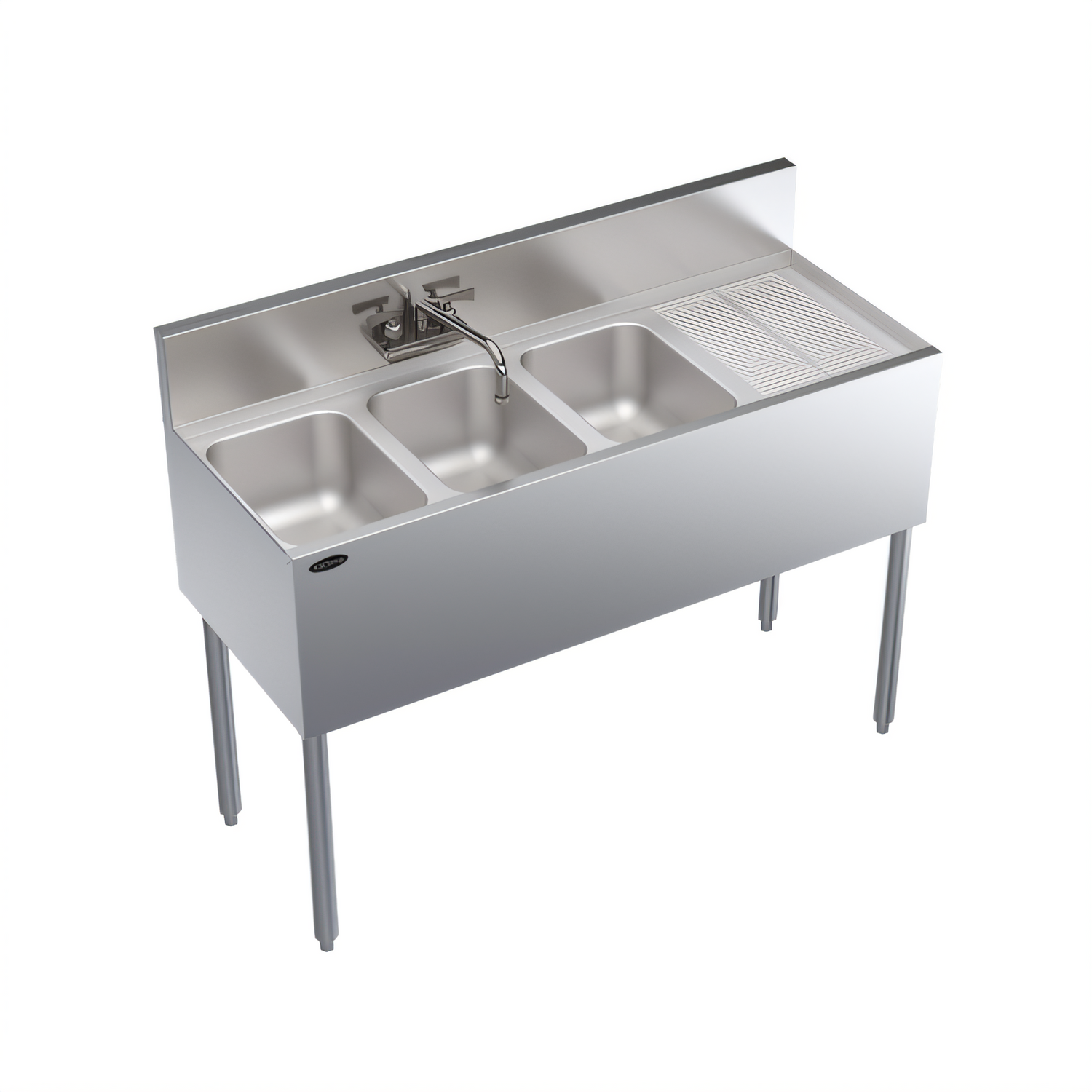

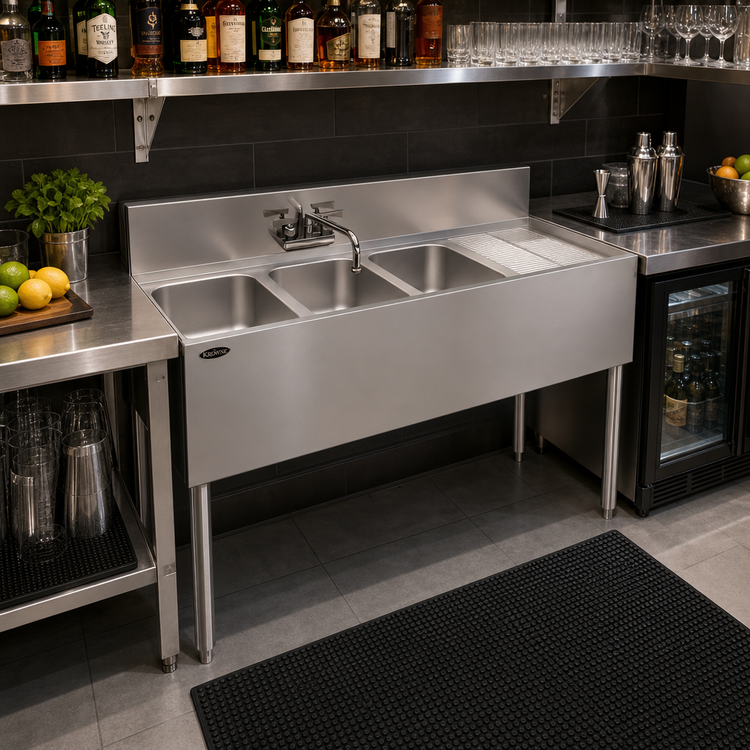

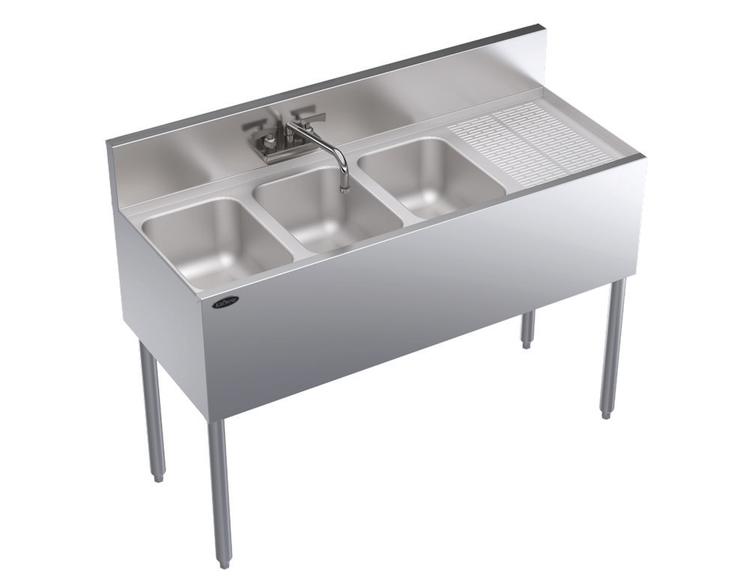

Krowne Royal Series 48" Three-Compartment Underbar Sink – Right Drainboard

Model KR19-43R | NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 Certified

Built for high-volume bars that demand rugged performance in a compact footprint, the Krowne KR19-43R delivers three deep sink compartments, a reinforced right-hand drainboard, and a low-lead Royal Series faucet—all in premium stainless steel that stands up to years of punishing service.

Key Features

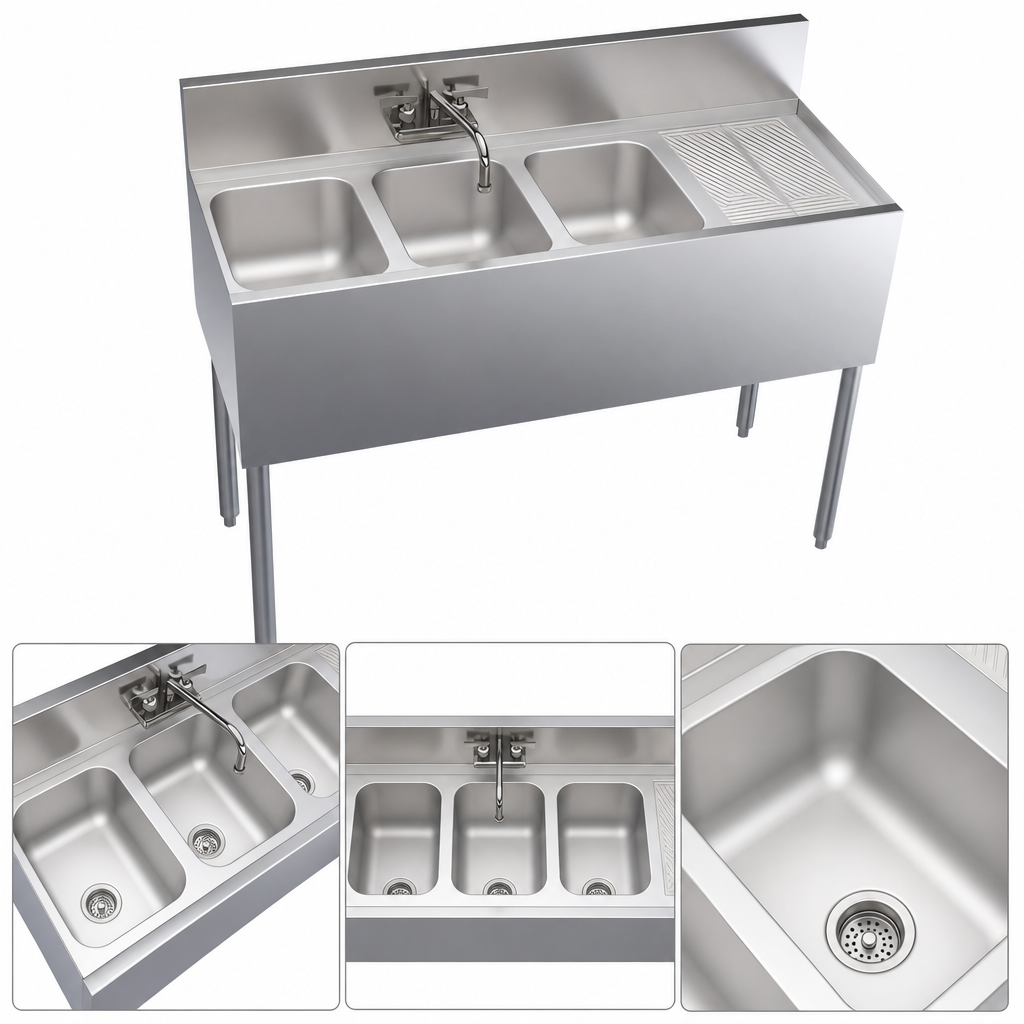

  • Three 10" × 14" × 10" (W × F/B × D) sink bowls in 20-gauge stainless steel

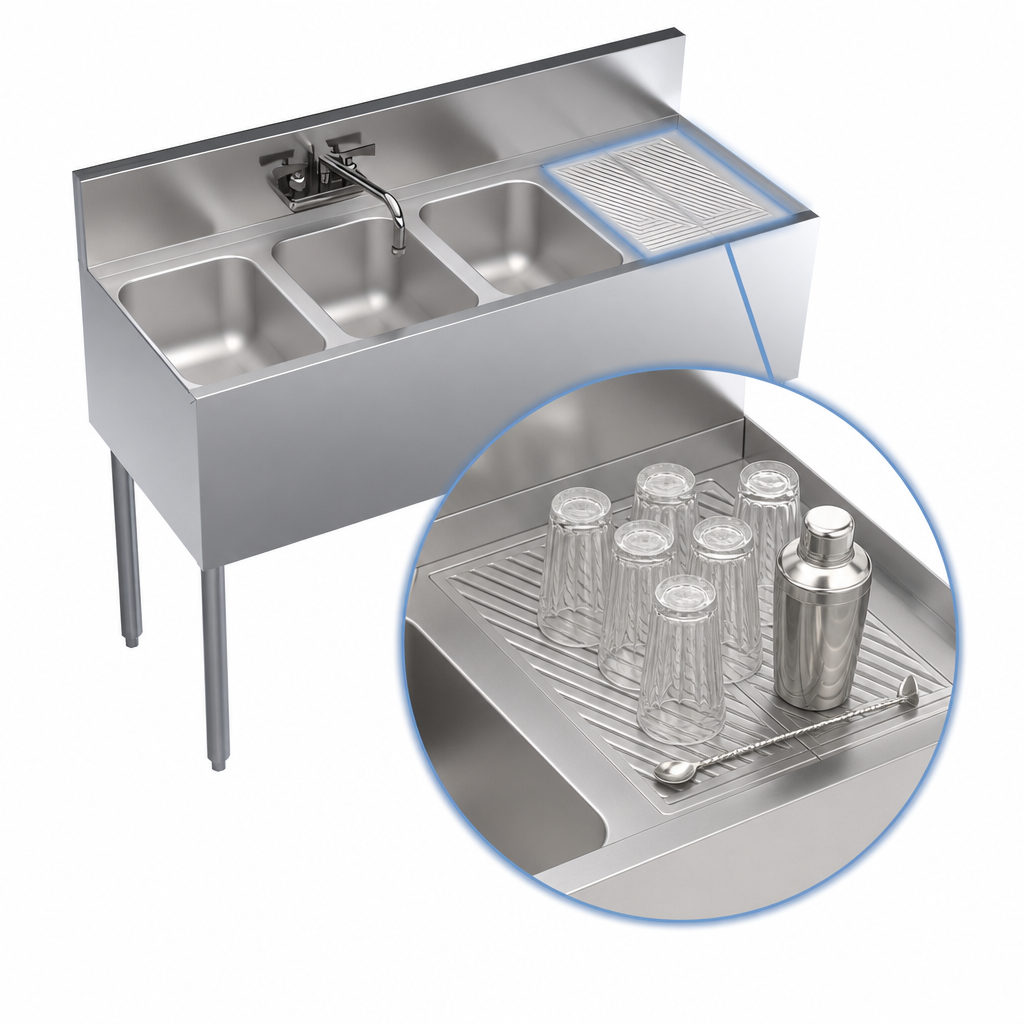

  • 12" embossed integral drainboard (right side) with welded braces every 6"
  • Splash-mount Royal Series faucet on 4" centers with 1/4-turn ceramic cartridges & swing spout (low-lead compliant)
  • (3) removable 7-1/2" overflow standpipes keep bowls at optimal level
  • Rear-corner 1-1/2" IPS drains supplied with stainless strainers
  • All-stainless top, front & sides; 20-gauge stainless-clad front apron for extra rigidity
  • 1-5/8" OD, 16-gauge stainless legs with adjustable thermoplastic bullet feet
  • Hot/Cold 1/2" IPS water inlets for quick hook-up
  • NSF listed and completely lead-free for safe operation behind the bar

Specifications

Overall Width 48" (1219 mm)
Overall Depth (Front to Back) 19" (483 mm)
Bowl Interior (each) 10" W × 14" F/B × 10" D
Drainboard 12" right-hand, embossed & reinforced
Material 20-ga. stainless sink & drainboard; 16-ga. stainless legs
Faucet Royal Series splash-mount, 4" centers, swing spout, low lead
Plumbing Connections 1/2" IPS hot & cold; 1-1/2" IPS drains (rear corner)
Included Accessories (3) 7-1/2" overflow standpipes, strainers, adjustable bullet feet
Unit Weight ≈ 60 lbs (27 kg)
Certifications NSF/ANSI 2; ASME A112.19.3/CSA B45.4; Low-lead compliant
Installation Notice: All plumbing connections must be performed by qualified personnel in accordance with local codes.

Krowne Metal Corporation reserves the right to modify product features & specifications without notice as part of ongoing product improvement.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

19.0in

Shipping Weight

105.0lbs

Splash

6"

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Width (side - side) OA

43" - 48"

Bowl Depth (rim - drain)

10"

Depth (front - back) OA

18" - 19"

Construction

stainless steel top, front, ends & legs

Drainboards

drainboard on right

Specifications

Royal Series Underbar Sink Unit, three compartment, 48"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboard on right, splash mount Royal Series faucet with swing spout (low lead compliant), apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
