Krowne KR19-42DP-10 Royal Series Bar Equipment
Description

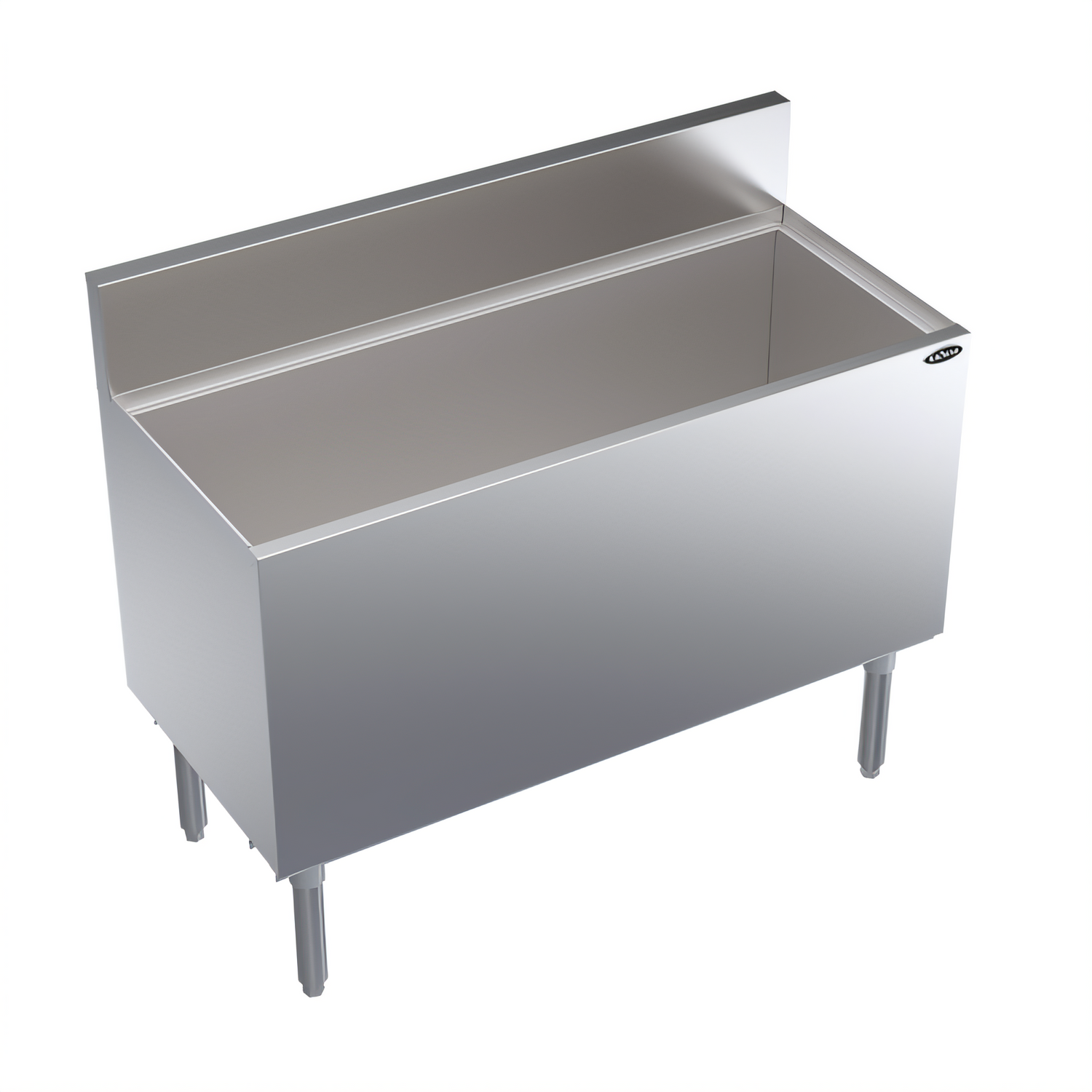

Krowne Royal Series 42" Underbar Ice Bin with 10-Circuit Cold Plate
Model KR19-42DP-10 | 15" deep liner | 170 lb ice capacityKeep cocktails flowing and soda lines ice-cold with Krowne’s Royal Series 42 inch ice bin / cocktail station. Engineered for high-volume bars that pour both fountain drinks and mixed beverages, this unit combines a generous 170-pound ice well with an integrated 10-circuit post-mix cold plate—so every drink is served at the perfect temperature.
Key Features

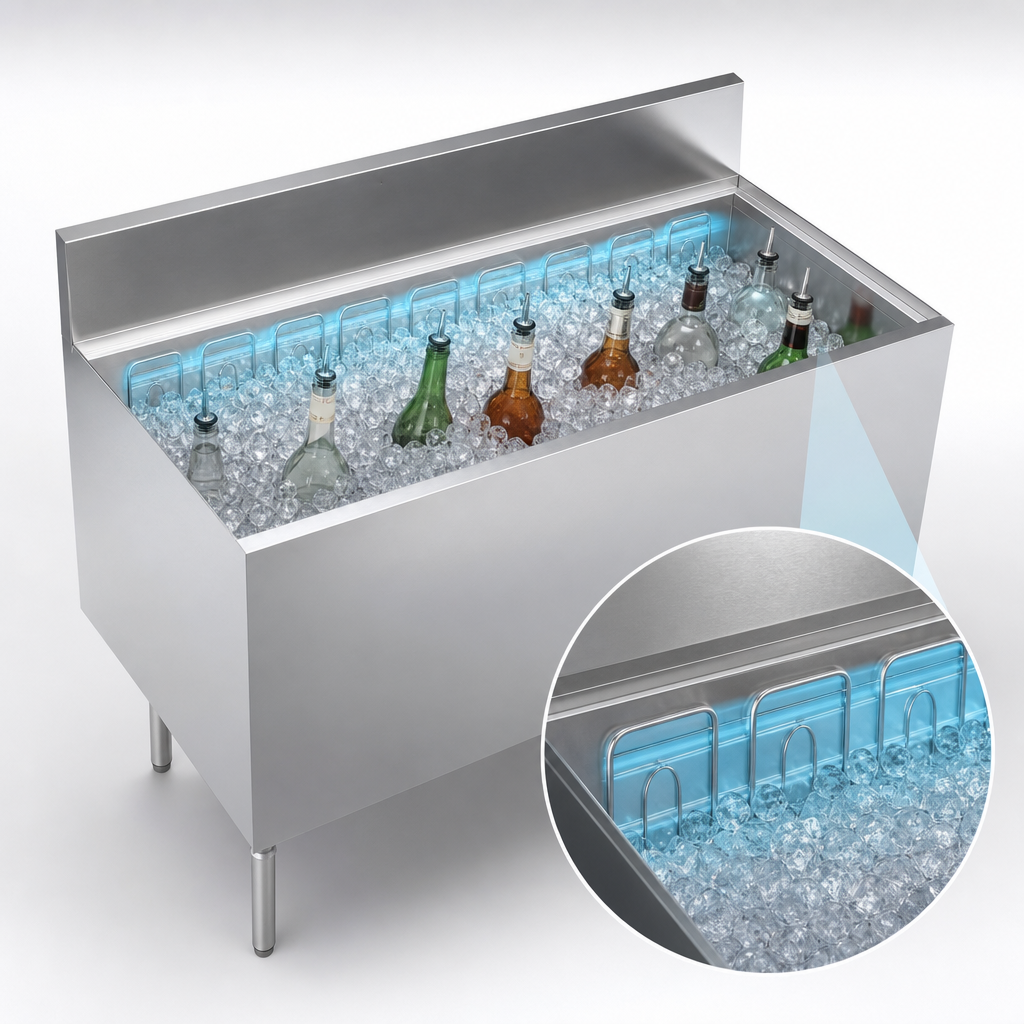

- Built-in 10-circuit stainless steel cold plate sealed into the bin floor

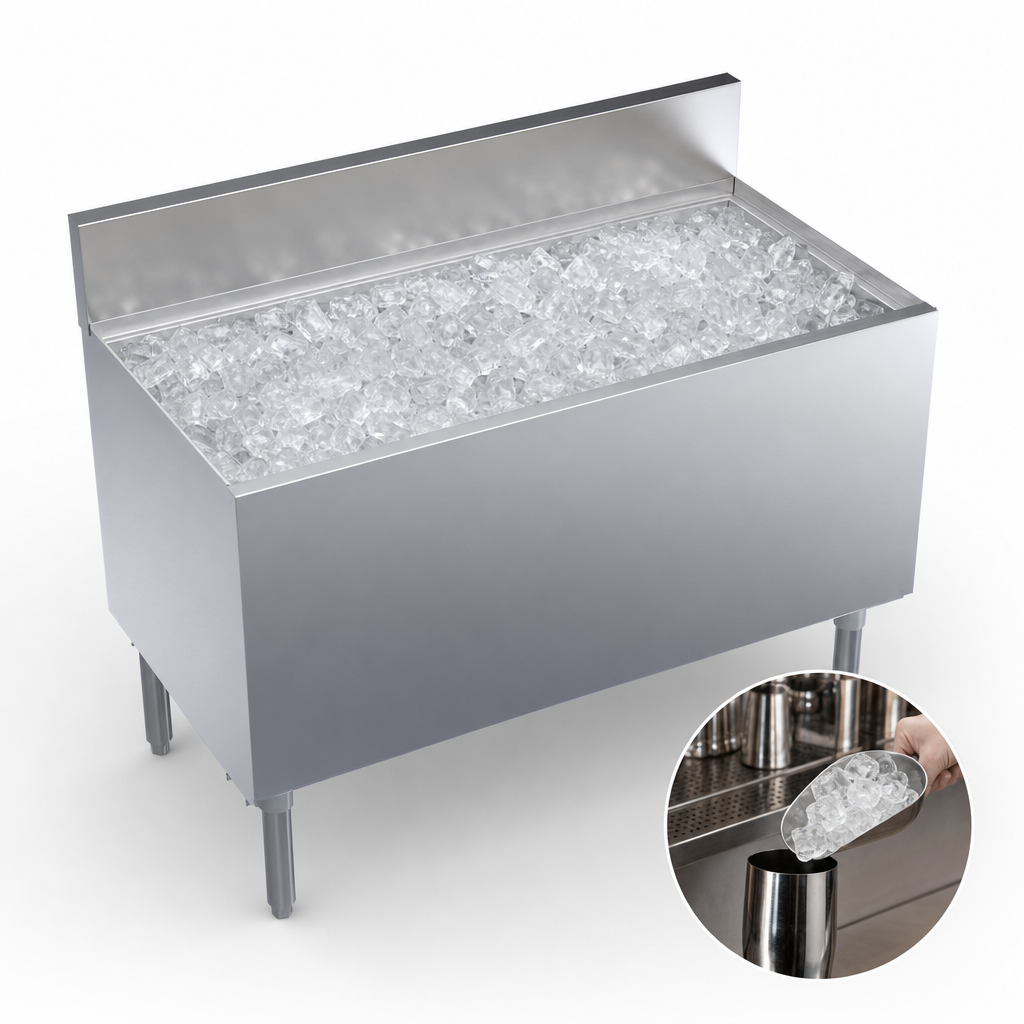

- Generous 42" W x 19" D footprint holds up to 170 lb of ice
- Extra-deep 15" stainless steel liner for longer ice life and fewer refills
- Foamed-in-place polyurethane insulation maximizes thermal efficiency
- 3/4" x 3-1/2" soda-line cut-out in left backsplash for hassle-free beverage gun hookups
- 1/2" drain with 6" PVC tailpiece (included) prevents condensation transfer
- Heavy-duty 20 ga stainless steel top, front & sides; galvanized back & bottom
- 1-5/8" O.D. 16 ga stainless steel legs with adjustable thermoplastic bullet feet
- NSF Listed for sanitation & public health code compliance
Specifications
| Overall dimensions | 42" W × 19" D × 36 1/2" H (to top of backsplash) |
|---|---|
| Liner depth | 15" (extra-deep) |
| Ice capacity | 170 lb |
| Cold-plate circuits | 10 (5/16" O.D. stainless steel tubing) |
| Drain connection | 1/2" IPS with 1/2" × 6" PVC tailpiece (1/2"-20 male) |
| Soda line access | 3/4" × 3-1/2" cut-out, left side of backsplash |
| Construction | 20 ga stainless steel top, front & sides; 20 ga galvanized back & bottom |
| Legs / feet | 1-5/8" 16 ga stainless tubing, adjustable grey thermoplastic bullet feet |
| Insulation | Foamed-in-place polyurethane |
| Shipping weight | ≈ 171 lb |
| Certifications | NSF |
Popular Accessories (sold separately)
- Stainless steel sliding ice covers (partial or full)
- Single or double speed rails – keep most-used bottles at arm’s reach
- Condiment trays & garnish stations (18", 24", 30", 36")
- End splashes to protect adjacent equipment from moisture
- 3- or 4-bottle plastic bottle wells for juice & mixers
- Cap catcher / opener, towel ring, faucet over ice bin and more
Need a different width, depth, or liner depth? Royal Series ice bins are available from 6" to 48" long and in 12" or 15" liner depths. Contact us for custom quotes.
