Krowne  |  Royal Series  |  SKU: KR19-42C  |  UPC: 822196881481

Krowne KR19-42C Royal Series Bar Equipment

$2,029.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

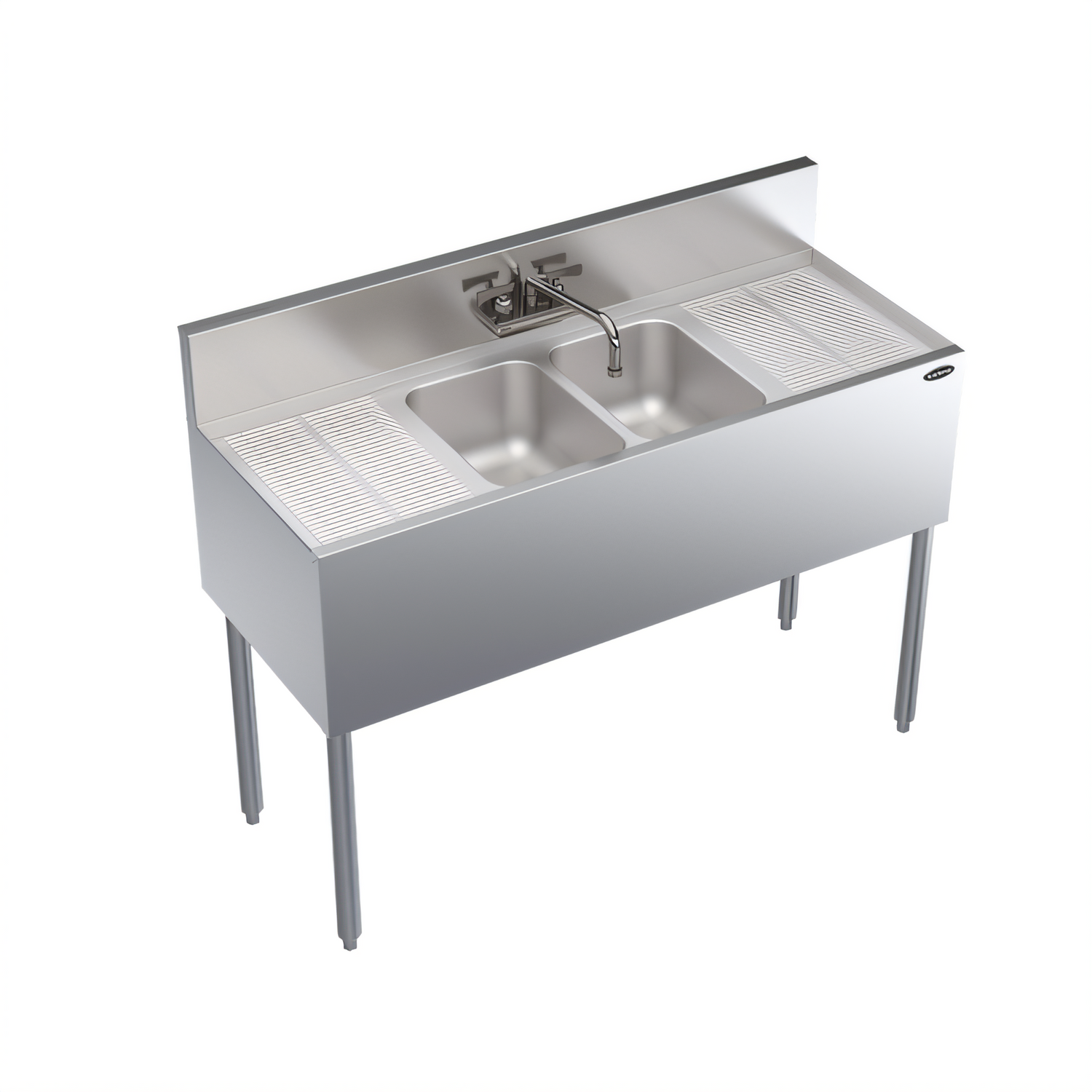

Krowne Royal Series 48" Two-Compartment Underbar Sink w/ Dual Drainboards

Model KR19-42C  |  NSF Listed

Engineered for high-volume beverage programs, this Royal Series sink combines rugged stainless-steel construction, generous dual drainboards and a splash-mount faucet to keep your bar line moving smoothly shift after shift.

Key Features

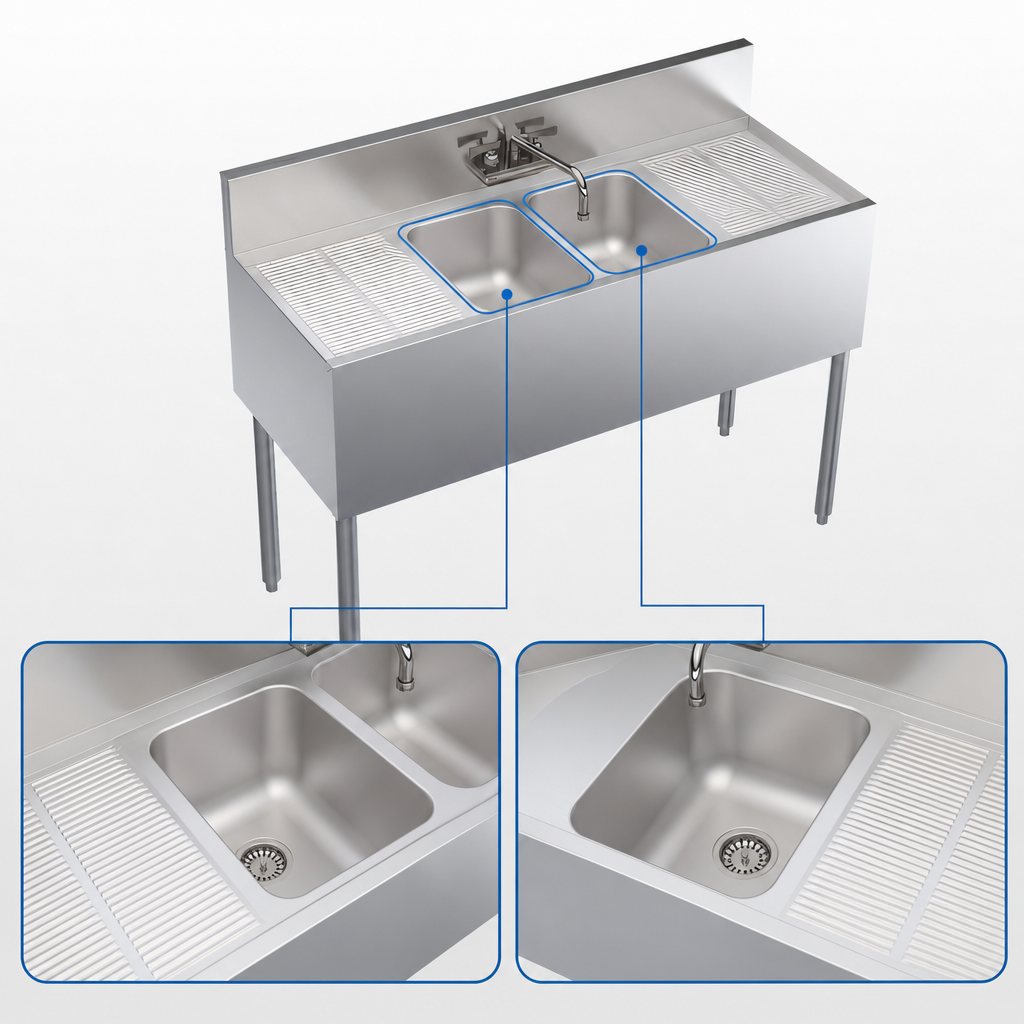

  • 48" wide underbar unit with two 10" × 14" × 10" deep compartments.

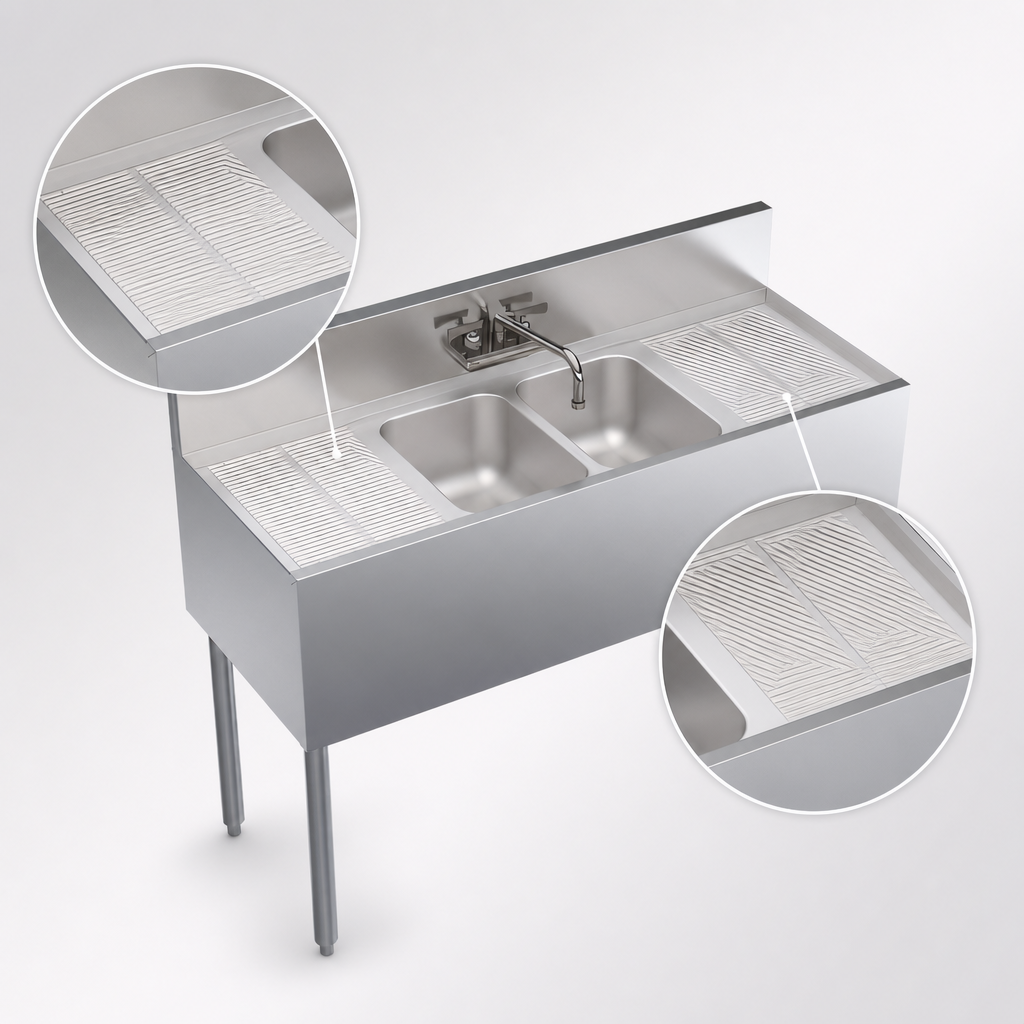

  • Embossed 12" drainboards on both the left and right accelerate glass drying and staging.
  • 20-gauge stainless-steel bowls and drainboards reinforced every 6" for outstanding durability.
  • Splash-mount Royal Series faucet (4" OC) with swing spout and ceramic cartridge valves.
  • (2) removable 7-1/2" overflow standpipes prevent accidental spills and double as basket strainers.
  • 20-gauge stainless-steel front & side aprons clad over galvanized steel for extra rigidity.
  • 1-5/8" OD, 16-gauge stainless-steel legs with adjustable thermoplastic bullet feet level the sink on uneven floors.
  • All-stainless top, bowls, drainboards, sides and backsplash for fast, hygienic wipe-downs.
  • NSF certified for food-contact safety and sanitation.
At-a-Glance Specs
Overall Width 48" (1219 mm)
Overall Depth 19" (483 mm)
Bowl Size (each) 10" W × 14" F/B × 10" D
Drainboard Size 12" left & 12" right
Height to Deck 36 1/2" (adjustable)
Backsplash Height 6 7/16"
Drains 1-1/2" IPS rear corner (w/ standpipes)
Water Inlets 1/2" IPS hot & cold
Approx. Weight 55 lbs
Construction 20-ga. stainless top, bowls, boards, sides & backsplash; galvanized back & bottom
Legs / Feet 1-5/8" OD 16-ga. stainless legs, adjustable thermoplastic bullet feet
Included Faucet Splash-mount swing spout, 4" centers, ceramic valves
Certifications NSF
Looking for a different size or bowl configuration? The Krowne Royal Series offers multiple models—contact us for more information.
Installation Note: All plumbing connections must be completed by qualified personnel in accordance with local codes.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

19.0in

Shipping Weight

105.0lbs

Construction

stainless steel top, front, ends & legs

Splash

6"

Bowl Size

10" x 14" front-to-back

Sink Compartments

(2)

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Width (side - side) OA

43" - 48"

Drainboards

drainboards on left & right

Specifications

Royal Series Underbar Sink Unit, two compartment, 48"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed drainboards on left & right, splash mount Royal Series faucet with swing spout, apron on front & sides, (2) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
