Krowne KR19-42-10 Royal Series Bar Equipment
$3,014.55
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Krowne KR19-42-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR19-42-10 Royal Series Bar Equipment
$3,014.55
Unit price
/
Unavailable
Description

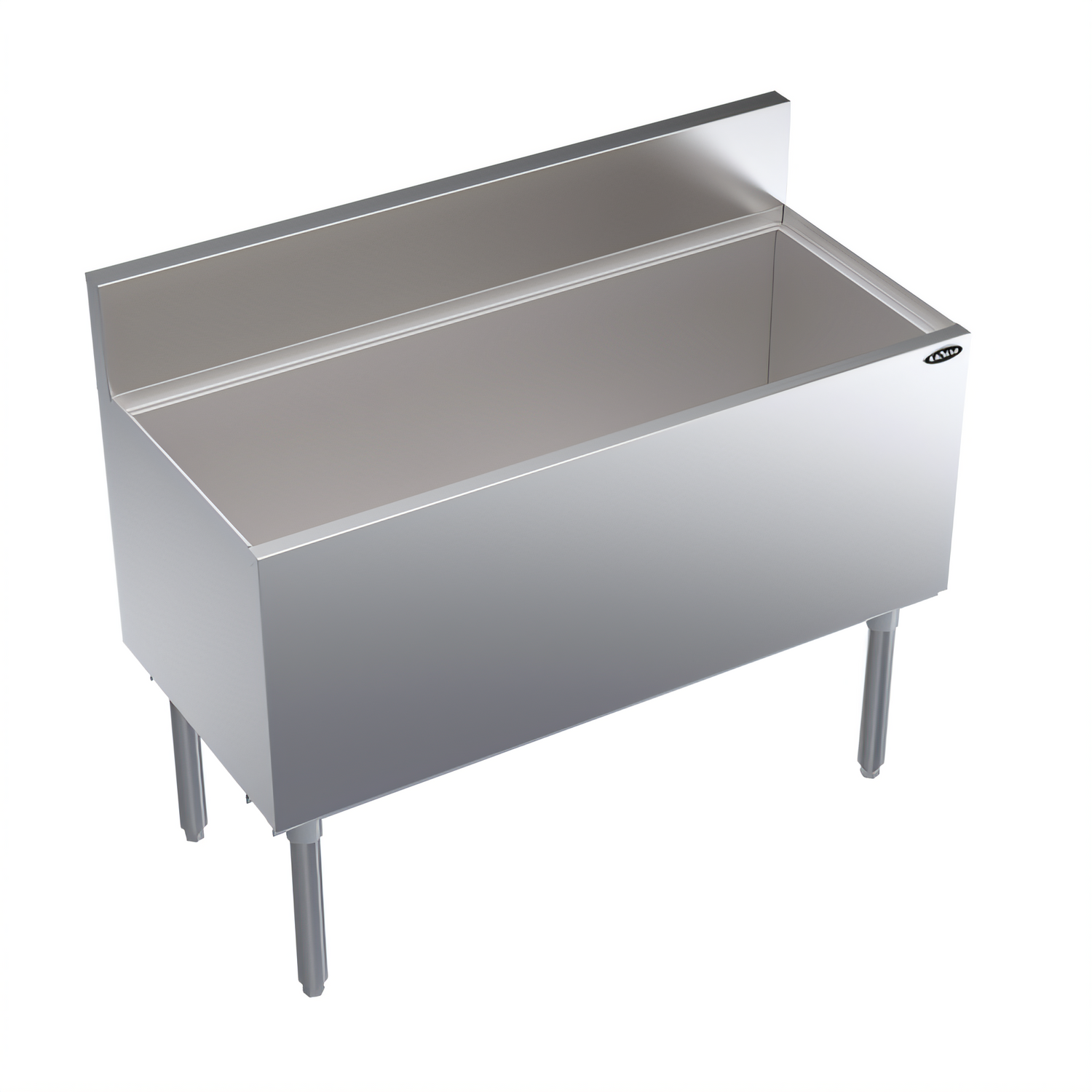

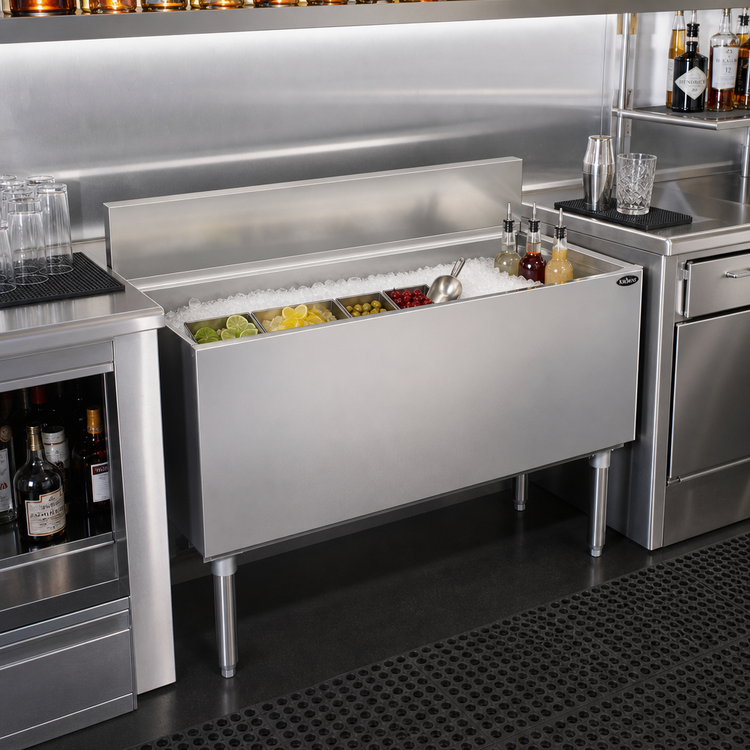

Krowne Royal Series 42" Underbar Ice Bin with 10-Circuit Cold Plate
Model KR19-42-10 | 129 lb Ice Capacity | NSF ListedEngineered for high-volume bars and cocktail programs, the KR19-42-10 packs a generous 129-pound ice bin, an integrated 10-circuit post-mix cold plate and rugged stainless-steel construction into a space-saving 42" x 19" footprint. Keep every drink perfectly chilled while maximizing efficiency behind the bar.
Key Features

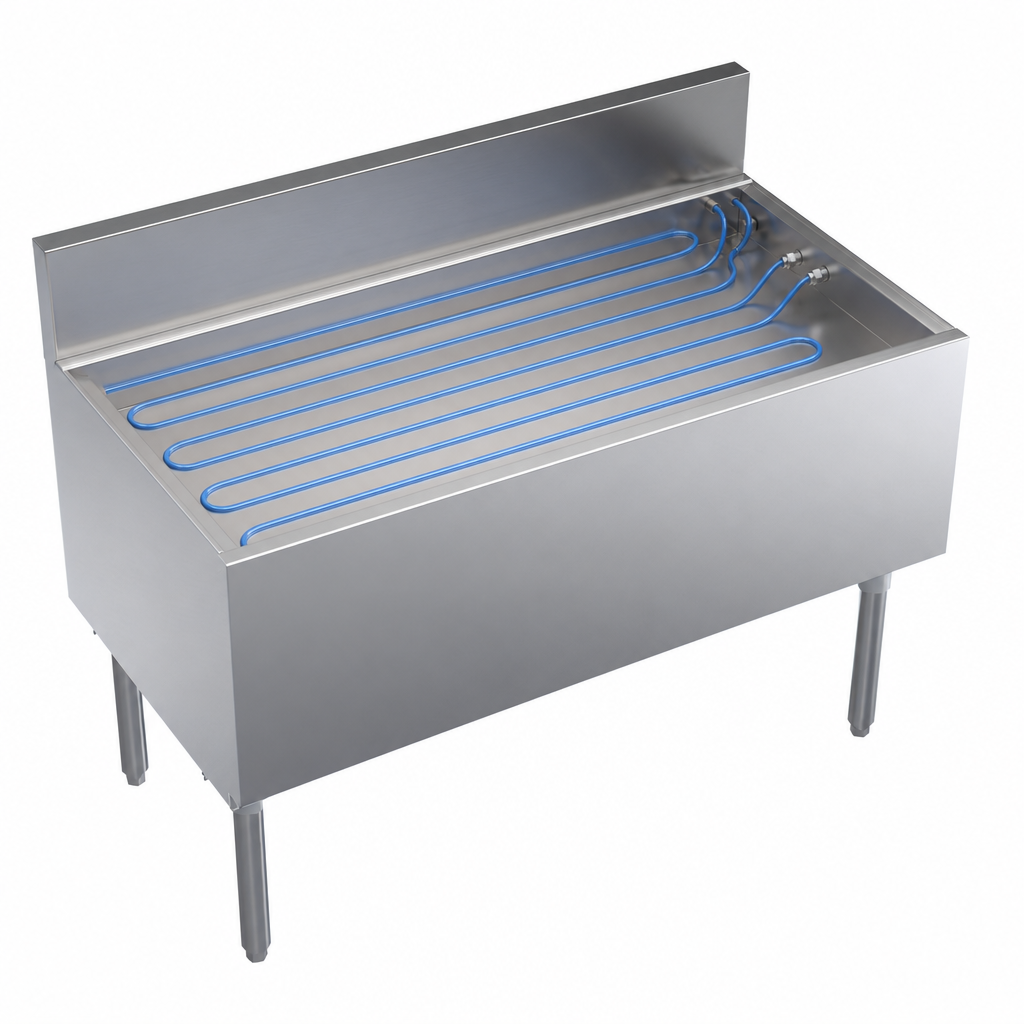

- Built-in 10-circuit cold plate chills soda lines for consistent dispense temperature.

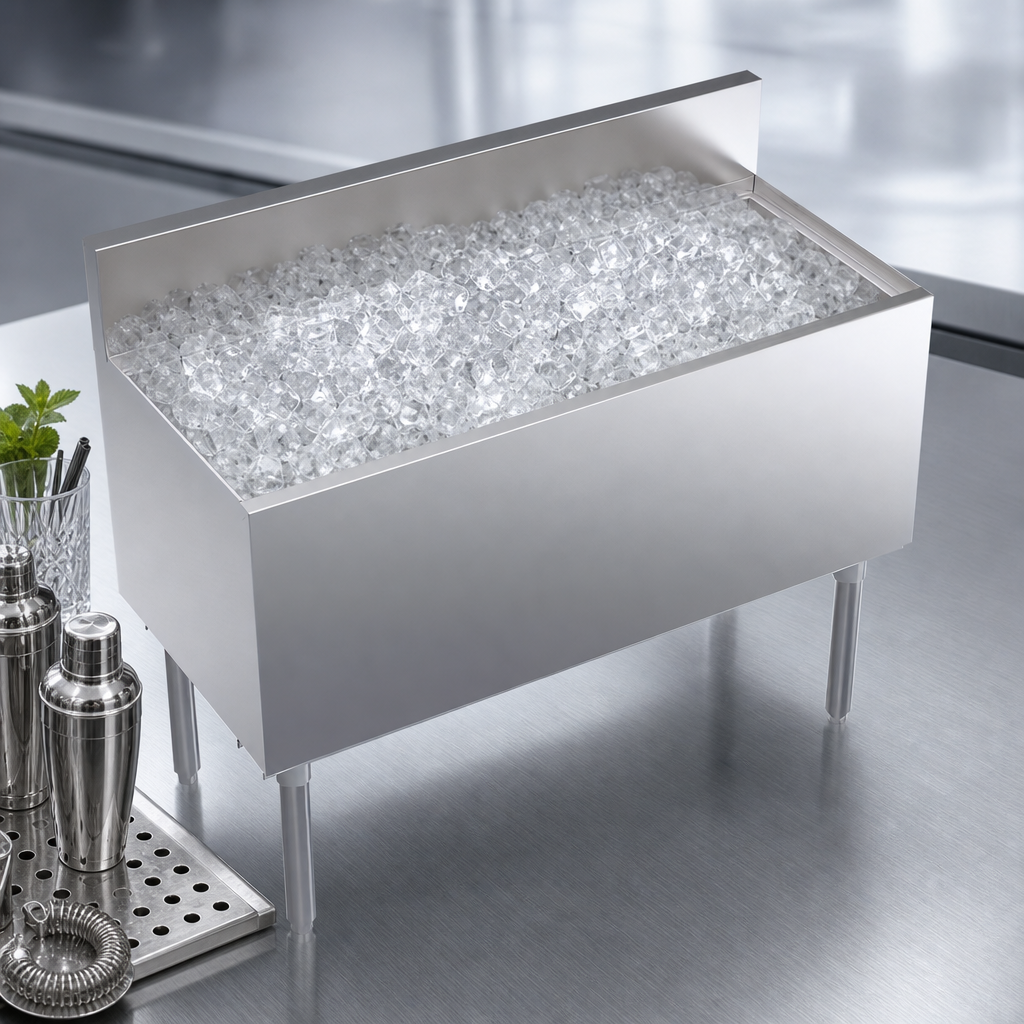

- Large 129 lb ice capacity supports peak-hour demand.
- 12" deep foamed-in-place stainless steel liner for superior insulation & corrosion resistance.
- 3/4" x 3-1/2" soda-line cut-out in backsplash for clutter-free hose routing.
- 1/2" IPS drain with included 6" PVC tailpiece prevents metal-to-metal condensation.
- 20-ga stainless steel top, front & sides; galvanized back & bottom for balanced durability and value.
- 1-5/8" O.D., 16-ga stainless legs with adjustable thermoplastic bullet feet for fast, accurate leveling.
- NSF certified for safe, sanitary operation.
Specifications
| Model | KR19-42-10 |
|---|---|
| Overall Width | 42" (1067 mm) |
| Overall Depth | 19" (483 mm) |
| Overall Height | 36 1/2" (927 mm) to work surface |
| Ice Capacity | 129 lb (58 kg) |
| Bin Liner Dimensions | 15" x 40" x 12" deep |
| Cold Plate | Integrated 10-circuit post-mix; 5/16" O.D. stainless tubing, sealed into bin bottom |
| Soda Line Access | 3/4" x 3-1/2" cut-out (left backsplash) |
| Drain | 1/2" IPS with 6" PVC tailpiece (included) |
| Construction | 20-ga stainless steel interior/top/front/sides; 20-ga galvanized back & bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs & Feet | 1-5/8" 16-ga stainless tube legs, adjustable thermoplastic bullet feet |
| Certifications | NSF |
| Shipping Weight | 162 lb (74 kg) |
Popular Accessories (sold separately)
- Sliding ice bin covers (full or partial)
- Single & double speed rails
- Bottle wells (3- or 4-bottle configurations)
- Garnish stations with sliding cover
- Side splashes, stainless dividers & condiment trays
- Faucet kit for over-ice-bin rinsing
Cold Plate Note: Health codes often require a built-in cold plate when using a soda system. Because the plate is permanently sealed into the ice bin, it cannot be added later—verify compliance before ordering.
Krowne Metal Corporation • 100 Haul Rd., Wayne, NJ 07470 • krowne.com
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
42.0in
Depth
19.0in
Shipping Weight
162.0lbs
Cold Plate
(10) circuit
Bin Depth
12" deep ice bin
Width (side - side) OA
37" - 42"
Ice Capacity
100 - 149 lbs.
Splash
6"
Construction
stainless steel & galvanized
Depth (front - back) OA
18" - 19"
Specifications
Royal Series Underbar Ice Bin/Cocktail Unit, built-in 10-circuit cold plate, 42"W x 19"D O.A., 129-lbs ice capacity, 12" deep stainless steel bin liner, 3/4" x 3-1/2” Soda Line cut out in backsplash, 1/2" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
