Krowne KR19-36DP Royal Series Bar Equipment
Description

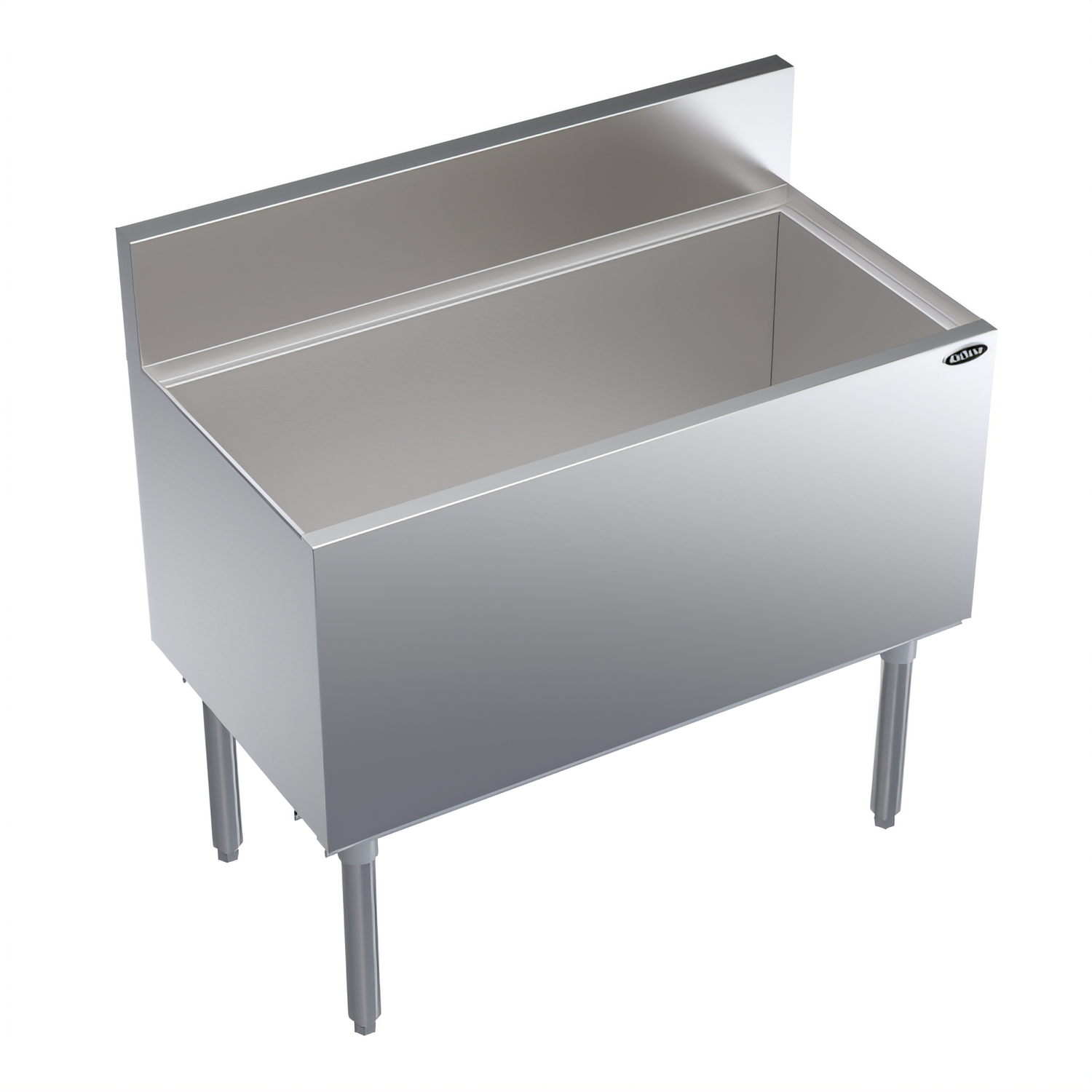

Krowne Royal Series 36" Underbar Ice Bin / Cocktail Station
Model KR19-36DP | 19" Depth • 15" Deep LinerKeep the cocktails coming with Krowne’s best-selling Royal Series ice bin. At just 19" front-to-back, this 36" wide unit tucks neatly into tight bar lines while storing up to 146 lb of ice—perfect for high-volume operations that refuse to compromise on capacity or durability.
Why You’ll Love It

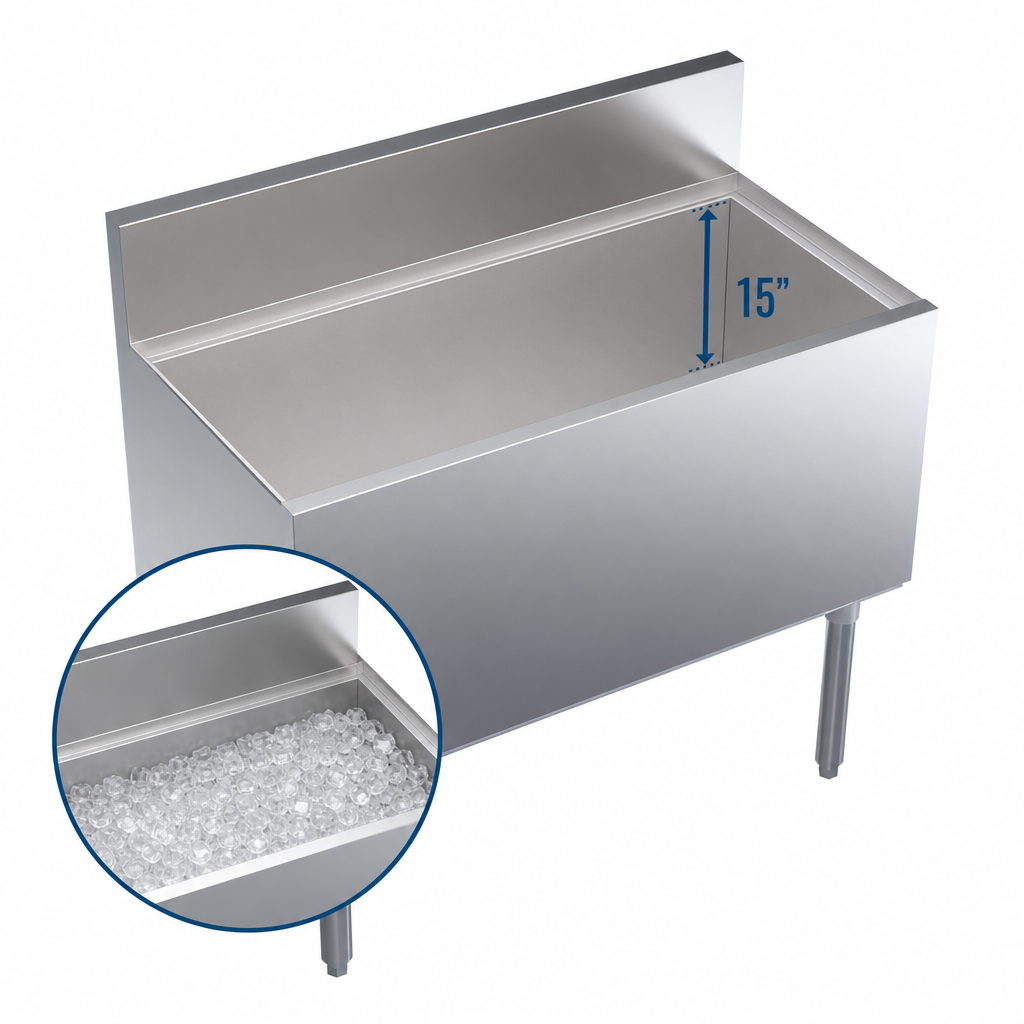

- 15" deep, 20-gauge stainless steel liner maximises ice capacity and longevity.
- Foamed-in-place polyurethane insulation reduces melt and saves on ice costs.
- 1" IPS drain with 6" PVC tailpiece included for fast, condensation-free installation.
- Heavy-duty stainless steel top, apron and sides; galvanised back & bottom for extra corrosion resistance.
- 1-5/8" Ø, 16-gauge stainless steel legs with adjustable thermoplastic bullet feet for rock-solid stability.
- Field-ready for optional cold plate, speed rails, bottle wells, garnish stations and sliding covers.
- NSF certified and built in the USA to the exacting standards of the Royal Series.
Technical Specifications
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth (front-to-back) | 19" (483 mm) |
| Working Height | 30" (adjustable with bullet feet) |

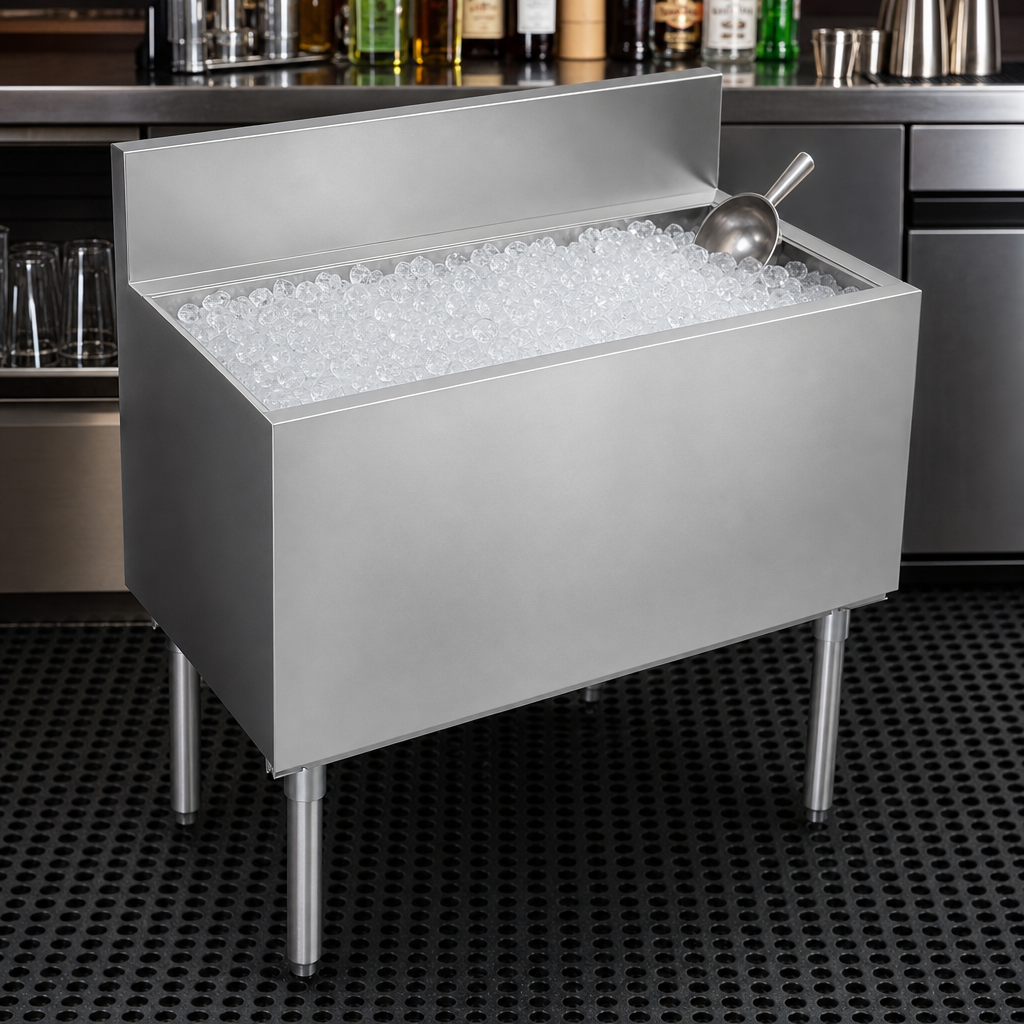

| Ice Capacity | 146 lb (66 kg) |
| Bin Interior (L × W × H) | 34" × 15" × 15" |
| Drain Connection | 1" IPS (PVC tailpiece supplied) |
| Construction – Exterior | 20-ga. stainless steel top, front, sides; 20-ga. galvanised back & bottom |
| Legs / Feet | 1-5/8" Ø, 16-ga. stainless legs • grey thermoplastic bullet feet |
| Net Weight | ≈ 95 lb (43 kg) |
| Certifications | NSF |
Popular Accessories (Sold Separately)
- Single or Double Speed Rails (RS- / RD- series)
- Partial or Full Sliding Ice Bin Covers – 19" depth (SCxxH / SCxxF)
- 10-Circuit Cold Plate model (KR19-36-10) for post-mix soda systems
- Condiment Trays, Garnish Stations & Bottle Wells (KR-101 • KR-519 • 30-550, etc.)
- Left / Right End Splashes to keep adjacent equipment dry (KR-310 / KR-311)
Specifications are subject to change without notice. Always verify rough-in dimensions before fabrication or installation.
