Krowne KR19-36DP-10 Royal Series Bar Equipment
Description

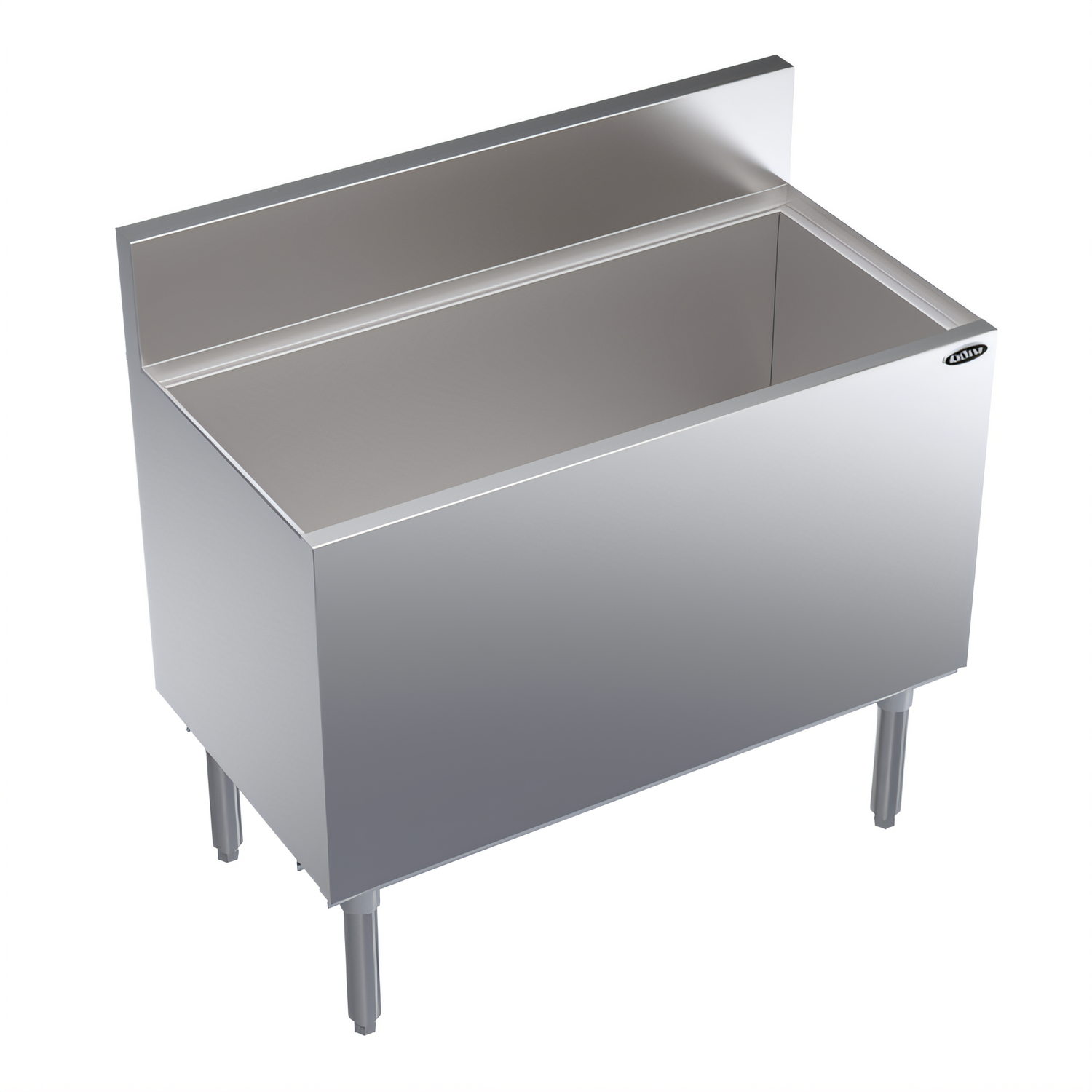

Krowne Royal Series 36" Underbar Ice Bin + 10-Circuit Cold Plate
Model KR19-36DP-10 • 19" Depth • NSF ListedEngineered for high-volume beverage programs, this Royal Series ice bin/cocktail station combines a generous 146 lb ice capacity with a factory-sealed 10-circuit post-mix cold plate—chilling every pour before it reaches the glass. Built entirely from heavy-duty stainless steel and insulated with foamed-in-place polyurethane, it delivers exceptional durability, sanitation and thermal performance in the busiest bars.
Why You’ll Love It

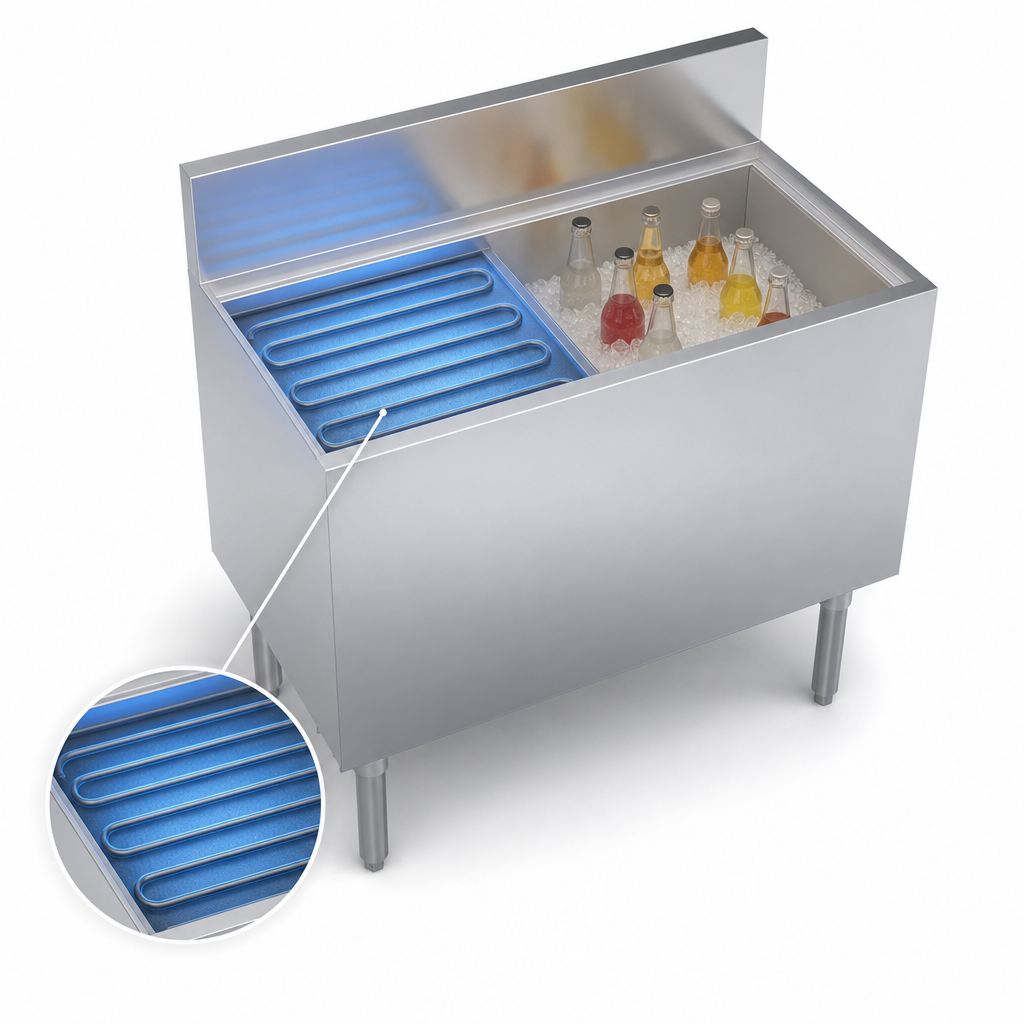

- High-performance cold plate – 10 stainless-steel circuits (5/16" OD) factory sealed into the bin floor for instant soda pre-chill; includes ½" × 6" PVC tailpiece.

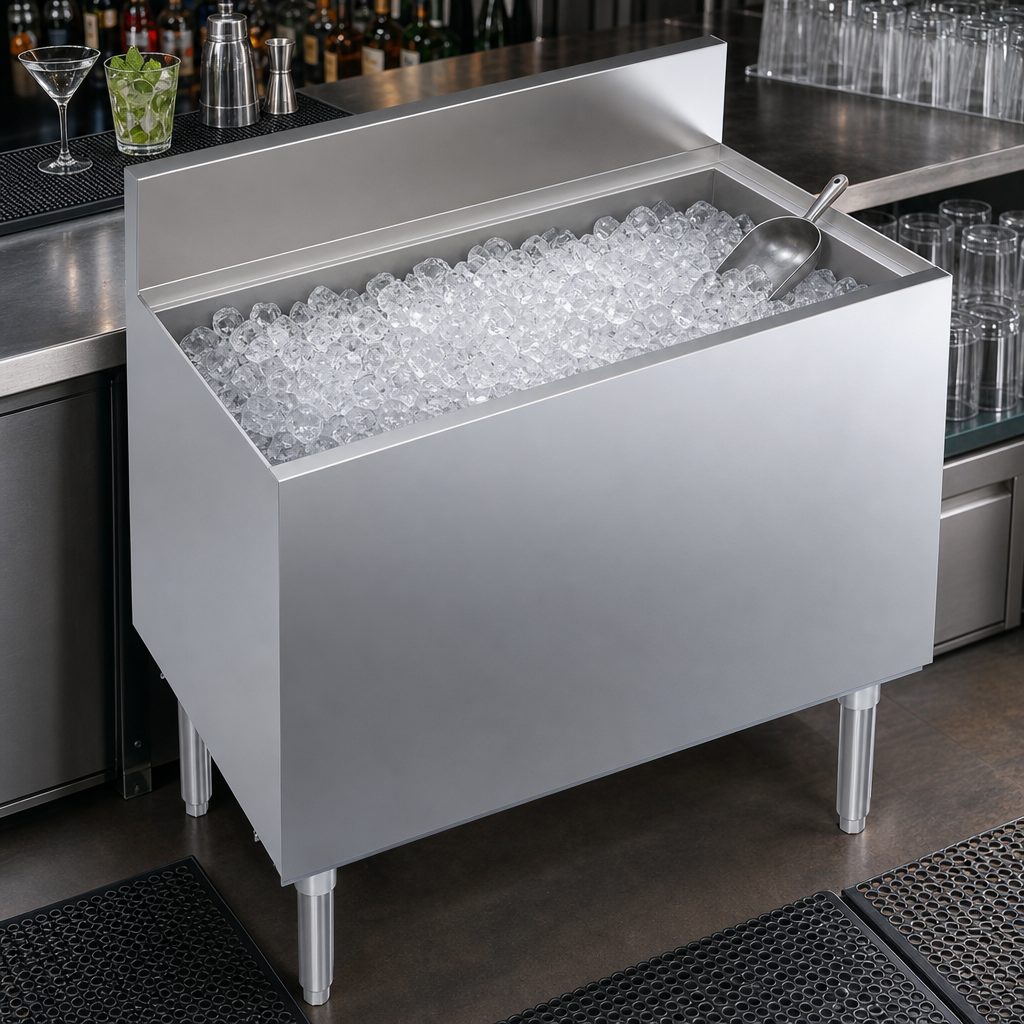

- Big ice capacity – 15" deep liner holds up to 146 lb of ice, perfect for craft cocktails and high-volumes.
- All-stainless working surfaces – 20 ga. top, front, sides & liner for lasting corrosion resistance and easy cleanup.
- Service-ready backsplash – ¾" × 3-½" soda-line access cut-out keeps tubing neat and protected.
- Rock-solid frame – 1-⅝" Ø, 16 ga. stainless legs with adjustable thermoplastic bullet feet level quickly on uneven floors.
- Galvanized back & bottom panels reduce cost without sacrificing strength in non-visible areas.
- NSF listed and fully foamed-in-place for superior ice retention and sanitation.
At-a-Glance Specs
| Model No. | KR19-36DP-10 |
|---|---|
| Series | Royal Series Underbar |
| Overall Dimensions | 36" W × 19" D × 36 ½" H (to work surface) |
| Ice Capacity | 146 lb |
| Liner Depth | 15" |
| Cold Plate | 10 circuits, 5/16" OD stainless tubing, post-mix |
| Drain | ½" PVC tailpiece (½"-20 male) supplied |
| Soda Line Access | ¾" × 3-½" cut-out in left backsplash |
| Construction |
20 ga. stainless liner, top, front & sides 20 ga. galvanized back & bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 1-⅝" 16 ga. stainless legs with adjustable thermoplastic bullet feet |
| Ship Weight | ≈ 162 lb |
| Certifications | NSF |
Popular Add-Ons (Sold Separately)
- Sliding ice bin cover (partial or full) – Models SC36H / SC36F
- Single or double speed rails – RS-36 / RD-36 for bottle storage
- End splashes – KR-310 (right) • KR-311 (left) • KR-313 (pair)
- 4-bottle plastic bottle well – KR-409
- 18" garnish station with sliding cover – KR-519
- Cap catcher & opener – KR-401
Need something custom? Krowne offers divider kits, faucets over ice bins, towel rings and more to tailor the station to your workflow.
