Krowne KR19-36-10 Royal Series Bar Equipment
Description

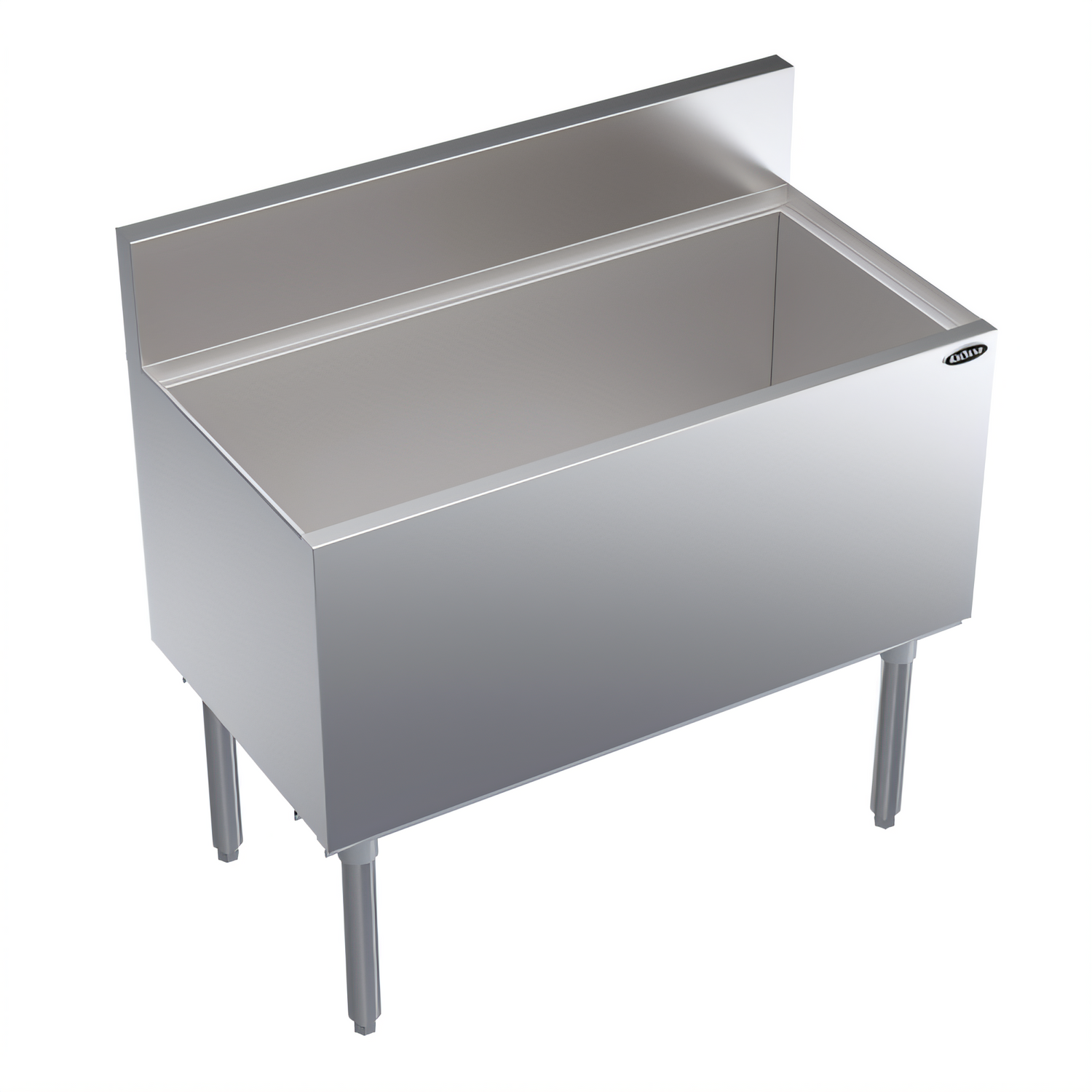

Krowne Royal Series 36" Underbar Ice Bin with 10-Circuit Cold Plate
Model KR19-36-10 • 19" Front-to-Back • 110 lb Ice Capacity • NSF ListedDesigned for speed, sanitation, and rock-solid durability, the Royal Series Ice Bin/Cocktail Unit lets bartenders work faster and pour colder drinks. The built-in 10-circuit cold plate chills soda lines directly in the ice bed, delivering frosty beverages without wasting valuable keg or walk-in space. Pair its generous 110 lb ice capacity with premium stainless-steel construction and you have a workhorse that thrives in the busiest bars, restaurants, and event venues.
Why You’ll Love It
- 36" wide footprint fits seamlessly into standard underbar layouts.

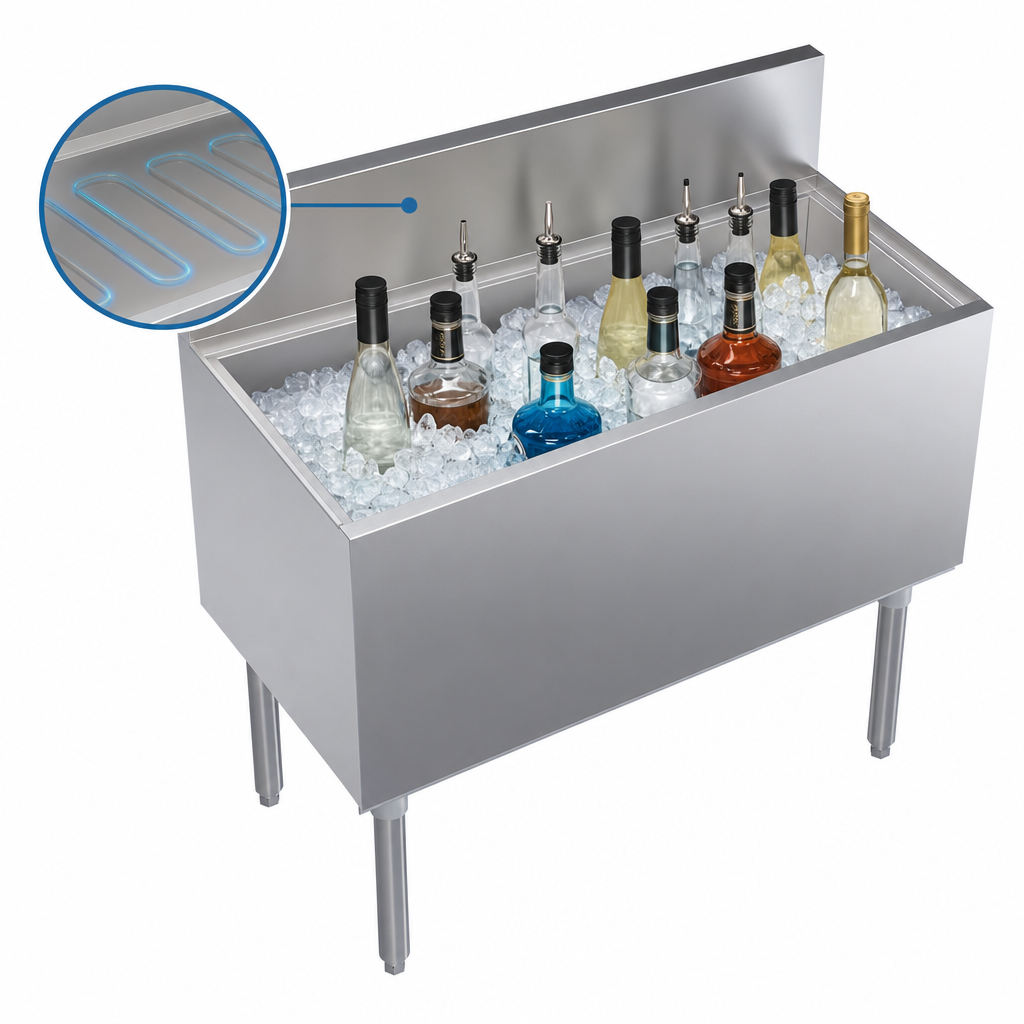

- Integrated 10-circuit post-mix cold plate – each circuit is 5/16" OD stainless-steel tubing, factory-sealed for life-long performance.

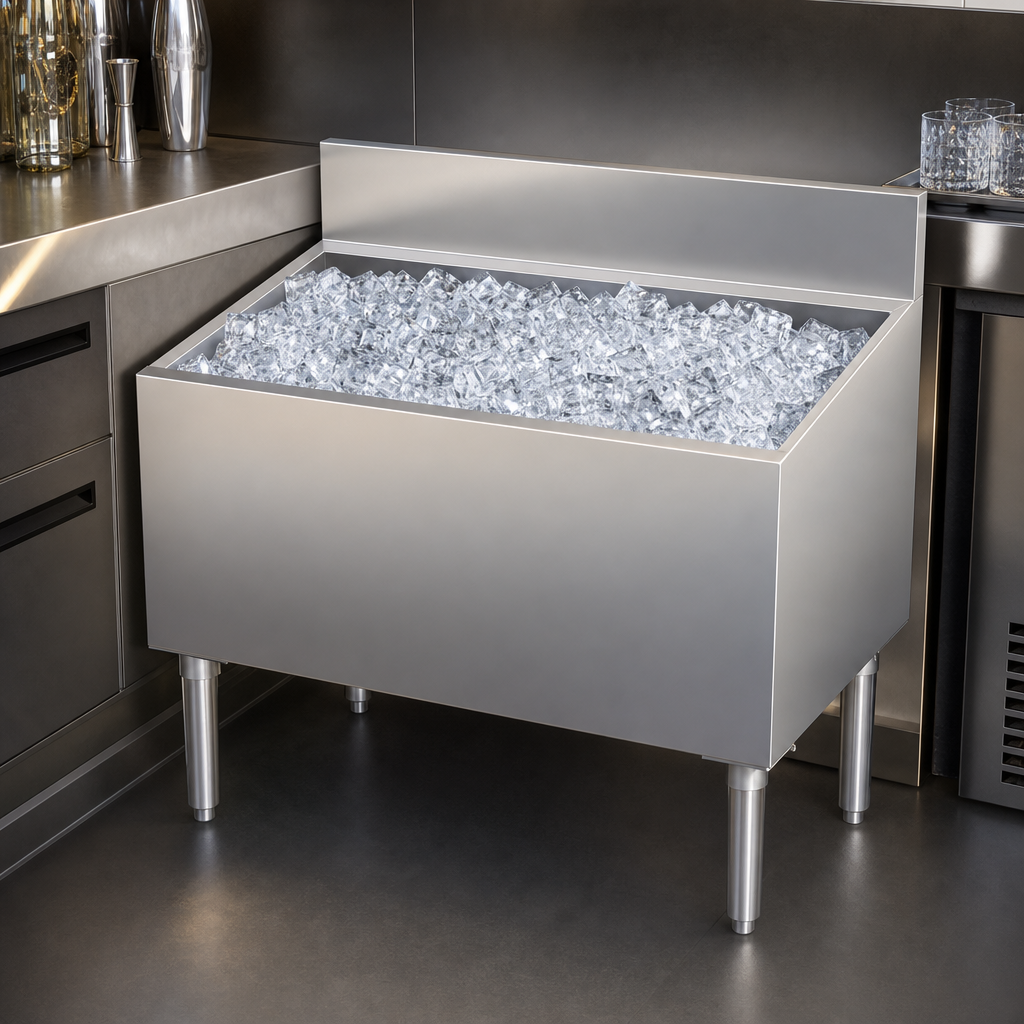

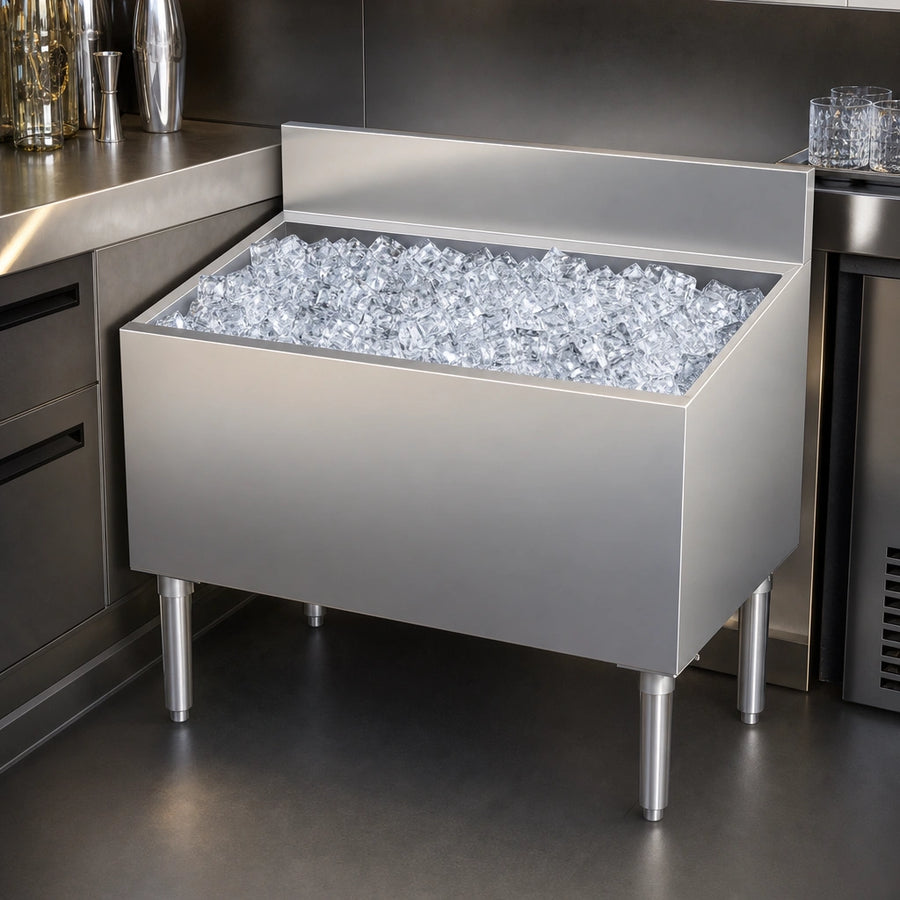

- 110 lb ice capacity keeps service flowing through peak rushes.
- 12" deep, one-piece 20 ga stainless-steel liner is fully foamed-in-place for maximum thermal efficiency.
- 3/4" × 3-1/2" soda-line access cut-out in backsplash for quick, tidy hose routing.
- 1/2" × 6" PVC tailpiece drain (¹⁄₂"-20 male threaded) supplied – eliminates condensation transfer.
- Heavy-duty 1-5/8" Ø, 16 ga stainless-steel legs with adjustable grey thermoplastic bullet feet.
- All exposed surfaces (top, front, and sides) are 20 ga stainless steel; back and bottom are galvanized for corrosion resistance where you need it most.
- NSF approved for effortless code compliance.
At-a-Glance Specs
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Liner Depth | 12" (305 mm) |
| Ice Capacity | 110 lb (50 kg) |
| Cold Plate | Built-in, 10 stainless-steel circuits |
| Soda Line Access | 3/4" × 3-1/2" cut-out, left side of backsplash |
| Drain | 1/2" × 6" PVC tailpiece, ¹⁄₂"-20 male thread |
| Insulation | Foamed-in-place polyurethane |
| Construction | 20 ga stainless-steel interior, top, front & sides; 20 ga galvanized back & bottom |
| Legs/Feet | 1-5/8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet |
| Certification | NSF |
Optional Add-Ons (Sold Separately)
- Stainless-steel speed rails (single or double) to keep favorite bottles within arm’s reach.
- Sliding ice-bin covers for sanitary overnight storage.
- Plastic or stainless garnish stations and bottle wells for organized cocktail prep.
- End splashes to protect adjacent equipment and walls from moisture.
- Cap catcher with opener, towel ring, and other bartender-preferred accessories.
Need a different size, liner depth, or accessory package? Explore the complete Krowne Royal Series or chat with our team for a tailored underbar layout.
