Description

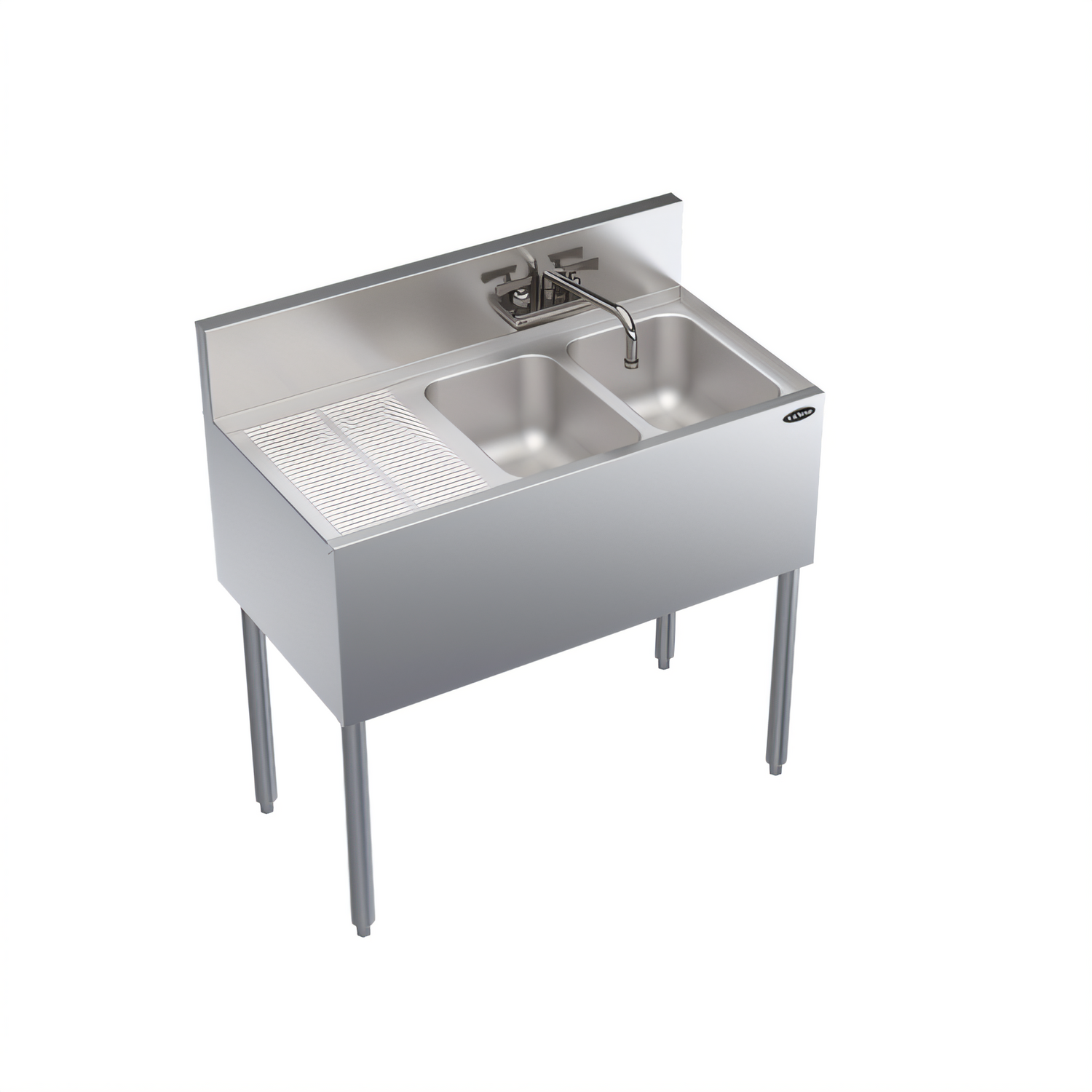

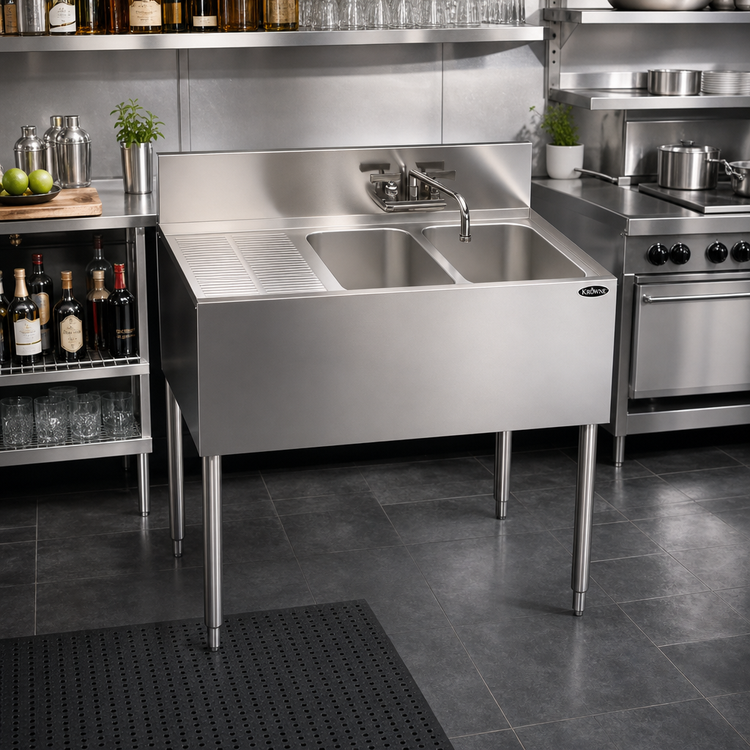

Krowne Royal Series Two-Compartment Underbar Sink – 36"W (Left Drainboard)

Model KR19-32L | NSF Certified

Built for the busiest bars and beverage stations, the Krowne Royal Series KR19-32L combines rugged stainless-steel construction with workflow-boosting details—twin 10"-deep bowls, an embossed 12" left drainboard and a splash-mount faucet are all standard. Arrives ready to plumb so you can keep the drinks (and profits) flowing.

Why You’ll Love It

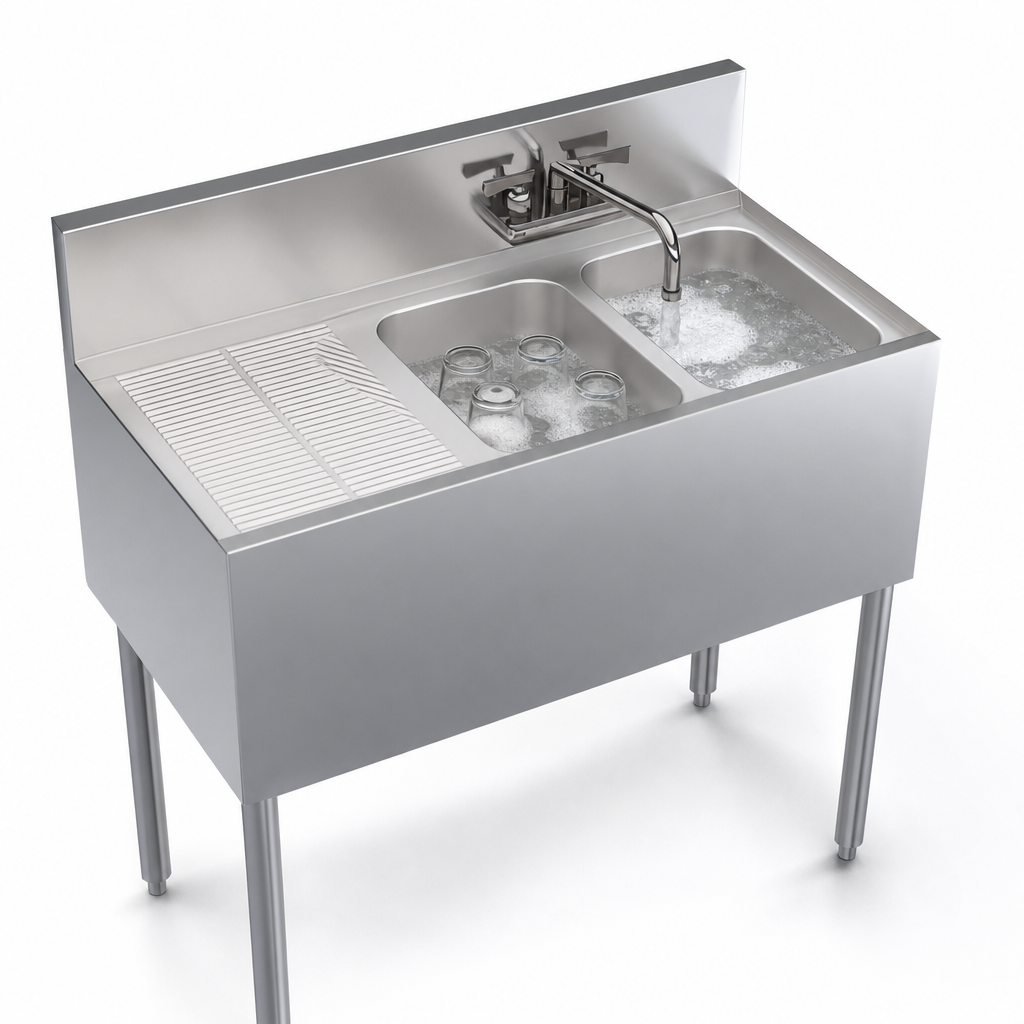

  • Two 10" × 14" × 10" deep compartments handle glassware and prep with ease.

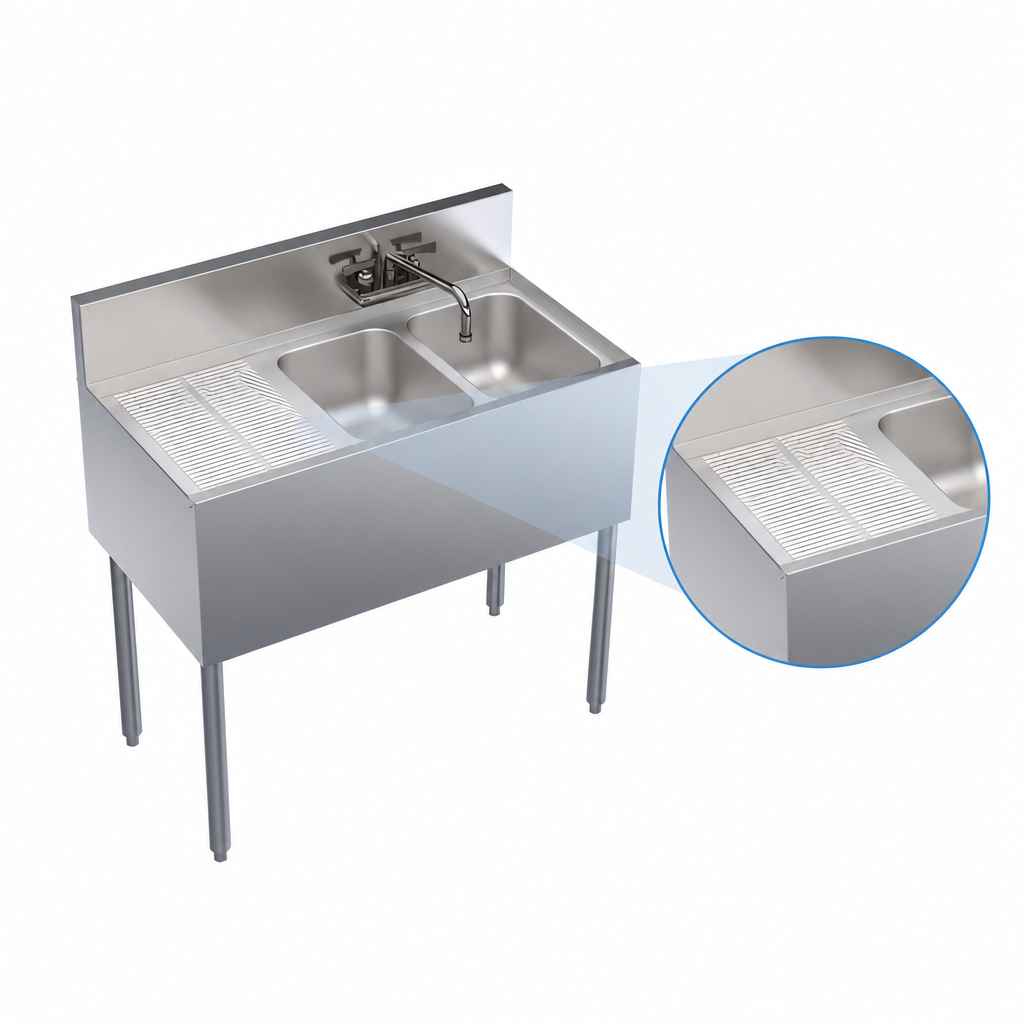

  • 12" integral left-side drainboard with embossed ribs speeds drying and keeps counters clear.
  • Splash-mount Royal Series faucet with 4" centers & swing spout – low-lead compliant.
  • (2) removable overflow standpipes prevent messy spillovers during peak service.
  • All-stainless top, sides, apron and 20-ga bowls resist corrosion and sanitize fast.
  • 1-5/8" Ø, 16-ga stainless legs with adjustable thermoplastic bullet feet level on uneven floors.
  • 1-1/2" rear-corner drains are pre-punched for quick hook-up.
  • NSF listed for open foodservice installation confidence.

What’s in the Box

  • KR19-32L sink body (fully welded)
  • Royal Series splash-mount faucet with ceramic cartridges
  • (2) 7-1/2" overflow standpipes
  • (2) 1-1/2" IPS basket drains

At-a-Glance Specs

Overall Width 36" (914 mm)
Overall Depth (Front → Back) 19" (483 mm)
Working Height 36 1⁄2" (927 mm) to deck
Compartment Size (WxF-B × Depth) 10" × 14" × 10"
Drainboard Size 12" (left side, integral & embossed)
Drain Connection 1-1/2" IPS rear-corner (each bowl)
Water Inlet 1/2" IPS hot & cold, 4" OC
Material 20-ga 300-series stainless steel (bowls, top, sides, apron)
Legs / Feet 16-ga 1-5/8" Ø stainless with adjustable thermoplastic bullet feet
Shipping Weight ≈ 53 lb (24 kg)
Certifications NSF listed, Low-Lead compliant
Installation Required: Plumbing connections must be performed by qualified personnel in accordance with all applicable codes.

Need another configuration? Search our full Royal Series line for additional drainboard positions, widths and depths.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

36.0in

Depth

19.0in

Shipping Weight

80.0lbs

Drainboards

drainboard on left

Bowl Size

10" x 14" front-to-back

Sink Compartments

(2)

Construction

stainless steel top, front, ends & legs

Splash

6"

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Width (side - side) OA

31" - 36"

Specifications

Royal Series Underbar Sink Unit, two compartment, 36"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboard on left, apron on front & sides, splash mount Royal Series faucet with swing spout (low lead compliant), (2) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
