Krowne KR19-30DP Royal Series Bar Equipment
$1,522.95
Unit price
/
Unavailable
Description

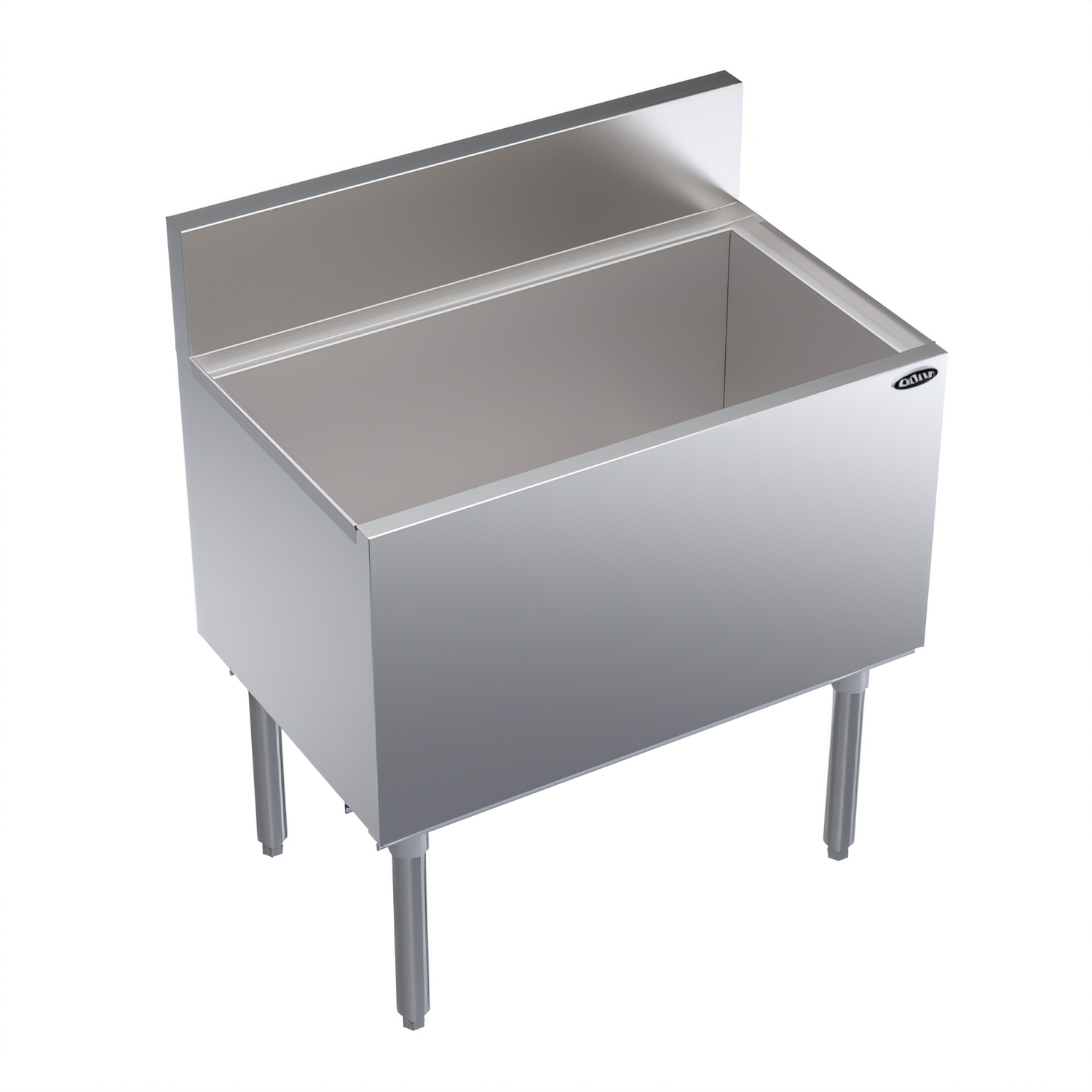

Krowne Royal Series 30" Underbar Ice Bin / Cocktail Unit

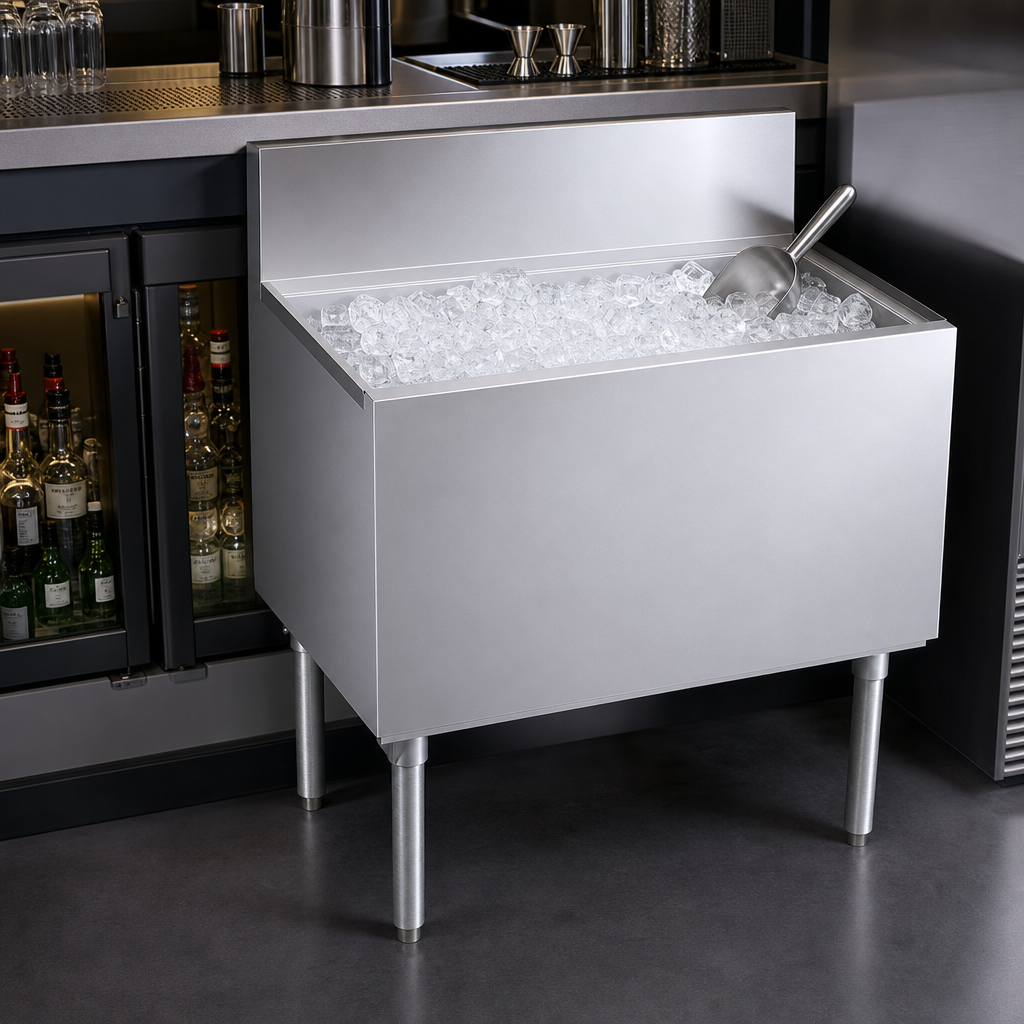

Model KR19-30DP • 122 lb Ice Capacity • 19" DepthDesigned for busy bar programs that can’t afford to run out of ice, this Royal Series ice bin packs a generous 122 lb capacity into a slim 19" front-to-back footprint—perfect for tight service aisles and cocktail stations.
Key Features

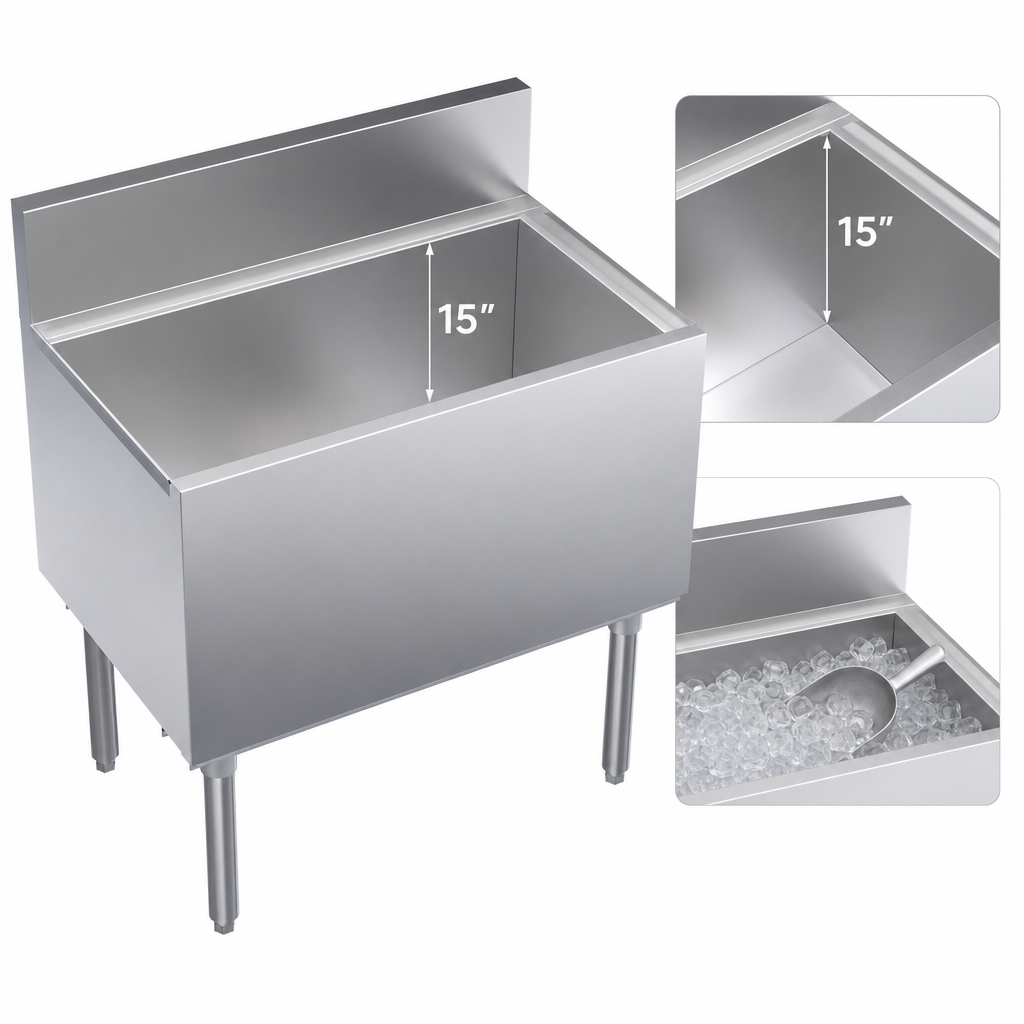

- Extra-deep 15" stainless steel liner chills ice longer for peak-hour service.
- Foamed-in-place polyurethane insulation prevents sweating and maximizes ice retention.
- Heavy-duty 20 ga stainless steel top, front and sides for superior corrosion resistance.
- Galvanized steel back & bottom provide strength where it counts without added cost.
- 1" IPS center drain allows fast, clog-free melt-water removal.
- 1-5/8" Ø, 16 ga stainless steel legs with adjustable thermoplastic bullet feet for easy leveling.
- NSF listed—meets strict sanitation and safety standards.
Technical Specifications
| Overall Width | 30" (762 mm) |
|---|---|
| Front-to-Back Depth | 19" (483 mm) |
| Working Height | 30" (762 mm) |
| Liner Dimensions (W × L × D) | 15" × 28" × 15" |
| Ice Capacity | 122 lb (55 kg) |
| Drain Size / Location | 1" IPS, center outlet |
| Interior Construction | 20 ga stainless steel |
| Back & Bottom | 20 ga galvanized steel |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 16 ga stainless steel legs | adjustable thermoplastic bullet feet |
| Shipping Weight | ≈ 86 lb (39 kg) |
| Certifications | NSF |
Compatible Accessories (Sold Separately)
- Full or partial sliding ice bin covers
- Single or double speed rails (24"–48")
- Condiment & garnish stations
- Side splashes and towel rings
- Integrated 10-circuit cold plate versions (Model KR19-30-10)
Need a cold plate?
This KR19-30DP is an ice-only model. Select model KR19-30-10 if your local code
requires a built-in 10-circuit cold plate for soda gun systems.
Krowne part #: KR19-30DP | Manufacturer’s warranty applies. Contact us for current lead times or for help configuring a complete underbar workstation.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
30.0in
Depth
19.0in
Shipping Weight
86.0lbs
Depth (front - back) OA
18" - 19"
Bin Depth
15" deep ice bin
Construction
stainless steel & galvanized
Width (side - side) OA
25" - 30"
Ice Capacity
100 - 149 lbs.
Splash
6"
Cold Plate
without
Specifications
Royal Series Underbar Ice Bin/Cocktail Unit, 30"W x 19"D O.A., 122-lbs ice capacity, 15" deep stainless steel bin liner, 1" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
