Krowne KR19-30DP-10 Royal Series Bar Equipment
Description

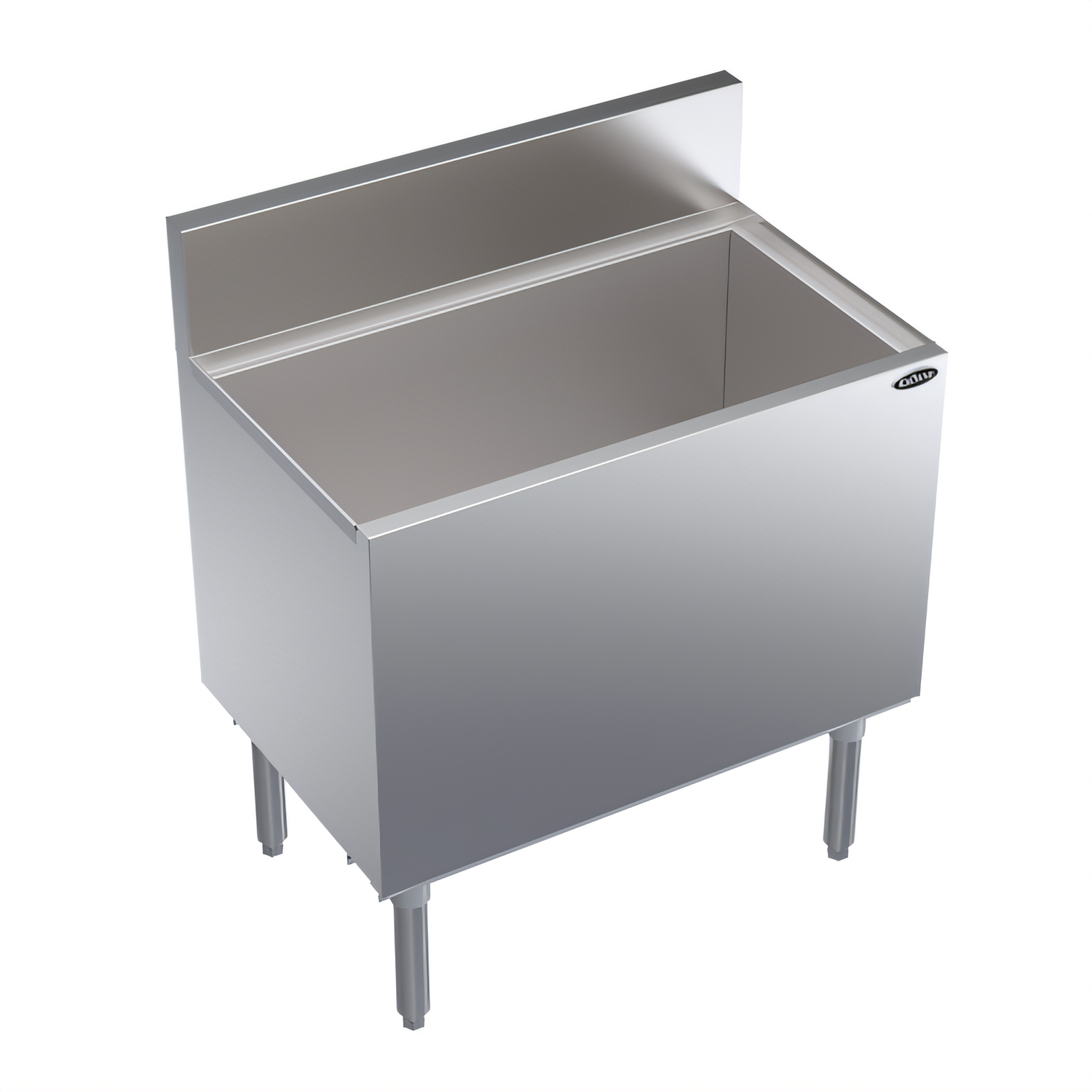

Krowne Royal Series 30" Underbar Ice Bin / Cocktail Station
Model KR19-30DP-10 • Built-in 10-Circuit Cold Plate • NSF ListedEngineered for demanding bar programs, this Royal Series ice bin marries generous 122-lb ice capacity with an integrated 10-circuit post-mix cold plate—delivering perfectly chilled sodas and cocktails from a single compact, 30"-wide footprint.
Why You’ll Love It

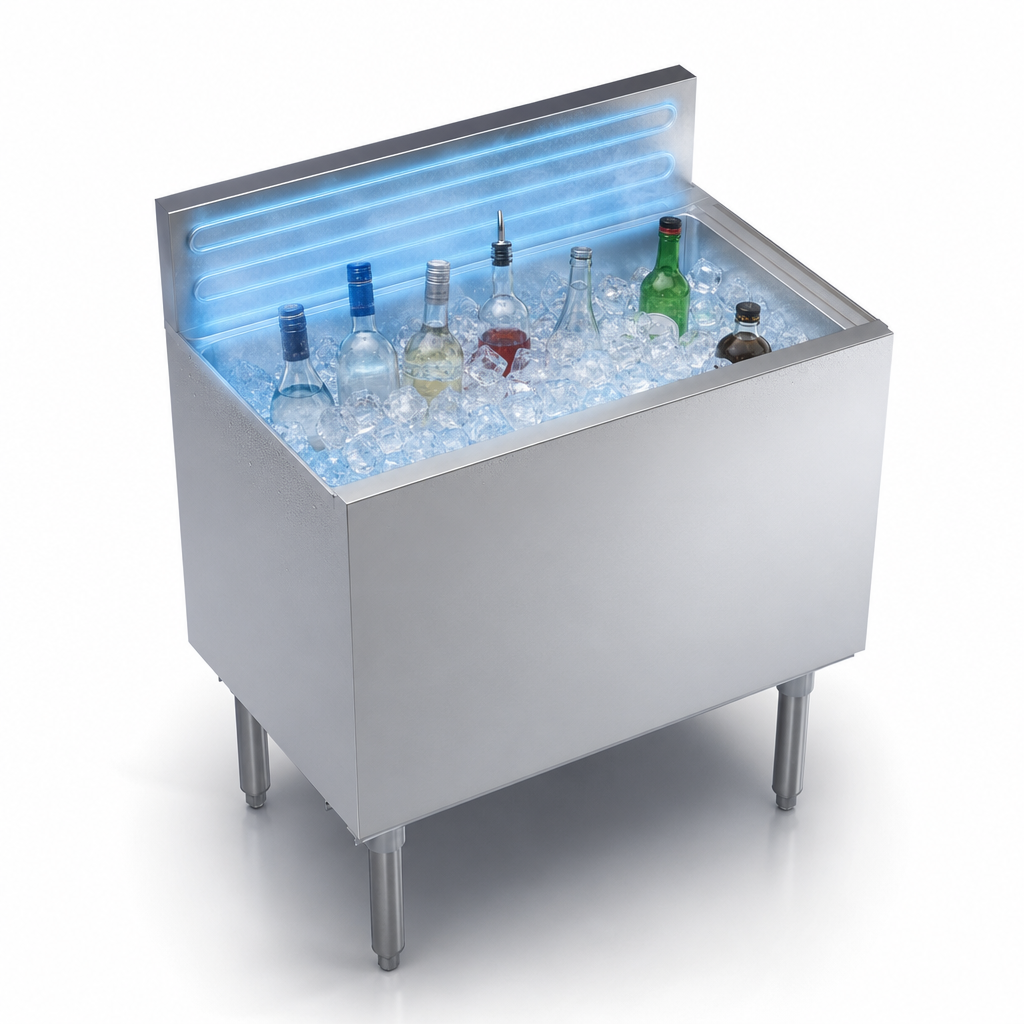

- 10-circuit high-performance cold plate is factory-sealed into the bin floor for rapid, consistent drink chilling.

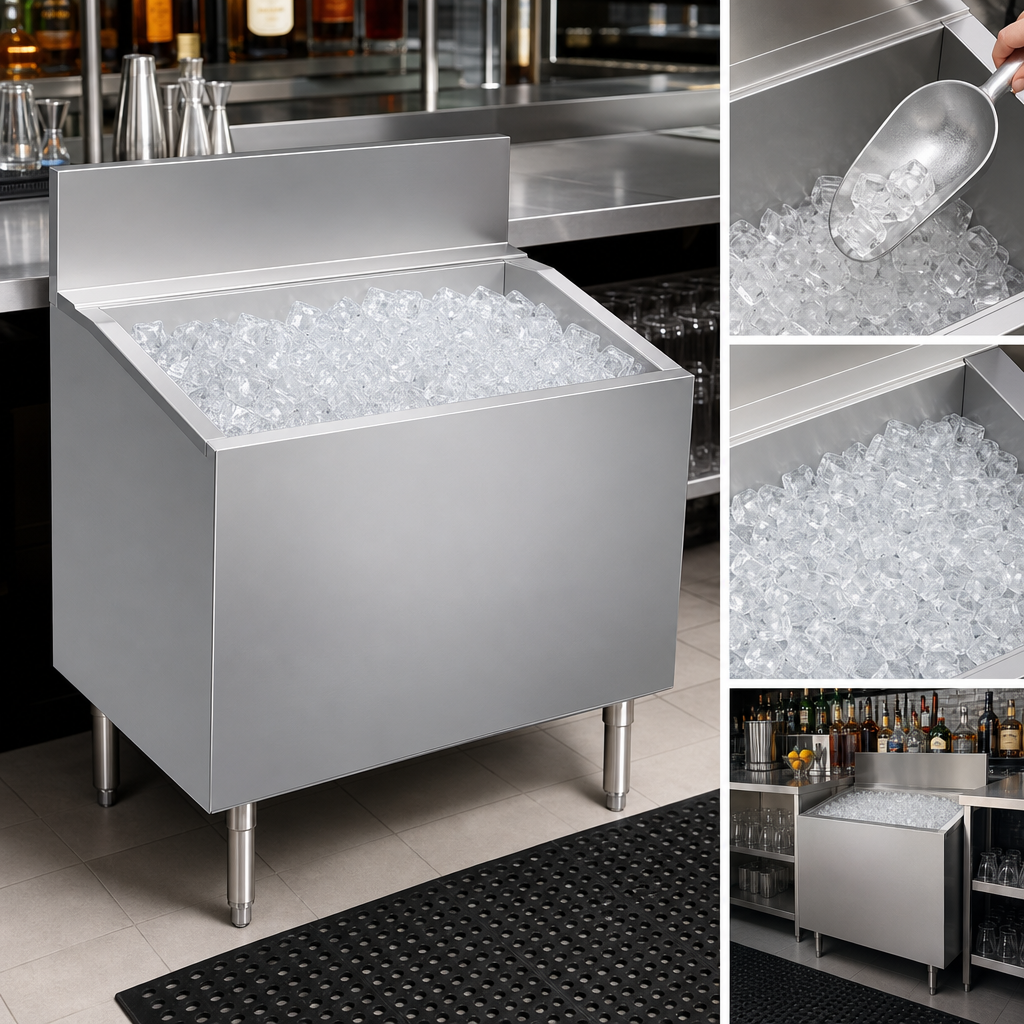

- Roomy 15" deep 20-gauge stainless steel liner holds up to 122 lb. of ice—enough for peak service hours.
- 3/4" × 3-1/2" soda-line cut-out in the backsplash keeps beverage tubing protected and out of sight.
- Durable stainless steel top, front, and sides resist corrosion and simplify wipe-down cleaning.
- Galvanized back & bottom reduce overall weight without sacrificing strength.
- Foamed-in-place polyurethane insulation minimizes ice melt and prevents exterior sweating.
- Field-adjustable 1-5/8" stainless tubular legs with thermoplastic bullet feet for fast, wobble-free leveling.
- Ships with a ½" × 6" PVC tailpiece drain; threaded (½"-20) for quick plumbing hook-up.
Built for Busy Bars
Whether you’re slinging high-volume cocktails or serving fountain drinks, the KR19-30DP-10 helps bartenders move faster and pour colder:
- Maximized Work Space: 30" width fits neatly between underbar equipment while 19" depth keeps aisles clear.
- Colder Beverages, Happier Guests: Stainless tubing inside the cold plate chills soda before it reaches the gun—no flat, lukewarm pours.
- Future-Ready: Backsplash cut-out accepts additional beverage lines if you expand your menu.
Technical Specs
| Manufacturer | Krowne Metal Corporation |
|---|---|
| Series | Royal Series Underbar |
| Model | KR19-30DP-10 |
| Overall Dimensions | 30" W × 19" D × 36 ½" H (to top of backsplash) |
| Ice Capacity | 122 lb |
| Bin Liner Depth | 15" |
| Cold Plate | Built-in 10-circuit post-mix, 5/16" OD stainless tubes |
| Soda Line Access | 3/4" × 3 ½" cut-out in backsplash (left side) |
| Drain Connection | ½" × 6" PVC tailpiece, ½"-20 male thread |
| Construction |
• 20-ga stainless top, front & sides • 20-ga galvanized back & bottom • Foamed-in-place polyurethane insulation |
| Legs / Feet | 1 ⅝" Ø, 16-ga stainless; adjustable thermoplastic bullet feet |
| Certifications | NSF |
| Shipping Weight | ≈ 148 lb |
Popular Add-Ons (Sold Separately)
- Sliding stainless covers for 19"-deep ice bins (partial or full)
- Single or double speed rails (24" & 30")
- Stainless steel bin dividers for liquor or glass storage
- Garnish stations with sliding cover (18"–36")
- Bottle wells, condiment trays, towel ring, and cap catcher
Need help configuring accessories? Chat with our bar equipment specialists before checkout.
