Krowne KR19-30-10 Royal Series Bar Equipment
Description

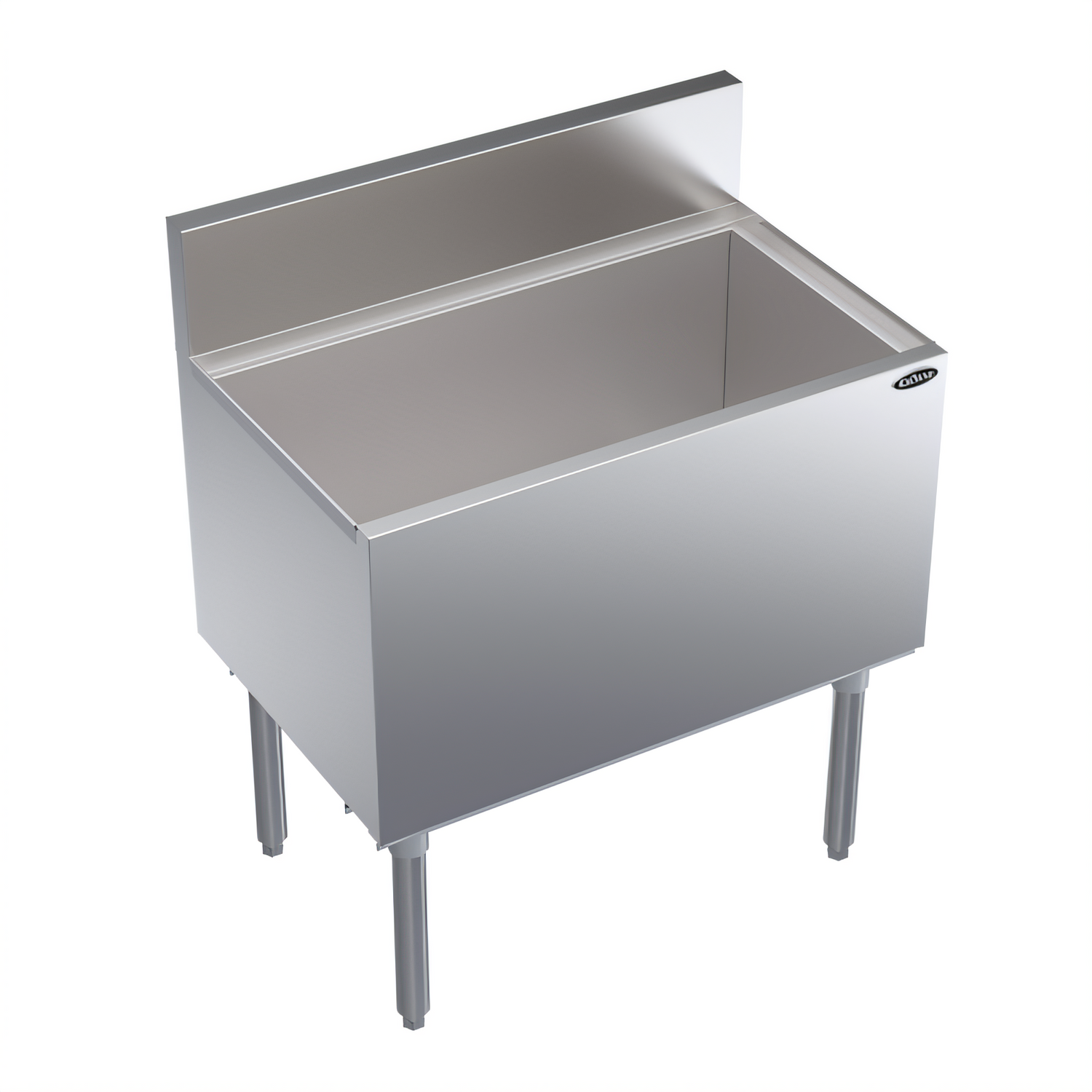

Krowne Royal Series 30" Underbar Ice Bin w/ 10-Circuit Cold Plate
Model KR19-30-10 • 92 lb Ice Capacity • NSF ListedKeep service flowing and drinks ice-cold with the Royal Series 30" ice bin & cocktail station. Purpose-built for busy bars, this unit combines a generous ice reserve with a high-performance cold plate to deliver perfectly chilled post-mix beverages every time.
Key Advantages

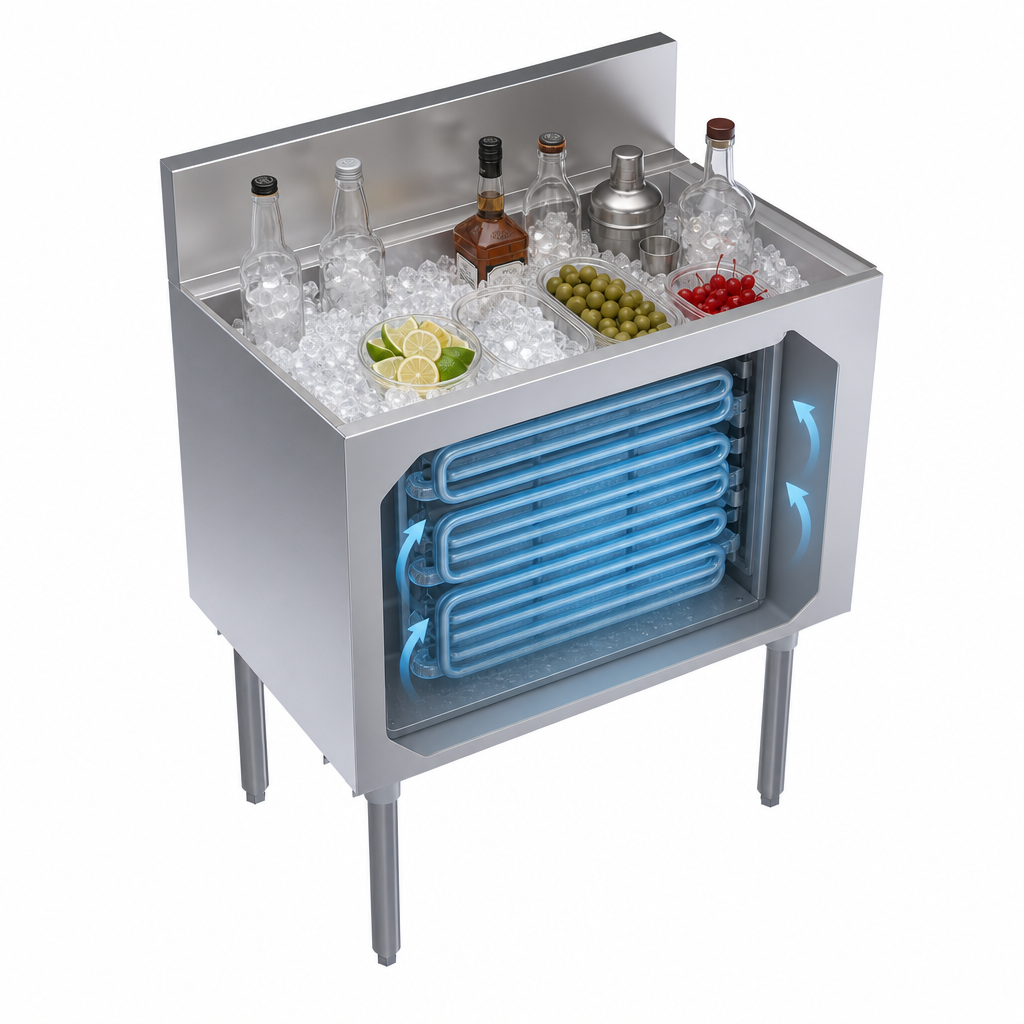

- Integrated 10-circuit post-mix cold plate chills soda lines right in the ice.

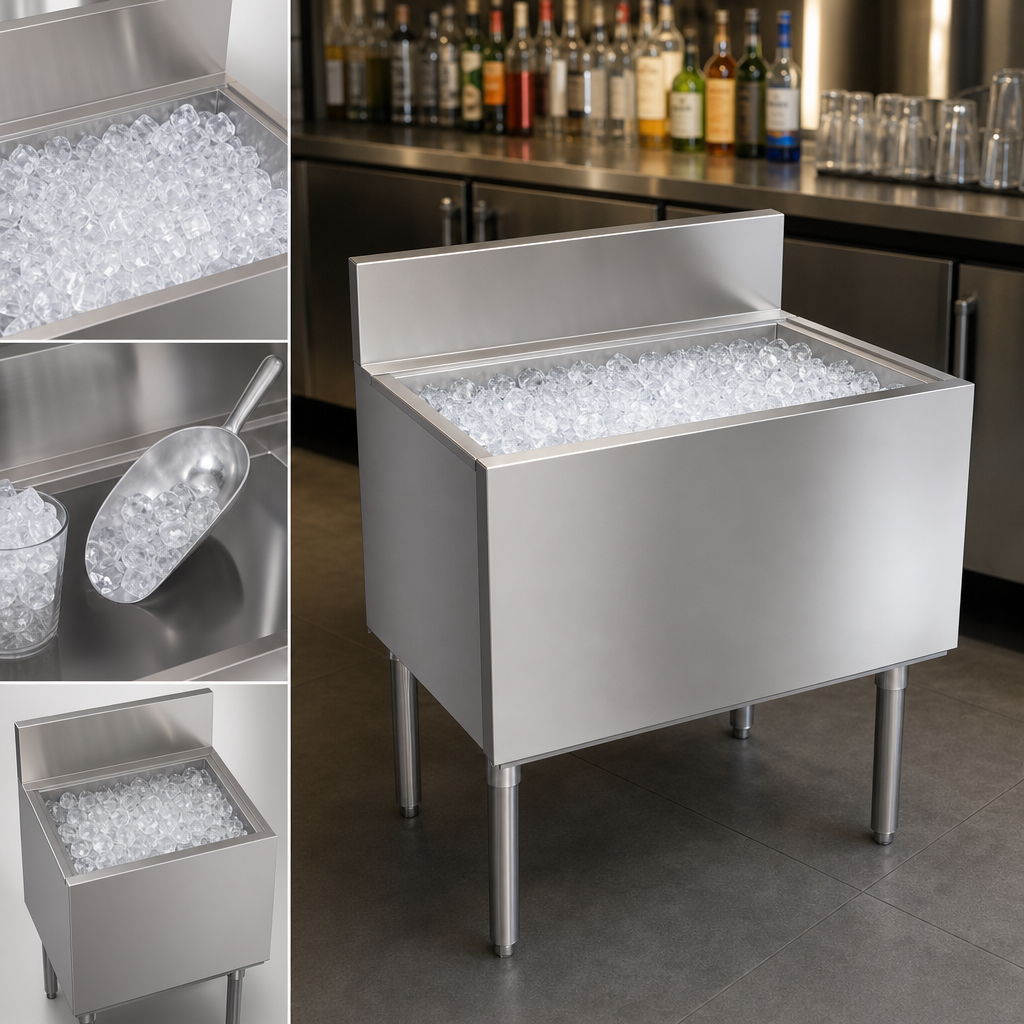

- 92 lb ice capacity and 12" deep liner handle peak-hour demand.
- Compact 19" front-to-back depth fits seamlessly in standard underbar layouts.
- All-stainless top, front, sides & liner for maximum corrosion resistance and easy clean-up.
- ¾" × 3 ½" soda line cutout in backsplash keeps tubing neat and protected.
- 1 ⅝" OD stainless legs with adjustable thermoplastic bullet feet level the unit on any floor.
- Foamed-in-place polyurethane insulation locks in cold and prevents sweating.
Technical Specifications
| Overall Width | 30" (762 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Overall Height | 36 ½" (927 mm) to top of backsplash |
| Bin Interior (W × L × D) | 15" × 28" × 12" |
| Ice Capacity | 92 lbs (41.7 kg) |
| Cold Plate | 10 stainless circuits, 5/16" OD tubing, factory-sealed |
| Drain | ½" IPS with 6" PVC tailpiece (included) |
| Soda Line Access | ¾" × 3 ½" cutout (left side of backsplash) |
| Interior / Liner | 20 ga stainless steel |
| Front & Sides | 20 ga stainless steel |
| Back & Bottom | 20 ga galvanized steel |
| Legs | 16 ga stainless tube, adjustable bullet feet |
| Insulation | Foamed-in-place polyurethane |
| Certification | NSF |
Compatible accessories include speed rails, sliding covers, side splashes, bottle wells, divider bars and more—ask our team for details.
