Krowne KR19-24DP-10 Royal Series Bar Equipment
Description

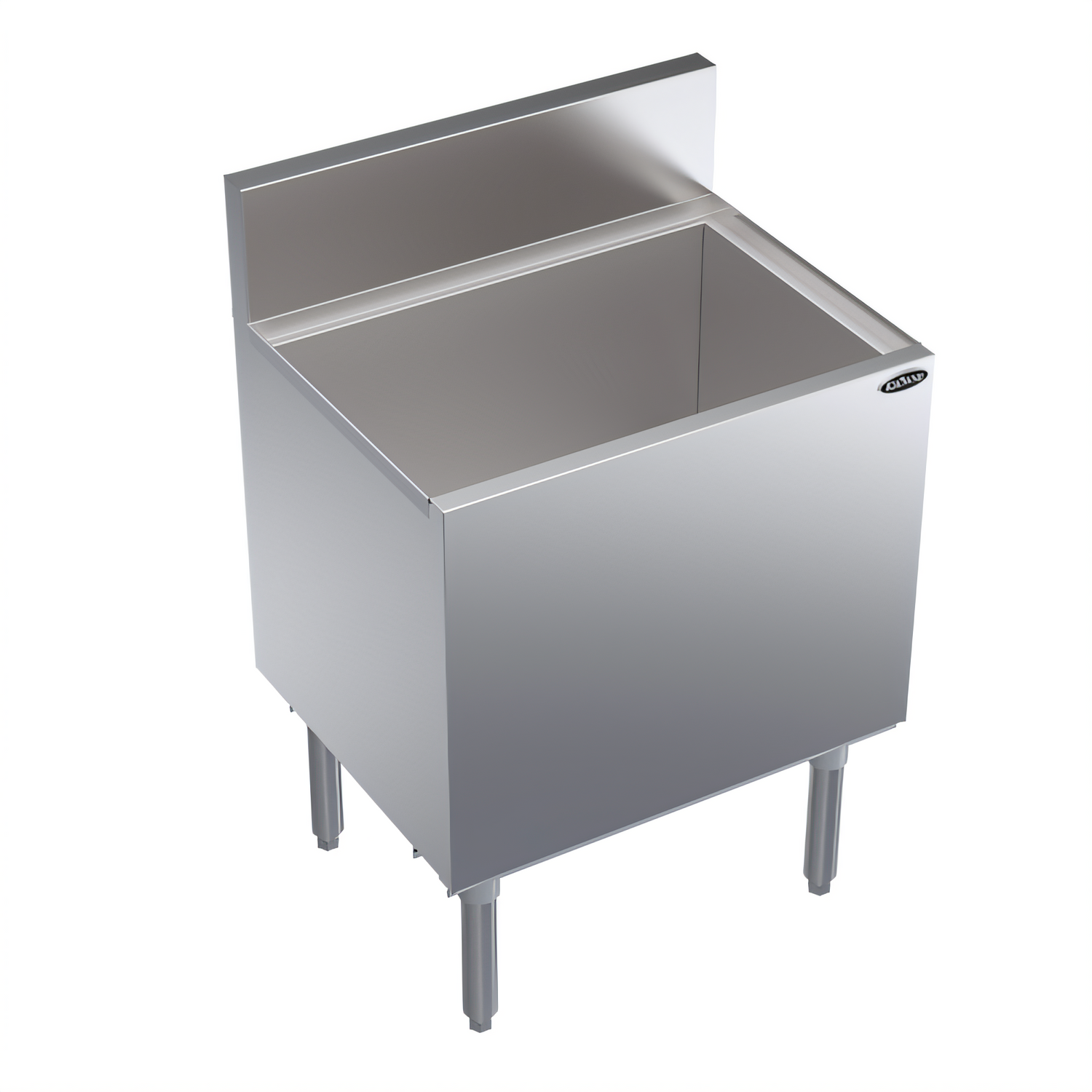

Krowne Royal Series 24" Underbar Ice Bin with 10-Circuit Cold Plate
Model KR19-24DP-10 | 97 lb Ice Capacity | NSF CertifiedKeep cocktails flowing and soda lines icy-cold with the Royal Series 24-inch ice bin from Krowne. Designed for high-volume bars, this rugged stainless steel unit combines a roomy 97 lb ice well with a built-in 10-circuit post-mix cold plate—giving you perfectly chilled beverages from the first pour of the night to the last.

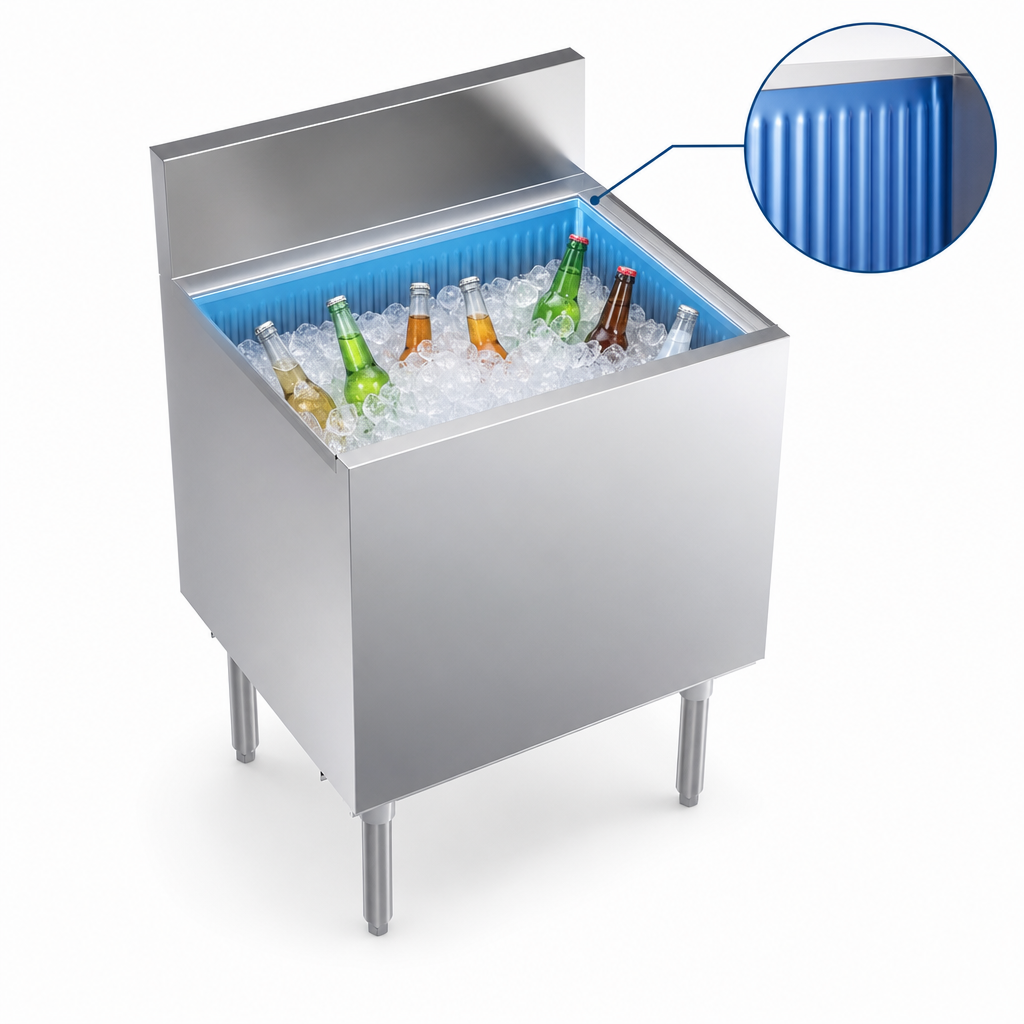

Key Features- Integrated 10-circuit cold plate chills soda lines directly in the ice for maximum drink quality.

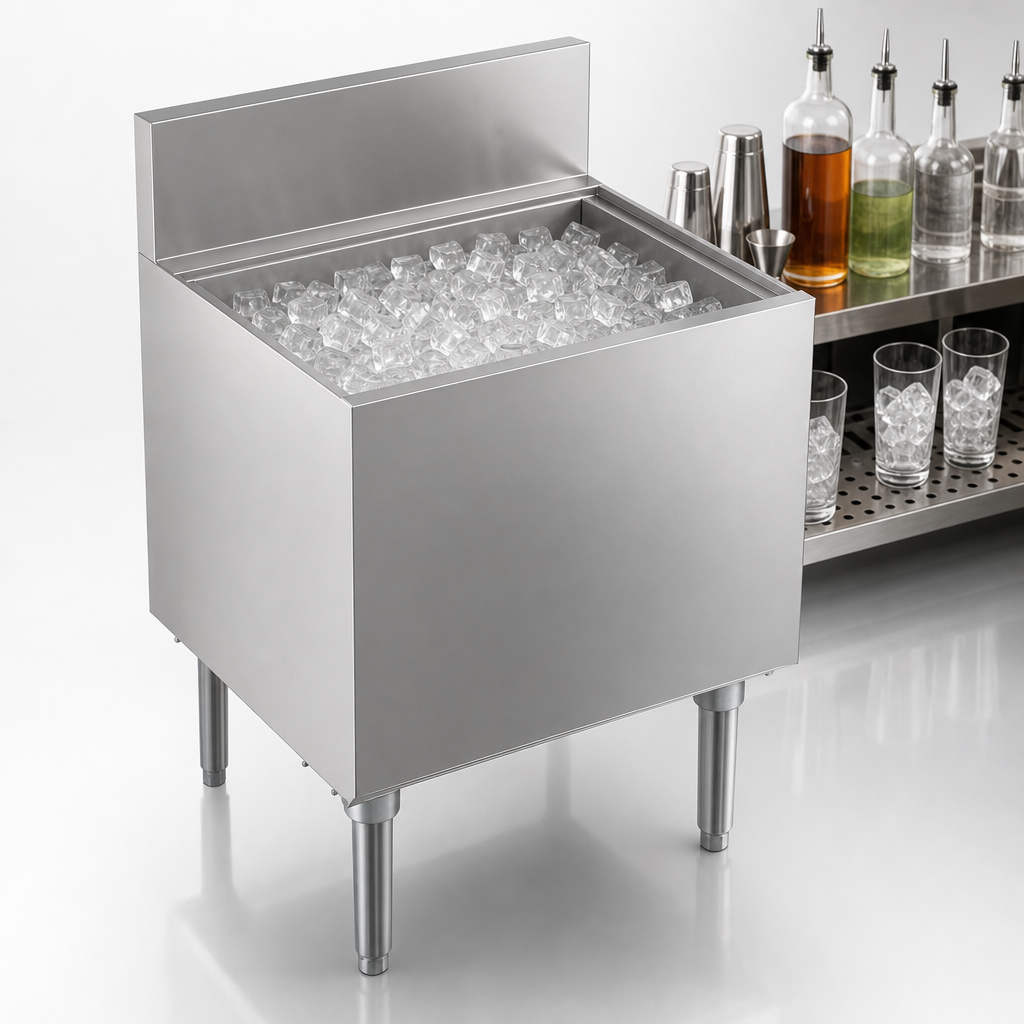

- 97 lb ice capacity handles peak-hour demand without constant refills.
- 15" deep, foamed-in-place 20 ga stainless steel liner extends ice life.
- 3/4" × 3-1/2" soda line access cut-out in backsplash for simple post-mix hookups.
- 1/2" IPS drain with 6" PVC tailpiece included—inhibits condensation and makes installation fast.
- Durable construction: stainless steel top, front, sides & backsplash; galvanized back & bottom.
- 1-5/8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet for easy leveling.
- NSF listed for safe, sanitary operation behind the bar.
| Manufacturer | Krowne Metal |
|---|---|
| Series | Royal Series |
| Model | KR19-24DP-10 |
| Overall Dimensions | 24"W × 19"D × 36-1/2"H (to top of backsplash) |
| Ice Capacity | 97 lbs |
| Liner Depth | 15" |
| Cold Plate | Built-in aluminum plate with ten 5/16" OD stainless steel circuits |
| Drain | 1/2" IPS with 6" PVC tailpiece (included) |
| Soda Line Access | 3/4" × 3-1/2" cut-out (left side of backsplash) |
| Construction | 20 ga stainless steel top/front/sides & backsplash; 20 ga galvanized back/bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs & Feet | 1-5/8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet |
| Certifications | NSF |
- Single & double speed rails (RS-XX / RD-XX)
- Partial or full sliding ice bin covers
- Stainless steel condiment trays & dividers
- Side splashes, towel rings, cap catcher & bottle opener
- 18"–36" garnish stations with sliding covers
Looking for a different size? Royal Series ice bins range from 6" to 48" long in both 12" and 15" depths—contact us for expert assistance configuring your underbar lineup.
