Krowne KR19-24 Royal Series Bar Equipment
Description

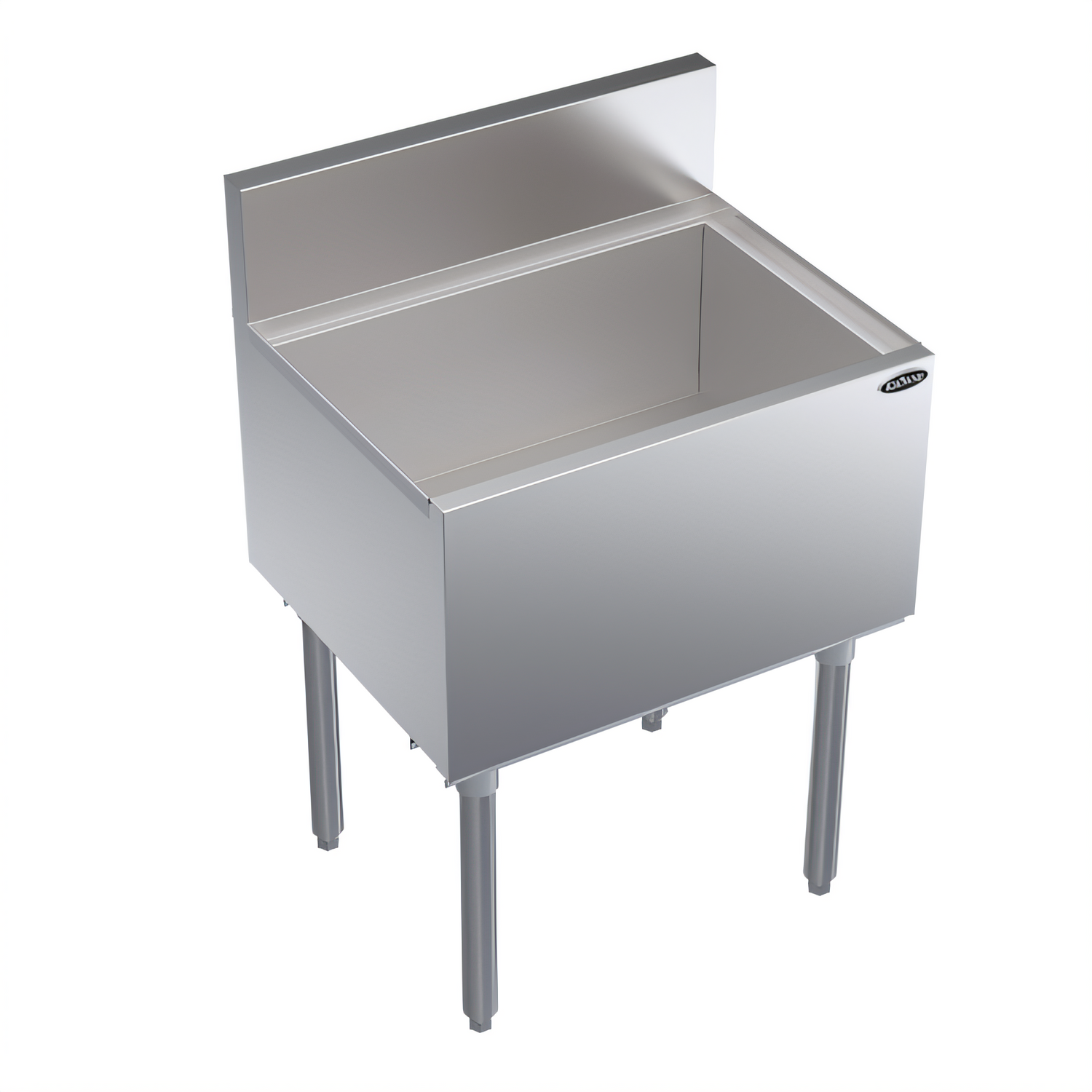

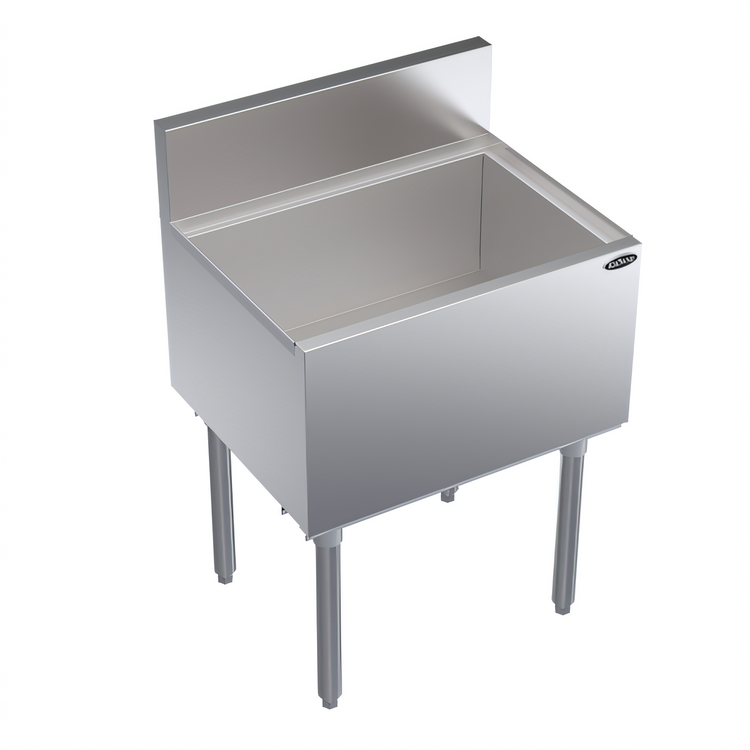

Krowne Royal Series 24" Underbar Ice Bin / Cocktail Station
Model KR19-24 | 74 lb (33.6 kg) Ice Capacity • NSF ListedKeep your bartenders moving and cocktails ice-cold with Krowne’s Royal Series 24" Ice Bin. Designed to integrate seamlessly with other Royal Series underbar components, this compact, heavy-duty unit delivers professional capacity and durability in a bar-friendly 24" footprint.
Why You’ll Love It

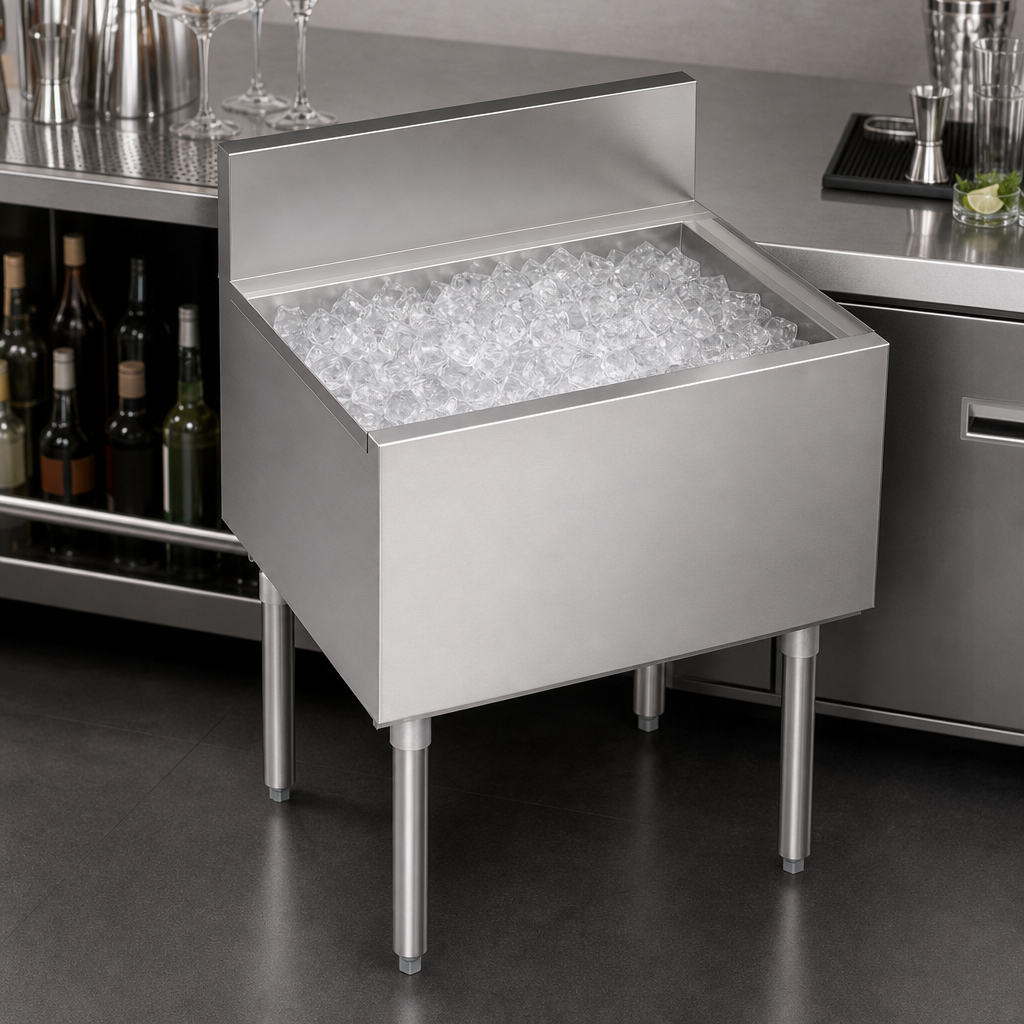

- Generous 74 lb ice capacity keeps service flowing during peak hours.
- 12" deep, 20 ga stainless steel liner is fully foamed-in-place for maximum cold retention.
- One-piece 1" IPS drain with welded stainless outlet for fast, reliable drainage.

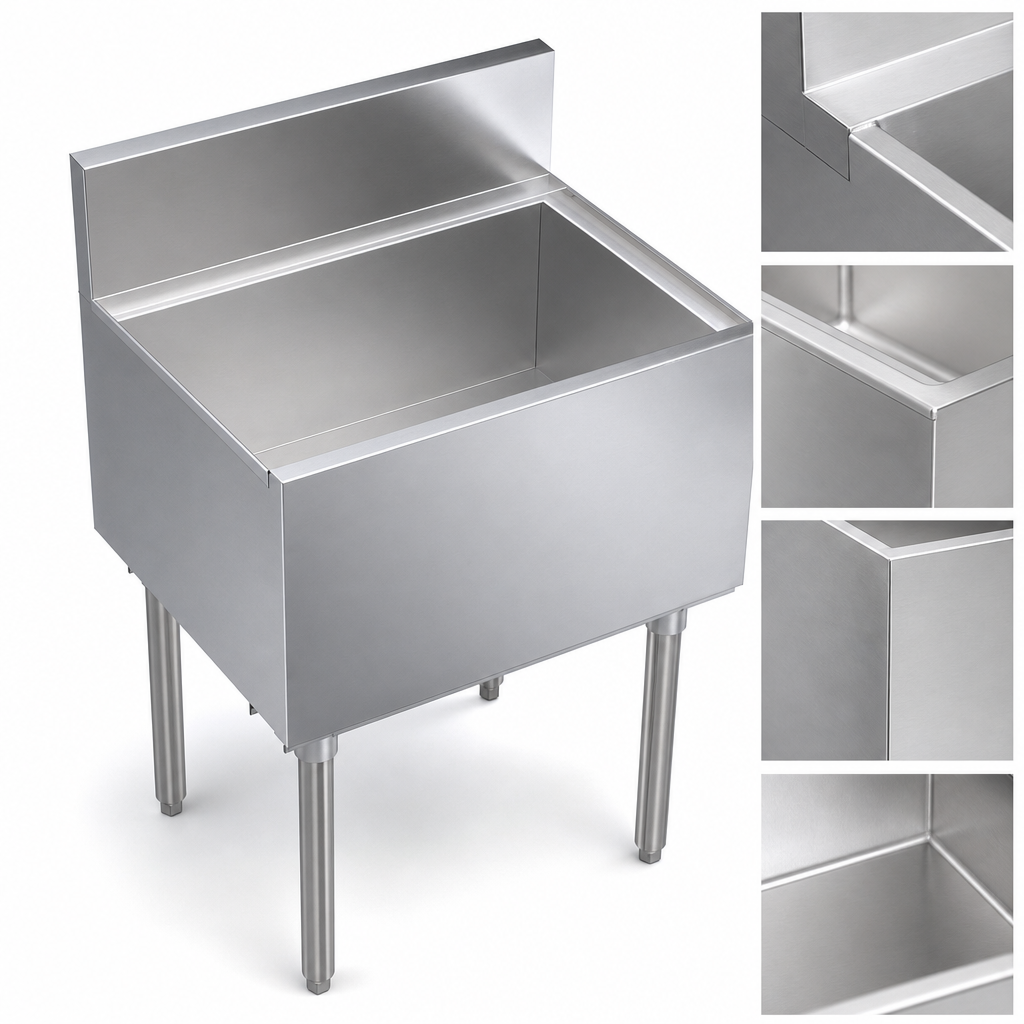

- Stainless steel top, front and sides with galvanized back & bottom for the ideal balance of strength and value.
- 1-5/8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet level the unit on uneven floors.
- Part of the modular Royal Series – add speed rails, side splashes, condiment trays & more at any time.
- NSF certified for open-ice beverage service.
At-a-Glance Specs
| Model | KR19-24 |
|---|---|
| Overall Width | 24" / 610 mm |
| Overall Depth (front-to-back) | 19" / 483 mm |
| Overall Height | 36 1/2" / 927 mm to top of backsplash |
| Liner Dimensions (W × D) | 15" × 22" / 381 mm × 559 mm |
| Liner Depth | 12" / 305 mm |
| Ice Capacity | 74 lb / 33.6 kg |
| Drain Connection | 1" IPS (25 mm) welded outlet |
| Construction – Interior | 20 ga stainless steel |
| Construction – Top/Front/Sides | 20 ga stainless steel |
| Construction – Back/Bottom | 20 ga galvanized steel |
| Insulation | Foamed-in-place polyurethane |
| Legs | 1-5/8" Ø, 16 ga stainless with adjustable bullet feet |
| Net Weight | 67 lb / 30 kg |
| Certifications | NSF |
Popular Add-Ons (Sold Separately)
- Single or double speed rails – models RS-24 / RD-24
- Sliding ice bin covers – SC24H (partial) or SC24F (full)
- Side splashes – KR-313 (pair) or KR-314 / KR-315 (single)
- Condiment tray – KR-101
- 3- or 4-bottle plastic bottle wells – 30-550, 30-502, KR-409, KR-410
- Built-in 10-circuit cold plate – choose model KR19-24-10 at time of order
Dimensions and specifications are nominal and subject to change for product improvement. For detailed rough-in information, please refer to the latest Krowne cut sheet.
