Krowne  |  Royal Series  |  SKU: KR19-18ST  |  UPC: 822196871246

Krowne KR19-18ST Royal Series Bar Equipment

$1,590.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

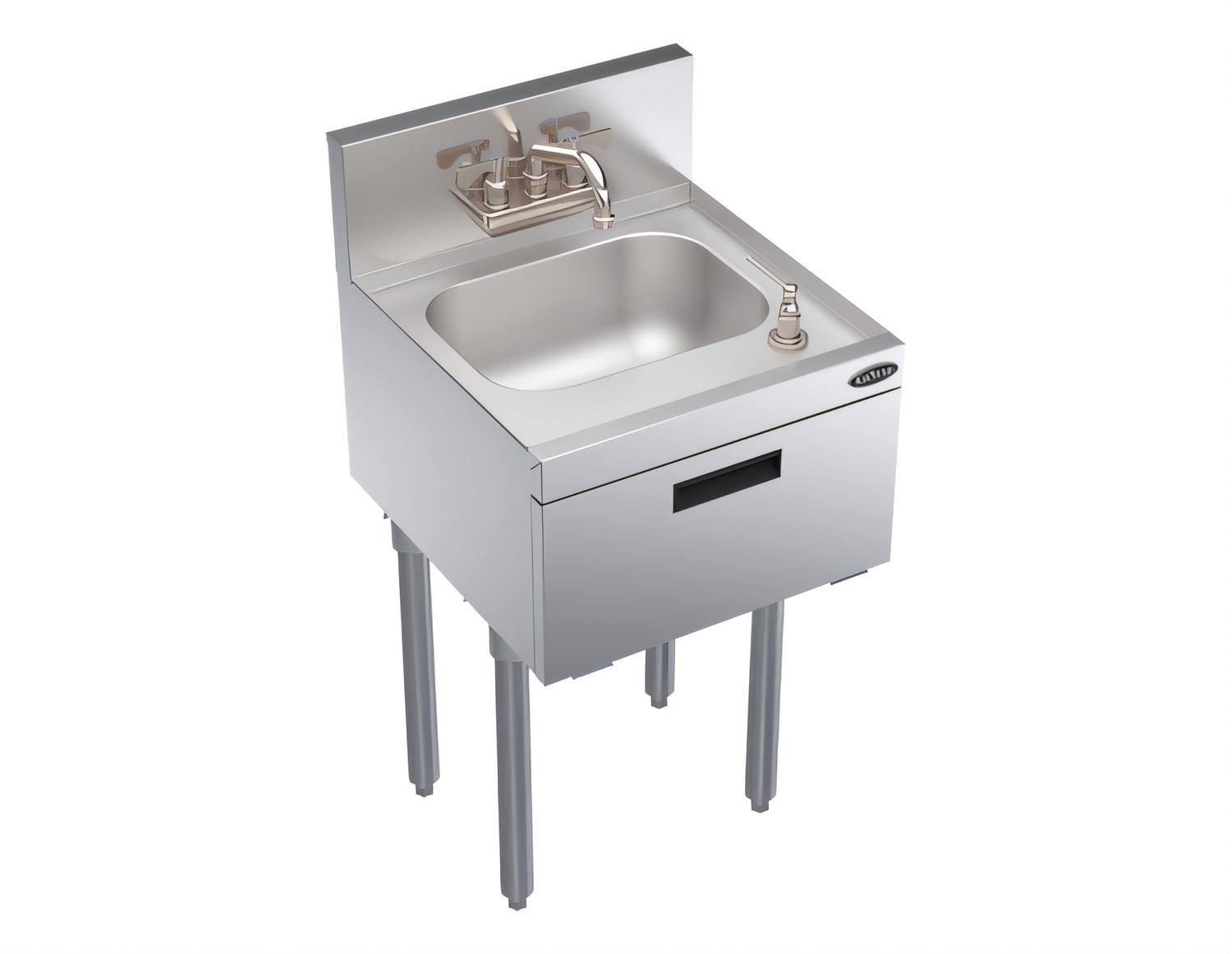

Krowne Royal Series Underbar Hand Sink Unit – 18" W × 19" D

Model KR19-18ST | NSF Listed

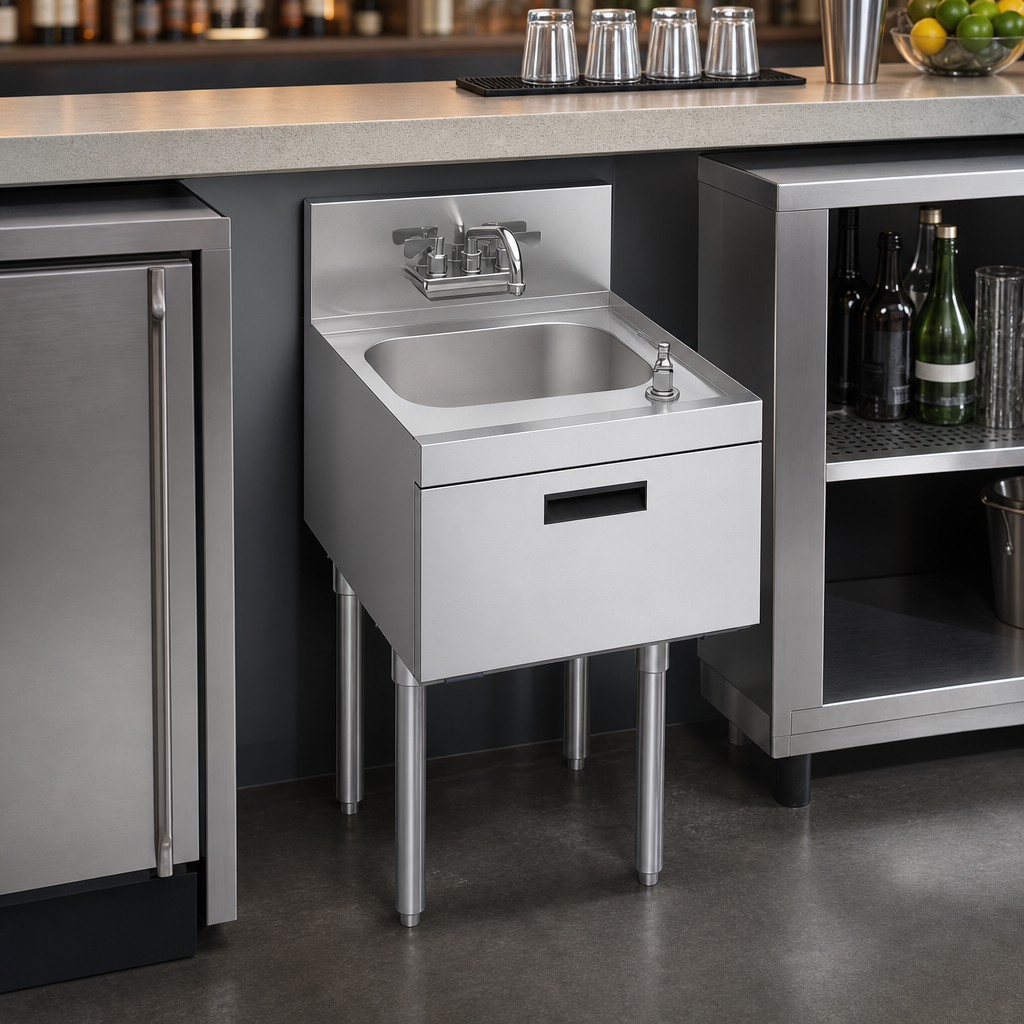

Purpose-built for high-traffic bars, cafés and concession stands, the free-standing Royal Series hand sink combines rugged stainless-steel construction, integrated hygiene dispensers and a space-saving footprint that drops effortlessly into any underbar line-up.

Key Features

  • 20-gauge stainless-steel top, front and sides resist dents & corrosion
  • 14" W × 10" D × 7" deep bowl with 1" IPS rear-corner drain and 7-1/2" overflow pipe
  • 4" center splash-mount Royal Series faucet with long-life ceramic cartridge valves (½" IPS hot/cold)

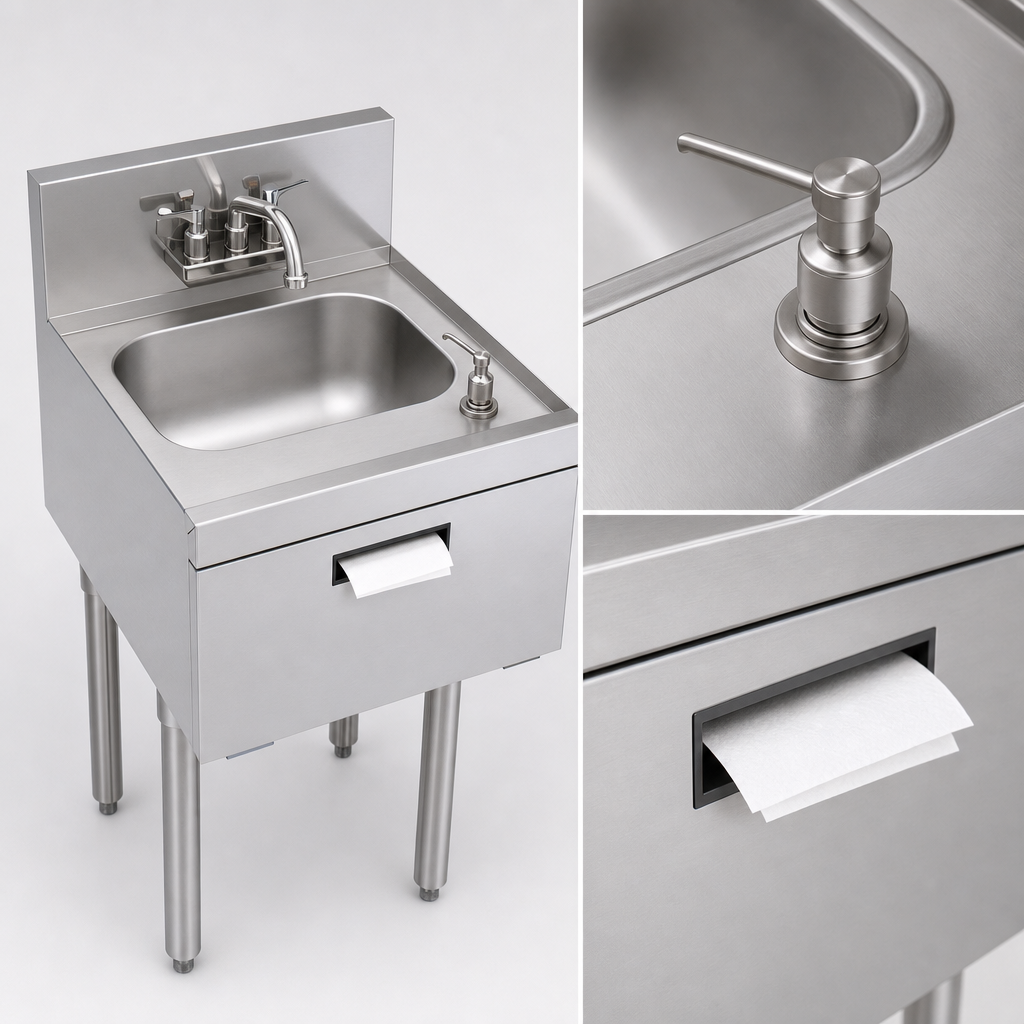

  • Built-in push-down soap dispenser and tri-fold paper towel dispenser streamline hand-washing
  • 1-5/8" Ø, 16-ga stainless-steel legs with adjustable thermoplastic bullet feet for fast leveling
  • Self-standing—no wall brackets required
  • NSF listed for safe, sanitary food-service operation

Specifications

Overall Width 18" (457 mm)
Overall Depth 19" (483 mm)
Height (H.O.A.) 36-1/2" (927 mm)
Sink Bowl (W × D × H) 14" × 10" × 7" (356 × 254 × 178 mm)
Faucet Connection ½" IPS hot & cold
Drain Connection 1-1/2" IPS (includes 1" rear-corner drain & overflow)
Leg Construction 1-5/8" Ø, 16-ga stainless steel w/ adjustable bullet feet
Shipping Weight ≈ 60 lb (27 kg)
Certifications NSF

Optional Accessories

  • KR-303 / KR-310 / KR-311 – Right, left or pair of end splashes for 19" depth models
  • KR-313 / KR-314 / KR-315 – End splash kits for 24" depth models

Need the full spec sheet? Download it from Krowne.com.

Installation Note: Unit ships fully assembled. Confirm supply and drain lines are in place before positioning the sink to prevent damage during final hookup.

Krowne reserves the right to modify product design and specifications without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

18.0in

Depth

19.0in

Shipping Weight

60.0lbs

Type

free standing

Bowl Height

7" deep

Overall Width (side - side)

15" - 18"

Overall Depth (front - back)

15" - 19"

Bowl Size

14" x 10" front-to-back

Specifications

Royal Series Underbar Hand Sink Unit, free standing, 18"W x 19"D x 36-1/2"H.O.A., 14"W x 10"D front-to-back x 7" deep sink bowl, splash mount Royal Series faucet, built-in soap & towel dispenser, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
