Krowne KR19-18DP-7 Royal Series Bar Equipment
Description

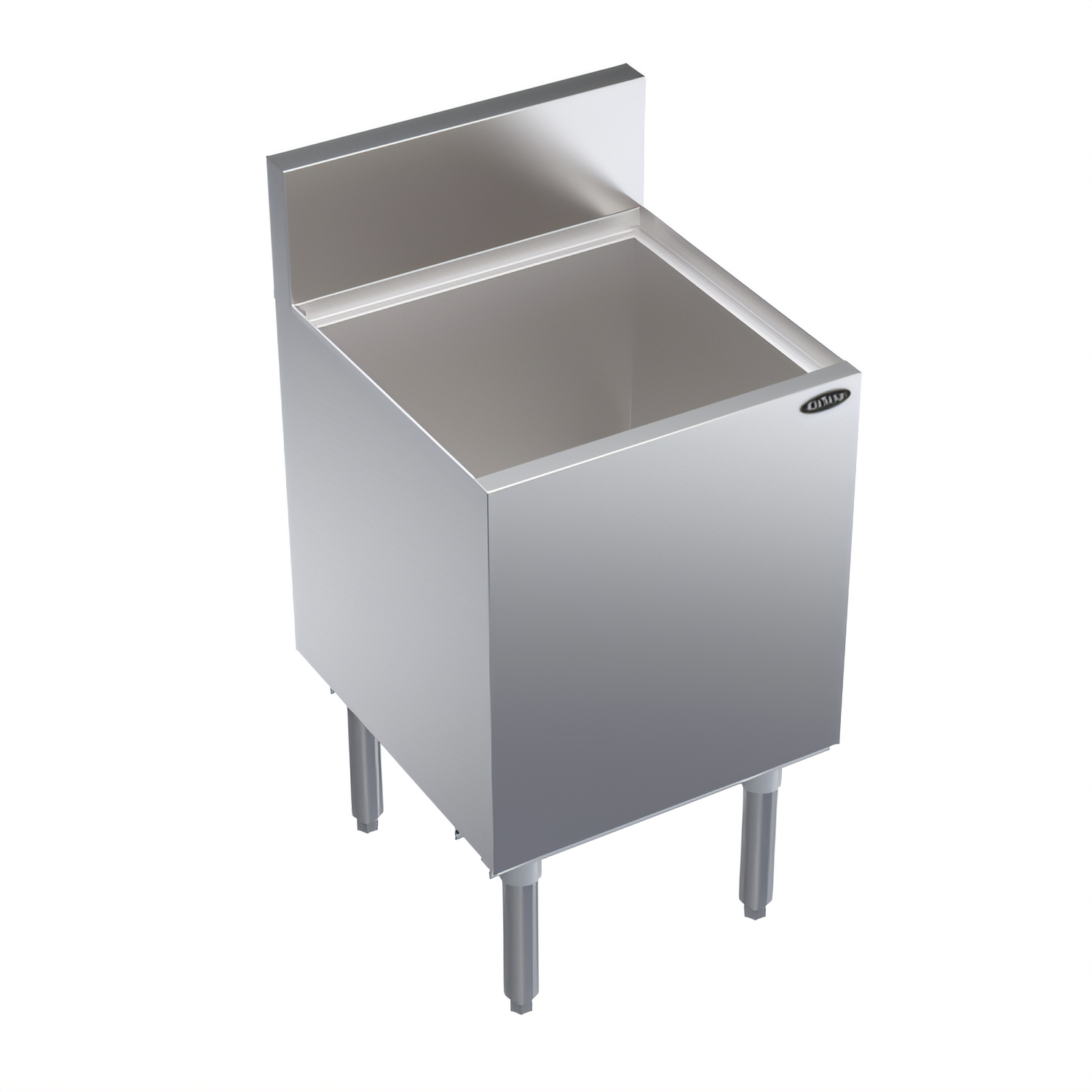

Royal Series 18" Underbar Ice Bin / Cocktail Unit with 7-Circuit Cold Plate
Krowne Model KR19-18DP-7 • NSF CertifiedBuilt for busy bars that demand ice-cold, perfectly mixed drinks, this compact 18" Royal Series ice bin pairs a generous 73-lb ice capacity with a high-performance 7-circuit post-mix cold plate. Stainless construction inside and out, foamed-in-place insulation and industry-leading ergonomics keep your bartenders moving fast and your beverages frosty—shift after shift.
Why You’ll Love It

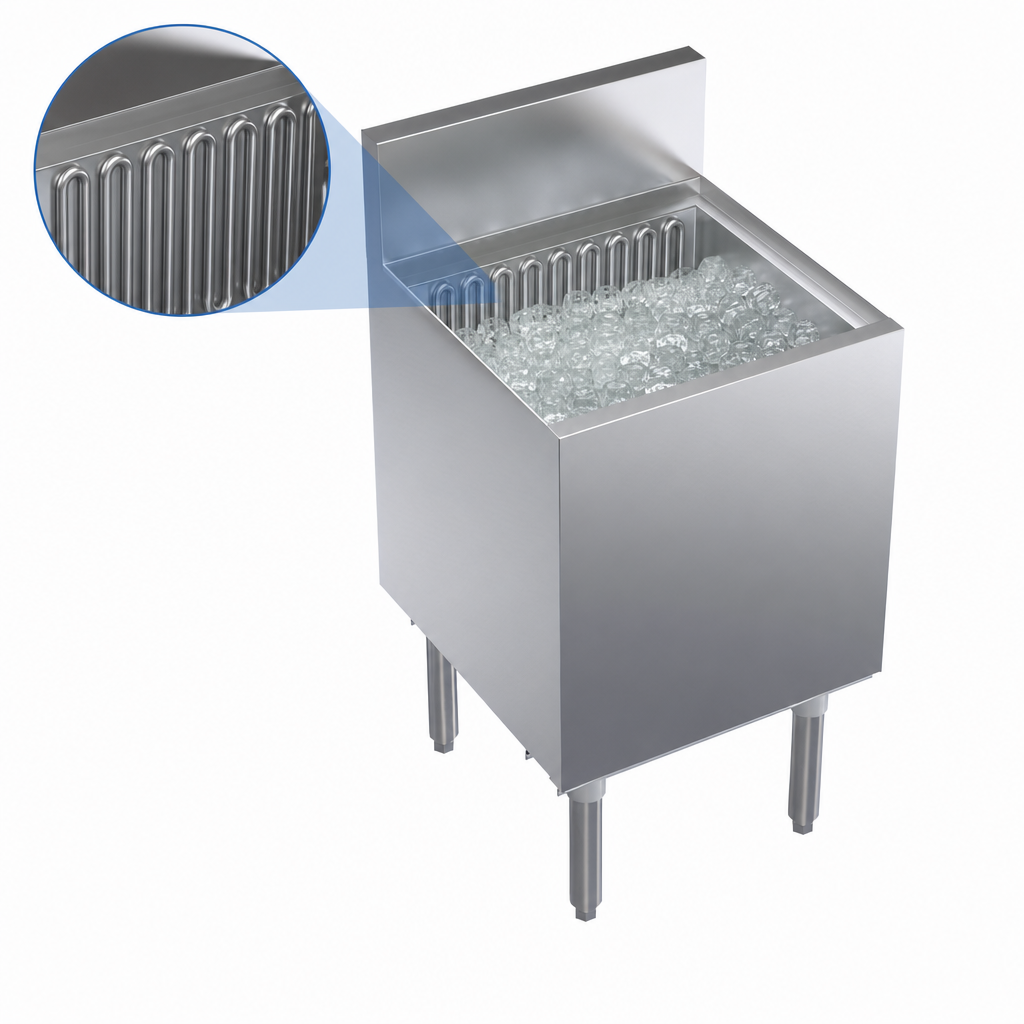

- Integrated 7-Circuit Cold Plate – Factory-sealed plate chills soda lines before dispense for consistently cold, great-tasting drinks.
- Heavy-Duty Stainless Build – 20 ga. stainless steel top, front, sides, backsplash and interior liner resist corrosion and hold a lasting shine.
- 15" Deep Liner – Plenty of ice depth for high-volume service without frequent re-fills.
- 73 lb Ice Capacity – Keep the cocktails flowing through peak rushes.
- Soda Line Access – 3/4" × 3-1/2" cut-out in backsplash routes beverage tubing cleanly and out of sight.
- Rock-Solid Foundation – 1-5/8" Ø 16 ga. stainless tubular legs with adjustable grey thermoplastic bullet feet for fast leveling.
- Foamed-in-Place Polyurethane Insulation – Locks in cold and prevents exterior sweating.
- NSF Listed – Meets the latest sanitation standards for commercial foodservice use.
Specifications
| Model | KR19-18DP-7 |
|---|---|
| Overall Dimensions (W × D) | 18" × 19" |
| Liner Depth | 15" |
| Ice Capacity | 73 lbs |
| Cold Plate |
Built-in 7-circuit post-mix plate • 5/16" OD stainless tubes • Two full / five half circuits • 1/2" × 6" PVC tailpiece included |
| Soda Line Cut-Out | 3/4" × 3-1/2" (left side of backsplash) |
| Drain Connection | 1" IPS |
| Construction |
• 20 ga. stainless steel top, front, sides & backsplash • 20 ga. galvanized steel back & bottom • 20 ga. stainless interior liner |
| Legs / Feet | 1-5/8" Ø 16 ga. stainless legs with adjustable thermoplastic bullet feet |
| Shipping Weight | Approx. 119 lbs |
| Certification | NSF |
Popular Add-Ons (Sold Separately)
- Sliding ice bin covers (partial or full)
- Single or double speed rails
- Stainless steel dividers & condiment trays
- Side splashes and cap catchers
- Garnish stations with sliding cover (18"–36")
Need help configuring accessories? Contact us and we’ll tailor a Royal Series underbar layout to your exact workflow.
Most jurisdictions require a built-in cold plate when connecting a soda system to an ice bin. Because the plate is factory sealed, it cannot be added later—be sure your unit ships with one installed.
