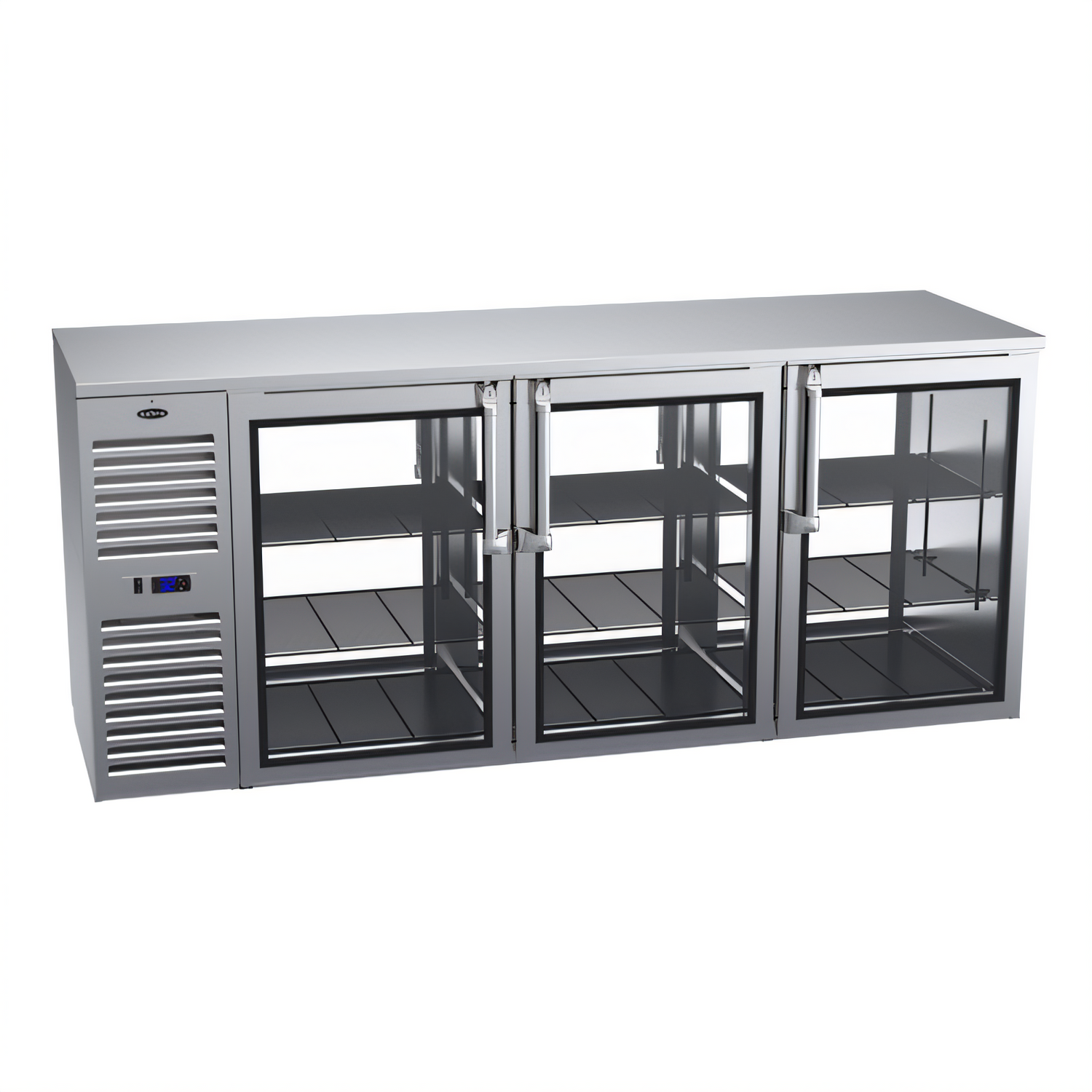

Krowne Royal Series 84-Inch Three-Section Pass-Thru Refrigerated Back Bar Cooler with 6 Locking Doors

SKU: KPT84L
$9,754.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Krowne New Arrivals Restaurant Equipment

Krowne Royal Series 84-Inch Three-Section Pass-Thru Refrigerated Back Bar Cooler with 6 Locking Doors

Left-Side Self-Contained R290 Refrigeration, Black Exterior

Built for busy bars, this pass-thru cooler keeps bottled and canned product cold, secure, and easy to reach from either side of the service area.

  • Pass-thru design provides front-and-back access for faster service and easier stocking.
  • Left-side self-contained R290 refrigeration maintains a 30°F to 40°F operating range.
  • Six hinged doors with built-in locks help secure inventory behind the bar.
  • Each door section includes wire shelving and a floor rack for flexible bottle and can storage.
  • Digital thermostat, LED interior lighting, and a heated mullion support easier operation and visibility.
  • Stainless steel interior and included condensate evaporator pan simplify cleaning and moisture management.
  • NSF 7 open food storage approved and listed for sanitation use.
  • 84-inch model capacity supports up to 34 12-oz. cans or 248 wine bottles.

Overall Dimensions:

84.0"W x 25.38"D x 35.0"H

Product Weight:

600.0 lb

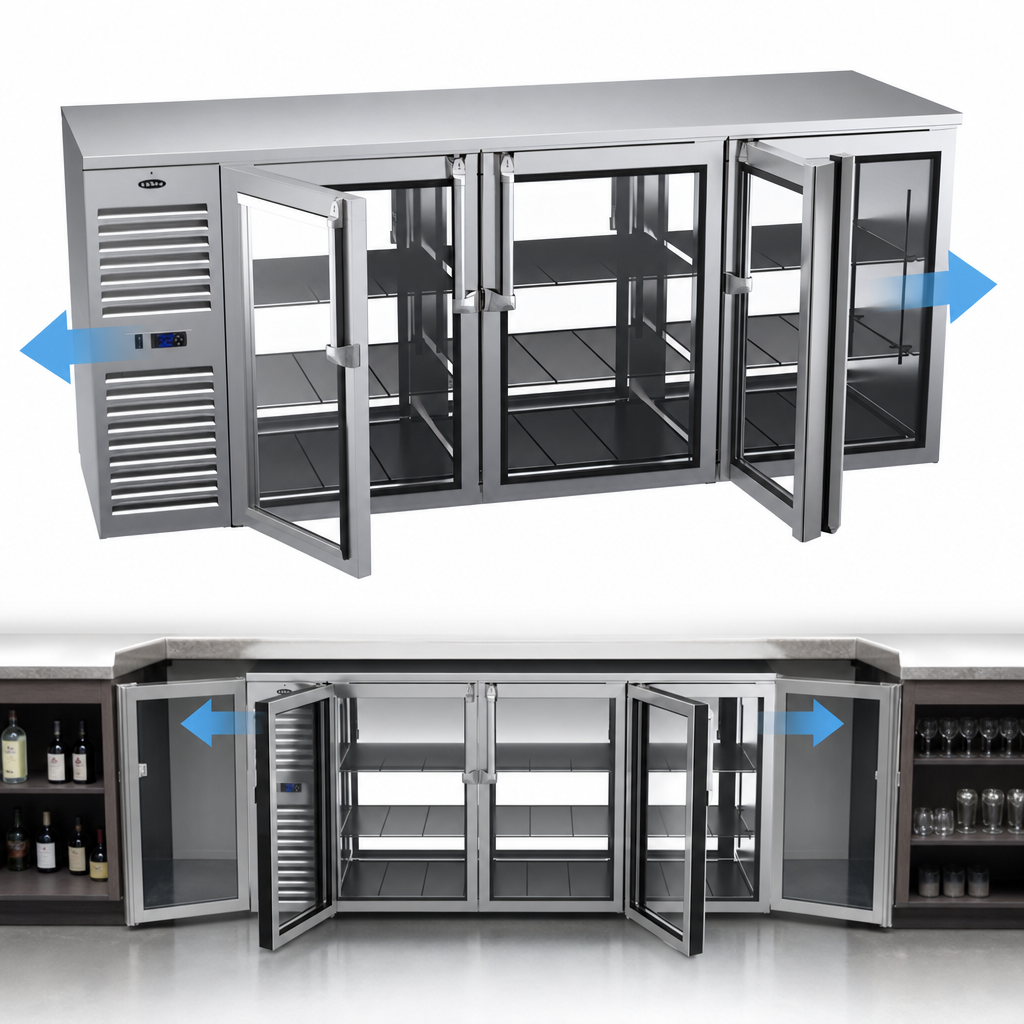

Pass-Thru Access

Doors on both sides let staff load and serve product from the front or back of the bar.

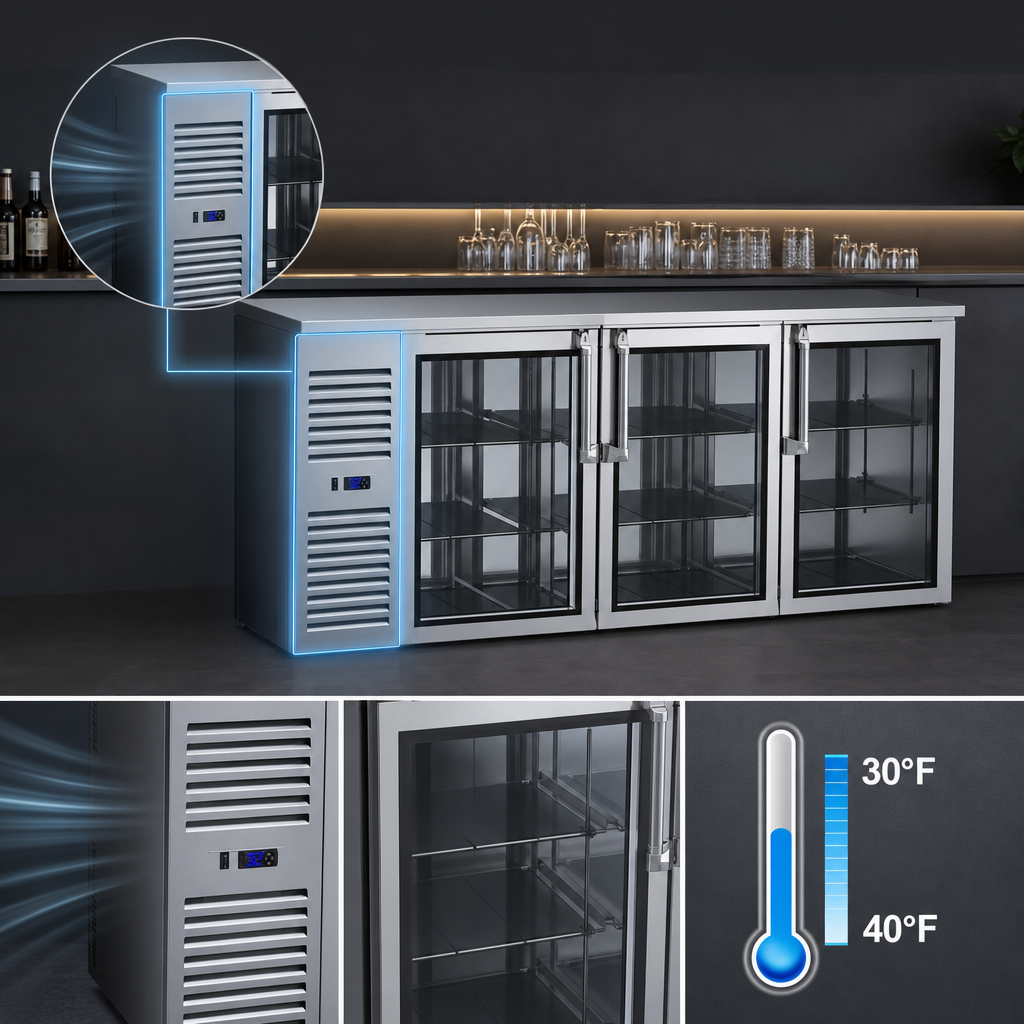

Left-Side Self-Contained Refrigeration

Built-in R290 refrigeration is mounted on the left side and is designed to hold 30°F to 40°F.

Six Locking Doors

Hinged doors with built-in locks help secure bottles and cans during service.

Flexible Interior Storage

Each door section includes a floor rack and adjustable wire shelving for a variety of beverage packages.

Digital Thermostat

Digital temperature control makes it easy to set and maintain the cabinet temperature.

LED Interior Lighting

Built-in cool white LED lighting improves product visibility inside the cabinet.

Heated Mullion

Helps reduce condensation between door openings.

Condensate Evaporator Pan

Included to help manage moisture without requiring a drain connection.

Stainless Steel Interior

Stainless steel interior with coved corners supports easy cleaning and long-term durability.

High Beverage Capacity

The 84-inch model is rated for up to 34 12-oz. cans or 248 wine bottles.

NSF 7 Open Food Storage Approved

Approved for open food storage applications and intended for bottled or canned products only.

Type Back Bar Cooler
Style Pass-Thru
Installation Type Freestanding
Refrigeration Type Self-Contained
Refrigeration Location Left Side Mounted
Refrigerant Type R290 Hydrocarbon
Temperature Range 30°F to 40°F
Controls Digital
Door Quantity 6
Interior Finish Stainless Steel
Material Stainless Steel
Color Black
Voltage 115 Volts
Amps 5.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Horsepower 1/3 HP
Drain Connection Not Required
Shipping Width 84 Inches
Shipping Depth 26 Inches
Shipping Height 35 Inches
Shipping Weight 600 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year compressor; 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Owner's manual PDF Download PDF Sell sheet (1) PDF Download

Frequently Asked Questions

No. The cutsheet states that no drain connection is required, and a condensate evaporator pan is included.
It uses 115 V, 1-phase, 60 Hz power, draws 5.8 amps, and comes with an 8-foot cord and NEMA 5-15P plug. A dedicated 15 amp circuit is recommended.
The cabinet has six hinged doors with locks, and each section includes a floor rack plus adjustable wire shelving.
The operating range is 30°F to 40°F, with the unit typically set at 35°F unless otherwise specified.
It is intended for the storage and display of non-potentially hazardous bottled or canned products only, and for use in areas where ambient temperature typically does not exceed 75°F.
The documentation lists a 5-year compressor warranty and a 1-year parts and labor warranty.
