Krowne

Krowne Royal Series 60-Inch Two-Section Self-Contained Pass-Thru Refrigerated Back Bar Cabinet with 4 Hinged Doors

SKU: KPT60L
$7,516.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Krowne New Arrivals Restaurant Equipment

Krowne Royal Series 60-Inch Two-Section Self-Contained Pass-Thru Refrigerated Back Bar Cabinet with 4 Hinged Doors

Left-Mounted Refrigeration, 30°F to 40°F, Stainless Steel Interior

A 60-inch pass-thru back bar cooler that keeps bottles and cans within easy reach on both sides while maintaining a dependable 30°F to 40°F hold.

  • Pass-thru design with four hinged, locking doors allows access from both the front and back of the cabinet.
  • Self-contained R290 refrigeration with left-mounted compressor simplifies installation.
  • Operates in a 30°F to 40°F temperature range and includes a digital thermostat.
  • Includes one bottom rack plus two adjustable wire shelves per door for flexible storage.
  • Built-in cool white LED lighting improves product visibility inside the cabinet.
  • No drain connection is required; a condensate evaporator pan is included for easier upkeep.

Overall Dimensions:

60.0"W x 25.38"D x 35.0"H

Product Weight:

445.0 lb

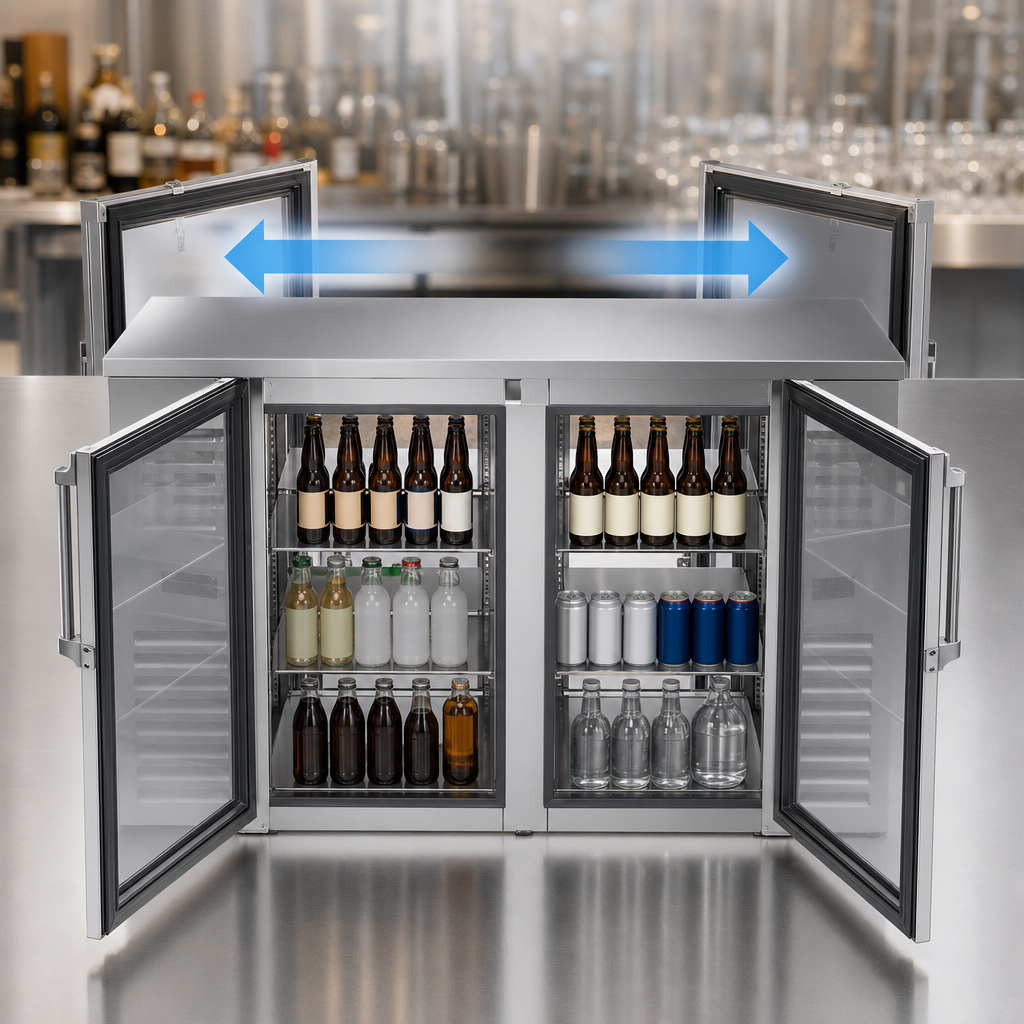

Pass-Thru Access

Doors on both sides make it easy to load from the back bar side and serve from the opposite side.

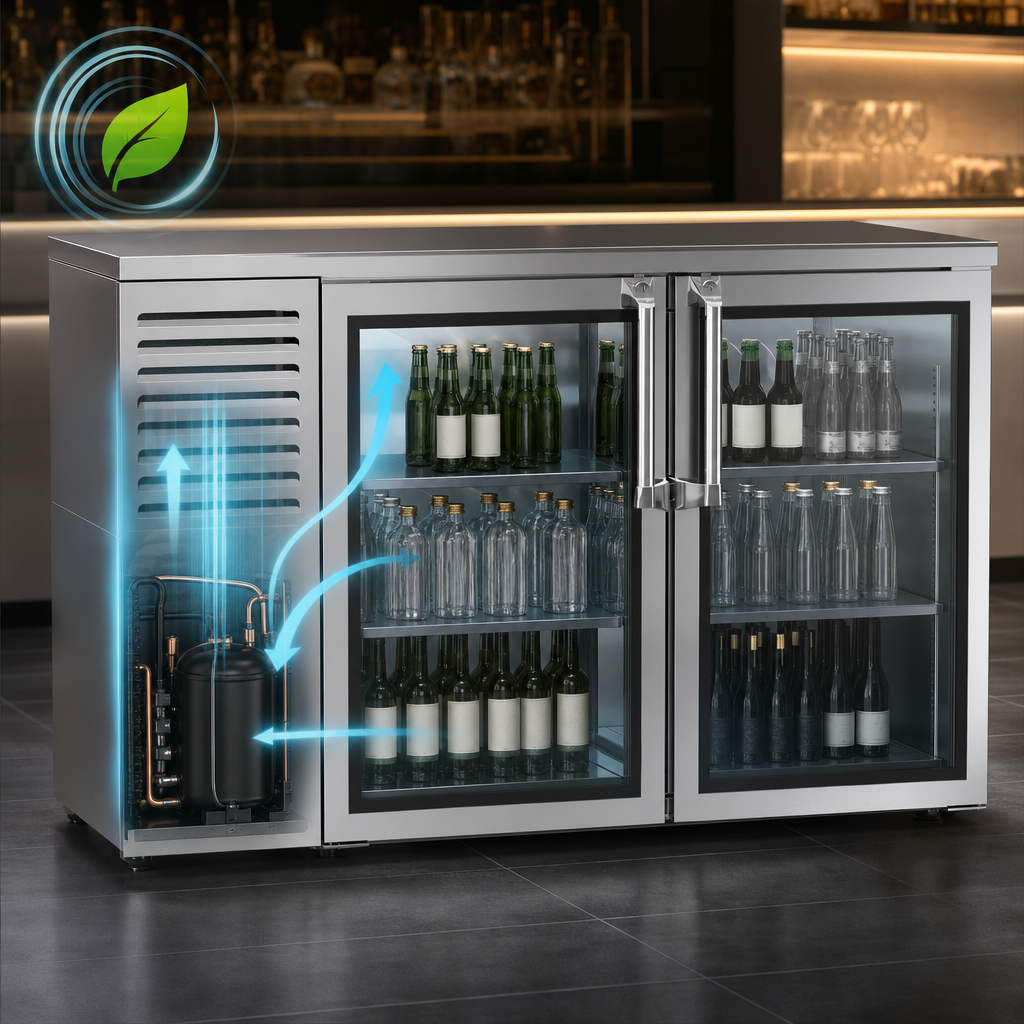

Self-Contained R290 Refrigeration

Built-in refrigeration uses R290 hydrocarbon refrigerant for efficient cooling without remote refrigeration equipment.

Temperature Range

Designed to operate between 30°F and 40°F, with the unit set at 35°F unless otherwise specified.

Locking Hinged Doors

Stainless steel handles include built-in locks to help secure stored product.

Wire Shelving Package

Includes one bottom rack and two adjustable NSF epoxy-coated wire shelves per door.

LED Interior Lighting

Cool white LED lighting helps showcase stored bottles and cans.

Condensate and Defrost Management

Automatic defrost timer and included condensate evaporator pan help reduce maintenance.

No Drain Connection Required

The cabinet does not require a drain connection, simplifying installation.

Electrical Setup

Runs on 115V, 1-phase, 60 Hz power with a 4.8 amp draw and an NEMA 5-15P plug on an 8-foot cord.

Type Back Bar Cooler
Style Pass-Thru
Installation Type Freestanding
Refrigeration Type Self-Contained
Refrigeration Location Left Mounted
Refrigerant Type R290 Hydrocarbon
Compartments 2
Capacity 15.5 Long Neck Bottles / 23 12 oz. Cans / 162 Wine Bottles
Voltage 115 Volts
Amps 4.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Horsepower 1/4 HP
Temperature Range 30°F to 40°F
Material Stainless Steel
Interior Finish Stainless Steel
Color Black
Finish Black Vinyl
Controls Digital
Drain Connection Not Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year compressor; 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Owner's manual PDF Download PDF Sell sheet (1) PDF Download

Frequently Asked Questions

It operates in a 30°F to 40°F range and is set at 35°F unless otherwise specified.
No. A drain connection is not required, and a condensate evaporator pan is included.
The unit runs on 115V, 1-phase, 60 Hz power and draws 4.8 amps. It includes an 8-foot cord with an NEMA 5-15P plug.
The documented capacities are approximately 15.5 long neck bottles, 23 12 oz. cans, or 162 wine bottles.
The cutsheet lists a 5-year compressor warranty and a 1-year parts and labor warranty.
