Krowne  |  Royal Series  |  SKU: KPT52L

Krowne KPT52L Royal Series Back Bar Coolers

$7,150.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Sell sheet (1) Sell sheet
Related Searches
Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

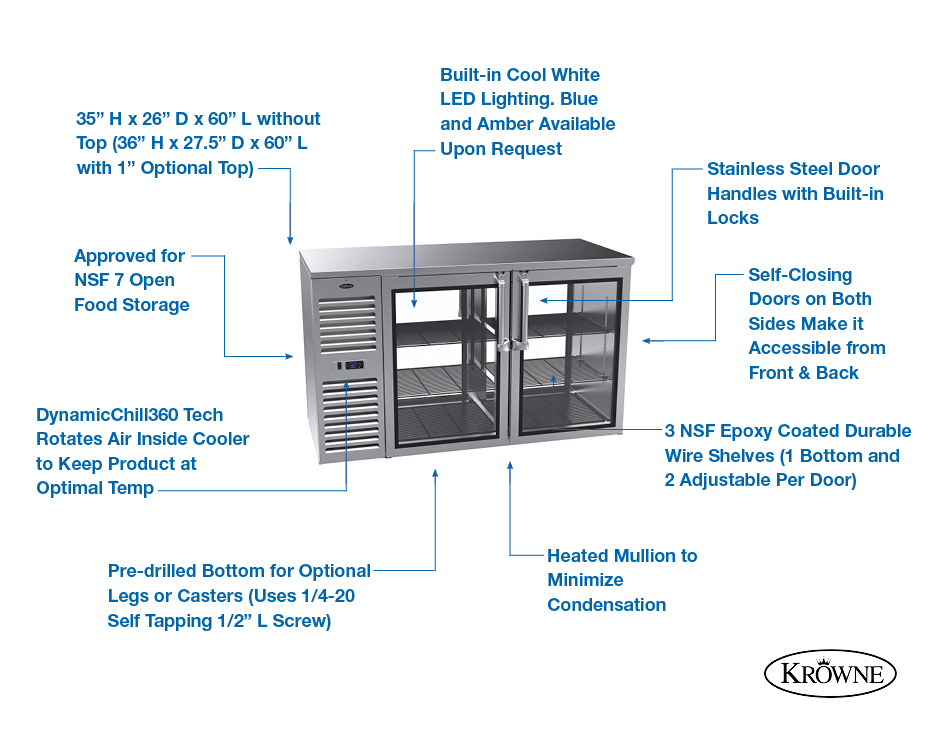

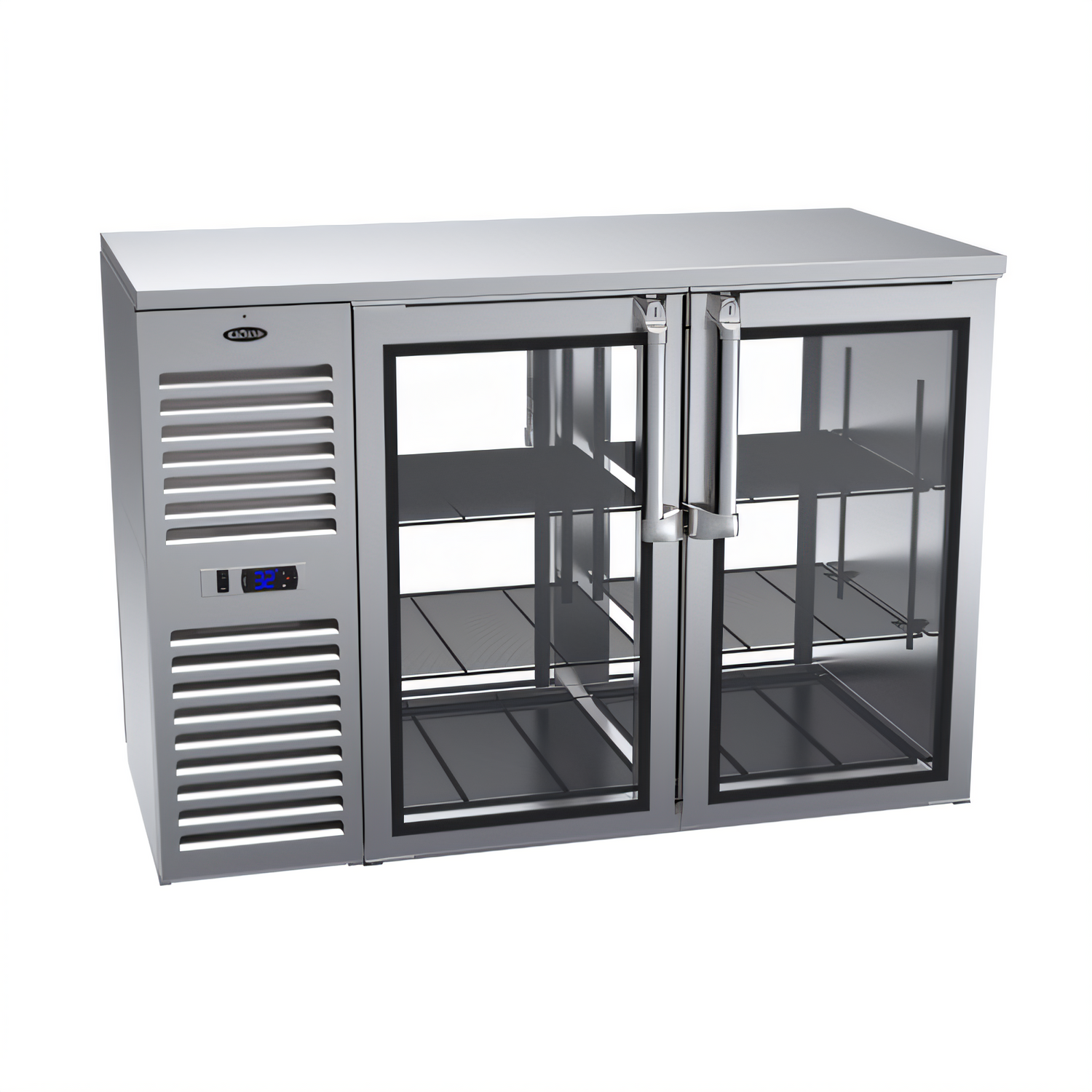

Royal Series™ Pass-Thru Back Bar Refrigerator – 52″

Model KPT52L · Two-Section · Left-Side Compressor

Give bartenders instant access from both sides of the bar while keeping every bottle perfectly chilled. The Krowne Royal Series KPT52L combines rugged stainless-steel construction with energy-efficient, eco-friendly refrigeration to handle the busiest service with ease.

Why You’ll Love It

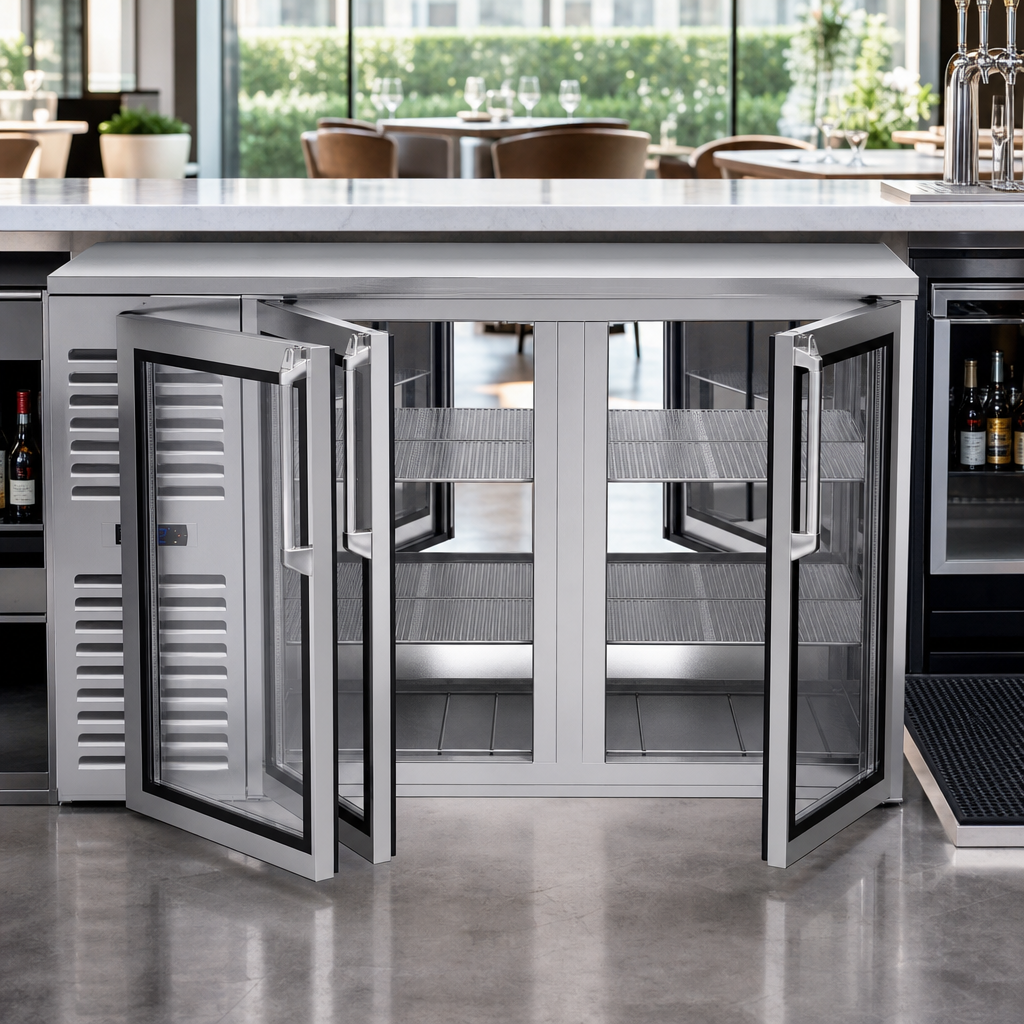

  • True pass-thru convenience – four narrow hinged doors (2 front / 2 rear) with built-in locks and ergonomic stainless handles.
  • 30 °F – 40 °F digital control (factory set to 35 °F) maintains safe serving temps for beer, wine, mixers and open food.
  • DynamicChill 360° forced-air circulation delivers even cooling on every shelf.
  • Bright, cool-white 7000 K LED lighting showcases product and saves energy.
  • NSF epoxy-coated wire shelving – 1 bottom rack + 2 adjustable shelves per door (total 12 shelves).
  • Heated mullion minimizes condensation for crystal-clear door visibility.
  • Automatic defrost timer and integral condensate evaporator – no drain line required.
  • Eco-friendly R290 hydrocarbon refrigerant and 2″ foamed-in-place insulation.
  • Pre-drilled base accepts optional casters or legs for quick field installation.
  • Backed by a 1-year parts & labor warranty and 5-year compressor warranty.
At-a-Glance Specs
Exterior width 52″ (1321 mm)
Depth 26″ (660 mm)  ·  27 ½″ with optional top
Height 35″ without top  ·  36″ with 1″ top
Sections / Doors 2 Sections  ·  4 Hinged Doors (pass-thru)
Shelves 12 total (3 per door – 2 adjustable + 1 bottom rack)
Temperature range 30 °F – 40 °F (-1 °C – 4 °C)

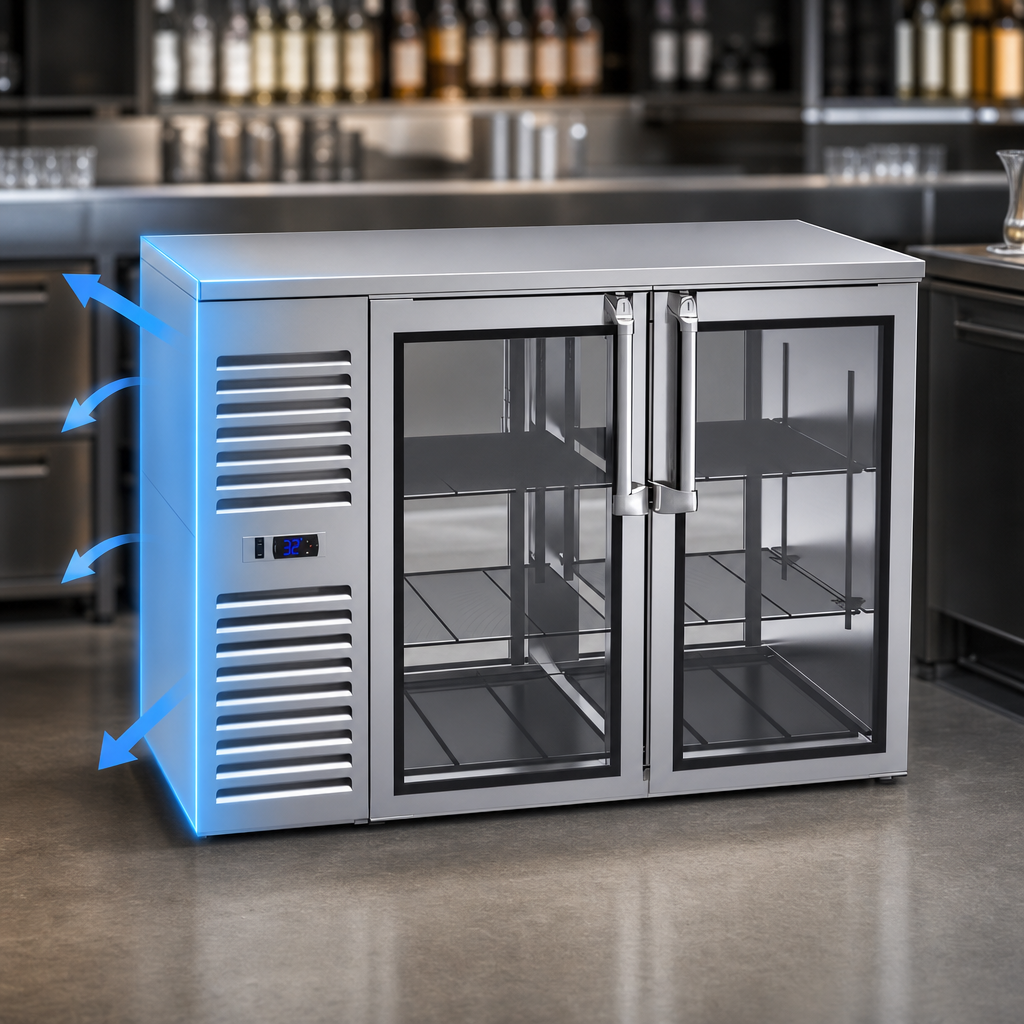

Compressor 1/4 HP, left-mounted, self-contained
Refrigerant R290 Hydrocarbon
Electrical 115 V / 60 Hz / 1 Ph · 4.8 A · 8′ cord with NEMA 5-15P
Case capacity (12 oz cans) 20 cases
Case capacity (long-neck bottles) 12 cases
Wine bottles (750 ml) 126 bottles
Certifications NSF/ANSI 7 Open Food, ETL-Sanitation, ETLus
Warranty 1 yr parts & labor · 5 yr compressor
Popular Options (sold separately)
  • 1″ stainless-steel work top
  • Kickplates (front & rear) and side kick plates
  • Leg kits – 4″ or 6″ stainless steel
  • Low-profile or ultra-low-profile casters with brakes
  • Blue or warm-white LED lighting upgrades
  • Side guard rail for interior shelving
Installation Note: This unit is designed for indoor use where ambient temperature does not exceed 75 °F (24 °C). A dedicated 15 A circuit is recommended.

Krowne reserves the right to modify product design and specification without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

ETLus, ETL-Sanitation

Height

35.0in

Width

52.0in

Depth

25.38in

Shipping Weight

435.0lbs

Width (side - side)

23 - 58 inches

Refrigeration Location

self-contained, side mounted

Exterior Finish

black exterior

Door Qty

4 doors

Door Type

solid

Door Swing

swing door(s)

Specifications

Pass-Thru Refrigerated Back Bar Cabinet, two-section, 52"W, self-contained refrigeration mounted on left, 30°F to 40°F temperature range, (4) hinged doors with locks, (2) adjustable wire shelves, (1) bottom rack per door, LED lighting, automatic defrost timer & condensate evaporator, stainless steel interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.8 amps, cord with NEMA 5-15P, NSF7 Open Food Certified, ETL-Sanitation, ETLus
