Krowne  |  Royal Series  |  SKU: KPT36L

Krowne KPT36L Royal Series Back Bar Coolers

$5,567.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet Owner's manual Sell sheet (1)
Related Searches
Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

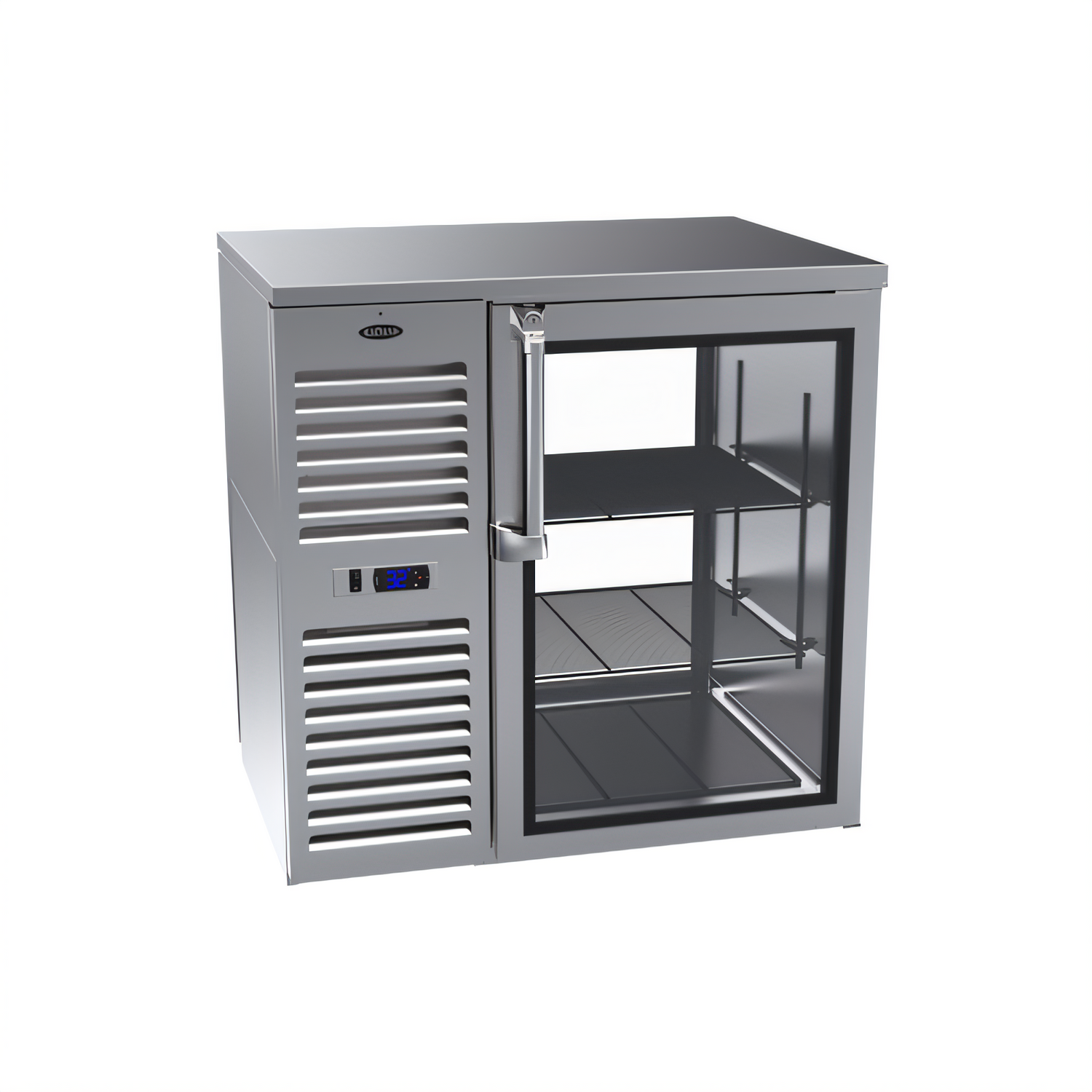

Krowne Royal Series 36" Pass-Thru Refrigerated Back Bar Cabinet

Two-Section • Left-Mounted Self-Contained Compressor • Model KPT36L

Built for high-volume bars that need speed, visibility and rock-solid temperature control, the Krowne Royal Series 36" Pass-Thru Back Bar Cabinet lets bartenders load from the back and serve from the front—without ever breaking stride. Energy-saving R290 refrigeration, brilliant LED lighting and a rugged stainless interior make this compact workhorse a smart, sustainable upgrade for any beverage program.

Why You’ll Love It

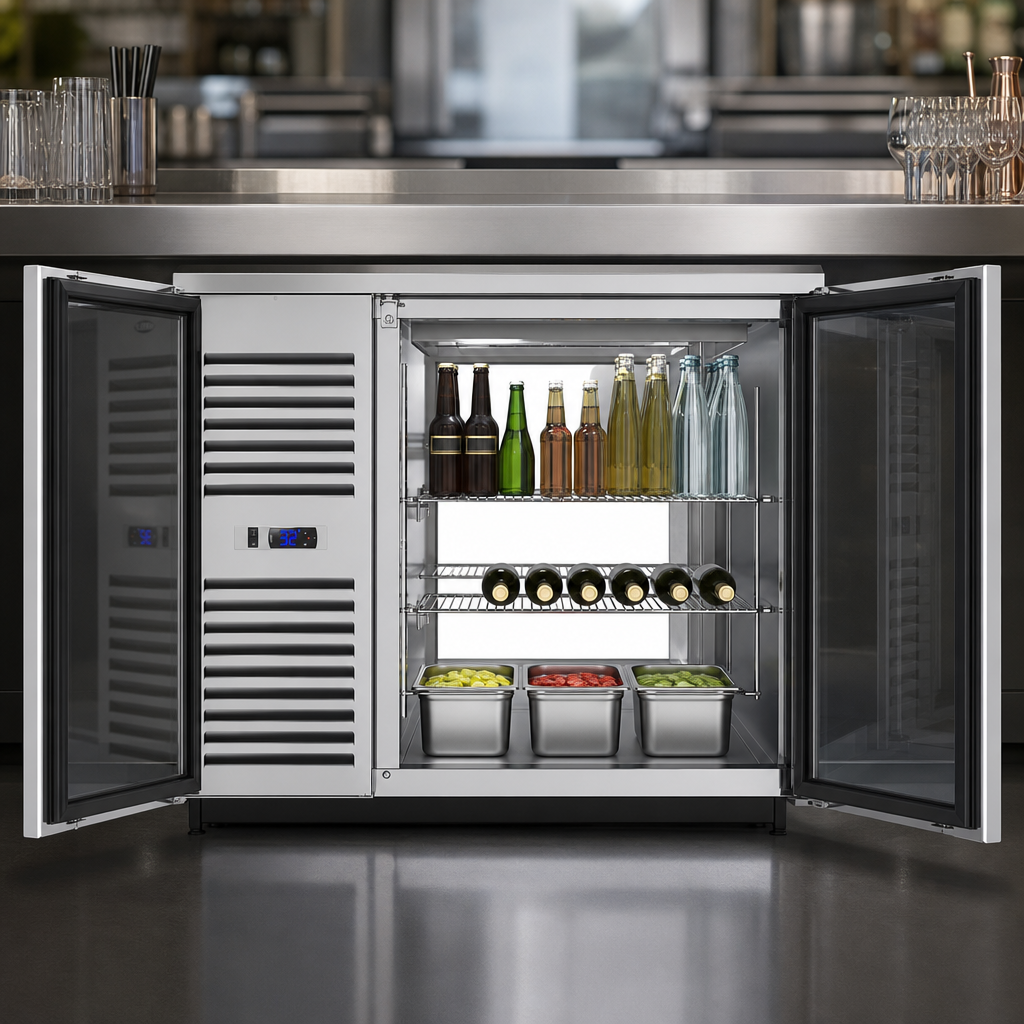

  • Pass-thru doors provide instant access from both sides of the bar.
  • DynamicChill 360° airflow keeps every bottle between 30 °F – 40 °F (factory-set at 35 °F).

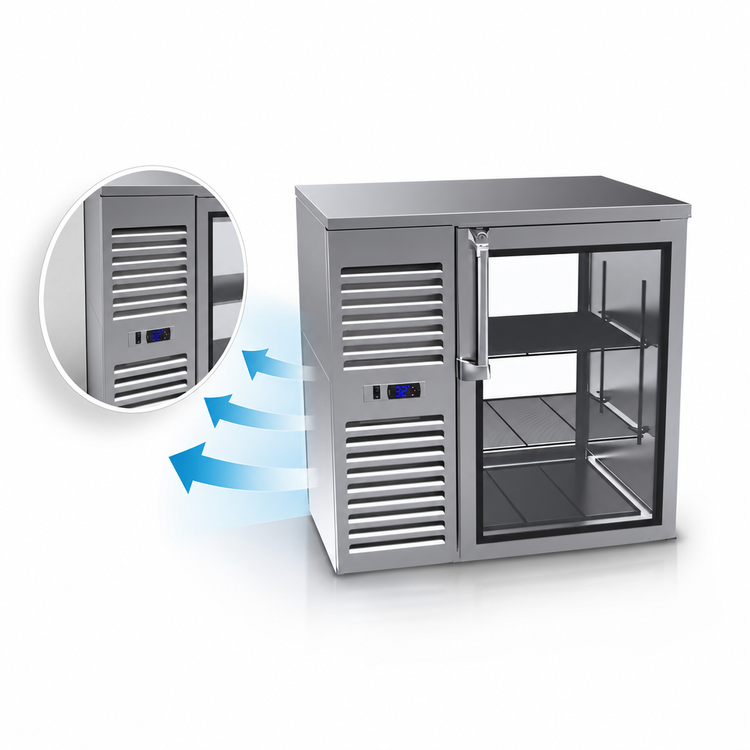

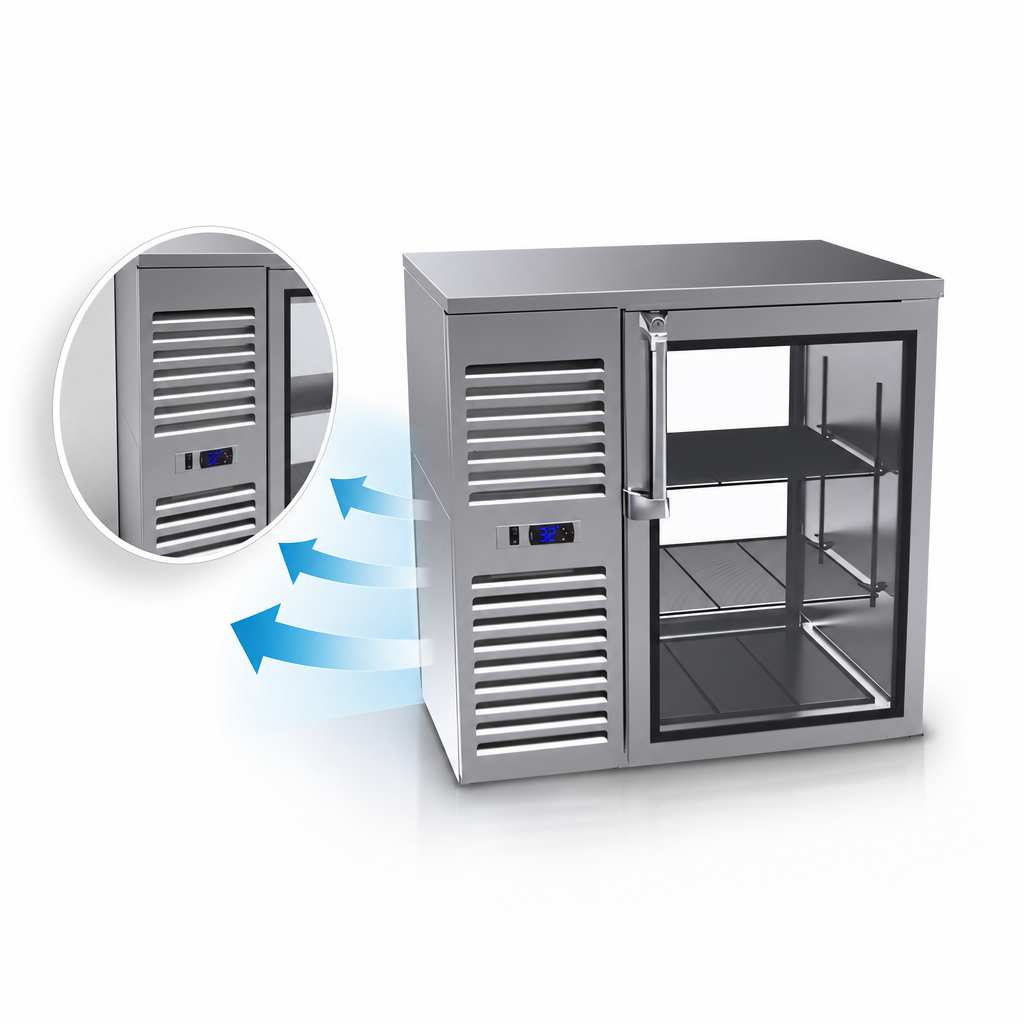

  • Self-contained, eco-friendly R290 refrigerant with 1/5 HP compressor—no remote system or floor drain needed.
  • Cool-white 7000 K LED lighting showcases product while using minimal energy.
  • Stainless steel interior with coved corners wipes clean in seconds and meets NSF 7 for open-food storage.
  • (2) hinged doors with built-in locks and heated mullion minimize condensation.
  • (2) adjustable epoxy-coated wire shelves plus floor racks—configure for cans, bottles or wine.
  • Automatic defrost timer and condensate evaporator for hands-off maintenance.
  • Pre-drilled base accepts optional legs or low-profile casters for the perfect working height.
Capacity Guide
Long-neck bottles (12 oz) ≈ 7 cases
12 oz cans ≈ 10 cases
Wine bottles (750 ml) Up to 72
Technical Specifications
Exterior width 36" (914 mm)
Exterior depth 26" without top / 27 ½" with optional 1" top
Exterior height 35" without top / 36" with optional top
Sections / Doors 2 sections / 2 hinged pass-thru doors with locks
Shelving (2) adjustable wire shelves + floor rack per door
Interior material 20-ga stainless steel, coved corners
Temperature range 30 °F – 40 °F
Refrigerant / HP R290 Hydrocarbon / 1/5 HP
Electrical 115 V / 60 Hz / 1-Ph, 2.8 A, 8′ cord, NEMA 5-15P
Lighting 7000 K cool-white LED
Net weight ≈ 325 lb (147 kg)
Certifications NSF/ANSI 7, ETL-Sanitation, ETLus
Warranty 1-yr parts & labor • 5-yr compressor
Optional Upgrades
  • 1", 2" or 3" low-profile casters with brakes
  • 4" or 6" stainless steel legs
  • Stainless steel top or kick plates
  • Blue or warm-white (3500 K) LED lighting
  • Preset wine temperatures (50 °F – 55 °F for white, 60 °F – 65 °F for red)
Important: This cabinet is intended for the storage and display of non-potentially hazardous bottled or canned beverages and should be installed where ambient temperature does not exceed 75 °F.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

ETLus, ETL-Sanitation

Height

35.0in

Width

36.0in

Depth

25.38in

Shipping Weight

325.0lbs

Exterior Finish

black exterior

Door Swing

swing door(s)

Door Qty

2 doors

Refrigeration Location

self-contained, side mounted

Width (side - side)

23 - 58 inches

Door Type

solid

Specifications

Pass-Thru Refrigerated Back Bar Cabinet, two-section, 36"W, self-contained refrigeration mounted on left, 30°F to 40°F temperature range, (2) hinged doors with locks, (2) adjustable wire shelves, (1) bottom rack per door, LED lighting, automatic defrost timer & condensate evaporator, stainless steel interior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.8 amps, cord with NEMA 5-15P, NSF7 Open Food Certified, ETL-Sanitation, ETLus
