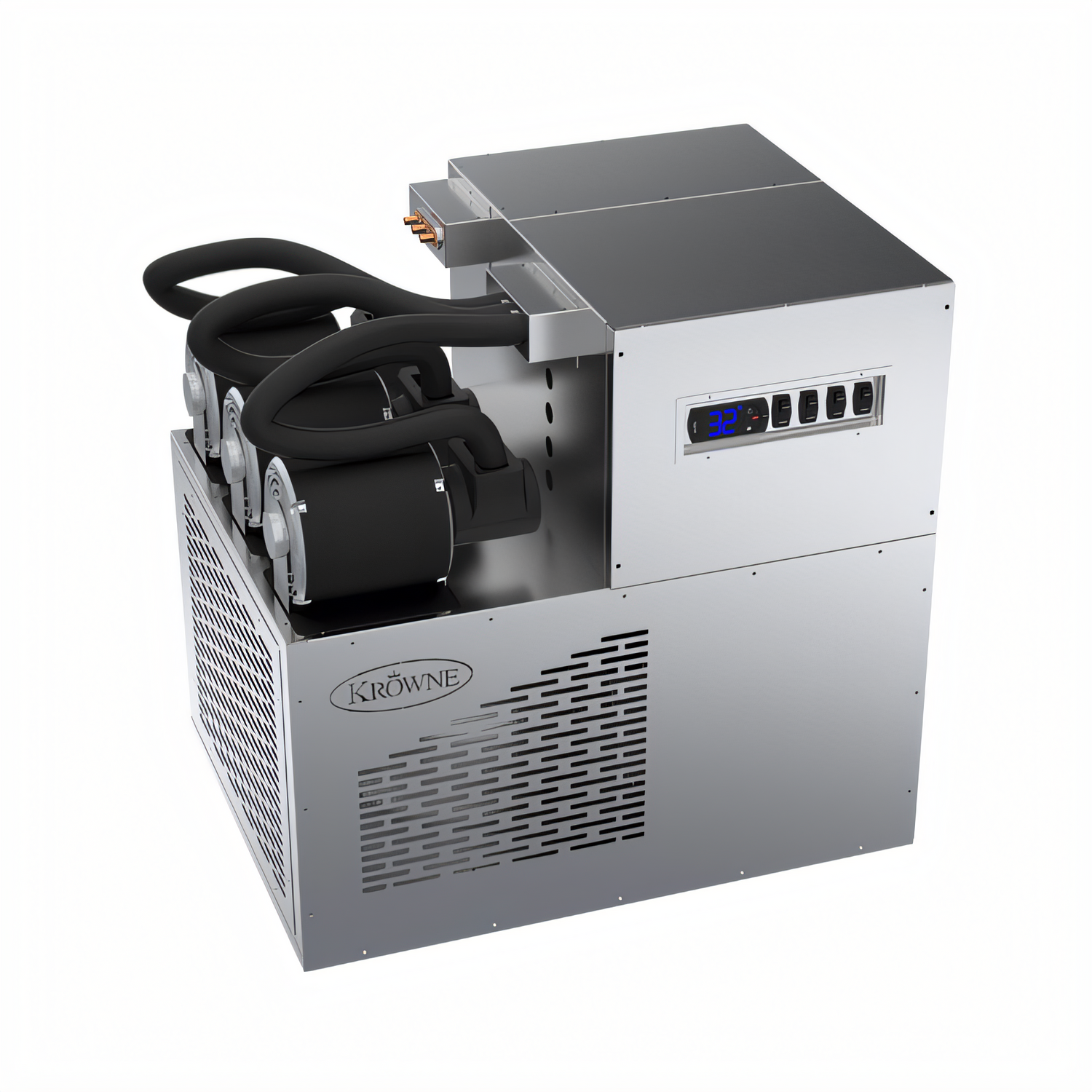

Krowne Master Tap Air-Cooled Draft Beverage System Power Pack, 3-Pump, 230V

Stainless Steel, Hard-Wired, 6,950 BTU

Built for three-line draft systems, this air-cooled power pack keeps glycol chilled with a 3/4 HP compressor and digital temperature control.

  • Supports three draft lines with (3) 80 GPH circulating pumps.
  • Air-cooled design with a 3/4 HP compressor and 6,950 BTU rating.
  • Digital thermostat display with a factory 30°F cut-out and adjustable 28°F to 34°F range.
  • Hard-wired 230V, 60 Hz, 1-phase operation for dedicated installation.
  • Stainless steel cabinet and 1.8-gallon reservoir for durable commercial use.
  • Compatible with optional KPP-S1 stand and KPP-W1-75 wall bracket.

Overall Dimensions:

27.0"W x 20.0"D x 26.0"H

Triple Circulating Pumps

Three 80 GPH / 100 PSI pumps circulate glycol for multi-line draft cooling.

Air-Cooled Compressor System

Air-cooled refrigeration simplifies installation while delivering dependable cooling performance.

3/4 HP Compressor

Provides the cooling capacity needed for demanding draft beverage applications.

Digital Temperature Controller

Built-in display makes temperature monitoring simple and includes adjustable set point control.

Stainless Steel Cabinet

Durable stainless steel construction is designed for commercial beverage environments.

230V Hard-Wired Electrical

Requires 230V/60 Hz/1-phase power and a hard-wired connection.

1.8-Gallon Reservoir

Reservoir is designed for a 66% water / 33% glycol coolant mix.

R134A Refrigerant

Uses R134A refrigerant in the cooling system.

Type Draft Beverage System Power Pack
Style Air Cooled
Installation Type Freestanding
Circulating Pumps 3
Voltage 230 Volts
Amps 17 Amps
Hertz 60 Hz
Phase 1-Phase
Controls Digital Thermostat
Material Stainless Steel
Horsepower 3/4 HP
BTU 6950 BTU
Refrigerant Type R134A
Temperature Range 28°F to 34°F
Reservoir Capacity 1.8 Gallons
Drain Connection Required
Shipping Weight 205 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It requires 230V, 60 Hz, 1-phase power and a hard-wired connection; 230V models require four wires: 2 hot, 1 neutral, and 1 ground.
This model has three circulating pumps, each rated at 80 GPH / 100 PSI.
Use a 66% water and 33% glycol coolant mix. If you are not using Krowne premix, the glycol should meet FDA food-grade requirements.
The factory set cut-out is 30°F, with an adjustable range of 28°F to 34°F.
Allow at least 6 inches of clearance on all sides and keep ambient temperature at or below 100°F for proper ventilation.
The KPP-S1 stand fits all Power Packs, and the KPP-W1-75 wall bracket is the correct bracket for KPP75 models.
