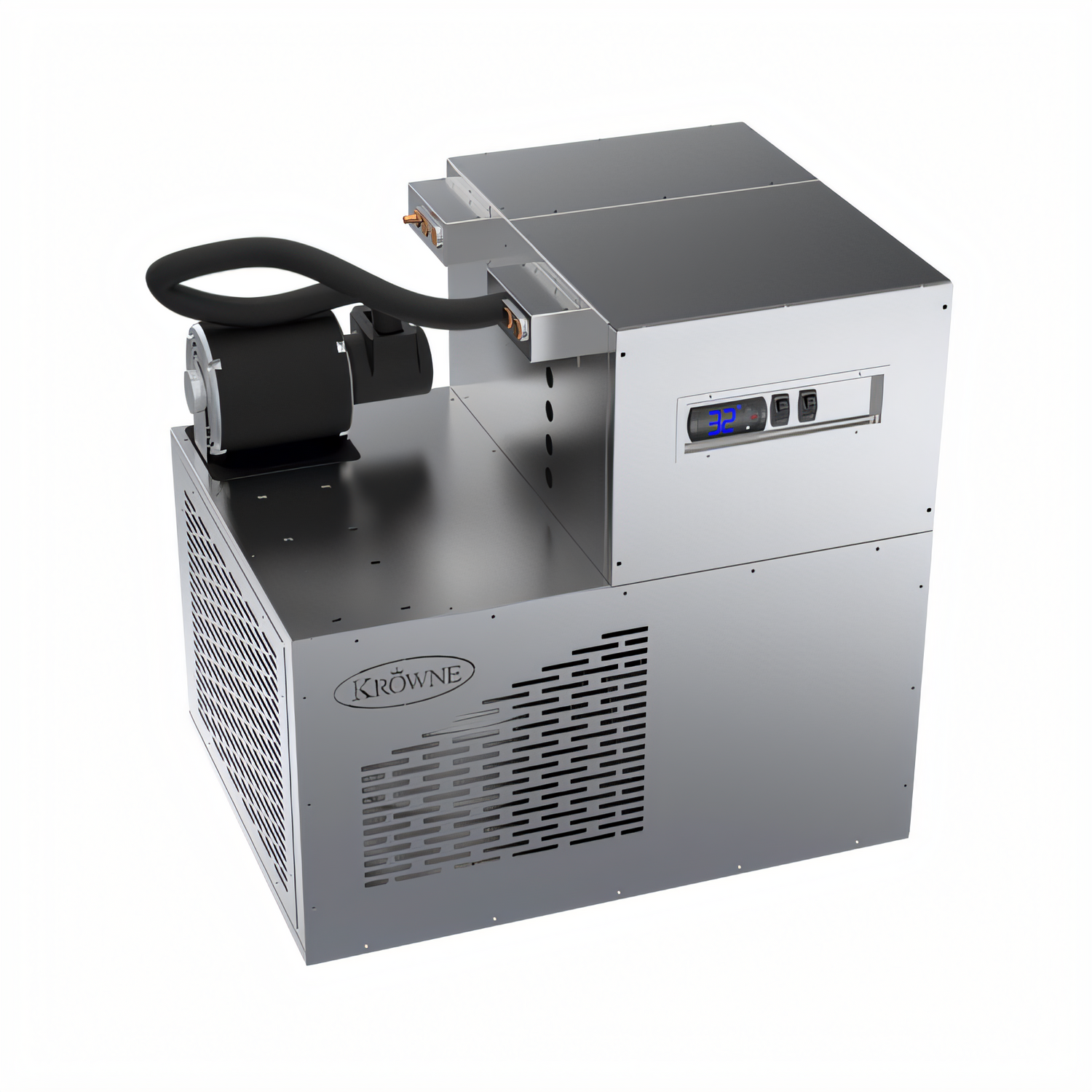

Krowne Master Tap Air-Cooled Draft Beverage System Power Pack, Single Pump, 230V

3/4 HP Compressor, Digital Thermostat, Stainless Steel Cabinet

Keep draft beverage lines chilled and stable with a single-pump, air-cooled power pack built around a 3/4 HP compressor and digital temperature control.

  • Air-cooled draft beverage power pack designed for single-pump 230V applications.
  • 3/4 HP compressor delivers 6,950 BTU of cooling performance.
  • One 80 GPH circulating pump supports consistent glycol circulation.
  • Digital thermostat display makes temperature monitoring simple.
  • Stainless steel cabinet is built for commercial beverage service environments.

Overall Dimensions:

27.0"W x 20.0"D x 26.0"H

Air-Cooled Refrigeration

Uses air cooling for the refrigeration system to support glycol chilling in draft beverage applications.

Single 80 GPH Circulating Pump

Includes one circulating pump rated at 80 GPH for single-pump operation.

3/4 HP Compressor

Provides 6,950 BTU of cooling capacity for stable line chilling performance.

Digital Thermostat with Display

Built-in digital controller provides a visible temperature readout and factory set 30°F cut-out with a 2°F differential.

Stainless Steel Cabinet

Durable stainless steel construction suited for commercial beverage service.

Hard-Wired 230V Connection

Designed for 230V, 60 Hz, single-phase service and requires hard-wired installation.

Type Draft Beverage Power Pack
Refrigeration Type Air-Cooled
Voltage 230 Volts
Amps 11 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hard Wired
Controls Digital
Temperature Range 28°F to 34°F
BTU 6,950 BTU
Compressor Horsepower 3/4 HP
Pump Count 1
Pump Flow Rate 80 GPH
Refrigerant Type R134A
Material Stainless Steel
Reservoir Capacity 1.8 Gallons
Shipping Weight 205 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses 230V, 60 Hz, single-phase power and is hard wired. The 230V models require four wires: 2 hot, 1 neutral, and 1 ground.
This model includes one circulating pump rated at 80 GPH.
It has a 3/4 HP compressor with a 6,950 BTU evaporator rating.
The digital thermostat has a factory default cut-out at 30°F with a 2°F differential, and the operating range is 28°F to 34°F.
Yes. The KPP-S1 stand fits all Power Packs, and the KPP-W1-75 wall bracket is the correct bracket for the 75 models.
