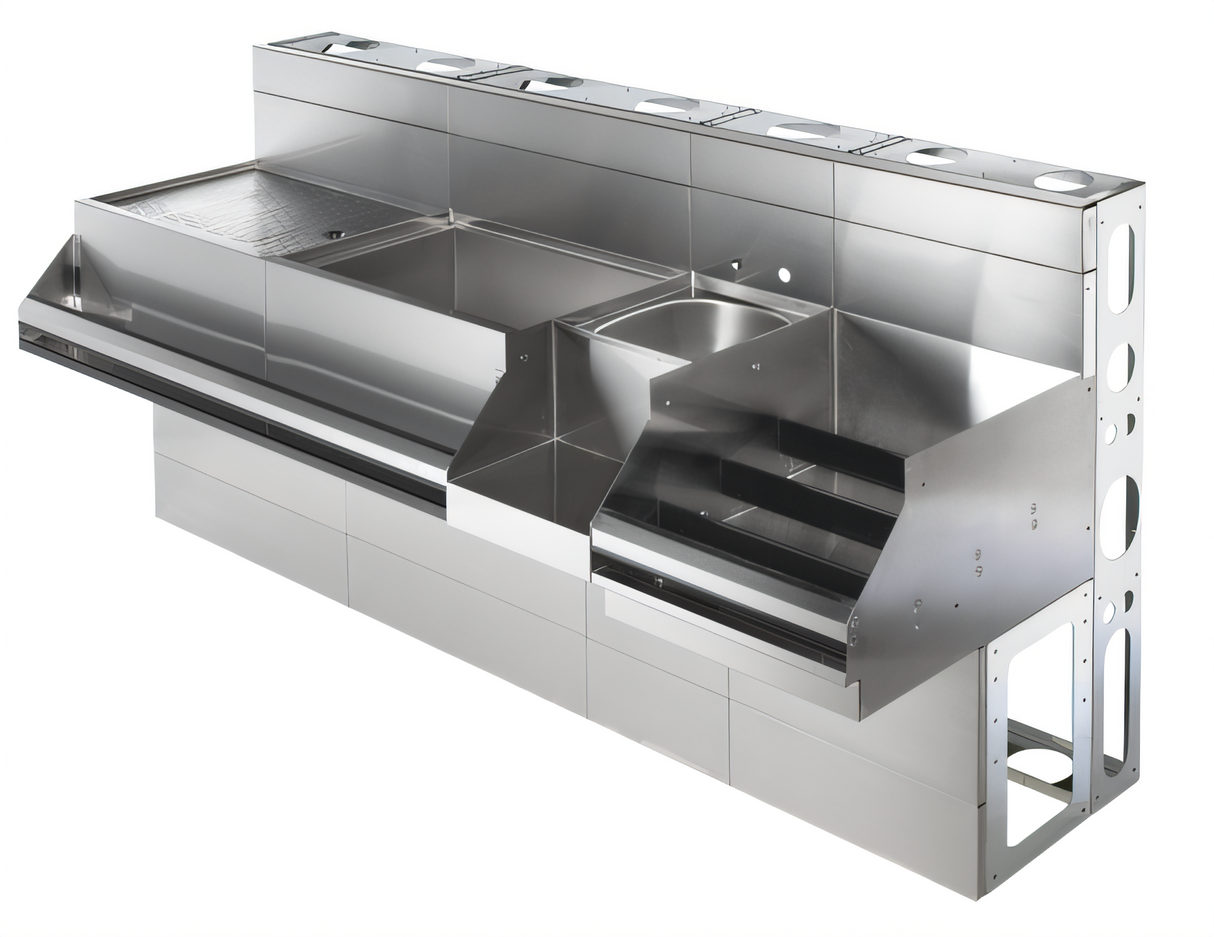

Royal Series Modular Bar Die Wall with Built-In Utility Chaseways
Priced Per Foot; Factory-Managed Layouts; Custom Heights Not Available
Keep bar utilities organized and serviceable with a modular die wall that routes water, beverage, electrical, and drain lines through integrated chaseways.
- Custom modular bar die wall designed for underbar layouts.
- Built-in chaseways run the full length of the structure, including corners.
- Removable front panels provide front-side access for service and rough-in work.
- A 5-1/2-inch open zone behind equipment provides room for trunk lines and utilities.
- Factory or sales representative handles pricing and layout coordination.
- Optional Mylar template helps mark drain and line locations before production.
Product Weight:

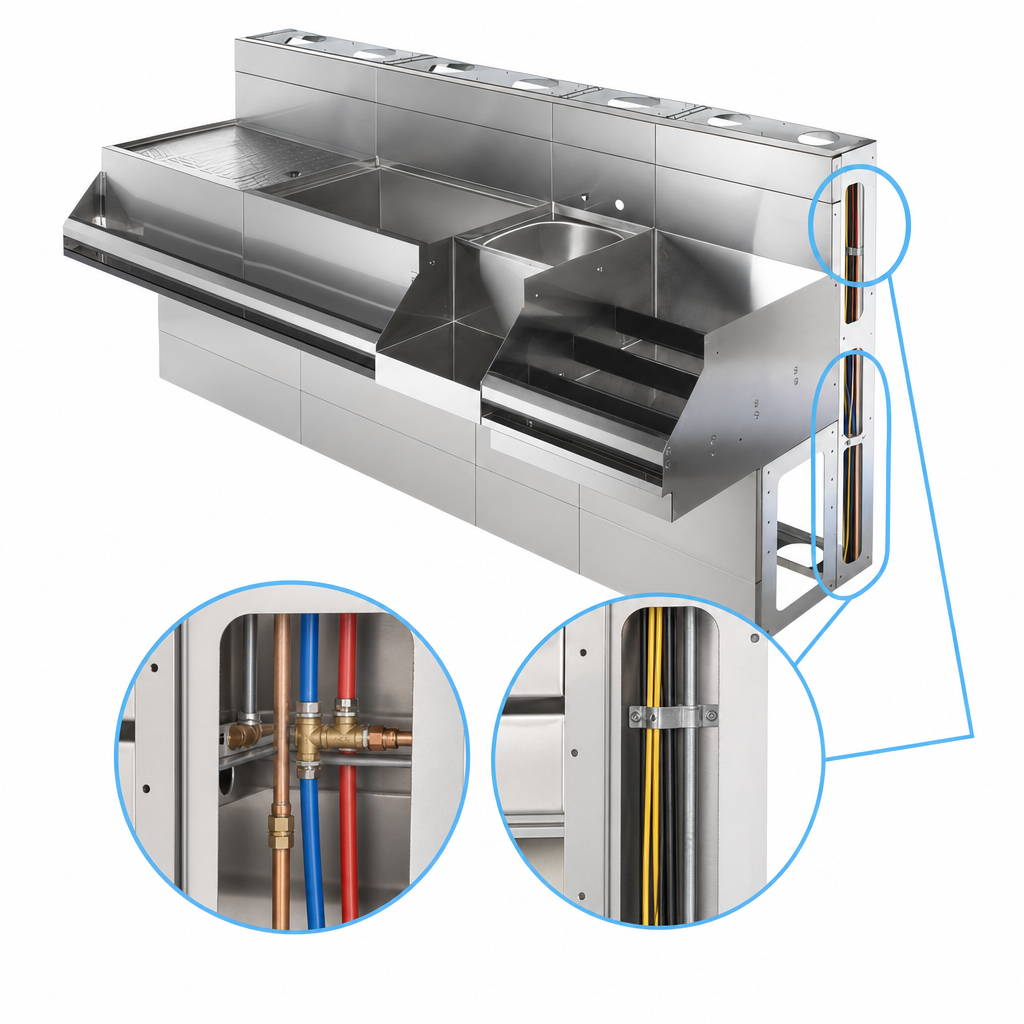

11.0 lbBuilt-In Chaseways
Dedicated chase locations route hot and cold water, beverage lines, and electrical conduit through the bar structure.

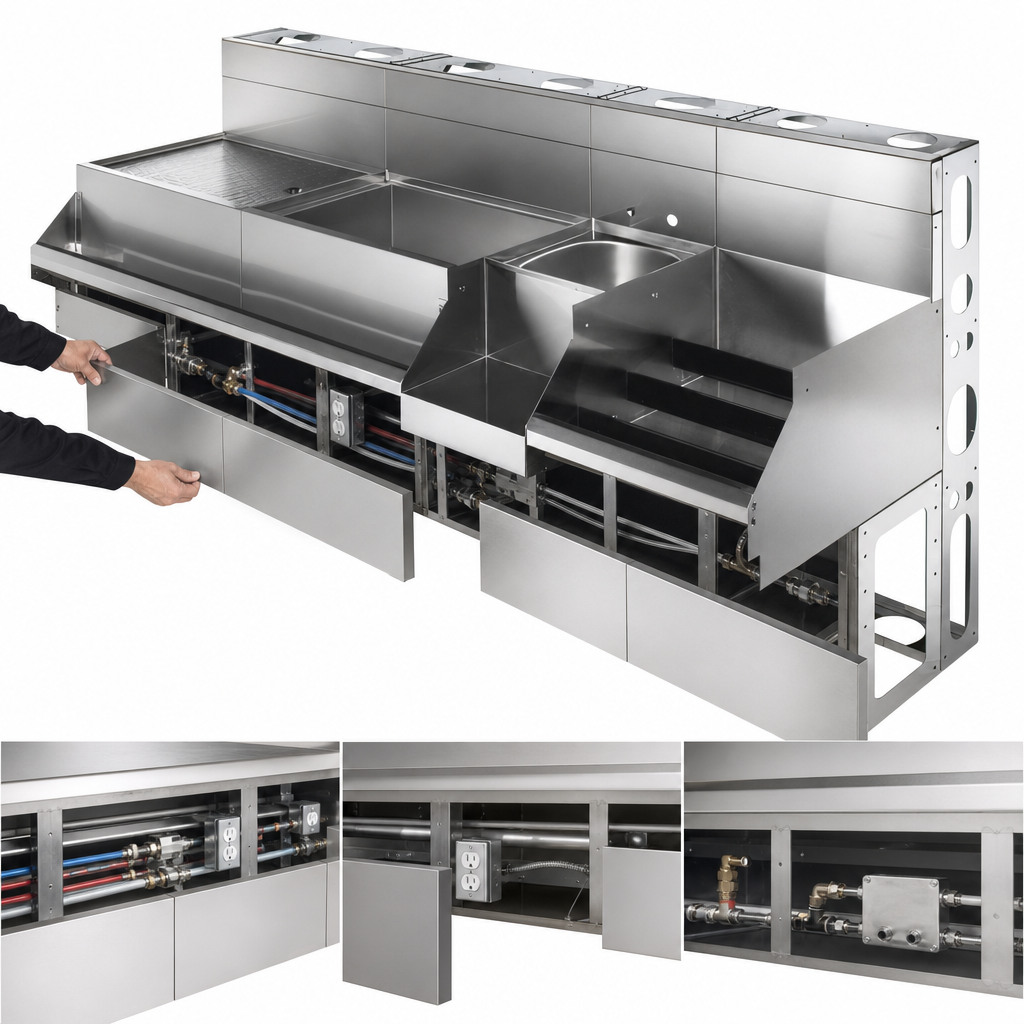

Front-Service Access
Removable front panels allow plumbing, electrical, and beverage connections to be made from the customer side.

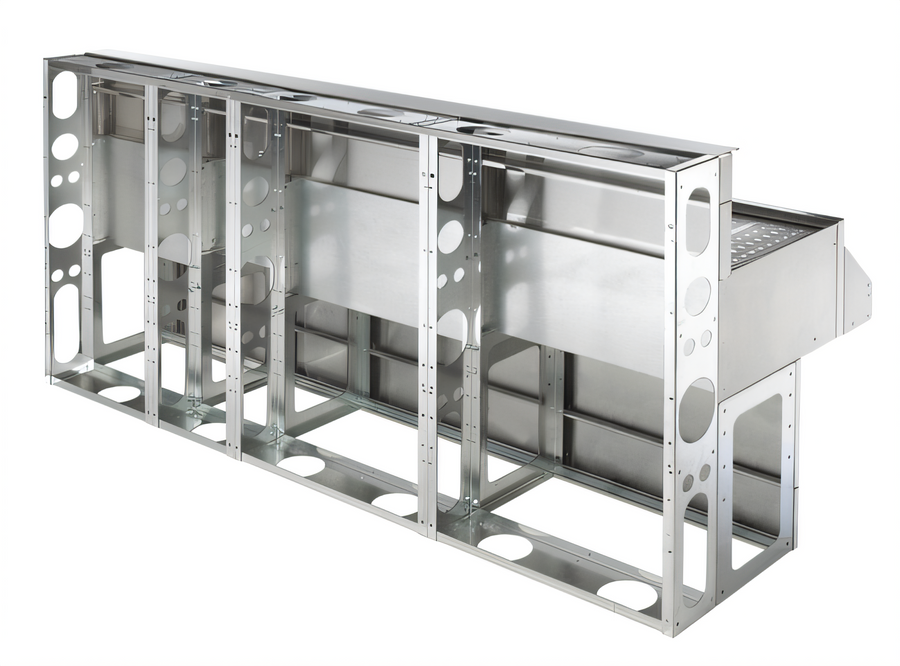

Continuous Utility Routing
The interior chase runs the entire length of the structure, including corners, for flexible bar layouts.
5-1/2-Inch Open Utility Zone
Open space behind the equipment provides room for trunk lines, soda lines, plumbing, electrical, and related utilities.
Factory Layout Support
Pricing and layout details are handled by the factory or a sales representative.
Optional Mylar Template
A Mylar template can be ordered before production to help locate floor drains and utility rough-ins accurately.
Sold by the Foot
This custom bar die wall is priced per foot rather than as a fixed stock size.
