Krowne Royal Series Built-In Modular Bar Die Wall System

SKU: KMB
GTIN: 822196847722
$288.20
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Drainboards Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

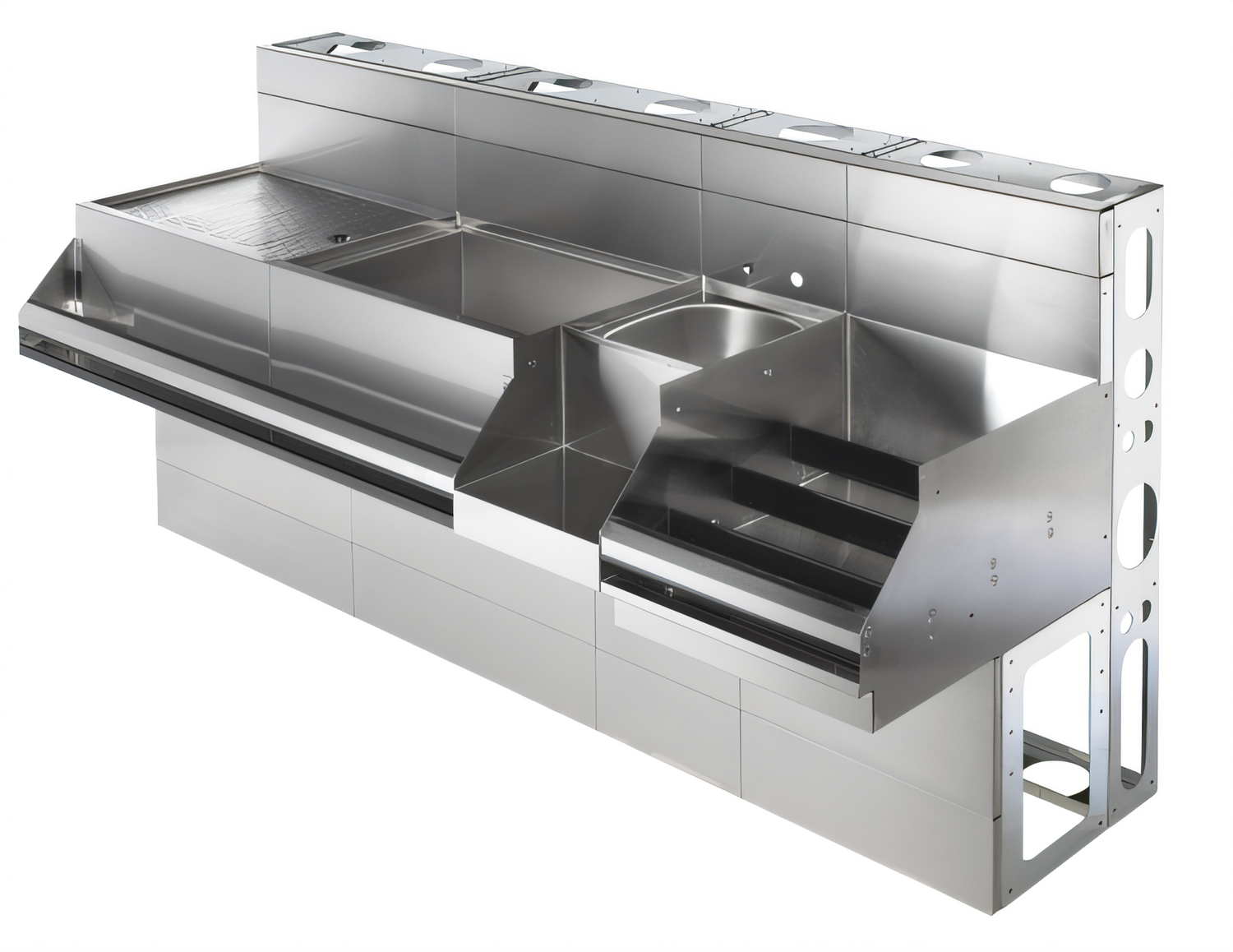

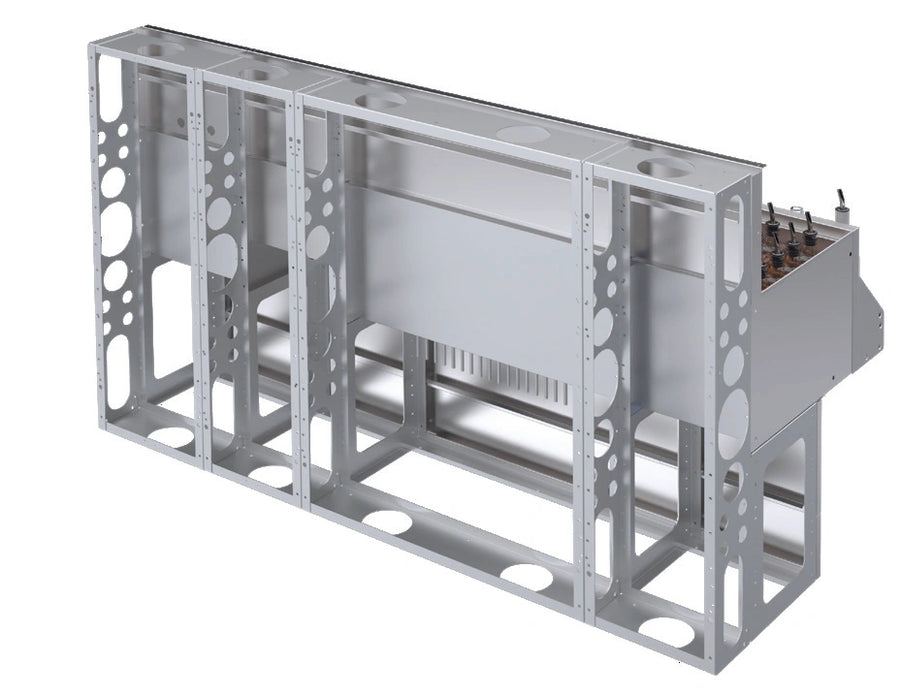

Krowne Royal Series Built-In Modular Bar Die Wall System

Priced per foot with removable panels and concealed utility chases

A custom bar die wall system that hides utilities behind removable panels while keeping front-side service access simple.

  • Priced per foot for custom bar layouts coordinated by the factory or a sales representative.
  • Built to the die wall for support, with die wall use overriding any leg references.
  • Dedicated chaseways route hot and cold water, beverage lines, and electrical conduit לאורך the full run and around corners.
  • Removable front panels make plumbing, electrical, and beverage connections accessible from the front.
  • A 5-1/2-inch open zone behind the equipment leaves room for trunk lines, soda lines, plumbing, and electrical.
  • Optional mylar template and LED lighting accessories are available for layout and visibility support.

Overall Dimensions:

41.0"H

Product Weight:

11.0 lb

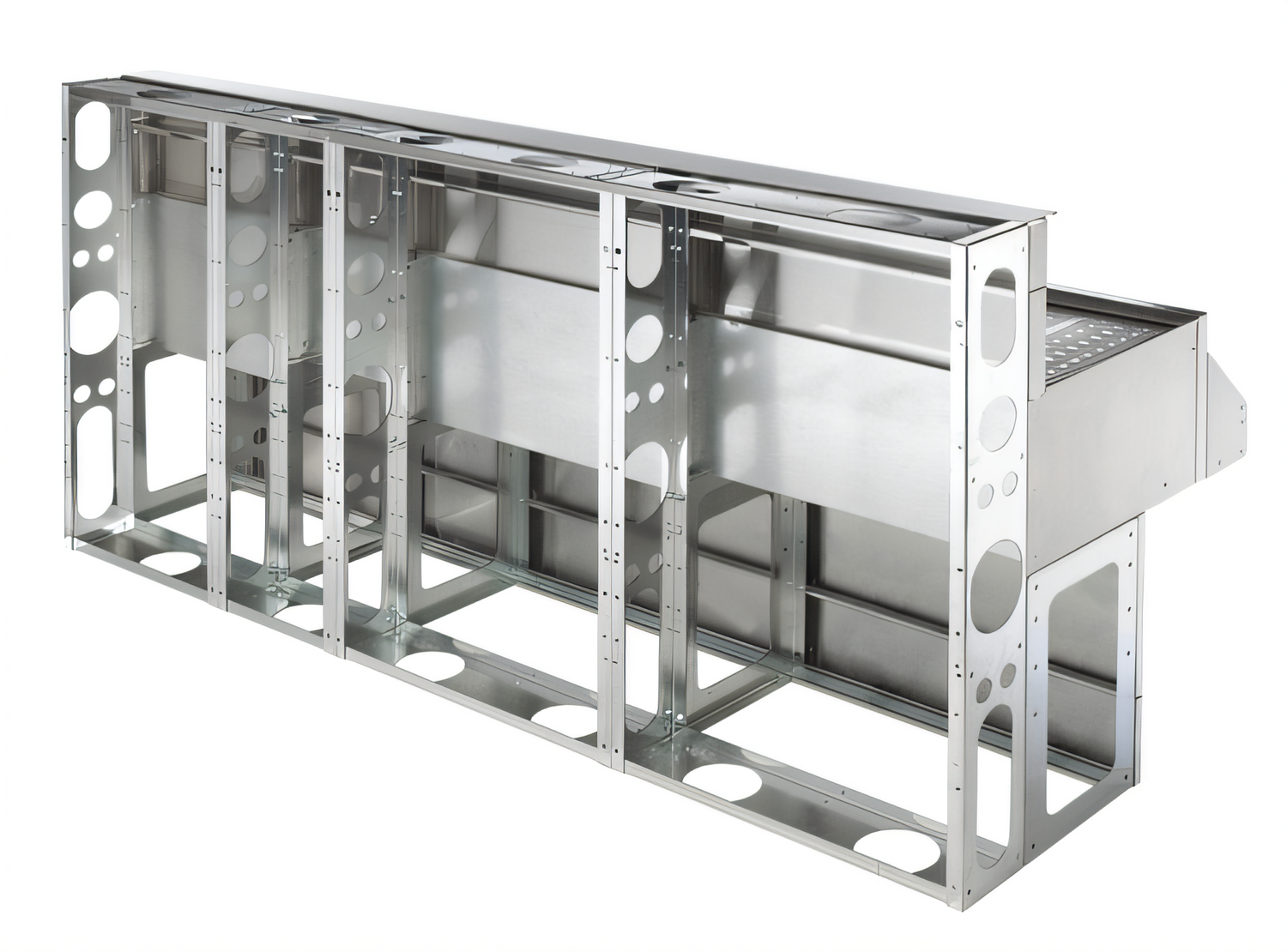

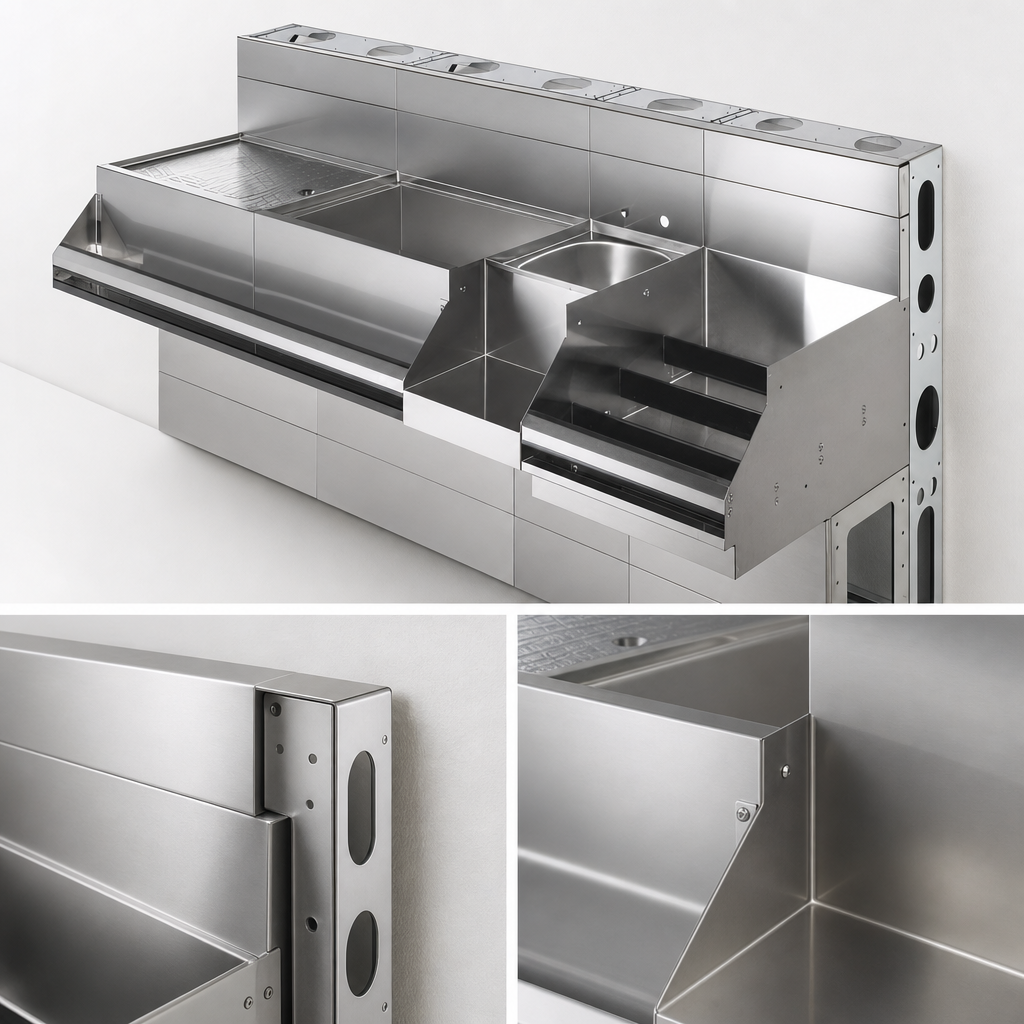

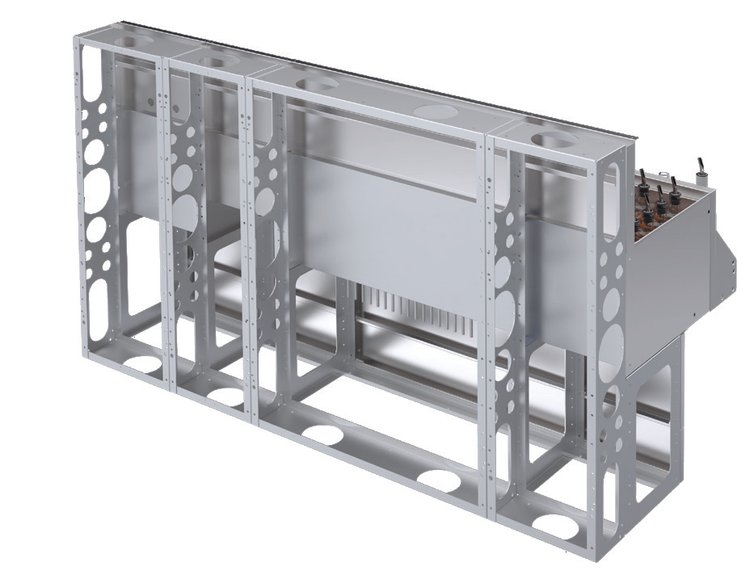

Built-To-Die-Wall Support

Designed to be built to the die wall for structural support and to ship as a matched system.

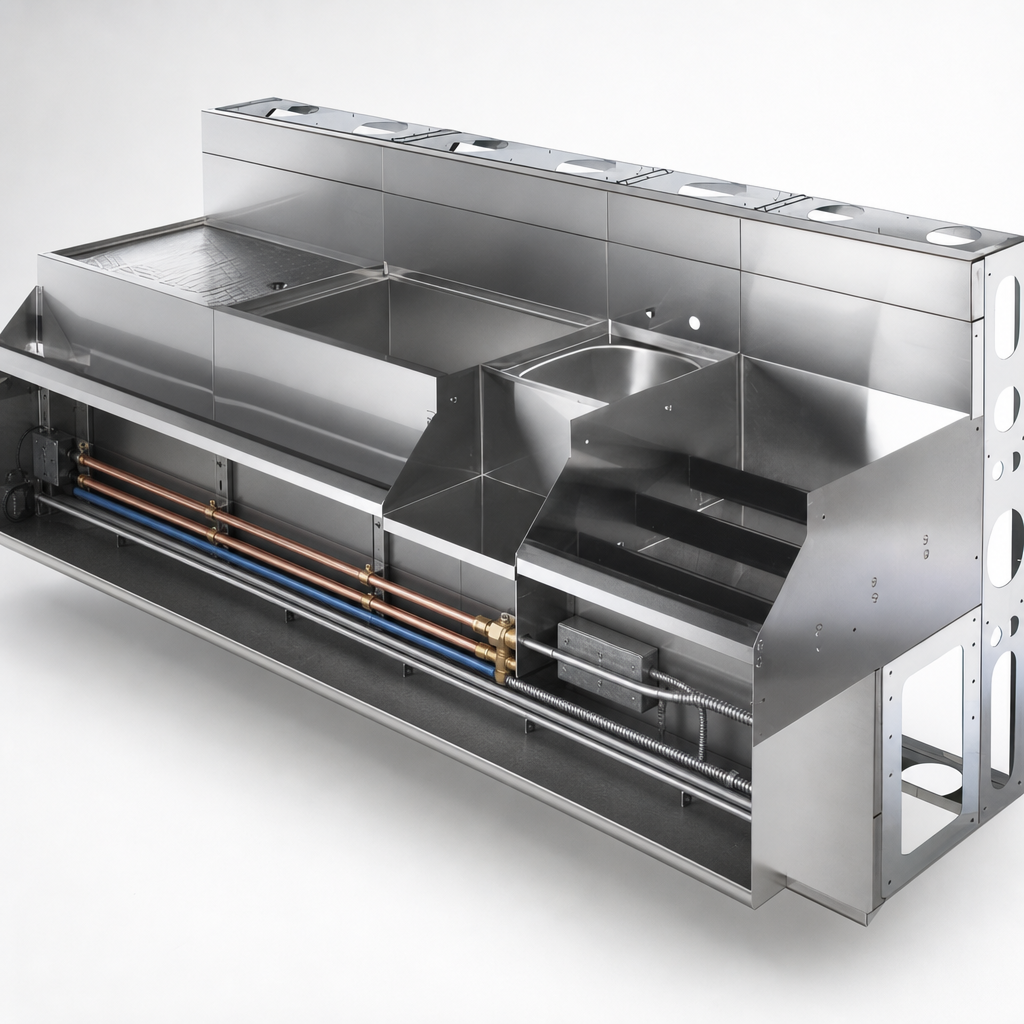

Full-Length Utility Chaseways

Dedicated chase locations run the length of the bar for hot/cold water, beverage lines, and electrical conduit.

Removable Front Panels

Front millwork panels can be removed to simplify installation and service access from the customer side.

Front-Side Utility Access

Water service and waste connections can be made from the front once the decorative panel is removed.

5-1/2-Inch Open Utility Zone

Provides open space behind the equipment for trunk lines, soda lines, plumbing, electrical, and other utilities.

Optional Mylar Template

An optional template can be ordered before production to locate the exact footprint and utility/drain positions.

Optional Pre-Wired LED Lighting

LED light options are pre-wired with quick connectors and designed to run to a single power source.

Type Modular Bar Die System
Style Royal Series
Installation Type Built-In
Selling Unit Foot
Units Per Case 1
Shipping Height 41 Inches
Shipping Weight 11 lb.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Technical spec sheet PDF Download

Frequently Asked Questions

Yes. The product is priced per foot, and the packing information lists the selling unit as ft with 1 unit per case.
This model is built for die wall support. Any leg references are overridden when using the die wall version.
The system uses dedicated chase locations for hot and cold water, beverage lines, and electrical conduit, plus a 5-1/2-inch open zone behind the equipment.
Yes. The removable front panels allow service access from the front side of the bar.
The documentation lists LED lighting as a separate option with matching power supplies, rather than as part of the base bar die system.
Yes. A mylar template is available as an optional item and is ordered before production at an additional charge.
