Krowne  |  SKU: GWH-24  |  UPC: 822196242442

Krowne GWH-24 Undercounter Dishwashers

$11,919.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment Dishwashers Undercounter Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

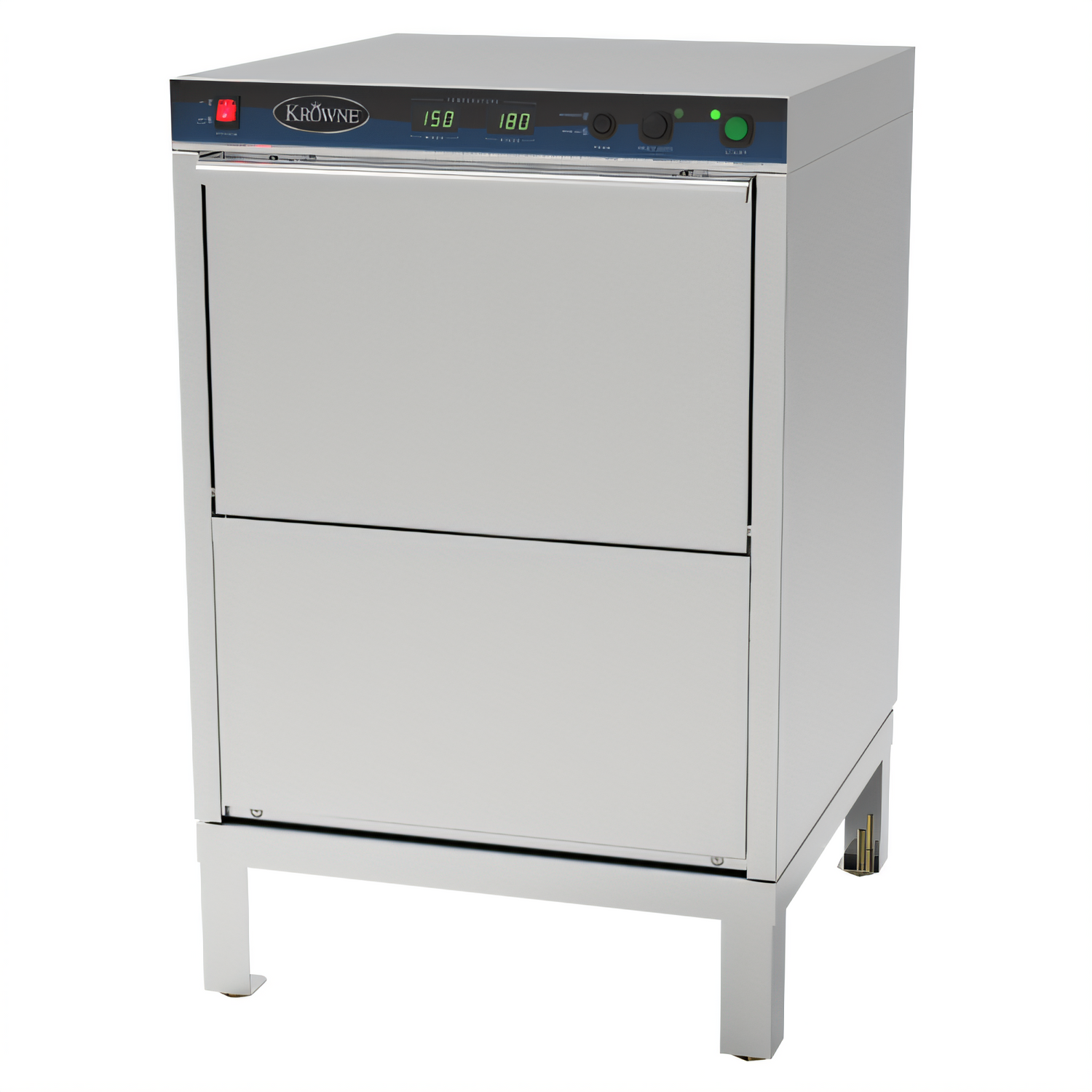

Krowne GWH-24 Heat-Recovery Glasswasher

24" underbar, high-temperature, door-type glass washer with built-in 5 kW booster

Give your bar the rapid, sanitary turnaround it needs. The Krowne GWH-24 processes up to 25 racks per hour while reclaiming heat from the rinse cycle, slashing energy costs and leaving your glassware dry, spotless and ready for immediate service.

Why You’ll Love It

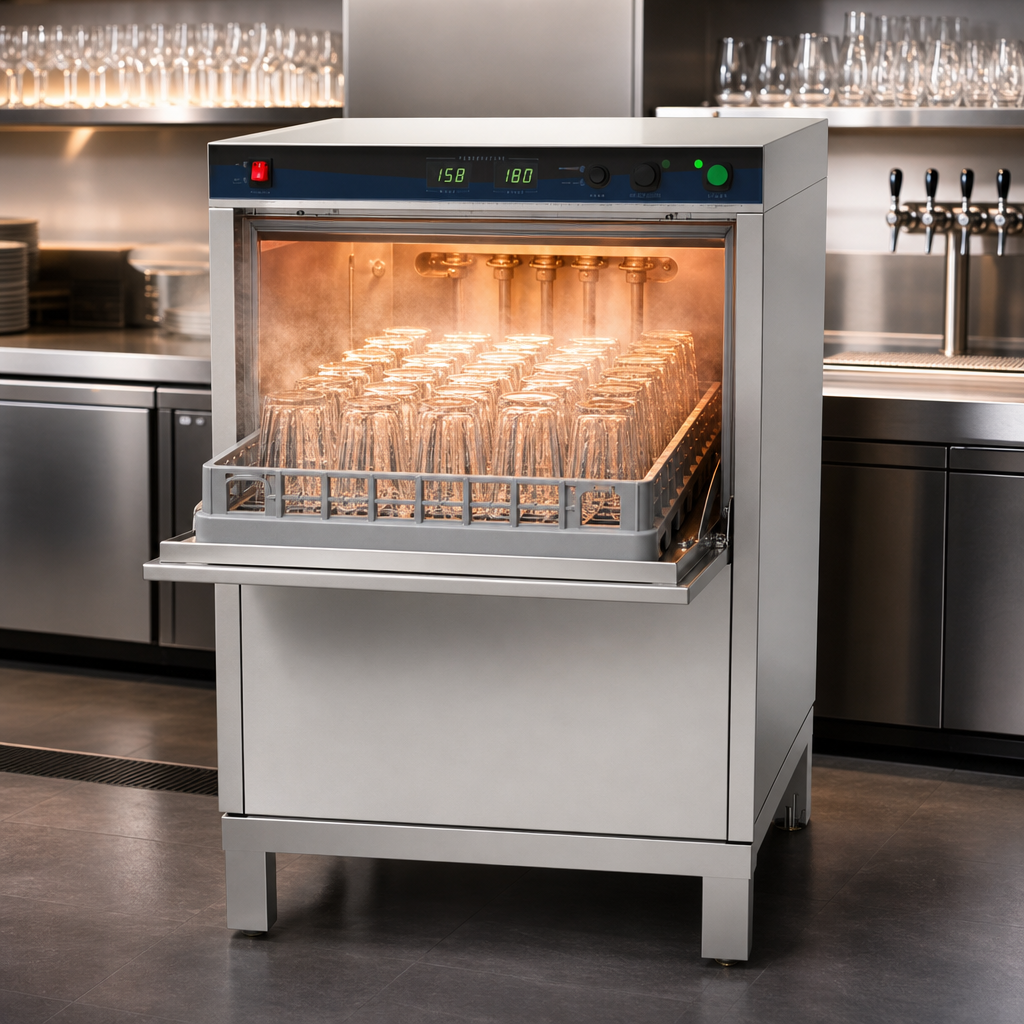

  • High-temperature sanitation (180 °F rinse) – no chemical sanitizer taste or odor.
  • Heat-recovery system uses cold-water feed only and cuts energy use by up to 50 %.
  • RAPID-DRY removes steam for faster, streak-free drying.
  • Three adjustable cycles (45 / 120 / 197 sec) tackle lipstick, pulp and protein soils with ease.
  • Soft-Start pump ramps gently to protect delicate glassware from chipping.

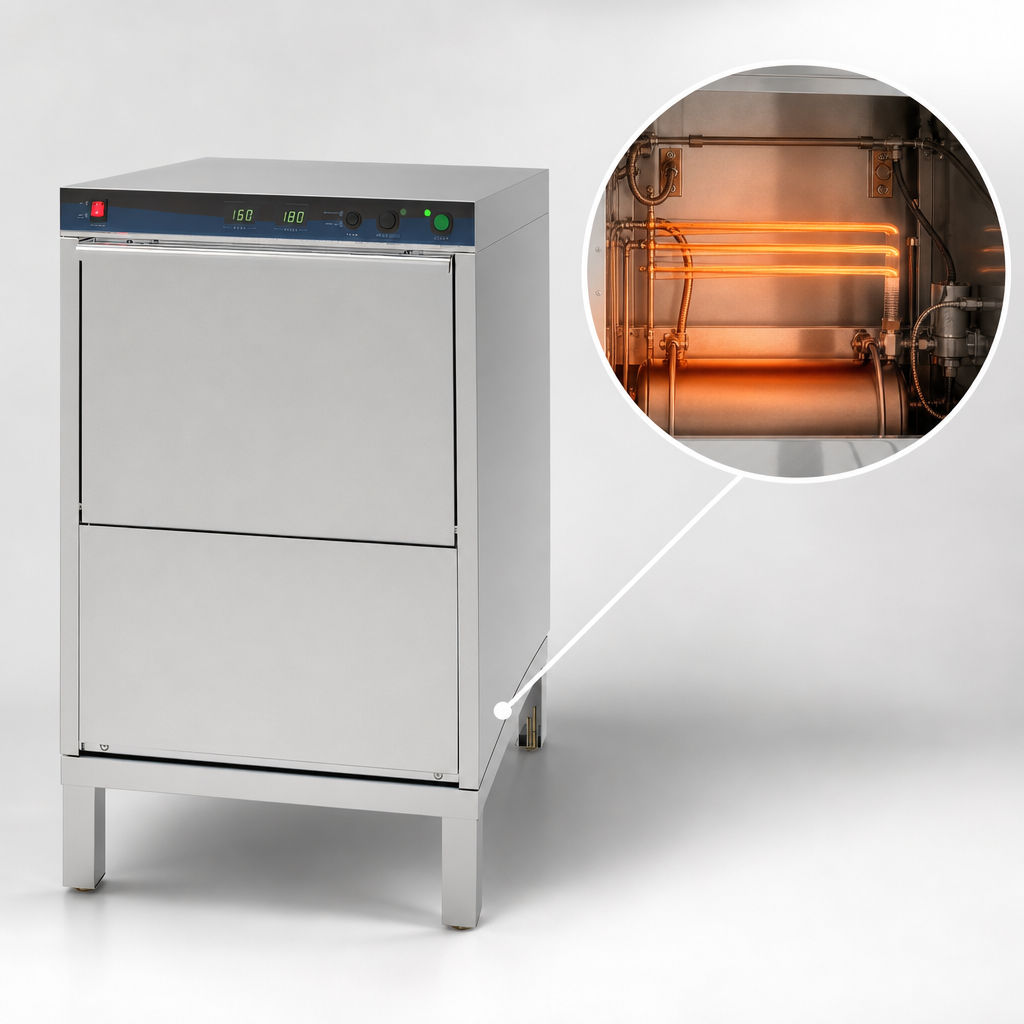

  • Built-in 5 kW electric booster + 2 kW tank heater maintain consistent wash & rinse temps.
  • Auto-clean & delime programs keep the wash cavity sparkling with minimal labor.
  • Integrated detergent & rinse-aid pumps with prime switches—no external feeders required.
  • Digital LED temperature read-outs and microprocessor controls for worry-free operation.
  • Deep-drawn 316 stainless steel tank, full stainless cabinet & legs with adjustable bullet feet.
  • Includes (2) 20" × 20" racks (1 peg, 1 flat) and matching rack stand.

Technical Specifications

Capacity 25 racks / hour  |  (2) 20" × 20" racks included
Water Use 0.65 gal per rack  |  15.6 gal per hour
Cycle Times 45 s, 120 s, 197 s (rinse: 13 s, drain/fill: 62 s)
Wash / Rinse Temps 150 °F wash minimum  |  180 °F rinse minimum
Heating Elements 2 kW tank heater  |  5 kW booster heater
Wash Pump 1 HP soft-start motor
Electrical 208–240 V / 60 Hz, single- or three-phase field convertible
Rated amps: 32 A (208 V 1Φ) – 36 A (240 V 1Φ); 22 A (208 V 3Φ) – 24 A (240 V 3Φ)
Water Connection ½" cold water, 55–85 °F, 25 psi min (¾" hose connector supplied)
Drain Connection 6 ft flexible ⅝" I.D. hose, pumped drain – 15 gpm, max height 3 ft
Overall Dimensions 24" W × 25" D × 37¼" H
Door opening: 12⅛" H  |  Loading height: 22½"
Weight 198 lb (shipping)
Certifications ETLus & NSF listed

Installation & Maintenance Notes

  • Factory-installed pumped drain simplifies underbar retrofits—no gravity drop needed.
  • Flexible fill & drain hoses reduce hard-plumbing labor.
  • Field convertible from single- to three-phase without extra parts.
  • Run the Auto-Clean cycle nightly and Delime as prompted to maintain peak performance.
Important: Electrical and plumbing connections must be completed by qualified professionals in accordance with local codes.

Pair this unit with a Krowne glass-dump sink placed adjacent to the machine to qualify for an additional one-year warranty at no charge.

Features & Specs

Manufacturer

Krowne

Certifications

NSF, ETLus

Height

37.25in

Width

24.0in

Depth

25.0in

Shipping Weight

198.0lbs

Temperature

high temp

Rack Size

20" x 20"

Rack Per Hour (approx)

25 racks per hr

Style

door type

Specifications

Underbar Glasswasher, door-type, 24"W x 25"D, high temperature, fresh water sanitized with a built-in 5 kW electric booster heater, washes approximately (25) racks per hour capacity, (2) 20" x 20" racks, built-in chemical pumps, auto-clean cycle, digital LED temperature display with microprocessor controls, stainless steel construction, stainless steel legs with adjustable bullet feet, 2.0kW tank heater, 1 HP wash pump, ETLus, NSF
