Krowne GWD-24 Undercounter Dishwashers
Description

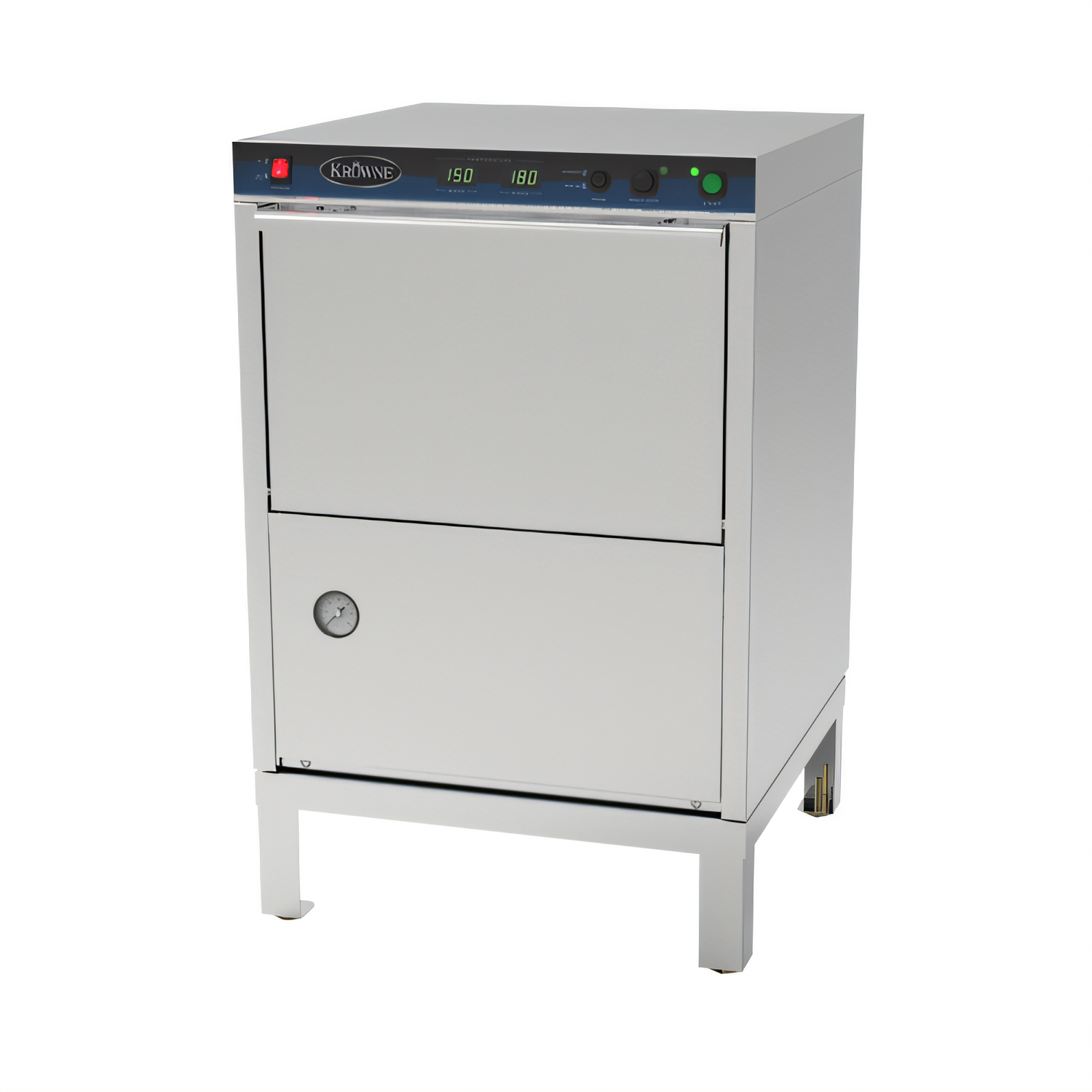

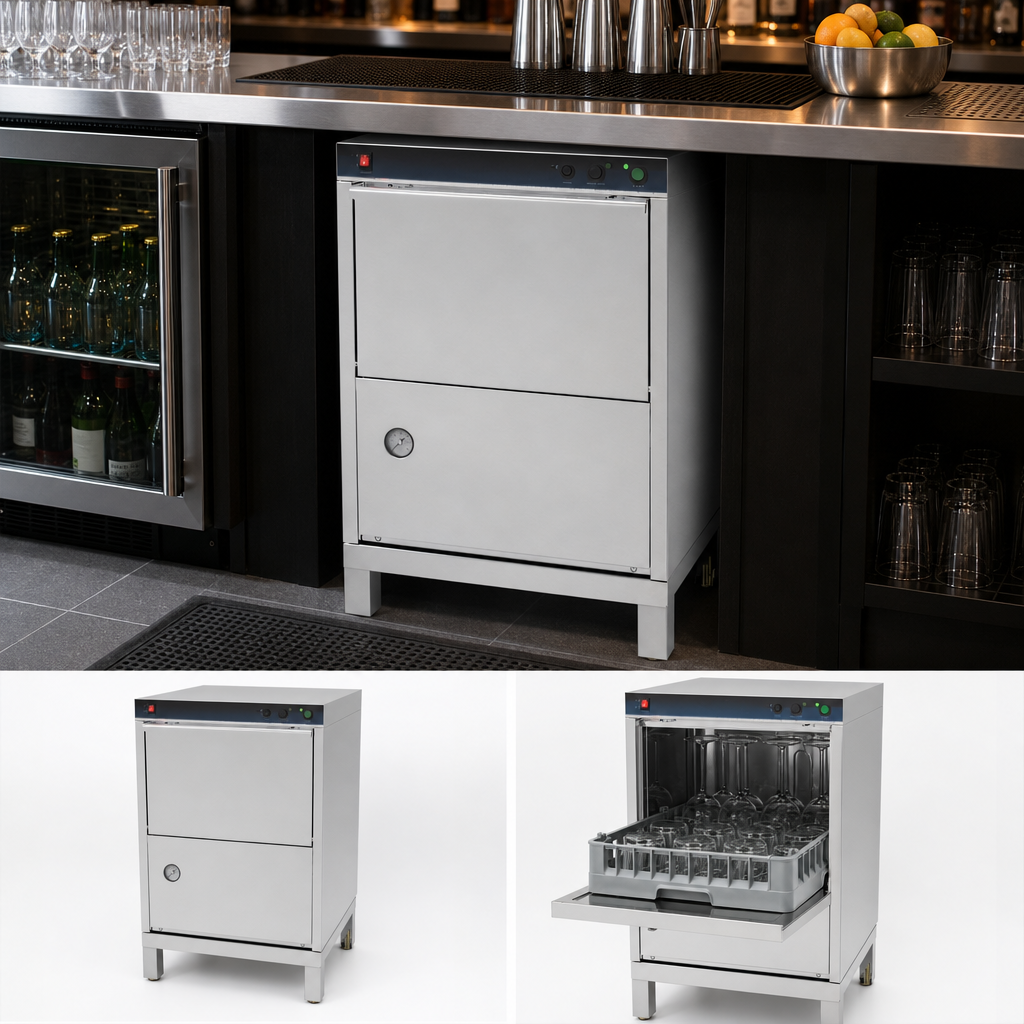

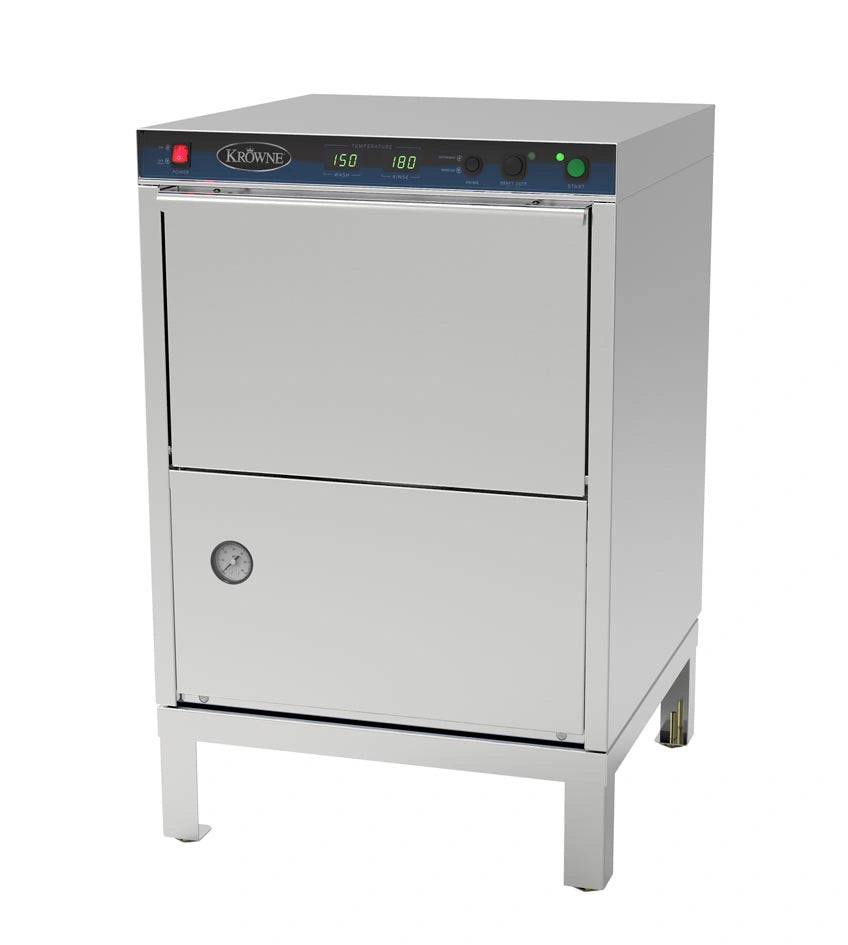

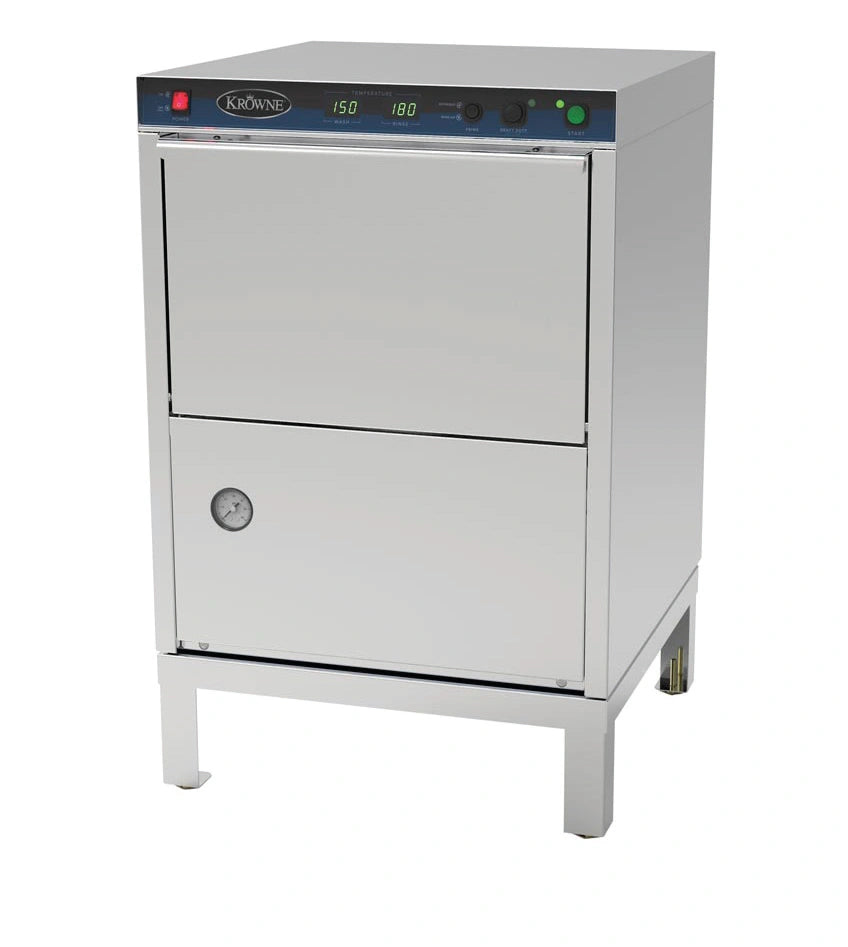

Krowne GWD-24 Underbar Glasswasher – 24" Door-Type, Low-Temp
High-capacity glass care in a compact 24" x 26" footprintDesigned for busy bars that refuse to compromise on glass clarity, the Krowne GWD-24 delivers quick, low-temperature chemical sanitizing cycles that protect delicate stemware while keeping service moving. A rugged stainless steel build, smart digital controls and built-in chemical pumps make this unit a plug-and-play powerhouse for any underbar lineup.
Key Features & Benefits
- Processes up to 25–30 racks per hour (20" × 20") for non-stop bar service
- Fits glassware up to 11" high with a generous 12-1/8" door opening
- Low-temperature chemical sanitizing (140°F) protects glasses from thermal shock
- Vari-Cycle button lets you set unlimited custom cycle times
- Fully automatic wash / rinse / drain sequence with digital LED thermostat
- Built-in detergent, sanitizer & rinse-aid pumps with prime switches—no external dispensers required
- Auto-Clean & Delime programs simplify end-of-shift maintenance
- Type 304 stainless steel exterior & 316-grade wash tank for maximum corrosion resistance
- Stainless steel legs with adjustable bullet feet (optional 5" locking casters)
- Fresh-water rinse while re-using rinse water as the next cycle’s wash water—saves up to 38 gal/hr
- Flexible 6 ft fill & drain lines with built-in flow regulator/line strainer—no PRV required
- NSF & ETL certified for sanitation and electrical safety
At-a-Glance Specifications
| Model | Krowne GWD-24 |
|---|---|
| Footprint (W × D) | 24" × 26" |
| Overall Height | 37-1/4" |
| Rack Capacity | 25 racks/hr standard (up to 30 racks/hr with short cycles) |
| Rack Size / Included | 20" × 20" – 1 peg rack & 1 flat rack included |
| Maximum Glass Height | 11" |
| Total Cycle Time | 141 sec (90 s wash • 26 s rinse • 25 s drain/fill) |
| Water Use | 1.5 gal per rack / 38 gal per hour max |
| Wash Pump | 1 HP |
| Tank Heater | .75 kW electric boost |
| Electrical | 115 V / 60 Hz / 1-phase, 12 A (15 A circuit recommended) |
| Water Connection | 120°F minimum, 1/2" I.D. flexible hose with 3/4" GHT connector (25–95 psi) |
| Drain Connection | 6 ft, 5/8" I.D. flexible hose (max 15 gpm) |
| Certifications | NSF • ETL Sanitation & Safety |
Allow at least 3" clearance behind the unit for plumbing connections. Free 1-year warranty extension is available when a Krowne Glass Dump Sink is installed directly adjacent to the glasswasher.
