Krowne D2712-7 Bar Equipment
Description

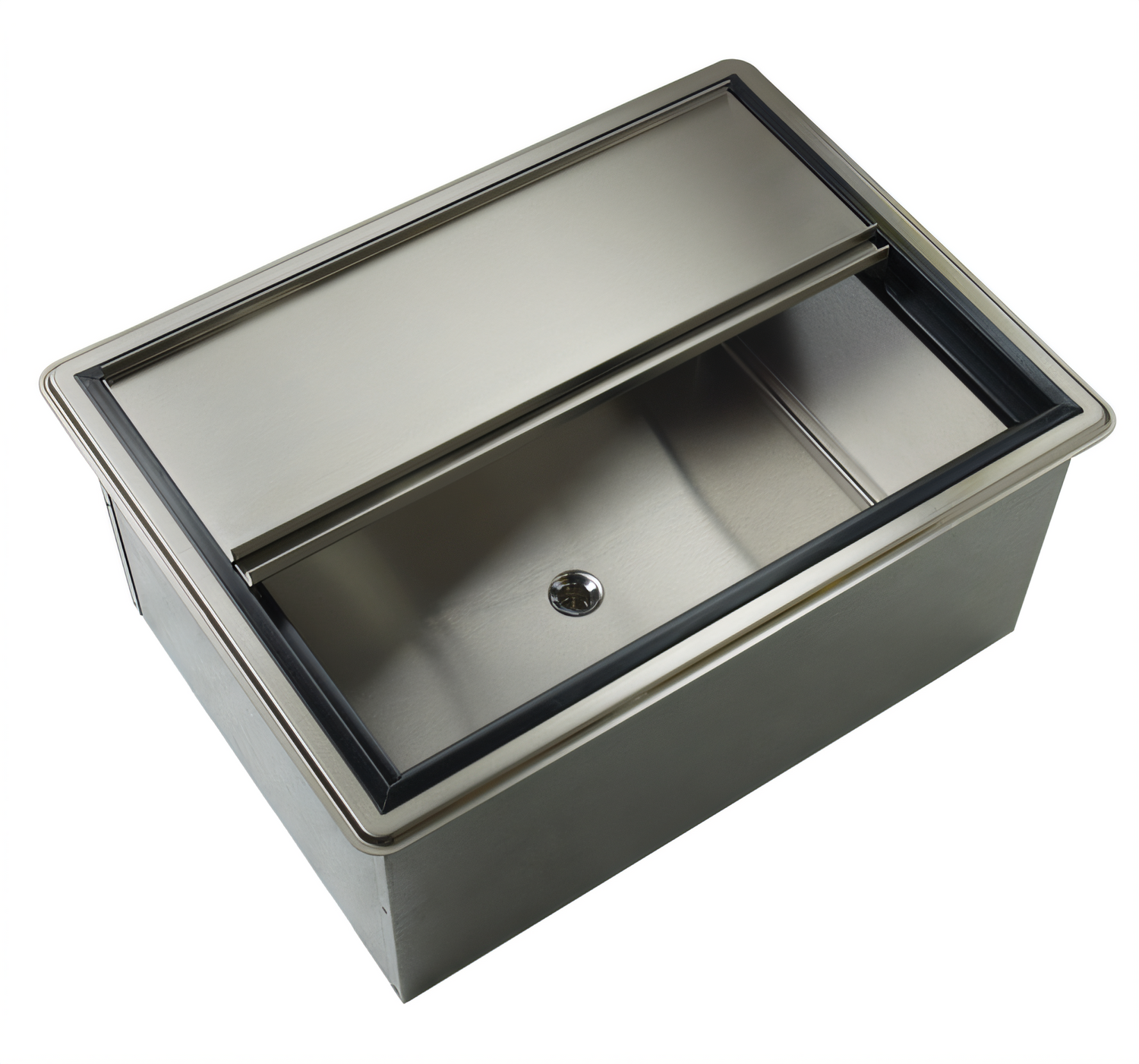

Krowne D2712-7 Drop-In Ice Bin with 7-Circuit Cold Plate – 27" W x 20" D

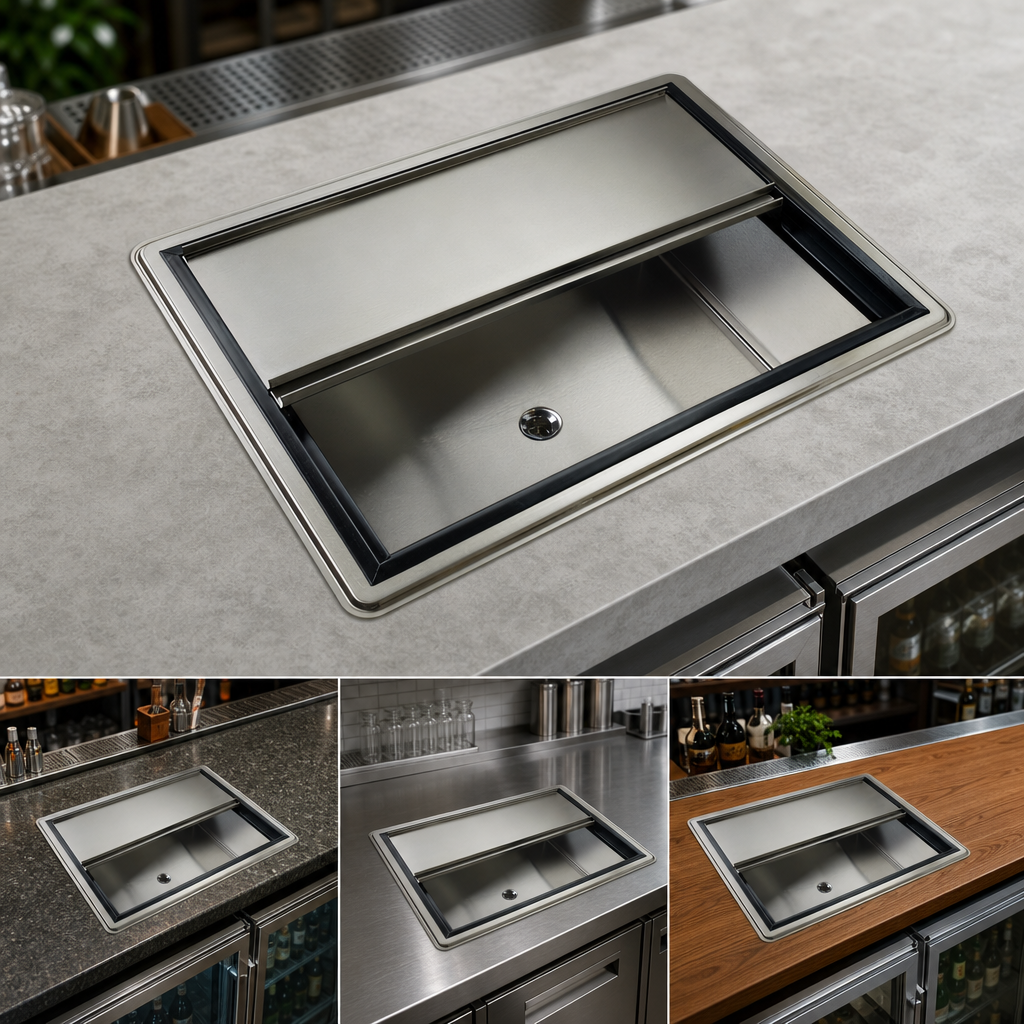

Royal Series Underbar • 73 lb ice capacity • NSF ListedOutfit your bar, restaurant, or service counter with rock-solid ice storage and built-in beverage cooling. The Krowne D2712-7 combines a generous 73 lb ice bin, heavy-duty stainless construction, and a 7-circuit post-mix cold plate—all in a convenient drop-in format that installs neatly into a 25-1/4" × 18-1/4" cut-out.
Key Features

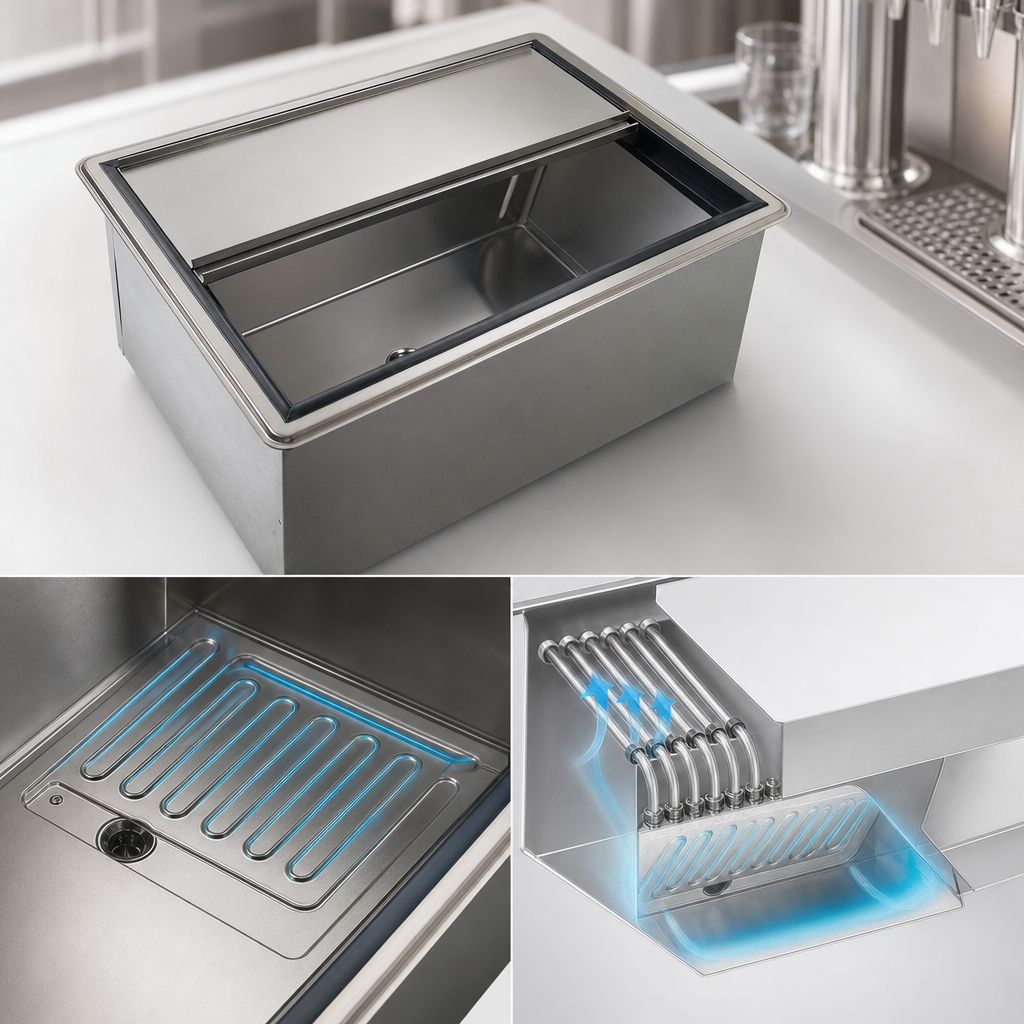

- Integrated 7-circuit cast-aluminum cold plate with 5/16" OD stainless tubing for ice-cold soda and cocktail lines.
- 10" deep, 20-gauge stainless steel liner holds up to 73 lbs of ice.
- Two-piece stainless steel sliding cover protects ice, reduces melt, and slides completely out of the way while scooping.
- Foamed-in-place polyurethane insulation keeps ice colder, longer.
- All-stainless top and liner resist corrosion and clean up fast.
- NSF certified for food-zone safety and sanitation.
Specifications
| Model | Krowne D2712-7 |
|---|---|
| Overall Dimensions (W × D) | 27" × 20" |
| Required Counter Cut-out | 25-1/4" × 18-1/4" |
| Liner Depth | 10" |
| Ice Capacity | 73 lbs (33 kg) |
| Cold Plate | Cast-aluminum, 7 circuits, sealed into bottom |
| Drain Connection | 1/2" IPS with 1/2" × 6" PVC tailpiece (included) |
| Construction | 20-gauge stainless steel liner & top, fully insulated |
| Cover | Two-piece stainless steel sliding cover (included) |
| Shipping Weight | ≈ 95 lbs |
| Certifications | NSF |
Installation Notes
- Verify cut-out dimensions (25-1/4" × 18-1/4") before countertop modification.
- Cold-plate models require a 1/2" IPS drain hookup—installation by qualified plumbing personnel is recommended.
- Allow space beneath the counter for beverage line routing and service access.
Looking for different capacities or circuit counts? Explore other Krowne Royal Series drop-in ice bins to find the perfect fit.
