Krowne D2712-10 Bar Equipment
Description

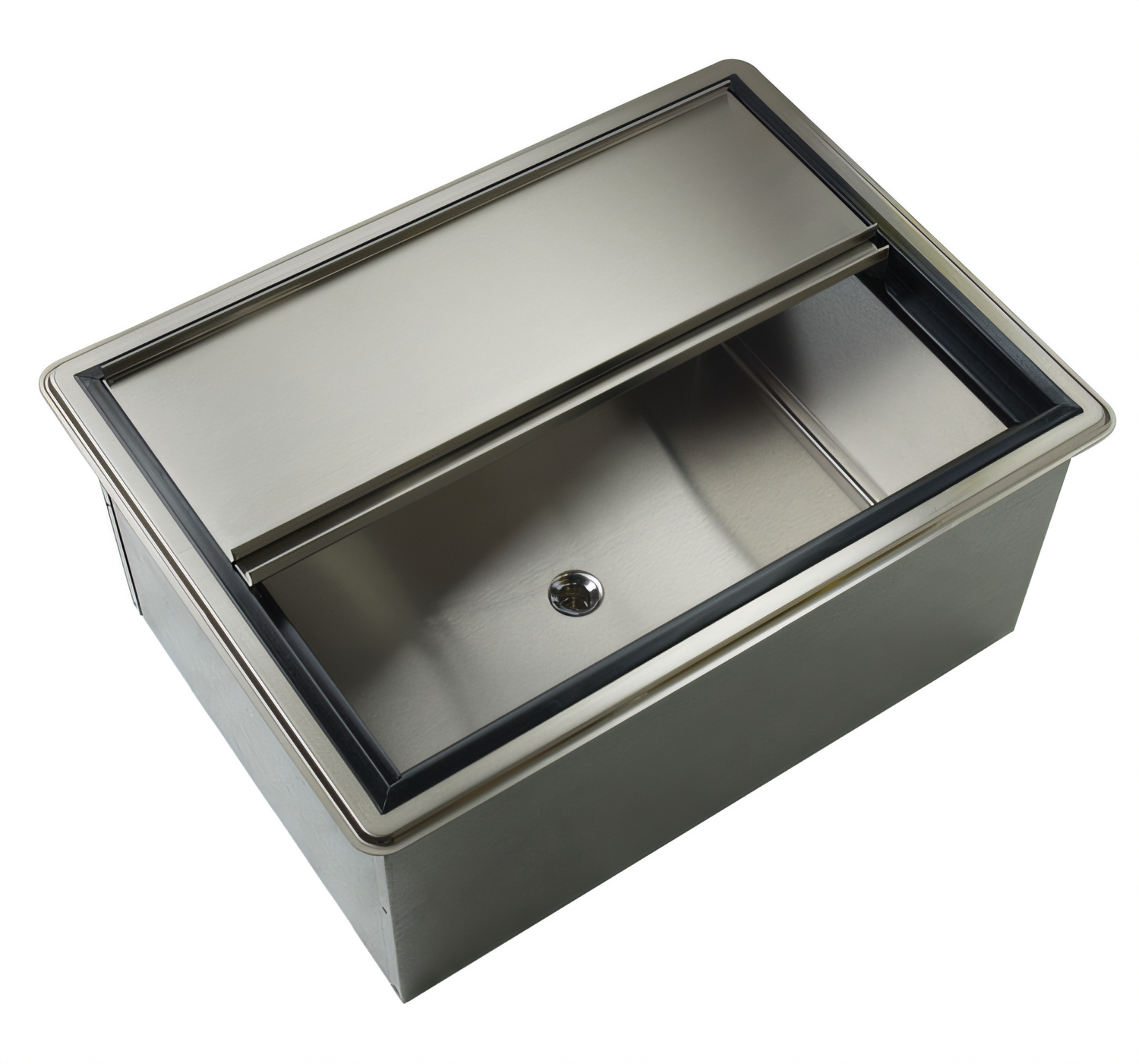

Krowne 27" Drop-In Ice Bin w/ 10-Circuit Cold Plate – 73 lb Capacity
Model D2712-10 | Royal Series UnderbarBuilt for busy bars, restaurants, and concession counters, this fully insulated drop-in ice bin keeps up to 73 lbs of ice cold and ready for service while simultaneously chilling up to ten beverage lines through its integrated cast-aluminum cold plate. A fast, professional install, durable stainless construction, and NSF compliance make it an easy upgrade to any beverage station.
Key Features

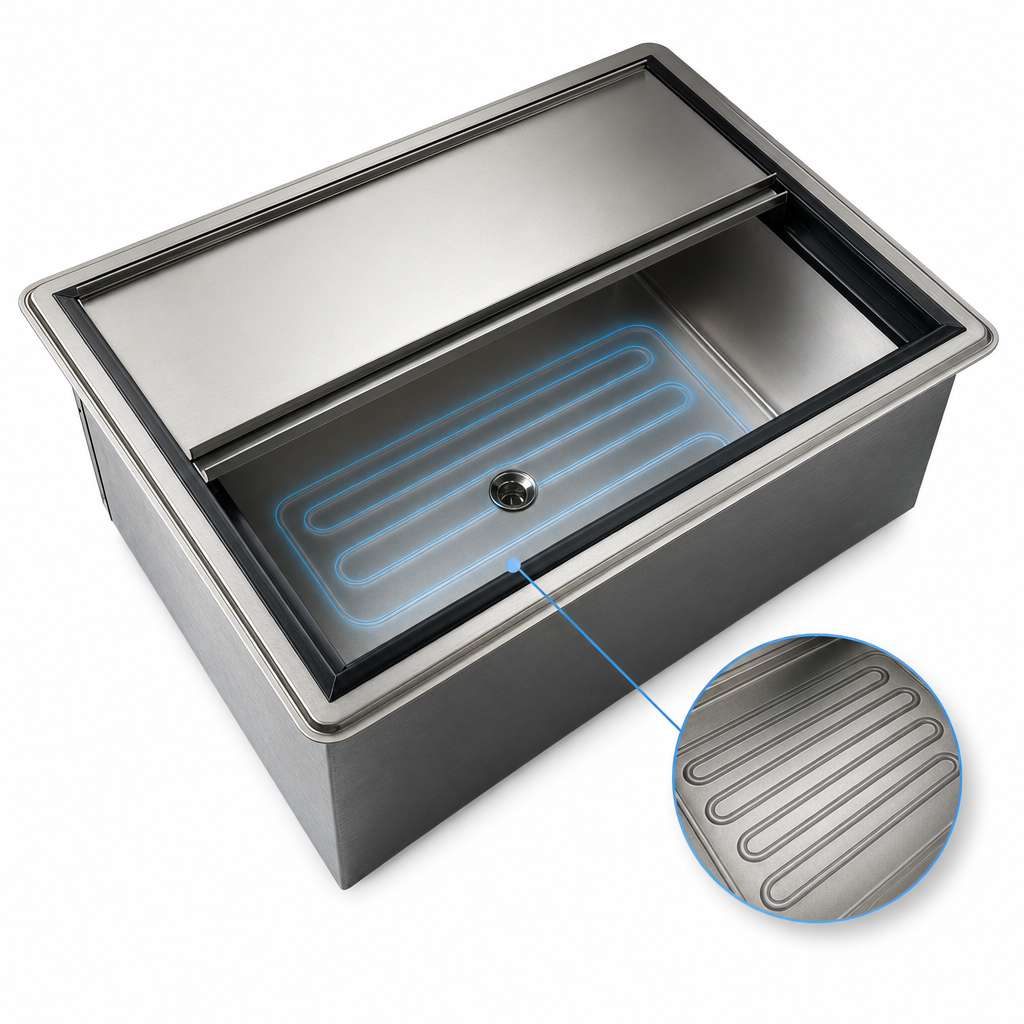

- 10-circuit post-mix cold plate sealed into the base for superior beverage chilling
- 73 lb ice capacity with a 10" deep, 20 ga stainless steel liner
- Two-piece, 20 ga stainless steel sliding cover reduces ice melt and keeps contaminants out
- Foamed-in-place polyurethane insulation for maximum thermal retention

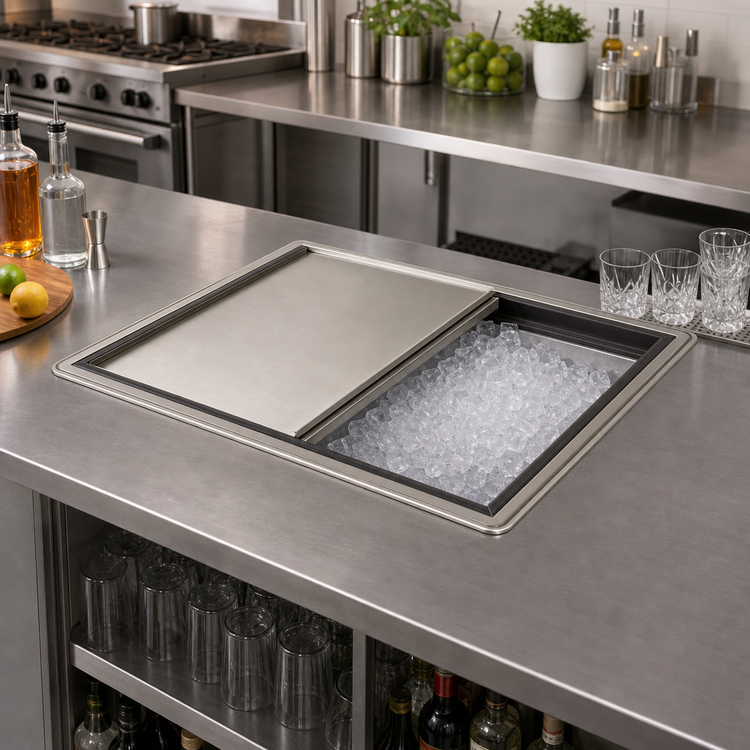

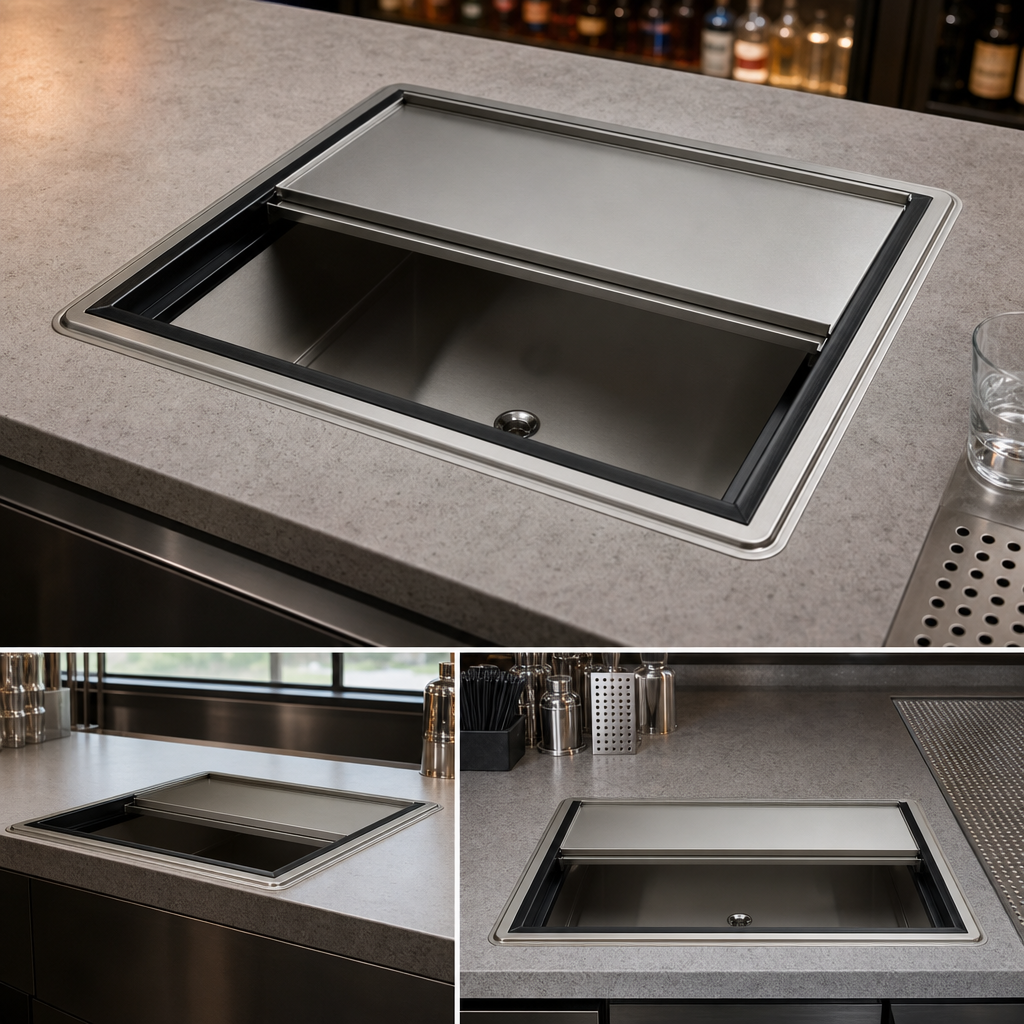

- Drop-in design installs quickly into countertops, tabletops, or back-bar stations
- 1/2" IPS drain connection with included 1/2" x 6" PVC tailpiece
- Heavy-duty stainless steel top flange for a clean, professional look
- NSF listed for sanitation compliance
Technical Specifications
| Overall dimensions (W x D) | 27" x 20" |
|---|---|
| Required cutout | 25-1/4" x 18-1/4" |
| Liner depth | 10" |
| Overall depth (with cover) | 15-3/4" |
| Ice capacity | 73 lbs |
| Cold plate circuits | 10 (two full, eight half) |
| Tubing | 5/16" OD stainless steel |
| Drain connection | 1/2" IPS (includes 1/2" x 6" PVC tailpiece) |
| Material | Stainless steel top & liner; cast-aluminum cold plate |
| Unit weight | 95 lbs |
Installation & Plumbing
- Create a 25-1/4" x 18-1/4" cutout in the mounting surface.
- Lower the ice bin into place and secure per local code.
- Connect the 1/2" IPS drain to an approved waste line.
- Attach beverage lines to the cold plate bump and wedge fittings.
- All plumbing should be performed by qualified personnel who follow applicable plumbing, sanitary, and safety codes.
Need help? Our customer service team can assist with specification or installation questions.
Certifications & Approvals
- NSF Listed
- Meets Krowne Royal Series construction standards
