Description

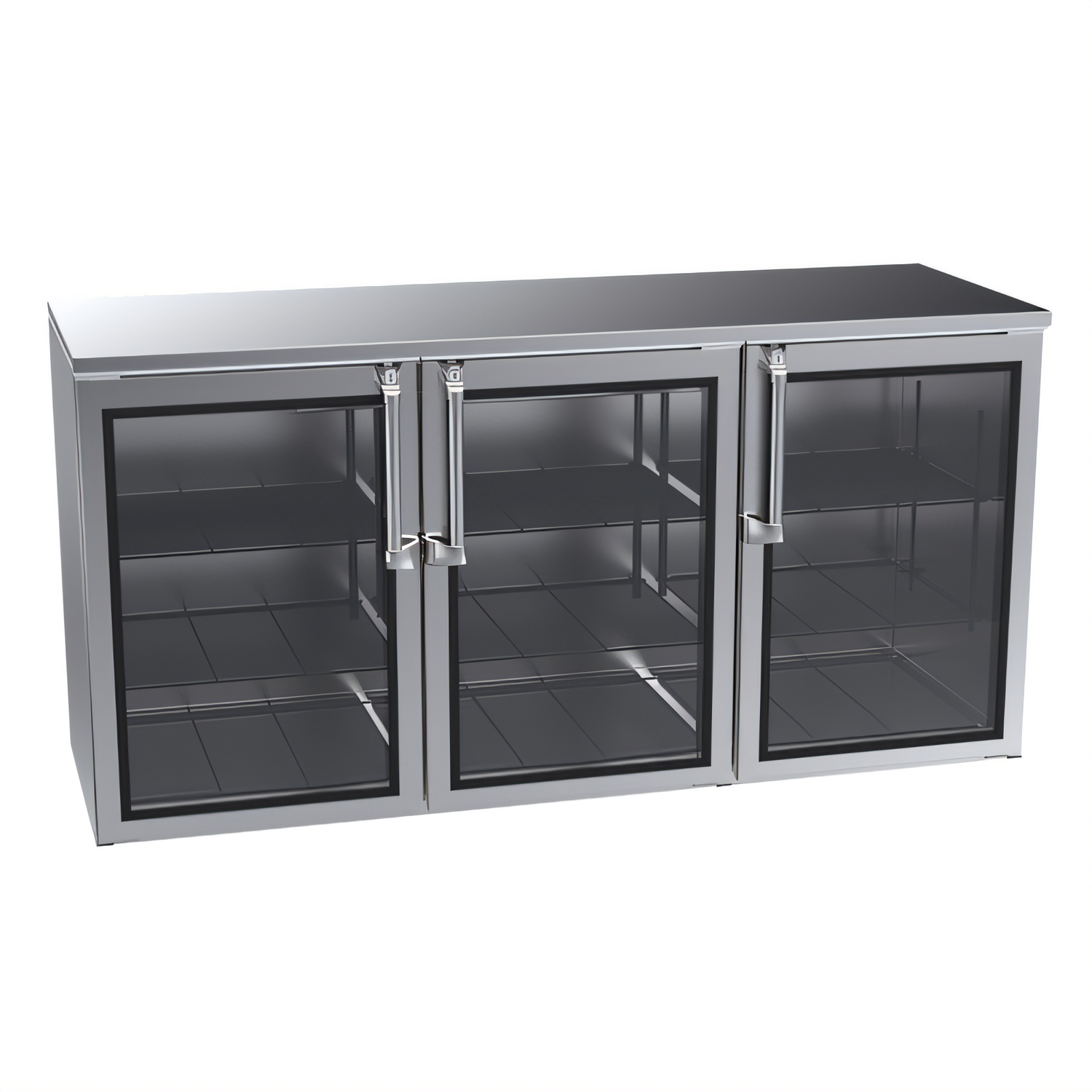

Krowne Royal Series BR72 Remote Back Bar Storage Cabinet

72" W • Three-Section • Swing Doors • Stainless Interior

Engineered for high-volume bars that already have (or plan to add) a remote refrigeration system, the BR72 cabinet gives you the cold storage capacity you need without adding extra heat or noise behind the bar. Three self-closing, lockable doors, brilliant LED lighting and an easy-to-clean stainless interior keep product secure, visible and perfectly chilled—ready for the rush.

Why You’ll Love It

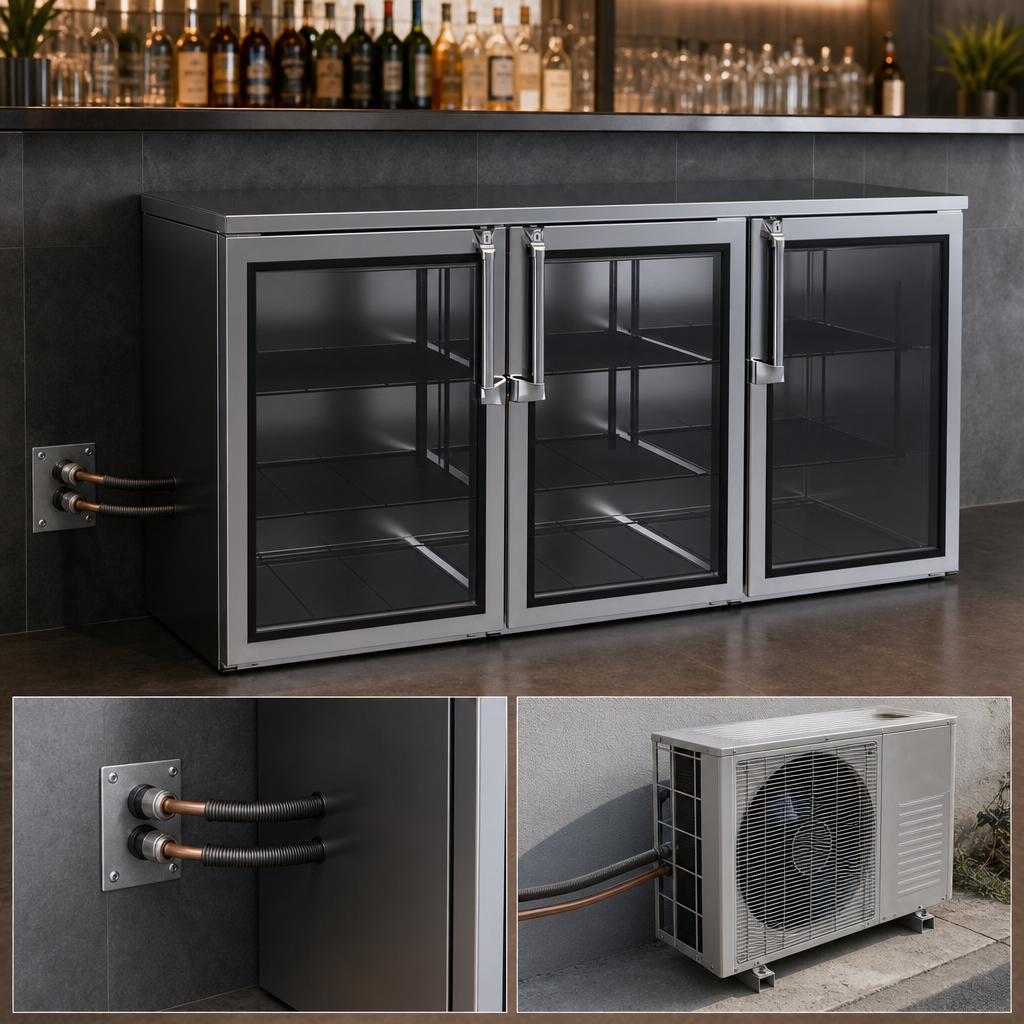

  • Remote refrigeration hookup keeps compressor heat and noise out of the bar area.
  • Durable 72" wide, 24" deep footprint—ideal for tight service aisles.

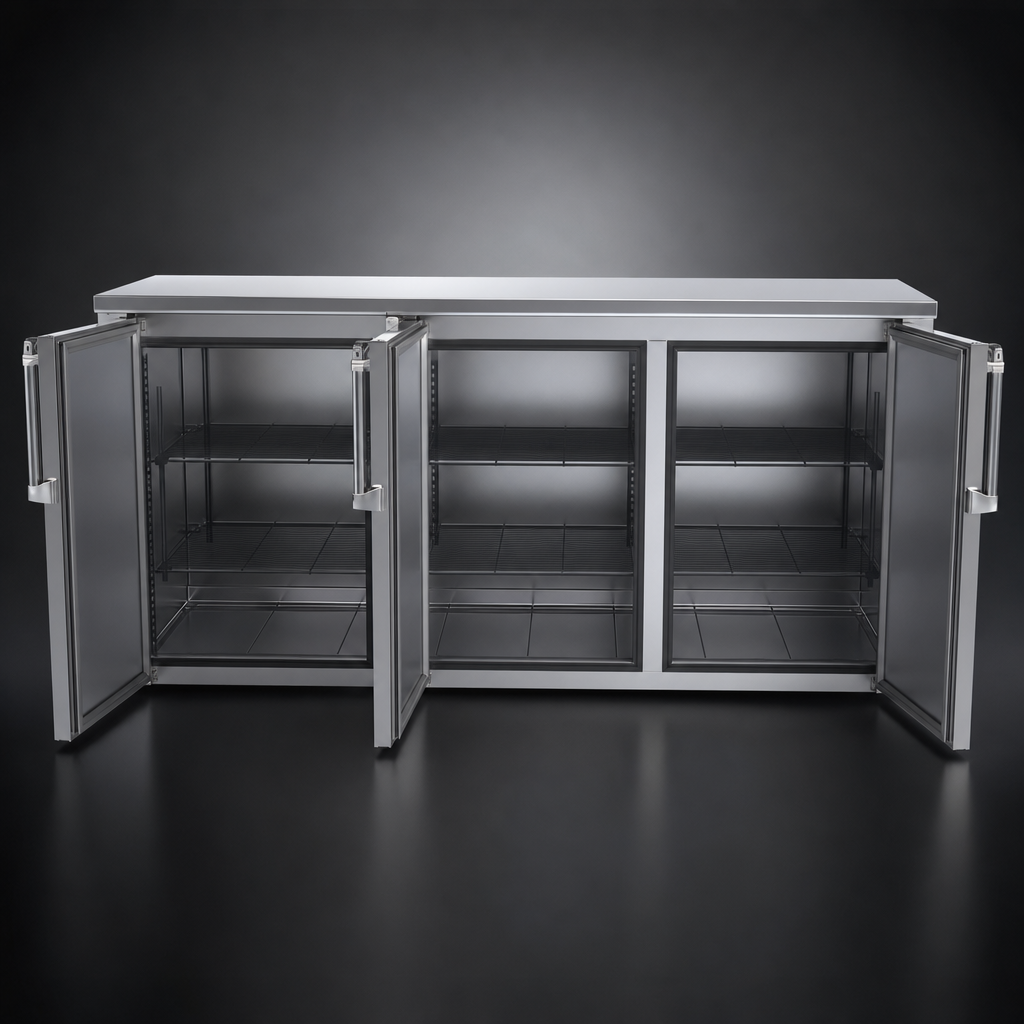

  • (3) heavy-duty swing doors with built-in locks and stay-open feature for loading.
  • NSF epoxy-coated shelving: floor rack + 2 adjustable shelves per section.
  • All stainless steel interior with coved corners for quick wipe-downs.
  • Bright, long-life LED interior lights showcase product and speed identification.
  • Factory-installed expansion valve (R-134A) for fast, clean field connection.
  • Foamed-in-place polyurethane insulation maintains a 30 °F – 40 °F range (preset 35 °F).
  • Listed to NSF 7 for open food storage & ETL Sanitation certified.

Bottle & Can Capacity (Approx.)

Long-Neck Bottles (12 oz.) ≈ 21 cases
12 oz. Cans ≈ 34 cases
750 ml Wine Bottles ≈ 216 bottles

Technical Specifications

Exterior Dimensions 72" W × 24" D × 35" H (36" H with optional 1" top)
Sections / Doors 3 sections / 3 self-closing hinged doors with locks
Interior Construction 20 ga. stainless steel, coved corners
Top Galvanized steel sub-top (1" stainless top optional)
Shelving (2) adjustable NSF epoxy-coated wire shelves + floor rack per door
Lighting LED strip lighting, factory installed
Electrical 115 V / 60 Hz / 1 ph, 1.5 A (lights & fans only) – NEMA 5-15P
Refrigerant Valve R-134A (R404A or R448A valve optional)
Remote Line Connections 3/8" supply outlets, 1/4" supply inlets (side hookup)
Drain ½" condensate drain connection (same side as ref. lines)
Operating Temp. 30 °F – 40 °F (factory set to 35 °F)
Certifications NSF 7 Open Food, ETL-Sanitation
Weight Approx. 395 lb
Warranty 1-year parts (cabinet). Compressor covered if purchased from Krowne.

Installation & Utility Requirements

  • Requires remote condensing unit (not included).
  • Dedicated 15-amp circuit recommended.
  • Field-supplied thermostat/solenoid recommended for temperature control.
  • If no floor drain is available, use an optional 110 V condensate evaporator pan.

Popular Accessories (Sold Separately)

  • 1" stainless steel top for a seamless work surface.
  • 1 ⅓ HP or ½ HP remote condensing units (R-134A / R-404A).
  • 4", 6" stainless legs or 1"–3" low-profile casters.
  • Stainless steel front & side kick plates for recessed installations.
  • Side guard rail kit to prevent product falls.
Important: This is a remote refrigeration cabinet. A compatible remote condenser, thermostat and refrigerant line set are required and must be installed by a qualified refrigeration technician. Always consult local codes prior to installation.

Need help sizing a condensing unit or choosing accessories? Contact our food-service experts via chat or call 800-631-0442.

Features & Specs

Manufacturer

Krowne

Certifications

ETL-Sanitation

Height

35.0in

Width

72.0in

Depth

24.0in

Shipping Weight

395.0lbs

Door Qty

3 doors

Door Type

solid door(s)

Door Swing

swing door(s)

Depth (front - back)

22 - 26 inches

Exterior Finish

black exterior

Width (side - side)

59 - 72 inches

Refrigeration Location

remote (refrigeration not included)

Specifications

Remote Back Bar Storage Cabinet, three-section, 72"W x 24"D, remote refrigeration with side hook-up, galvanized steel sub top, interior lights, (3) hinged doors with locks, (2) adjustable epoxy coated shelves with floor rack, 1/2" drain, stainless steel interior, 115v/60/1-ph, 1.5 amps, NSF7 Open Food Certified, ETL-Sanitation
