Koolmore

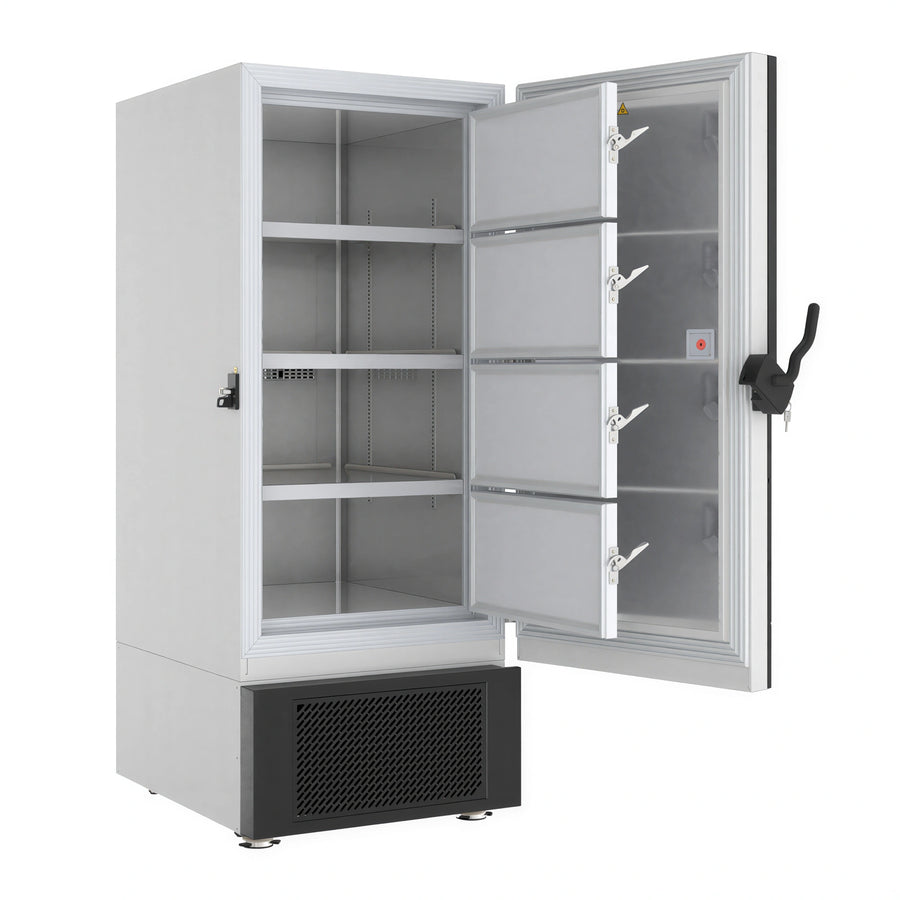

Koolmore KM-PHF-20CUL Ultra-Low Temperature Medical Freezer, 20 cu. ft., Swing Door, -40°C to -86°C

SKU: KM-PHF-20CUL GTIN: 810158926547
$14,633.21
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

KoolMore KM-PHF-20CUL is a 20 cu. ft. ultra-low temperature medical freezer designed for laboratory, pharmaceutical, and research storage. It operates from -40°C to -86°C and uses dual independent inverter compressors, direct cooling, and microprocessor control.

The freezer has one swing door with four inner compartments, three 304 stainless-steel shelves, a 10.1-inch touchscreen, integrated data logging with USB export, remote alarm capability, and a built-in rechargeable battery supporting alarms and data recording for up to 17 hours during power outages.

Overall Dimensions:

33.86"W x 39.98"D x 77.56"H

Product Weight:

730.0 lb

Ultra-low temperature range

Operates from -40°C to -86°C.

Dual inverter compressors

Uses two independent inverter compressors for cooling system redundancy.

Microprocessor control

Provides microprocessor temperature control with ±0.1°C accuracy.

Touchscreen display

Includes a 10.1-inch touchscreen for monitoring, alarm management, and system control.

Multi-compartment storage

One swing door provides access to four inner compartments.

Stainless-steel interior

Includes a 304 stainless-steel interior and three 304 stainless-steel shelves.

Alarm and safety system

Includes low-temperature, high-temperature, ambient-temperature, power-failure, sensor-failure, door-ajar, and remote alarm functions, along with a safety lock.

Data logging and USB export

Provides integrated data logging with a USB port for export.

Backup battery

The built-in rechargeable lithium battery supports alarms and data logging for up to 17 hours during power outages.

Direct cooling and manual defrost

Uses direct cooling with manual defrost.

Related Searches

Best Sellers Blast Chilling & Medical Refrigeration Commercial Freezers Commercial Refrigeration Koolmore Medical & Lab Freezers Medical & Laboratory Freezers Medical Refrigeration Equipment New Arrivals Refrigeration & Ice Restaurant Equipment
Capacity 20 cu. ft.
Temperature range -40°C to -86°C
Temperature control type Microprocessor
Temperature control accuracy ±0.1°C
Cooling type Direct cooling
Compressor system Dual independent inverter compressors
Number of compressors 2
Compressor location Bottom
Defrost type Manual
Door style Swing
Door type Solid door
Number of doors 1
Number of compartments 4
Number of shelves 3
Shelf material 304 stainless steel
Interior material 304 stainless steel
Exterior finish All stainless steel exterior
Color White and black
Display 10.1-inch touchscreen
Data logging Yes
USB port Yes
Backup battery Built-in rechargeable lithium battery; up to 17 hours
Safety lock Yes
Energy consumption 2496.6 kWh/year
Refrigeration Self-contained, bottom mounted
Ambient temperature range 10°C to 32°C
Noise level 46 dB
Sensor count 7
Voltage 100 V
Frequency 60 Hz
Phase 1 phase
Amperage 14 A
Wattage 1,250 W
Plug type NEMA 5-20P
Electrical installation Plug-in
Power cord length 66.94 in.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It supports a temperature range of -40°C to -86°C.
The freezer has 20 cu. ft. of capacity.
It includes three stainless-steel shelves and four inner compartments behind one swing door.
Yes. Its built-in rechargeable lithium battery supports alarms and data logging for up to 17 hours during power outages.
It uses 100 V, 60 Hz, single-phase power, draws 14 A, and has a NEMA 5-20P plug.
The product spec sheet states a 1-year warranty.
