Koolmore

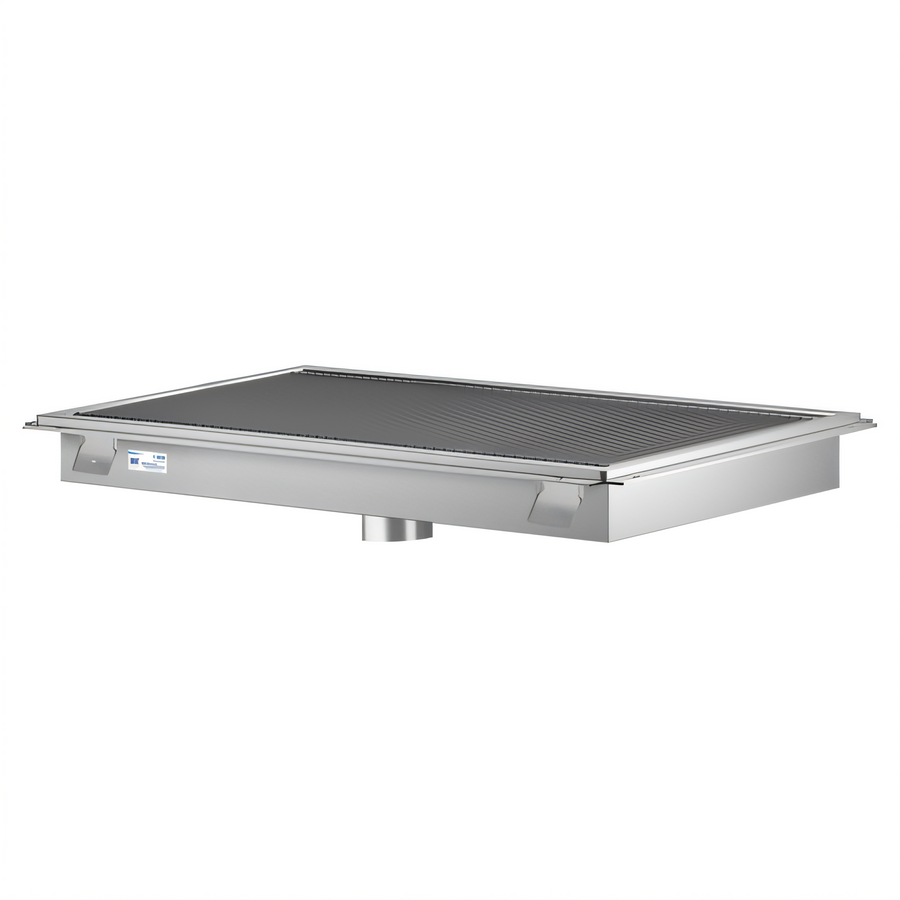

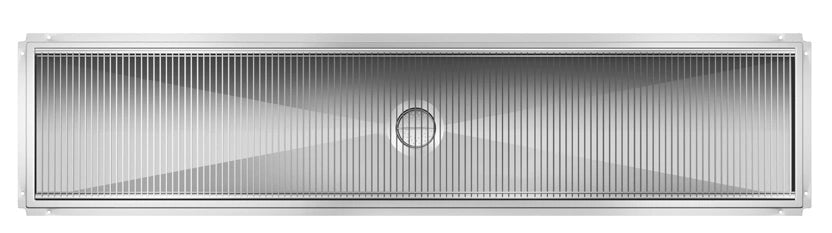

KoolMore Commercial Stainless Steel Floor Trough Drain with 4 Subway-Style Grates, 84"W x 18"D

SKU: KM-FTG-1884
GTIN: 810158928077
$1,243.82
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Floor Drains Floor Maintenance Koolmore New Arrivals Sinks & Handwashing Stations

KoolMore Commercial Stainless Steel Floor Trough Drain with 4 Subway-Style Grates, 84"W x 18"D

3-Degree Angled Basin, 4-Inch Drain Connections, Removable Drain Baskets

Built for heavy-duty commercial drainage, this stainless steel floor trough drain combines a 3-degree angled basin, removable baskets, and subway-style grating to help move water efficiently with less splash.

  • 84"W x 18"D commercial floor trough drain designed for high-traffic drainage areas.
  • 304 stainless steel construction for durability in demanding commercial environments.
  • Three-degree angled, anti-splash basin helps direct water flow and reduce pooling.
  • Includes four subway-style stainless steel grates with 2/3" spacing.
  • 4" diameter drain connections support commercial drainage setups.
  • Removable drain baskets simplify cleaning and ongoing maintenance.
  • Handles up to 1,168 lbs. of load and holds 19.81 gallons of water.

Overall Dimensions:

86.0"W x 20.0"D x 7.0"H

Product Weight:

187.0 lb

Stainless Steel Construction

Built with 304-grade stainless steel for strength and corrosion resistance.

Three-Degree Angled Basin

Angled basin helps guide water toward the drain and reduce standing water.

Subway-Style Grating

Includes four subway-style stainless steel grates with 2/3-inch spacing.

Removable Drain Baskets

Baskets lift out for easier cleaning and routine maintenance.

Anti-Splash, Anti-Slip Design

Designed to help reduce splash and provide a safer surface in wet areas.

Heavy-Duty Capacity

Supports up to 1,168 lbs. and holds up to 19.81 gallons of water.

4-Inch Drain Connections

Sized for commercial drainage connections.

Custom Cutout Required

Requires an 83"W x 17"D x 7"H cutout for installation.

Type Floor Trough Drain
Installation Type Built-In
Material 304 Stainless Steel
Pan Type Anti-Splash
Grate Type Subway-Style Grating
Grate Construction Stainless Steel
Trough Construction 16 Gauge Stainless Steel
Drain Connection Size 4 Inches Diameter
Capacity 19.81 Gallons
Load Capacity 1,168 Pounds
Selling Unit Each
Units Per Case 1
Shipping Width 21.5 Inches
Shipping Depth 87.5 Inches
Shipping Height 7.5 Inches
Shipping Weight 187 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes four subway-style stainless steel grates.
The required cutout is 83"W x 17"D x 7"H.
It has 4-inch diameter drain connections.
It has a load capacity of up to 1,168 lbs.
The trough has a water capacity of 19.81 gallons.
Yes, it includes removable drain baskets for easier cleaning and maintenance.
