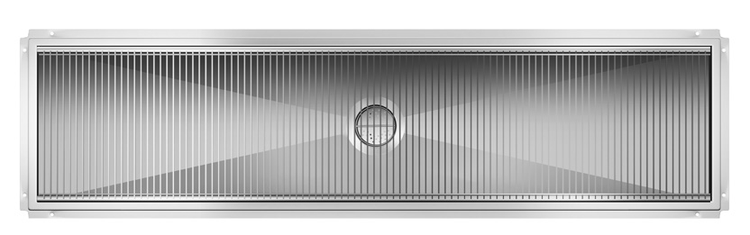

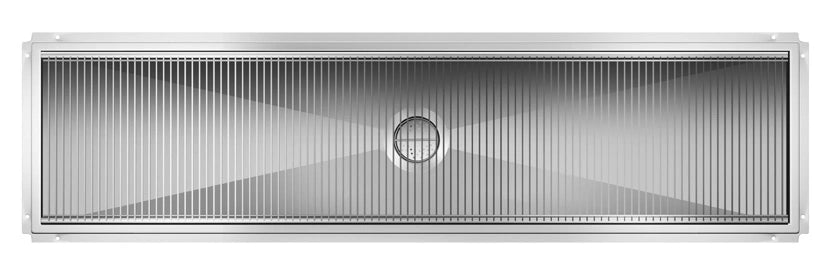

KoolMore 18-Inch x 72-Inch 14-Gauge 304 Stainless Steel Floor Trough Drain with Subway-Style Grating and Removable Basket

SKU: KM-FTG-1872
GTIN: 810158928190
$1,129.39
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Commercial Faucets & Plumbing Floor Care & Drainage Floor Drains Floor Maintenance Koolmore New Arrivals Sinks & Handwashing Stations

KoolMore 18-Inch x 72-Inch 14-Gauge 304 Stainless Steel Floor Trough Drain with Subway-Style Grating and Removable Basket

3-Degree Sloped Basin, 4-Inch Drain Connection, NSF Listed

Built for high-traffic commercial floors, this stainless steel trough drain combines durable 304 construction, efficient sloped drainage, and easy-clean removable baskets.

  • 14-gauge 304 stainless steel construction resists corrosion in demanding commercial environments.
  • Subway-style grating and anti-slip surface help handle traffic while keeping drainage paths open.
  • 3-degree sloped basin and 4-inch drain connection promote fast water removal.
  • Removable drain basket simplifies debris collection and routine maintenance.
  • Supports up to 1,058 lb. and holds 16.91 gallons of water.
  • NSF listed and backed by a 2-year warranty.

Overall Dimensions:

74.0"W x 20.0"D x 7.0"H

Product Weight:

151.0 lb

14-Gauge 304 Stainless Steel Construction

Corrosion-resistant stainless steel body built for commercial floor drainage applications.

Subway-Style Grating

Three grate sections help manage traffic and debris while maintaining open drainage flow.

3-Degree Sloped Basin

Angled basin speeds water movement toward the drain for more efficient drainage.

Removable Drain Basket

Helps capture debris and makes routine cleaning easier.

4-Inch Drain Connection

Standard 4-inch drain line connection simplifies installation planning.

High Load and Water Capacity

Supports up to 1,058 lb. and holds 16.91 gallons of water.

Anti-Slip / Non-Slip Surface

Designed to help improve footing in wet service areas.

Sized for Floor Cutout

Requires a 71-inch W x 17-inch D x 7-inch H cutout.

NSF Listed

Meets NSF sanitation requirements for commercial use.

Type Floor Trough Drain
Style Subway-Style Grating
Material 304 Stainless Steel
Finish Stainless Steel
Drain Connection Size 4 Inches
Capacity 16.91 Gallons
Load Capacity 1,058 Pounds
Selling Unit Each
Units Per Case 1
Shipping Width 21.5 Inches
Shipping Depth 75.5 Inches
Shipping Height 7.5 Inches
Shipping Weight 151 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It requires a 71-inch W x 17-inch D x 7-inch H cutout.
The drain connection is 4 inches in diameter.
Yes, one removable drain basket is included.
The unit supports up to 1,058 pounds.
It holds 16.91 gallons of water.
Yes, the spec sheet lists a 2-year warranty.
