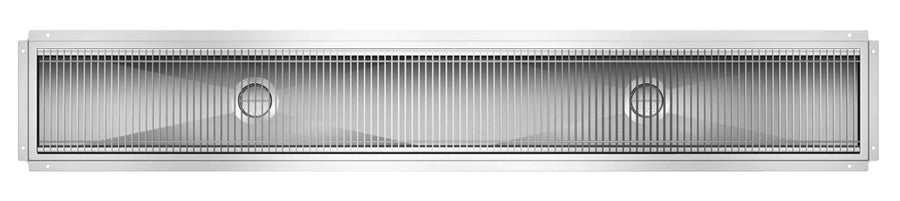

KoolMore Commercial Stainless Steel Floor Trough Drain with Subway-Style Grating

SKU: KM-FTG-18120
GTIN: 810158929463
$1,600.22
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Commercial Faucets & Plumbing Floor Care & Drainage Floor Drains Floor Maintenance Koolmore New Arrivals Sinks & Handwashing Stations

KoolMore Commercial Stainless Steel Floor Trough Drain with Subway-Style Grating

3-Degree Angled Basin, Dual 4-Inch Drain Connections, Removable Baskets

Built for demanding commercial spaces, this stainless steel floor trough drain combines high-capacity drainage, removable baskets, and a non-slip grating surface.

  • 14/304-grade stainless steel construction delivers durable commercial performance.
  • 3-degree angled basin helps direct water flow efficiently toward the drains.
  • Five subway-style grates with 2/3-inch spacing and an anti-slip surface improve safety and drainage.
  • Includes two 4-inch diameter drain connections for installation flexibility.
  • Two removable drain baskets help trap debris and simplify cleaning.
  • Supports up to 1,498 lb. of load capacity and 28.53 gallons of water capacity.
  • NSF listed and sized for a 119"W x 17"D x 7"H cutout.

Overall Dimensions:

122.0"W x 20.0"D x 7.0"H

Product Weight:

261.0 lb

Commercial Stainless Steel Construction

Built from 14/304-grade stainless steel for durability and corrosion resistance in demanding environments.

3-Degree Angled Basin

Angled basin design helps move water efficiently toward the drain connections.

Five Subway-Style Grates

Includes five stainless steel subway-style grates with 2/3-inch spacing for dependable drainage.

Dual 4-Inch Drain Connections

Two 4-inch diameter drain connections provide installation flexibility.

Two Removable Drain Baskets

Removable baskets help catch debris and make routine cleaning easier.

Anti-Slip Surface

Non-slip surface helps improve safety in wet work areas.

High-Capacity Design

Rated for up to 1,498 lb. load capacity and 28.53 gallons of water capacity.

Installation Cutout

Designed for a 119"W x 17"D x 7"H cutout.

NSF Listed

Suitable for commercial sanitation-focused applications.

Type Floor Trough Drain
Style Subway-Style Grating
Installation Type Built-In
Material Stainless Steel
Capacity 28.53 Gallons
Load Capacity 1,498 lb.
Grate Construction Stainless Steel
Trough Construction 16 Gauge Stainless Steel
Pan Type Anti-Splash
Drain Connections 2
Drain Connection Size 4 Inches Diameter
Grate Spacing 2/3 Inch
Shipping Width 21.5 Inches
Shipping Depth 123.5 Inches
Shipping Height 7.5 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It requires a 119"W x 17"D x 7"H cutout.
It has two 4-inch diameter drain connections.
It has a water capacity of 28.53 gallons.
The drain supports up to 1,498 lb. of load capacity.
Yes, it includes two removable drain baskets.
It is constructed from 14/304-grade stainless steel.
