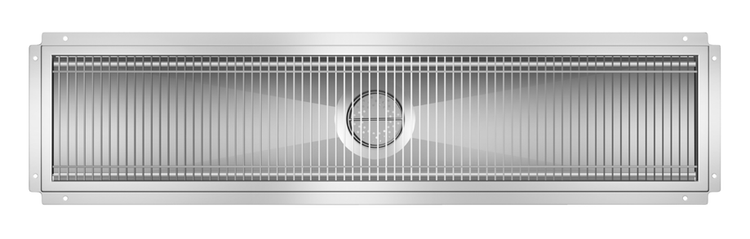

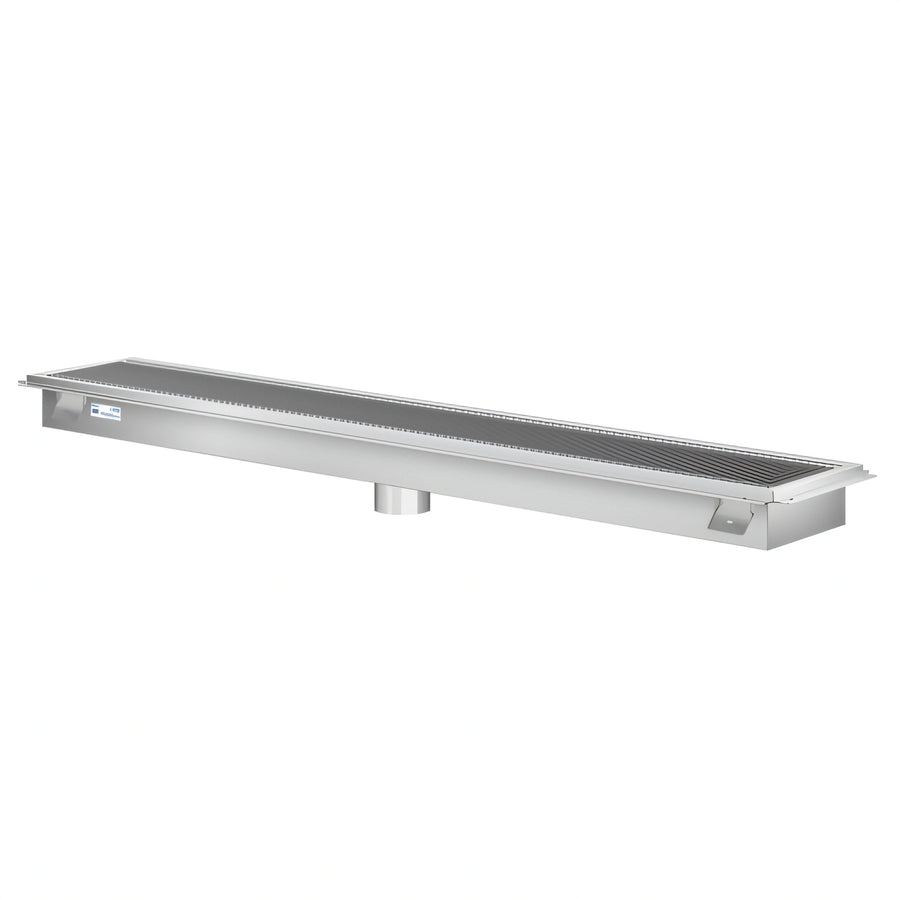

KoolMore Commercial Stainless Steel Floor Trough Drain with Subway-Style Grating

3-Degree Angled Basin, Removable Drain Baskets, 7.66-Gallon Capacity

Built for heavy-duty commercial drainage, this stainless steel floor trough drain combines a sloped basin, non-slip subway-style grating, and easy-clean baskets to keep water moving efficiently.

  • Commercial floor trough drain designed for high-volume water management.
  • 3-degree angled basin helps direct water toward the drain for efficient runoff.
  • Includes subway-style stainless steel grates with a non-slip walking surface.
  • Removable drain baskets simplify routine cleaning and debris removal.
  • Heavy-duty stainless steel construction supports up to 838 lb. and 7.66 gallons of water.
  • Sized for a 53" W x 11" D x 7" H cutout and 4" drain connections.
  • NSF certified for commercial sanitation applications.

Overall Dimensions:

56.0"W x 14.0"D x 7.0"H

Product Weight:

82.0 lb

3-Degree Angled Basin

Sloped basin helps direct water toward the drain for efficient runoff.

Dual Subway-Style Grates

Includes two subway-style stainless steel grates for durable floor coverage.

Removable Drain Baskets

Baskets remove easily for routine cleaning and debris capture.

Anti-Slip Surface

Non-slip surface helps improve traction in wet commercial areas.

304 Stainless Steel Construction

Commercial-grade stainless steel build is made for heavy-use environments.

High-Capacity Design

Supports up to 838 lb. of load and 7.66 gallons of water.

4-Inch Drain Connections

Designed with 4-inch diameter drain connections for installation.

NSF Certified

Meets NSF requirements for commercial sanitation applications.

Type Floor Trough Drain
Style Subway-Style Grating
Material 304 Stainless Steel
Capacity 7.66 Gallons
Drain Connection Size 4 Inches Diameter
Load Capacity 838 Pounds
Cutout Width 53 Inches
Cutout Depth 11 Inches
Cutout Height 7 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 15.5 Inches
Shipping Depth 57.5 Inches
Shipping Height 7.5 Inches
Shipping Weight 82 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It requires a 53" W x 11" D x 7" H cutout.
It uses 4" diameter drain connections.
Yes, the unit includes removable drain baskets for easier cleaning.
It holds 7.66 gallons of water and supports up to 838 lb.
Yes, it is NSF certified.
The shipping dimensions are 15.5" W x 57.5" D x 7.5" H.
