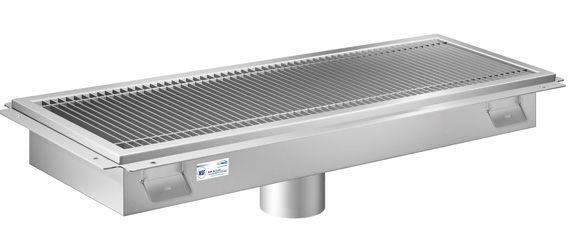

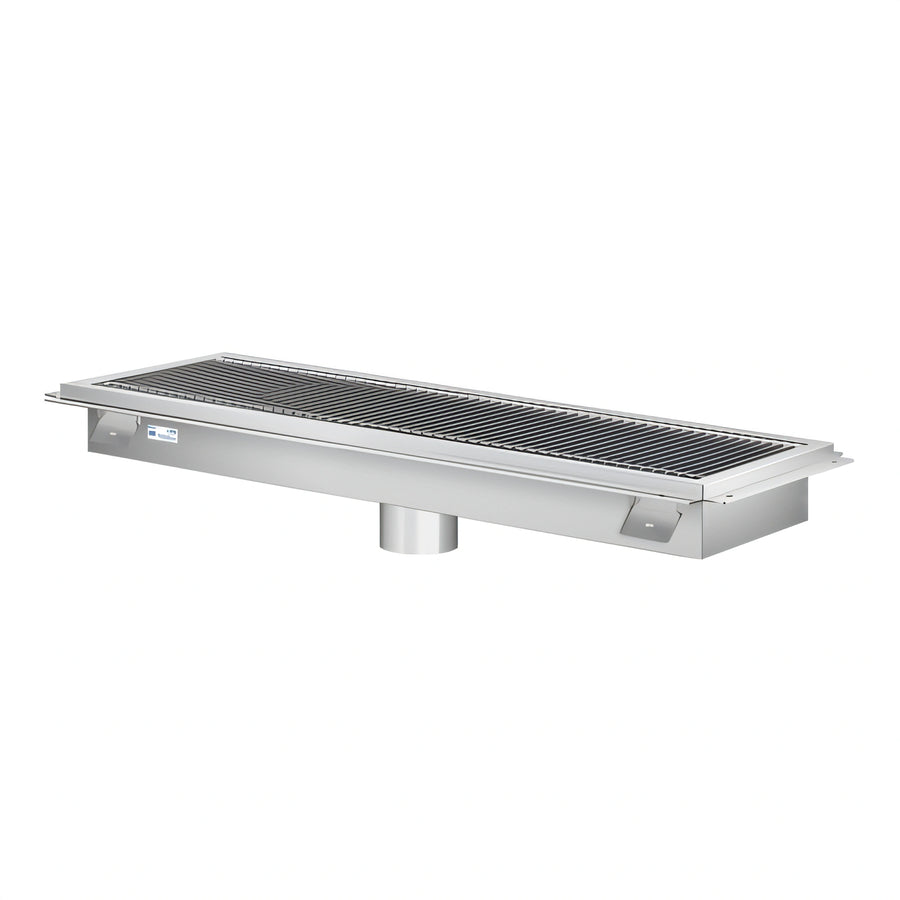

Koolmore Commercial Stainless Steel Floor Trough Drain, 30 x 12 Inches, Subway-Style Grating

SKU: KM-FTG-1230
GTIN: 810158929791
$338.63
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Commercial Faucets & Plumbing Floor Care & Drainage Floor Drains Floor Maintenance Koolmore New Arrivals Sinks & Handwashing Stations

Koolmore Commercial Stainless Steel Floor Trough Drain, 30 x 12 Inches, Subway-Style Grating

4-Inch Drain Connections, 3-Degree Angled Basin, 4.77-Gallon Capacity

Built for demanding commercial washdown areas, this floor trough drain combines high-capacity drainage, easy-clean removable baskets, and a durable stainless steel grate.

  • Heavy-duty commercial floor trough drain for wet-area drainage and washdown applications.
  • Subway-style stainless steel grating with 2/3-inch spacing helps keep water moving while catching debris.
  • 3-degree angled basin and removable drain baskets simplify drainage and cleanup.
  • Stainless steel construction with an anti-slip / non-slip surface supports durability and safer footing.
  • Handles up to 4.77 gallons of water and 728 lb. of load capacity.
  • Requires a 29 x 11 x 7-inch cutout for installation.

Overall Dimensions:

32.0"W x 14.0"D x 7.0"H

Product Weight:

49.0 lb

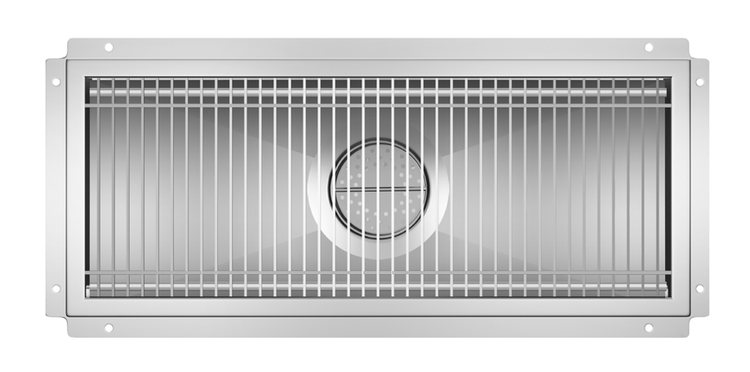

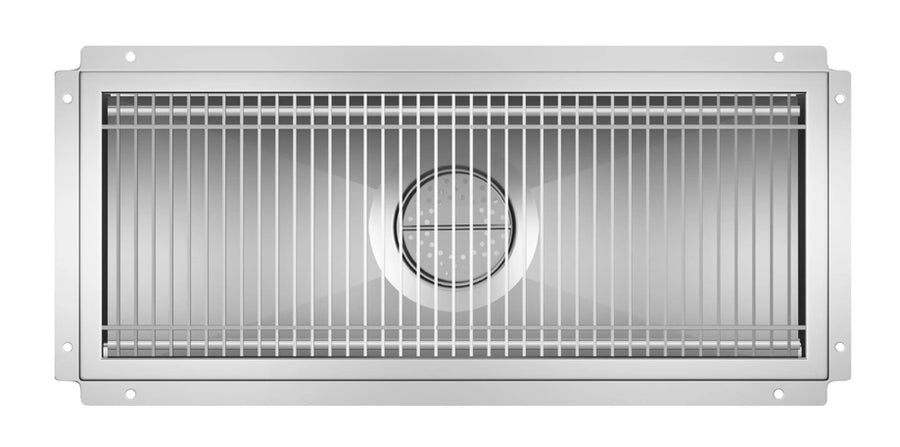

Subway-Style Grating

Stainless steel grating with 2/3-inch spacing helps maintain drainage while collecting larger debris.

3-Degree Angled Basin

The sloped basin helps guide water toward the drain for more efficient flow.

Removable Drain Baskets

Removable baskets make routine cleaning and debris removal easier.

Stainless Steel Construction

Durable stainless steel build is suited for commercial washdown environments.

Anti-Slip Surface

Non-slip surface details help improve safety in wet areas.

High Capacity Design

Built to handle up to 4.77 gallons of water and support loads up to 728 lb.

Installation Cutout

Requires a 29 x 11 x 7-inch cutout for installation.

4-Inch Drain Connections

Designed with 4-inch diameter drain connections for plumbing compatibility.

Type Floor Trough Drain
Style Subway-Style Grating
Installation Type Built-In
Material Stainless Steel
Capacity 4.77 Gallons
Load Capacity 728 Pounds
Drain Connection Size 4 Inches Diameter
Pan Type Anti-Splash
Grate Spacing 2/3 Inch
Cutout Size 29 Inches x 11 Inches x 7 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The required cutout is 29"W x 11"D x 7"H.
It uses 4-inch diameter drain connections.
The trough has a 4.77-gallon water capacity.
It supports loads up to 728 lb.
Yes, it includes removable drain baskets for easier cleaning.
It uses subway-style stainless steel grating with 2/3-inch spacing.
