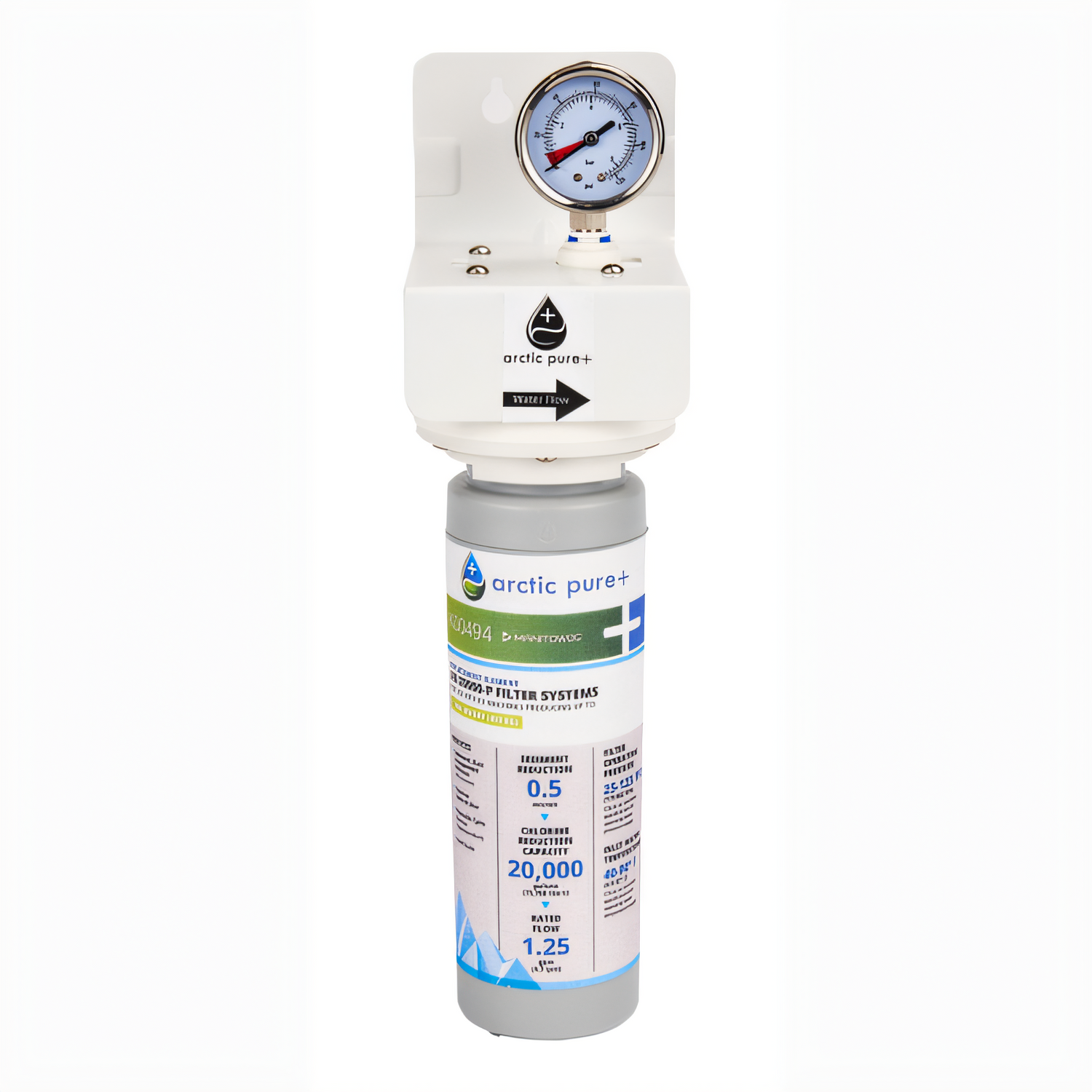

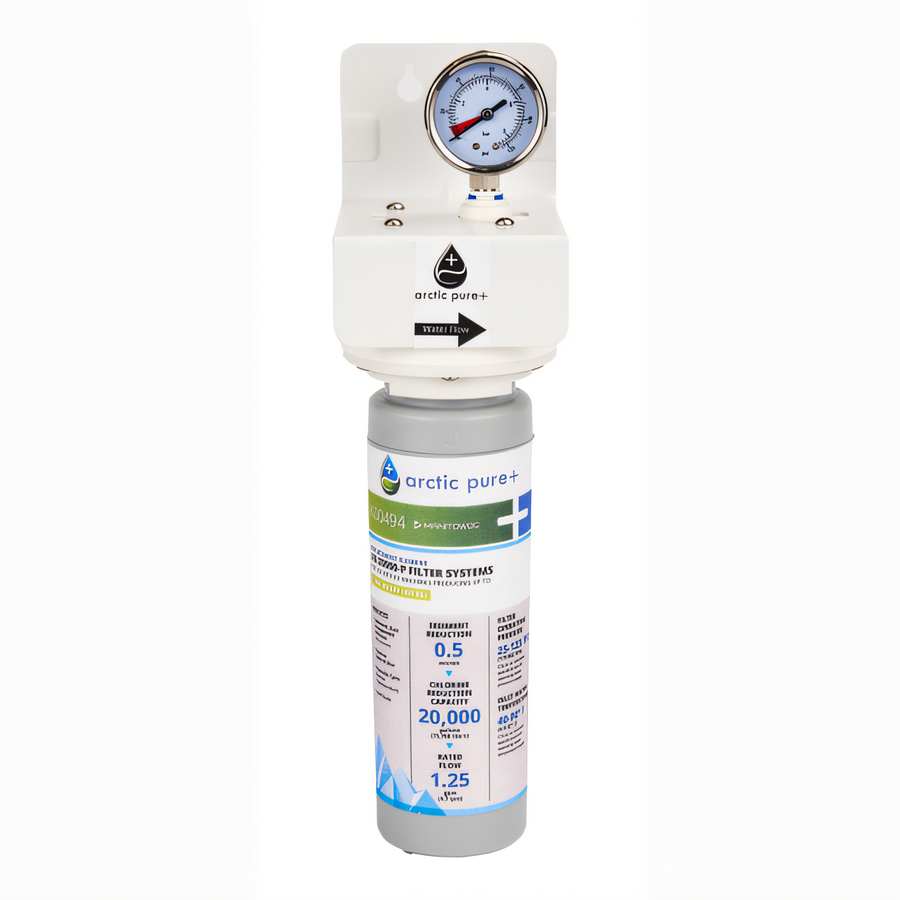

Koolaire Arctic Pure Plus AR-20000-P Primary Ice Maker Water Filter Assembly, 20,000-Gallon, 0.1-2.0 GPM
- Capacity
- 20,000 gallons
- Filter Quantity
- 1
- Service Flow Rate
- 0.1 - 2.0 GPM
- Filtration Level
- 0.5 micron
- Compatible Ice Production
- 601 - 1,000 lbs. of ice per day
- Included Components
- Head, shroud, hardware, mounting assembly, and one filter cartridge
Specifications
Description
The Arctic Pure Plus AR-20000-P is a primary water filter assembly for ice machines. It includes the head, shroud, hardware, mounting assembly, and one filter cartridge.
The assembly has a 20,000-gallon capacity, 0.5-micron filtration, and a 0.1 - 2.0 GPM service flow range for ice production applications rated at 601 - 1,000 pounds of ice per day.
- NSF/ANSI 42 claims for chlorine and particulate, Class 1
- NSF/ANSI 53 cyst claim
- SLOW PHOS scale inhibitor
- For cold-water use only and not for residential use
Overall Dimensions:
5.72"W x 4.0"D x 21.34"HProduct Weight:

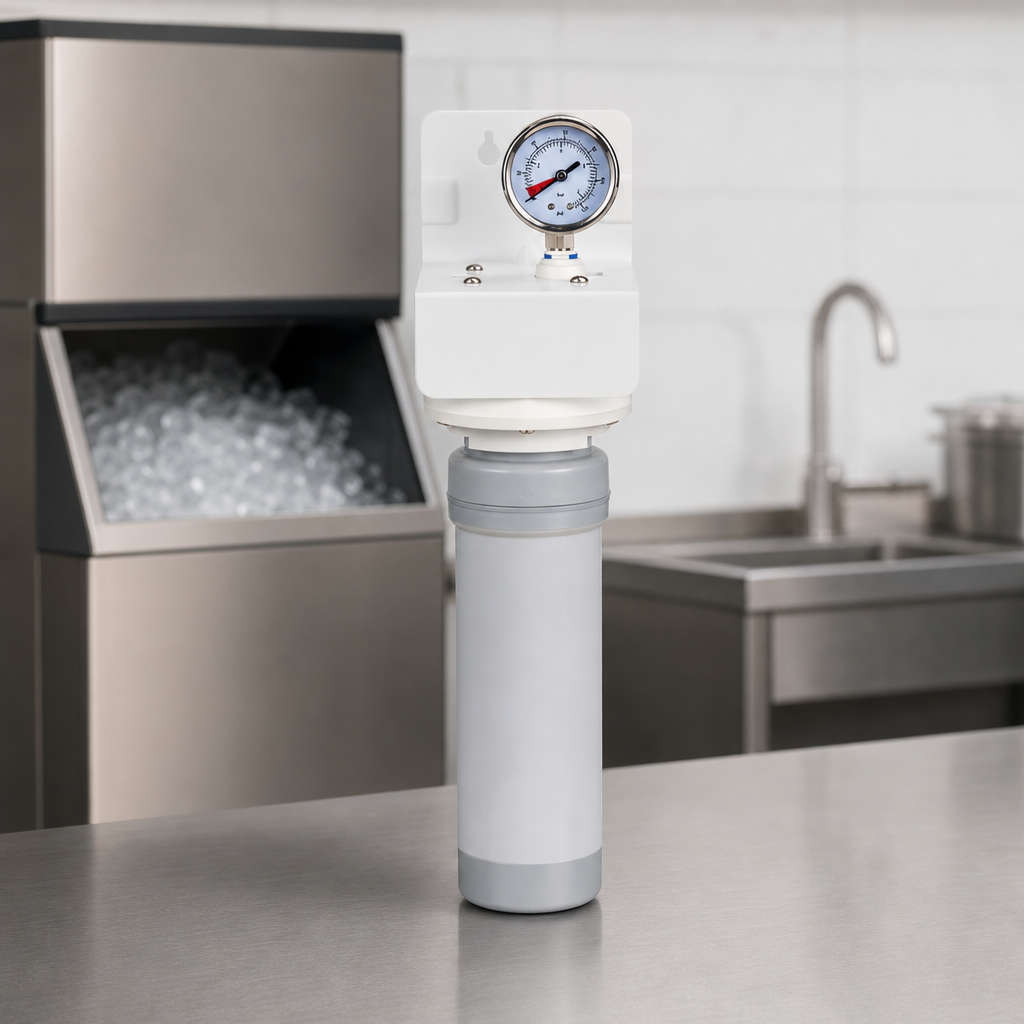

3.0 lbComplete primary assembly
Includes the head, shroud, hardware, mounting assembly, and one filter cartridge.
20,000-gallon capacity
The system is rated for a 20,000-gallon capacity.
0.5-micron filtration
The listed filtration level is 0.5 micron.
Chlorine and particulate reduction
The cutsheet lists NSF/ANSI 42 chlorine and particulate, Class 1 claims.
Cyst claim
The cutsheet lists an NSF/ANSI 53 cyst claim.
SLOW PHOS scale inhibitor
The filter system uses SLOW PHOS, identified as a slowly soluble polyphosphate scale inhibitor.
Service flow rate
The listed service flow rate is 0.1 - 2.0 GPM.
Ice production compatibility
The system is listed for ice production applications rated at 601 - 1,000 lbs. per day.
