Description
Klinger’s Trading 78" Sealed-Well Electric Steam Table – 5 Pan
Model SW5H204 | ETL ListedKeep entrées, sides, and sauces at food-safe serving temperatures with the reliability of a sealed-well holding system. Designed for high-volume cafeterias, buffets, and catering lines, this stationary 5-pan table delivers even, consistent heat while the integrated drain manifold simplifies cleanup.
Key Benefits

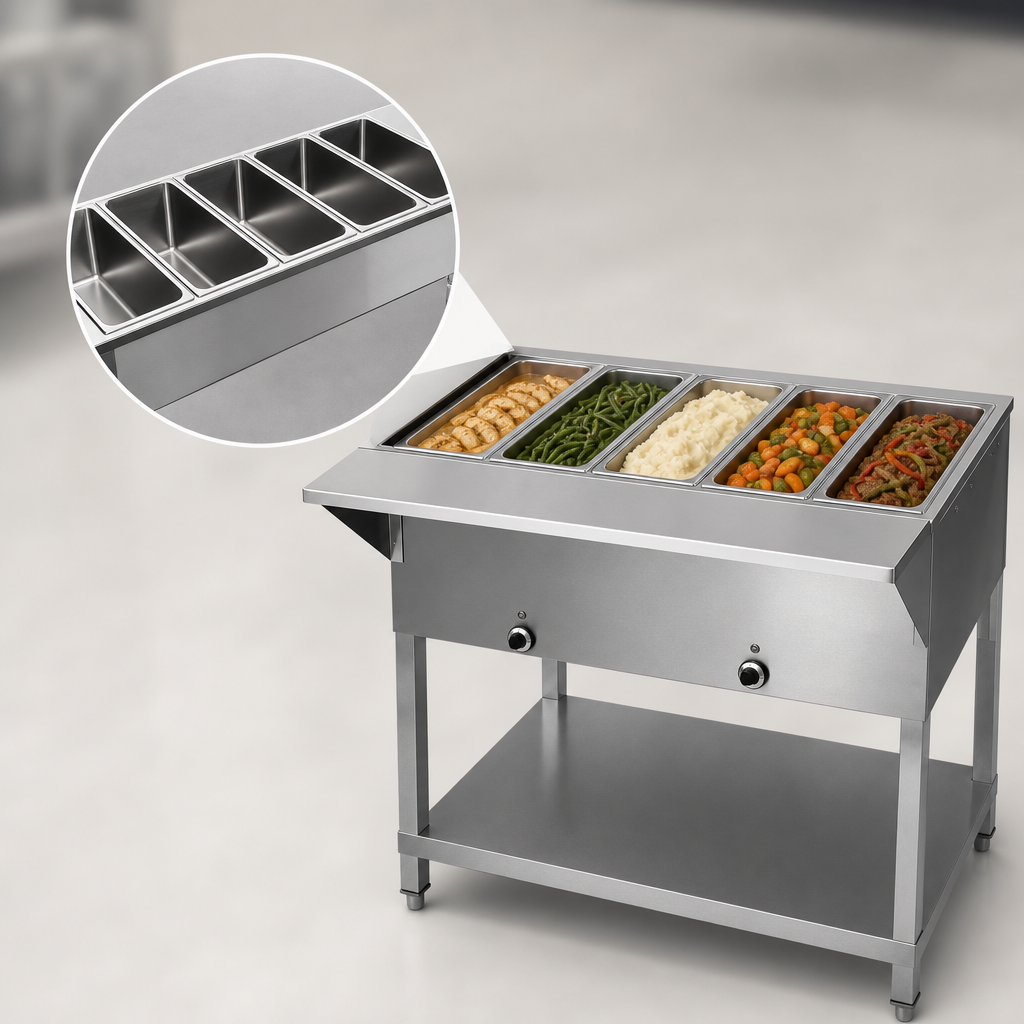

- Five 12" × 20" sealed hot wells accommodate full, half, or fractional pans.
- Individual thermostatic controls (one per well) allow precise holding for multiple menu items simultaneously.
- 825 W heating element per well (4,125 W total) quickly recovers temperature after pan changes.
- Full-length 18-gauge stainless steel undershelf adds convenient storage and structural strength.
- Fiberglass insulation retains heat for energy efficiency and a cooler work environment.
- Manifold drain assembly lets you empty all wells from a single point—no lifting hot pans of water.
- Factory-installed NEMA L6-30P locking cord & plug for simple 208/240 V single-phase connection.
- ETL certification assures compliance with applicable safety standards.
Technical Specifications
| Overall dimensions | 78" W × 30-5/8" D |
|---|---|
| Number of wells | 5 sealed, 12" × 20" each |
| Heat controls | 5 independent thermostats with high-limit protection |
| Total wattage | 4,125 W (825 W per well) |
| Electrical | 208/240 V ~ 60 Hz, 1-phase, 19.8 A |
| Plug type | NEMA L6-30P (6-ft cord included) |
| Undershelf | 18-gauge stainless steel |
| Insulation | High-density fiberglass |
| Drain | Integrated manifold with single outlet |
| Certifications | ETL Listed |
Perfect For
- School & corporate cafeterias
- All-you-can-eat buffets
- Catering commissaries & banquet halls
- Supermarket hot food bars
Electrical Notice: This equipment ships with a NEMA L6-30P plug and requires a dedicated 30-amp,
208/240-volt, single-phase receptacle. Always verify that on-site voltage matches the unit’s rating before installation.
Food pans, lids, and adapter bars are sold separately.
Features & Specs
Features & Specs
Manufacturer
Klinger's Trading
Certifications
ETL
Height
34.13in
Width
78.0in
Depth
30.63in
Shipping Weight
170.0lbs
Design
open shelf base
Overall Width (side - side)
73" - 78"
Working Height
34"
Well Type
sealed well
Type
stationary
Base Finish
stainless steel
Top Construction
stainless steel
Pan Capacity
(5) pan
Specifications
Sealed Well Electric Table, stationary, 5-pan, 78"W x 30-5/8"D, (5) 12" x 20" hot wells, individual thermostatic controls, 18 gauge stainless steel undershelf, fiber glass insulated, manifold drain assembly, 4125 watts, cord with NEMA L6-30P, 208/240v/60/1-ph, 19.8 amps, ETL
