Description

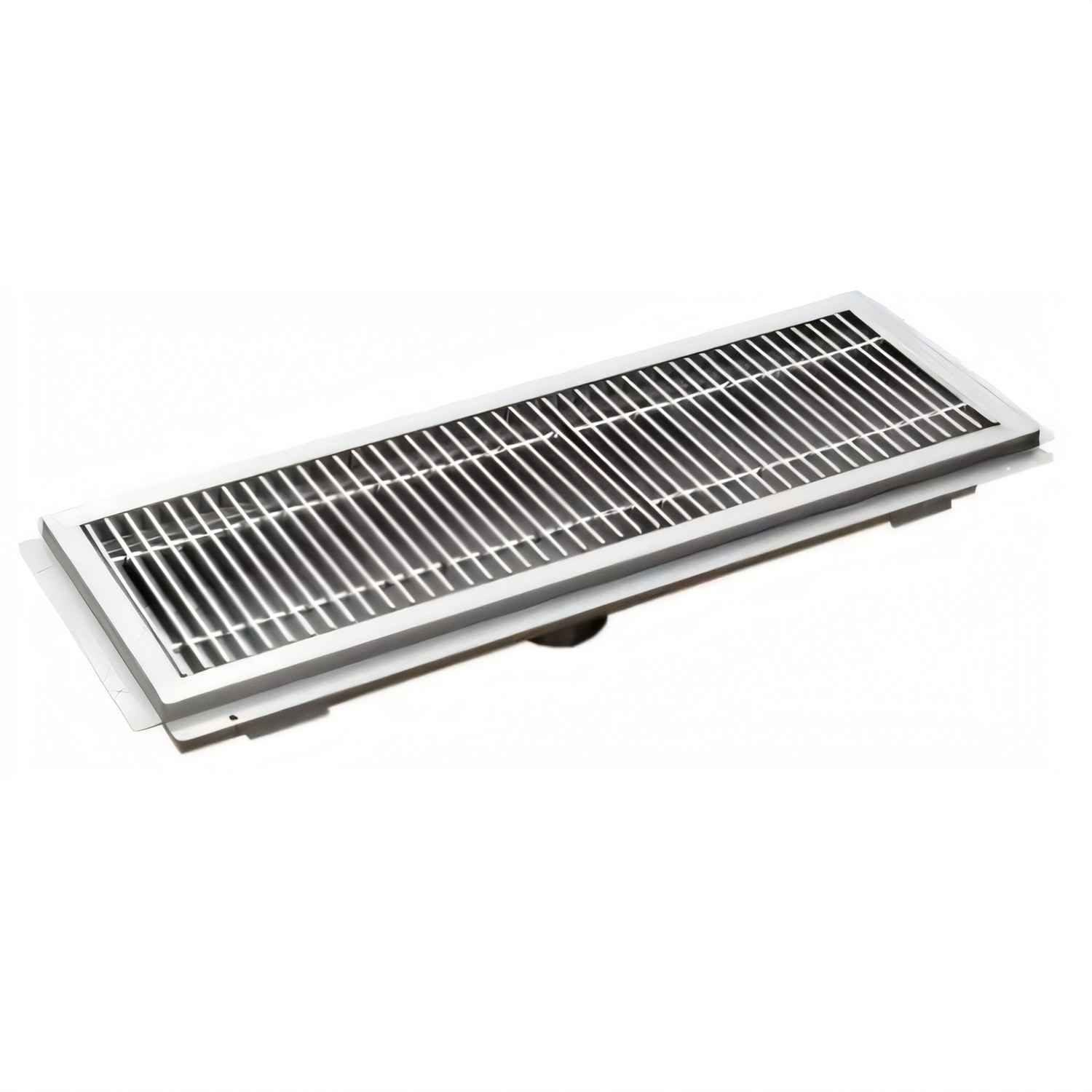

Stainless Steel Floor Trough – 36" L × 24" W × 3" D

14-Gauge 304 SS | Subway Grating | Center Drain | NSF

Built for demanding commercial kitchens, supermarkets, breweries and industrial wash-down areas, this Klinger's Trading floor trough delivers rugged performance in a space-saving 3" deep profile. The one-piece TIG-welded 14-gauge 304 stainless steel body is pitched toward a centered drain to keep standing water off your floor and your operation up to code.

Why You’ll Love It

  • Heavy-duty 14 GA, type 304 stainless steel resists corrosion, impact and harsh cleaners.
  • Integrated slope toward the drain ensures rapid, complete drainage.
  • Subway-style grate (3/16" × 1" bars, 9/16" clearance) supports heavy traffic yet traps smaller debris.
  • Centered single drain outfitted with a 3" tall, fully welded 4" Ø outlet for fast connection to plumbing.
  • Removable stainless steel strainer basket catches solids before they reach the line.
  • Perimeter flange allows ¾" thick tile to finish flush with the trough edge for a seamless floor transition.
  • NSF listed for food-service environments—install with confidence.

Technical Specifications

Overall dimensions (L × W × D) 36" × 24" × 3"
Material / Finish 14-gauge type 304 stainless steel, satin
Grate style Subway grate, 3/16" × 1" bars, 9/16" bar clearance (1 piece)
Drain location Centered
Drain outlet Welded 4" Ø SS pipe, 3" tall
Strainer basket 304 SS, removable
Certification NSF
Construction method TIG welded, single-piece body

Recommended rough-in cut-out: 23" × 34.5". Always confirm measurements on site before cutting and verify local code requirements.

Important: This drain pan must be installed level, fully supported and properly sealed to the finished floor to comply with NSF, IPC and local health codes.

Features & Specs

Manufacturer

Klinger's Trading

Certifications

NSF

Height

4.0in

Width

24.0in

Depth

36.0in

Shipping Weight

75.0lbs

Deep (pan depth)

4"

Width (long side)

25" - 36" (3 ft)

Grate Construction

stainless steel grates

Trough Construction

14 ga stainless steel trough

Pan Type

non anti-splash

Grate Type

subway-style grating

Depth (short side)

24"

Specifications

Floor Trough, 36"L x 24"W, 3" deep, 14/304 stainless steel, subway grating, centered single drain with 3" tall x 4" Ø drain pipe, strainer basket included, NSF
