Description

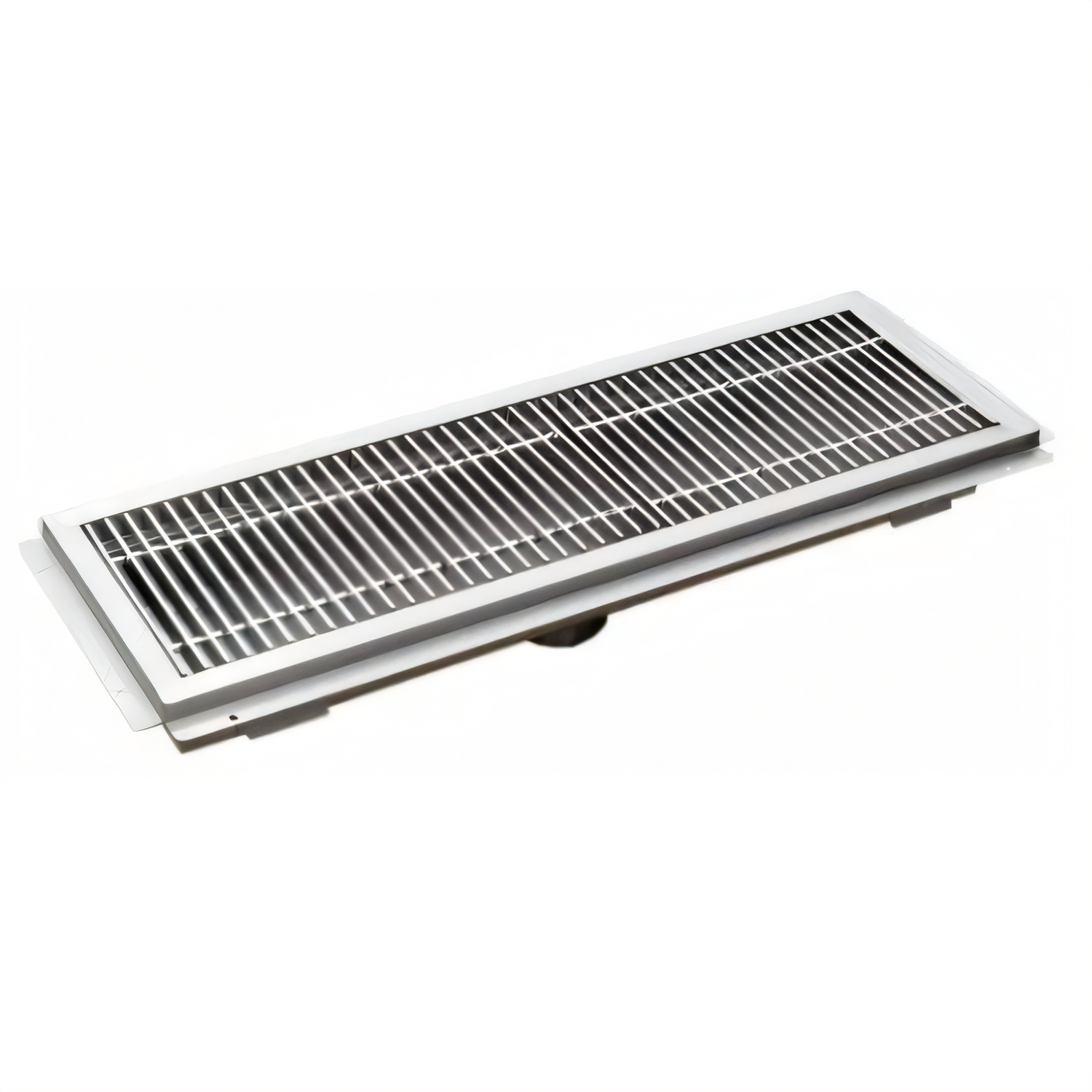

Klinger’s Trading 48" × 12" Stainless Steel Floor Trough

Model FT-1248  |  NSF Listed

Engineered for demanding commercial environments, the FT-1248 floor trough delivers reliable drainage, rugged durability, and a clean flush-mount finish that meets health-code requirements.

Key Features

  • 14-gauge type 304 stainless steel trough body – TIG-welded & leak-proof
  • One-piece “subway” bar grate (3/16" × 1") with 9/16" clearance for high-flow drainage
  • Centered 4" Ø stainless outlet, 3" tall, fabricated from matching 14-ga. pipe
  • Interior pitched toward the drain to eliminate standing water
  • Perimeter flange mounts level with subfloor and accepts 3/4" floor tile for a trip-free surface
  • Removable stainless steel strainer basket included to capture solids before they reach the plumbing
  • NSF certified for foodservice and sanitation compliance

Specifications

Model FT-1248
Nominal Inside Dimensions 12" W × 48" L × 4" D
Recommended Cut-out 11" W × 46.5" L
Material / Finish 14-ga. 304 stainless steel, brushed
Grate 1 pc, 3/16" × 1" 304 SS bars, 9/16" bar clearance
Drain Outlet Centered, 4" Ø, 3" tall, 14-ga. 304 SS
Strainer Basket Removable 304 SS basket (included)
Certification NSF

Ideal For

  • Commercial kitchens & commissaries
  • Bars, breweries & taprooms
  • Supermarket prep and produce areas
  • Meat, seafood & dairy processing rooms
  • Any wash-down zone that demands rapid, sanitary drainage

Need a different size or drain location? Klinger's Trading offers floor troughs in widths up to 24" and lengths up to 72" with multiple outlet configurations. Contact us for details.

Features & Specs

Manufacturer

Klinger's Trading

Certifications

NSF

Height

4.0in

Width

48.0in

Depth

12.0in

Width (long side)

37" - 48" (4 ft)

Pan Type

non anti-splash

Deep (pan depth)

4"

Depth (short side)

12"

Grate Construction

stainless steel grates

Grate Type

subway-style grating

Trough Construction

14 ga stainless steel trough

Specifications

Floor Trough, 48"L x 12"W, 4" deep,14/304 stainless steel, subway grating, centered single drain with 3" tall x 4" Ø drain pipe, strainer basket included, NSF
