Description

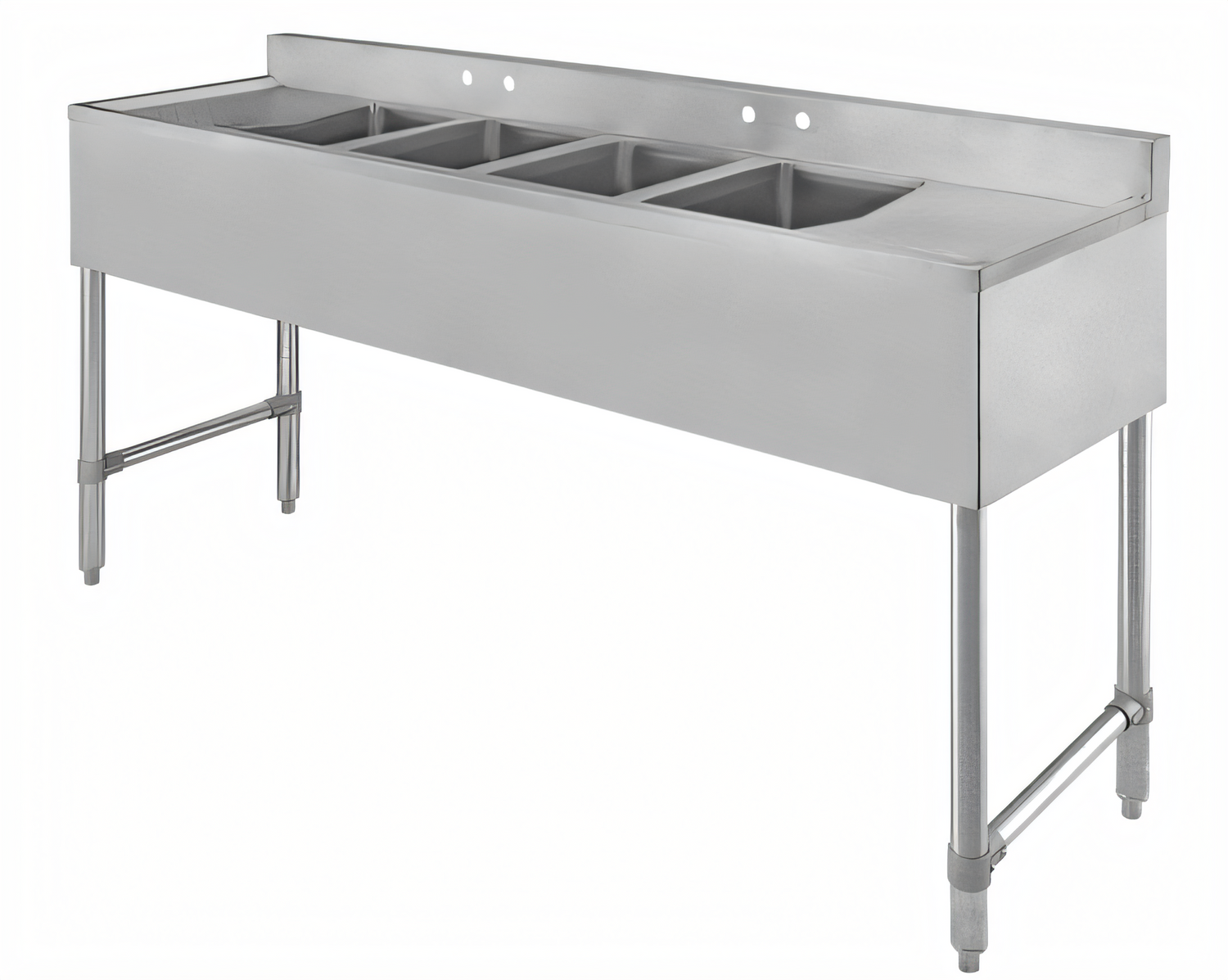

Klinger’s Trading BAR42D 4-Compartment Underbar Sink with Double Drainboards

71-1/2" W × 18-3/4" D × 33" H  •  18 ga / 304 Stainless Steel

Power through peak bar service with the BAR42D. Built from food-grade 304 stainless steel, this heavy-duty underbar sink gives bartenders four roomy wash bowls, dual drainboards and rock-solid construction that stands up to the nightly rush.

Key Features

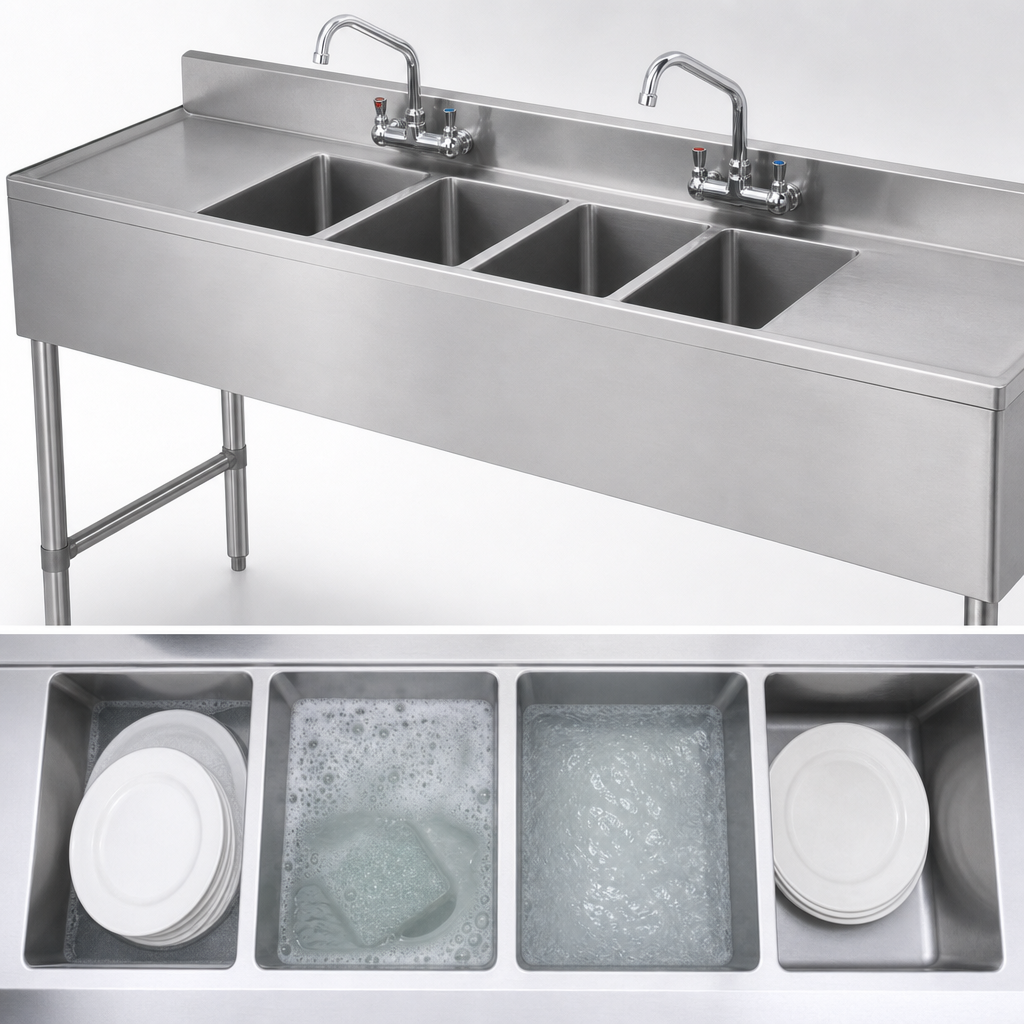

  • Four 10" W × 14" front-to-back × 10" deep compartments for washing, rinsing and sanitizing barware.

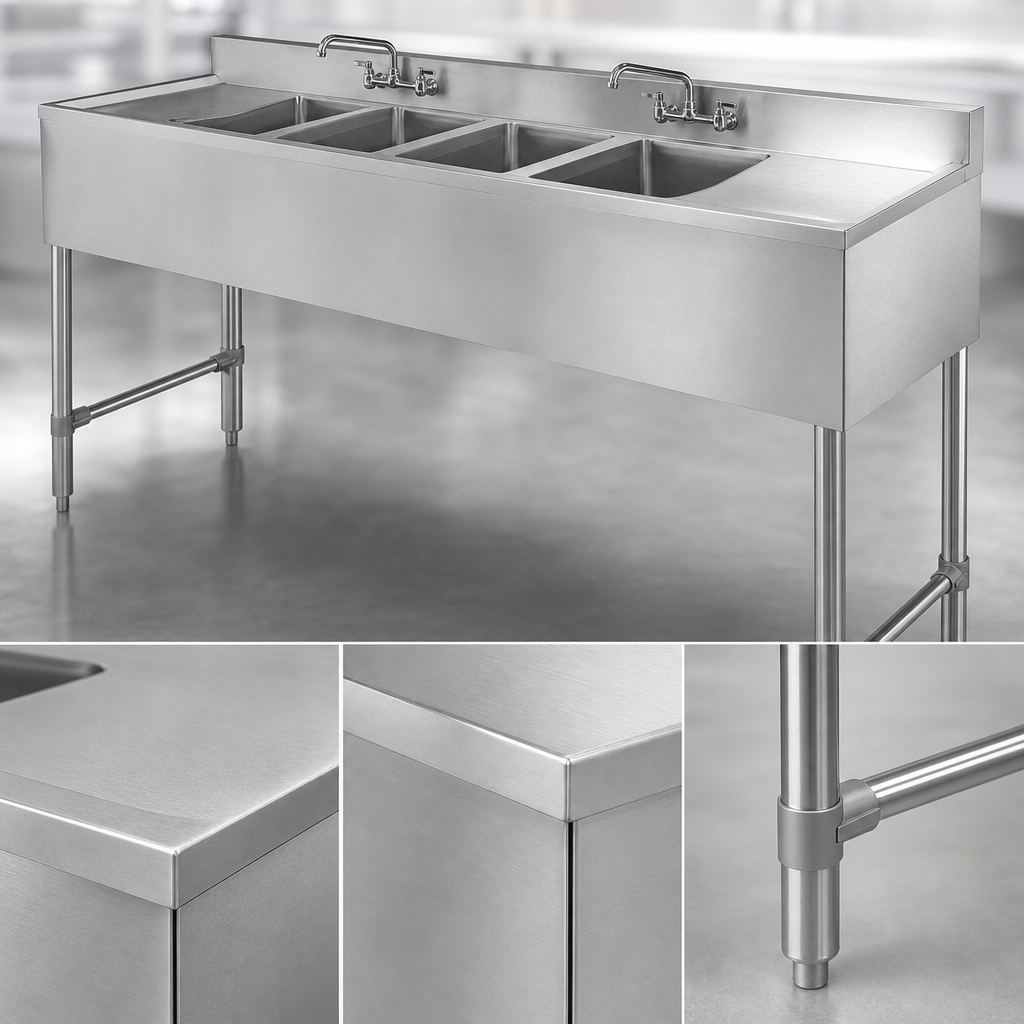

  • 18 gauge, 304 stainless steel bowls, apron, backsplash and legs resist corrosion and chemicals.
  • Left & right 12-3/4" drainboards accelerate drying and staging of clean glasses.
  • 3" high backsplash with pre-punched 4" on-center splash-mount faucet holes keeps walls dry.
  • Stainless steel gussets, side cross-bracing and apron add rigidity during heavy use.
  • Adjustable stainless steel bullet feet make leveling on uneven floors quick and easy.
  • ETL-Sanitation listed – meets ANSI/NSF Standard 2 for open-food service.
Included Accessories
  • (2) 10" splash-mount gooseneck faucets
  • (2) Drain baskets / strainers
Specifications
Model BAR42D
Compartments 4
Overall Dimensions (W × D × H) 71-1/2" × 18-3/4" × 33"
Compartment Interior (each) 10" W × 14" F/B × 10" D
Drainboard Length 12-3/4" (left & right)
Backsplash Height 3"
Faucet Centers 4" on-center, pre-punched
Material 18 ga / 304 stainless steel
Legs & Bracing Stainless steel legs with side cross-bracing & adjustable bullet feet
Weight 86.4 lb
Certifications ETL-Sanitation (ANSI/NSF Std 2)

Installation must be performed by a licensed professional and comply with local plumbing codes.

Features & Specs

Manufacturer

Klinger's Trading

Certifications

ETL-Sanitation

Height

33.0in

Width

71.5in

Depth

18.75in

Shipping Weight

86.4lbs

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Top Stainless Series

300 series

Sink Compartments

(4)

Drainboards

drainboards on left & right

Splash

3"

Depth (front - back) OA

18" - 19"

Construction

stainless steel top, front, ends & legs

Width (side - side) OA

67" - 72"

Specifications

Underbar Sink, four compartment, 71-1/2"W x 18-3/4"D x 33"H, 18/304 stainless steel construction, 10"W x 14" front-to-back x 10" deep compartments, 12-3/4" drainboards on left & right, 3"H backsplash, 4" OC splash mount faucet holes, stainless steel apron on front & sides, gussets, stainless steel legs & side crossbracing with stainless steel bullet feet, includes: (2) drain baskets & (2) 10" faucets, ETL-Sanitation
