Kelvinator Commercial 72-Inch Wide 3-Section ADA Undercounter Refrigerator, Solid Doors, Rear-Mounted Self-Contained

SKU: KCHUC72R-32
GTIN: 00819450025255
$3,302.89
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

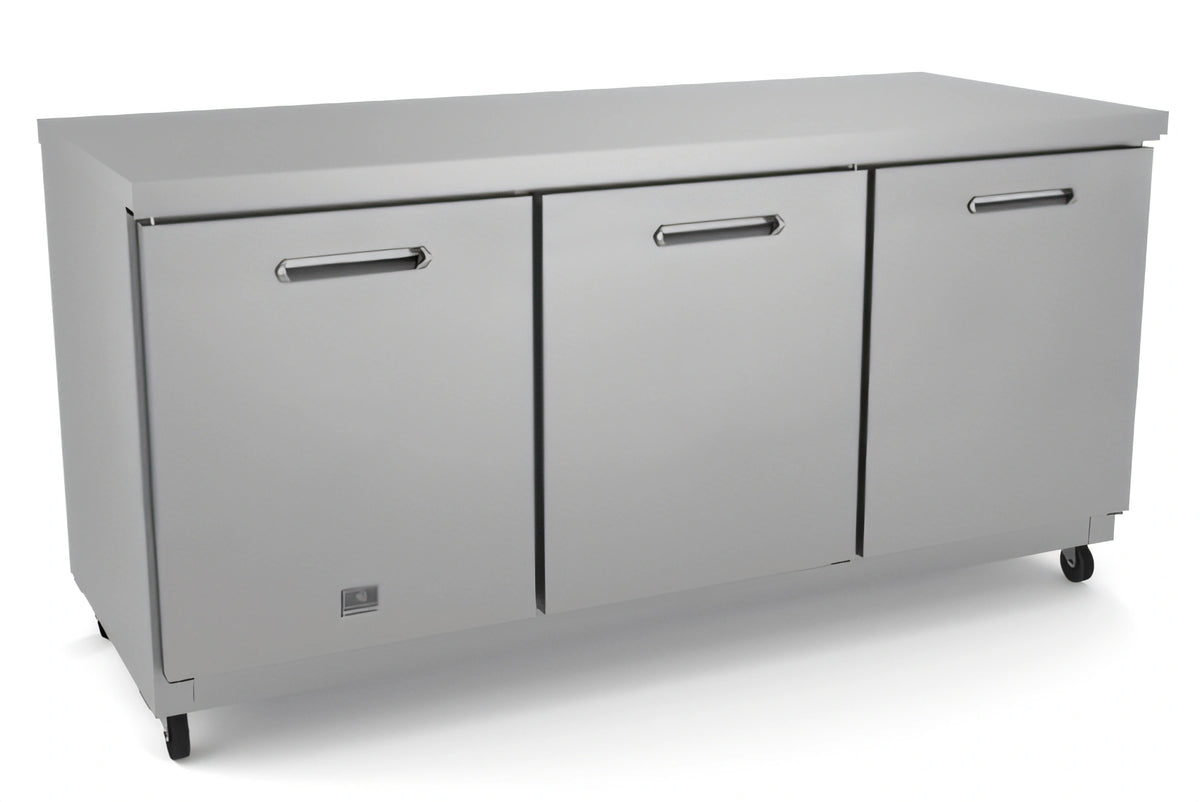

Kelvinator Commercial 72-Inch Wide 3-Section ADA Undercounter Refrigerator, Solid Doors, Rear-Mounted Self-Contained

32-Inch Tall, 18 Cu. Ft., Digital Control, Auto Defrost, R290

This ADA-height undercounter refrigerator combines three-section storage, digital temperature control, and rear-mounted self-contained cooling in a durable 32-inch-tall footprint.

  • ADA height compliant 32-inch-tall design fits compact commercial kitchen spaces.
  • Three-section cabinet offers 18 cu. ft. of refrigerated storage behind three solid hinged doors.
  • External digital temperature control and auto defrost help simplify daily operation.
  • Rear bottom-mounted self-contained refrigeration and fin & tube condenser improve performance in warm environments.
  • Self-closing doors include a 90-degree stay-open feature for easier loading and unloading.
  • Heavy-duty casters and removable magnetic gaskets support cleaning and serviceability.
  • Stainless steel worktop and durable stainless/galvanized construction are built for commercial use.

Overall Dimensions:

71.73"W x 29.92"D x 32.08"H

Product Weight:

324.0 lb

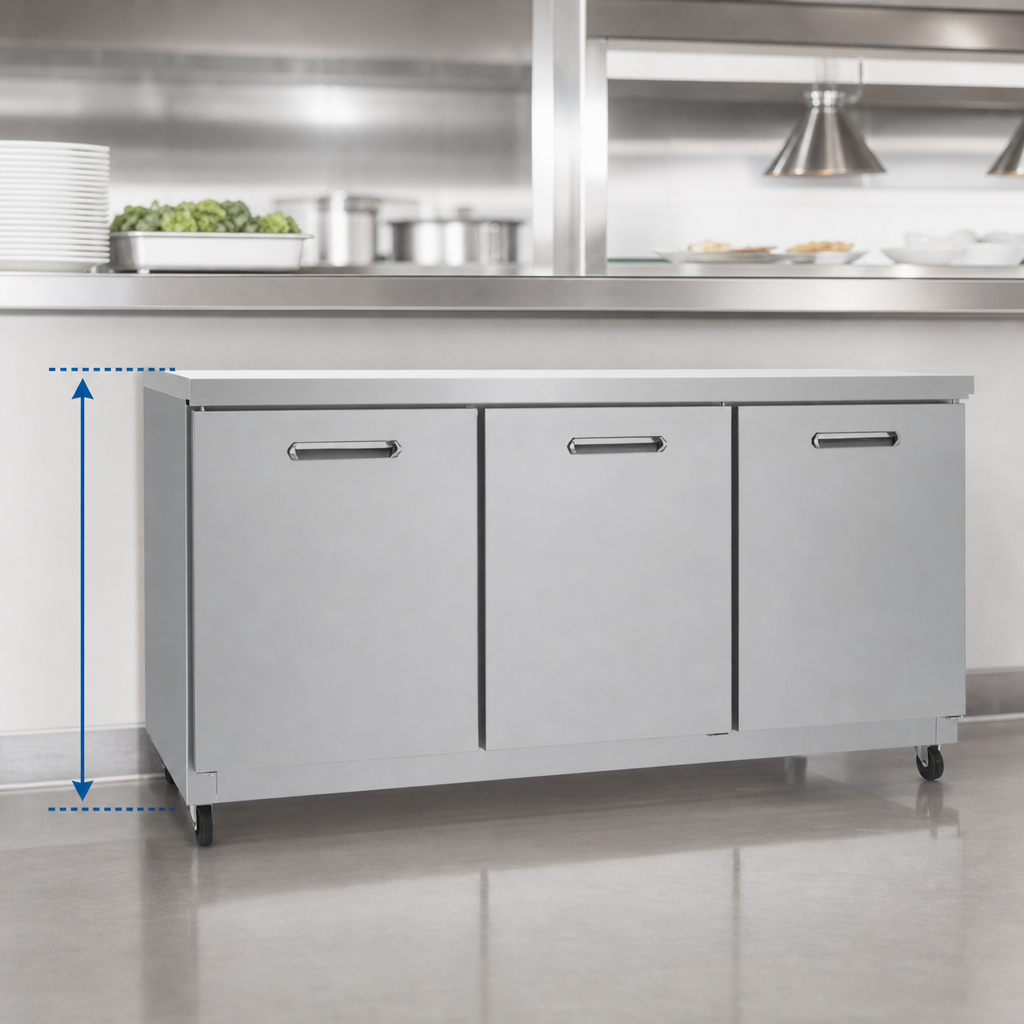

ADA Height Compliant

32-inch-tall cabinet meets ADA height requirements for compatible service areas.

ADA Height Compliant

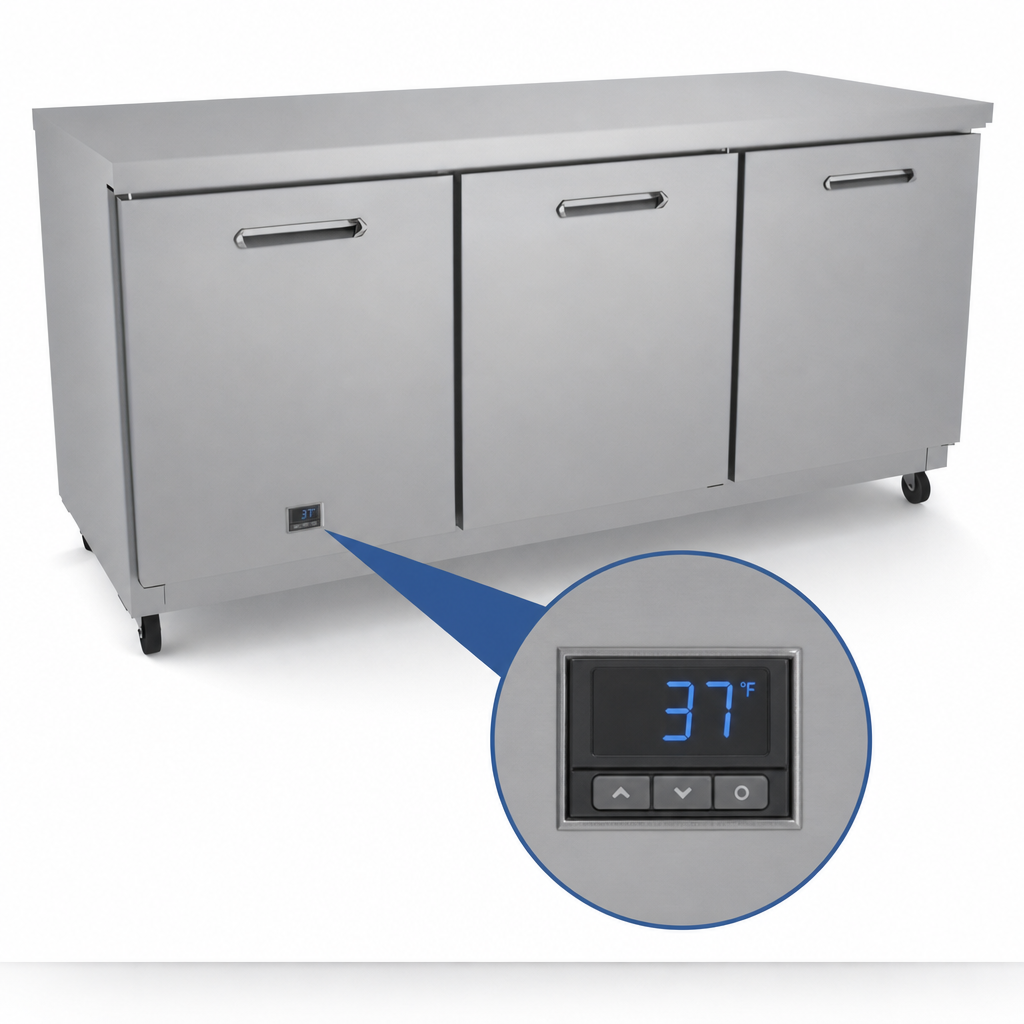

External Digital Temperature Controller

Easy-to-read external display makes it simple to monitor and adjust cabinet temperature.

External Digital Temperature Controller

Auto Defrost Cooling System

Automatic defrost helps reduce maintenance and supports reliable day-to-day operation.

Fin & Tube Condenser

Designed to improve performance in high ambient temperature environments.

Three Solid Hinged Doors

Front access through three solid doors with removable magnetic gaskets for easier cleaning.

Self-Closing Doors with 90-Degree Stay-Open Feature

Doors close automatically and can stay open at 90 degrees for convenient loading.

Adjustable Vinyl-Coated Steel Shelves

Three adjustable shelves provide flexible storage and are easy to clean.

Heavy-Duty Casters

Casters help simplify positioning, cleaning, and service access.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant for low environmental impact.

Stainless Steel Worktop and Durable Construction

Built with a stainless steel worktop and commercial-grade stainless/galvanized materials for long-term use.

Type Refrigerator
Style 3-Section
Installation Type Undercounter
Refrigeration Type Self-Contained
Controls Digital
Temperature Range 32°F to 41°F
Capacity 18 Cu. Ft.
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel
Voltage 115 Volts
Amps 3.5 Amps
Watts 360 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Compressor HP 1/5 HP
Refrigerant Type R290
Shipping Width 72 Inches
Shipping Depth 30 Inches
Shipping Height 34 13/16 Inches
Shipping Weight 324 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 / 5 years

Frequently Asked Questions

Yes. The cabinet is 32 inches tall and ADA height compliant.
The documented operating temperature range is 32°F to 41°F.
Yes. It includes an automatic defrost cooling system.
It operates on 115V, 60 Hz, single-phase power and uses a NEMA 5-15P plug.
The documentation lists a 3 / 5 years warranty.
Yes. Optional accessories include an adjustable foot and drawer kits listed in the documentation.
