Kelvinator Commercial

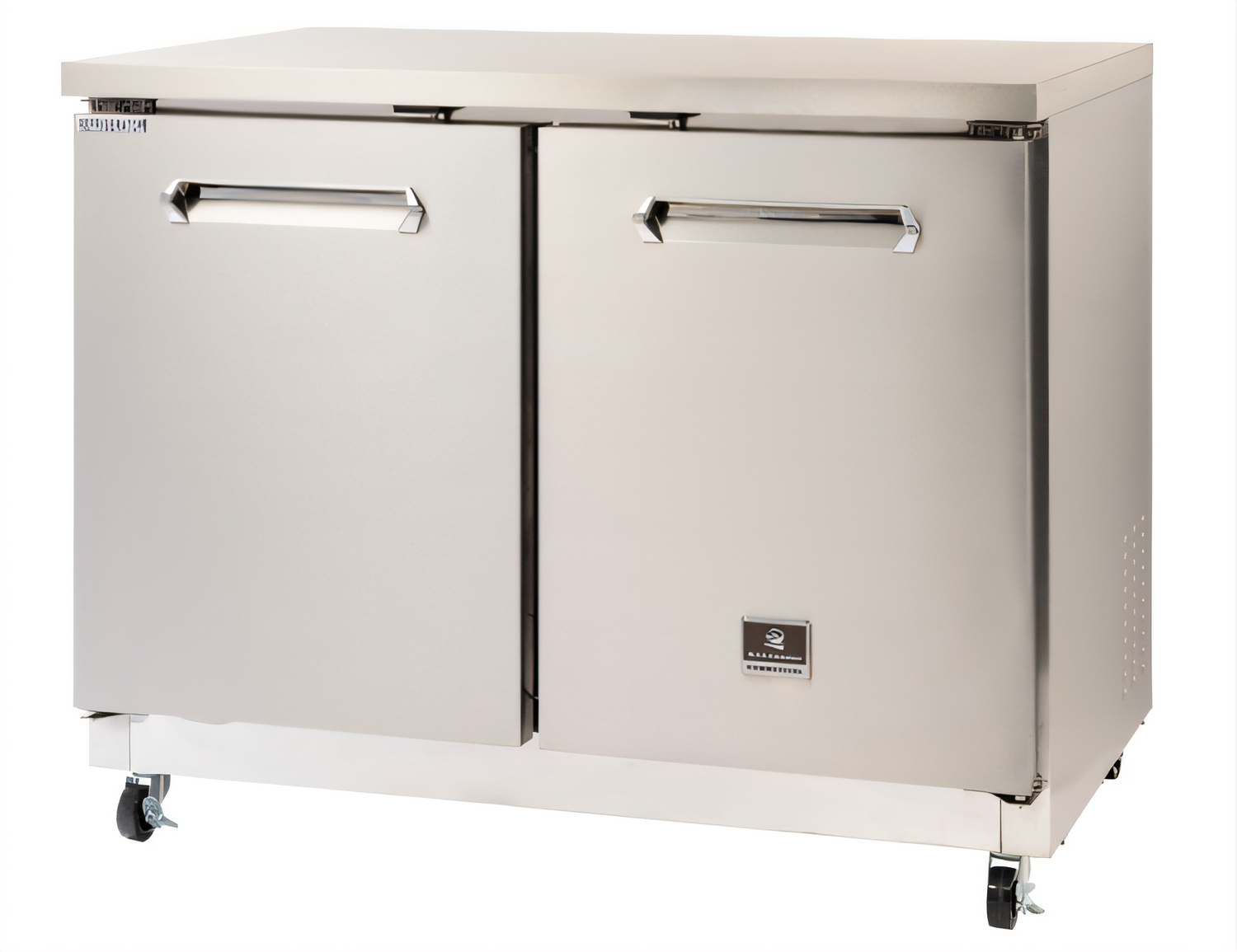

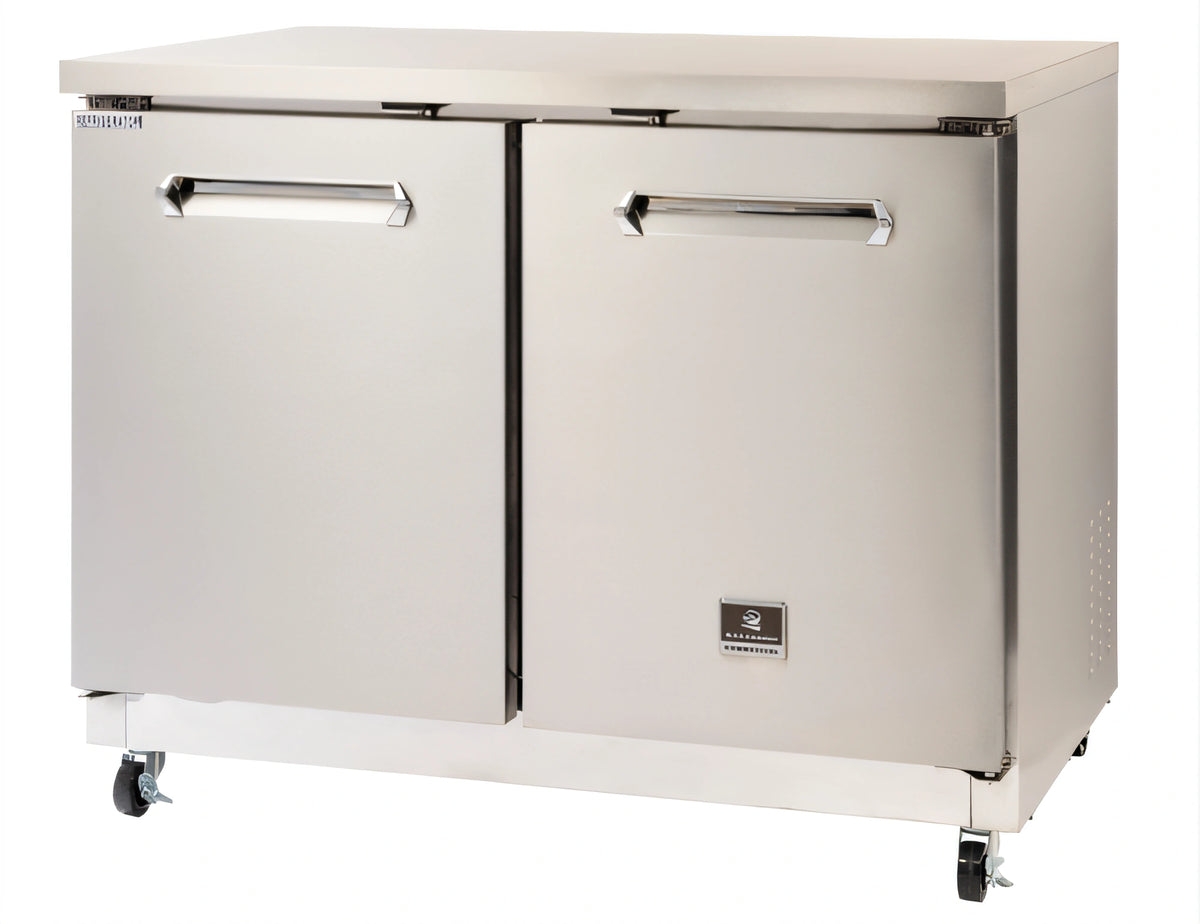

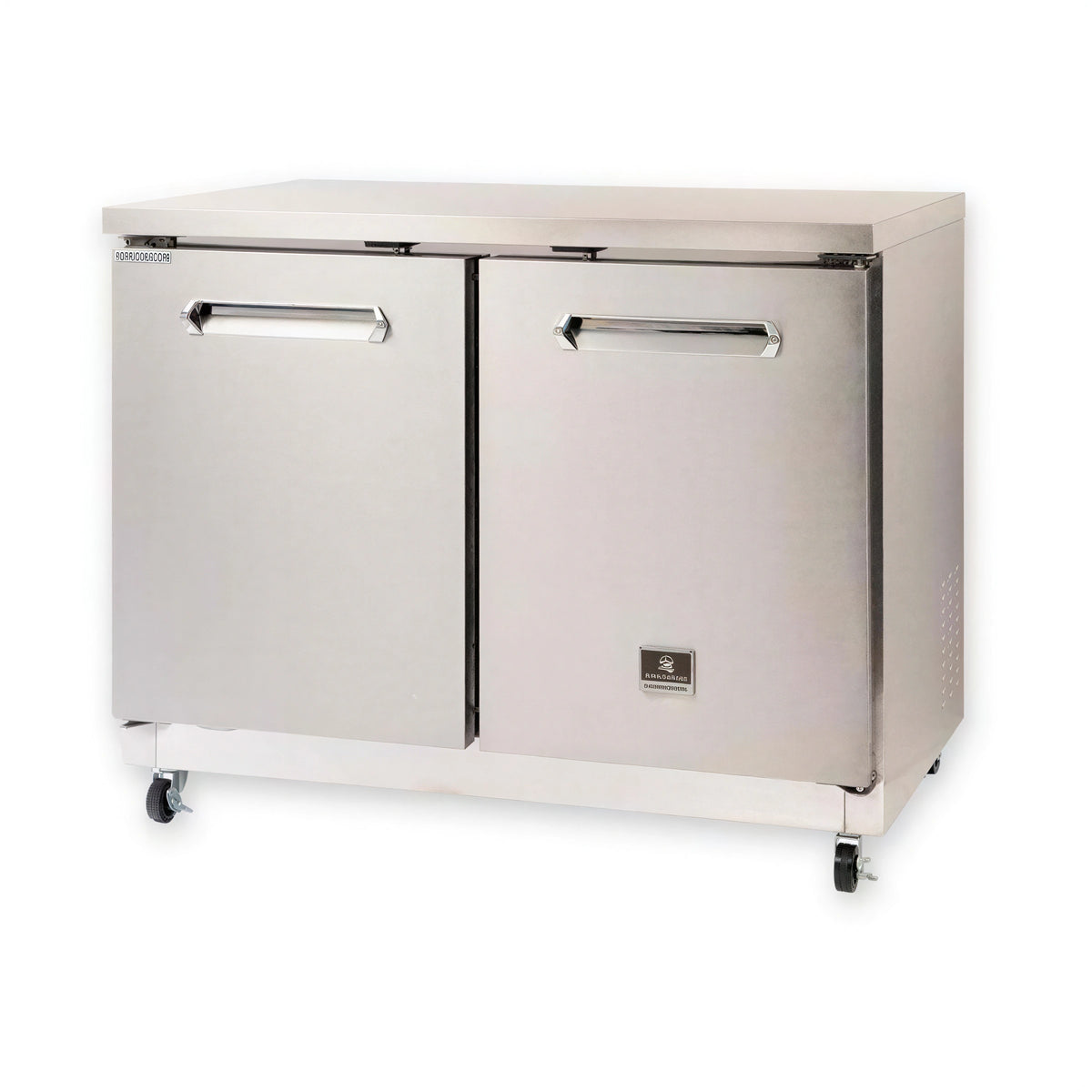

Kelvinator Commercial 36-Inch ADA Height Undercounter Freezer, 2-Section, Self-Contained Rear-Mounted, 8.9 Cu. Ft.

SKU: KCHUC36F-32
GTIN: 00819450025279
$2,849.79
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Kelvinator Commercial 36-Inch ADA Height Undercounter Freezer, 2-Section, Self-Contained Rear-Mounted, 8.9 Cu. Ft.

32-Inch Tall, Two Solid Doors, 115V

Built for tight commercial spaces, this ADA-height undercounter freezer delivers reliable frozen storage, fast temperature control, and durable stainless steel construction.

  • 8.9 cu. ft. two-section freezer designed to fit beneath counters at ADA height.
  • Self-contained rear-bottom-mounted refrigeration helps simplify installation and save space.
  • External digital temperature control and display make monitoring and adjustment easy.
  • Auto defrost system reduces routine maintenance.
  • Two solid hinged doors include removable magnetic gaskets and a 90-degree stay-open feature.
  • R290 hydrocarbon refrigerant and a fin-and-tube condenser help support performance in demanding kitchens.

Overall Dimensions:

36.41"W x 29.92"D x 32.08"H

Product Weight:

229.28 lb

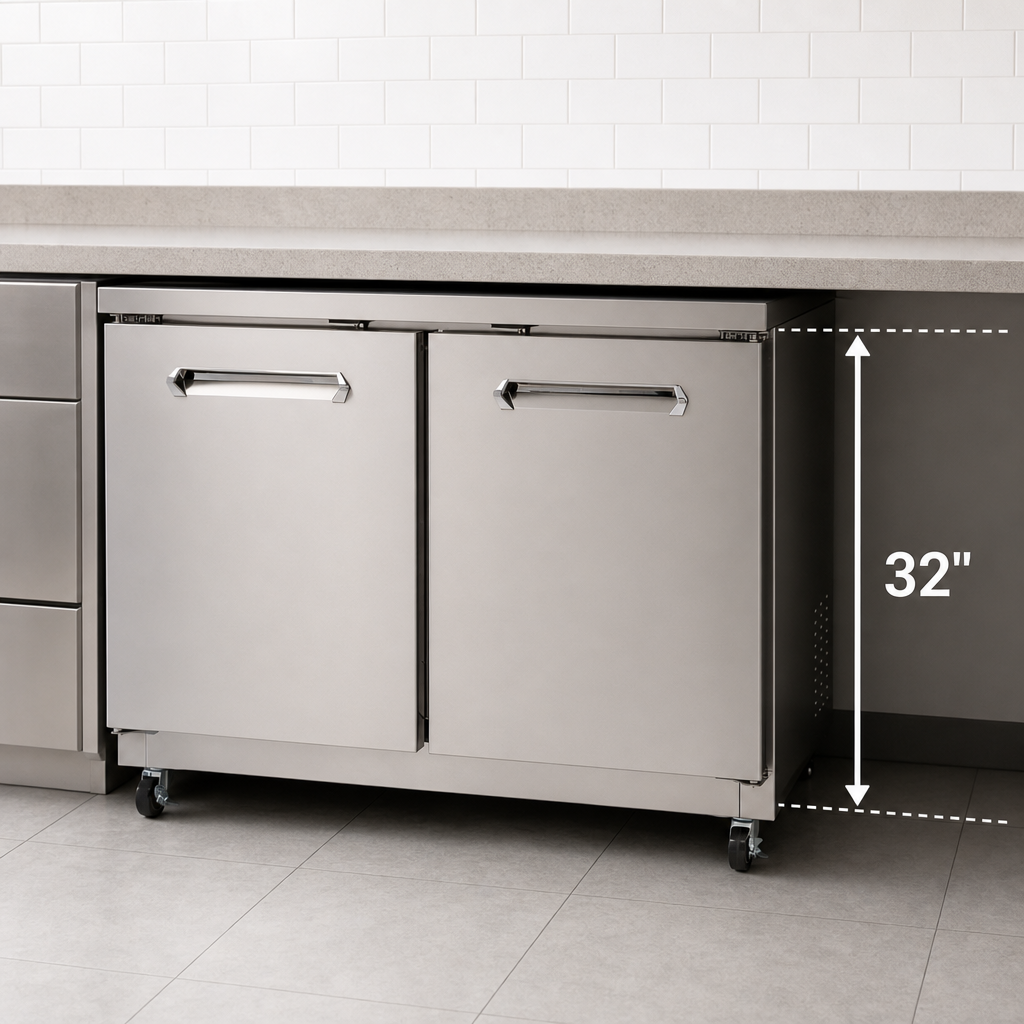

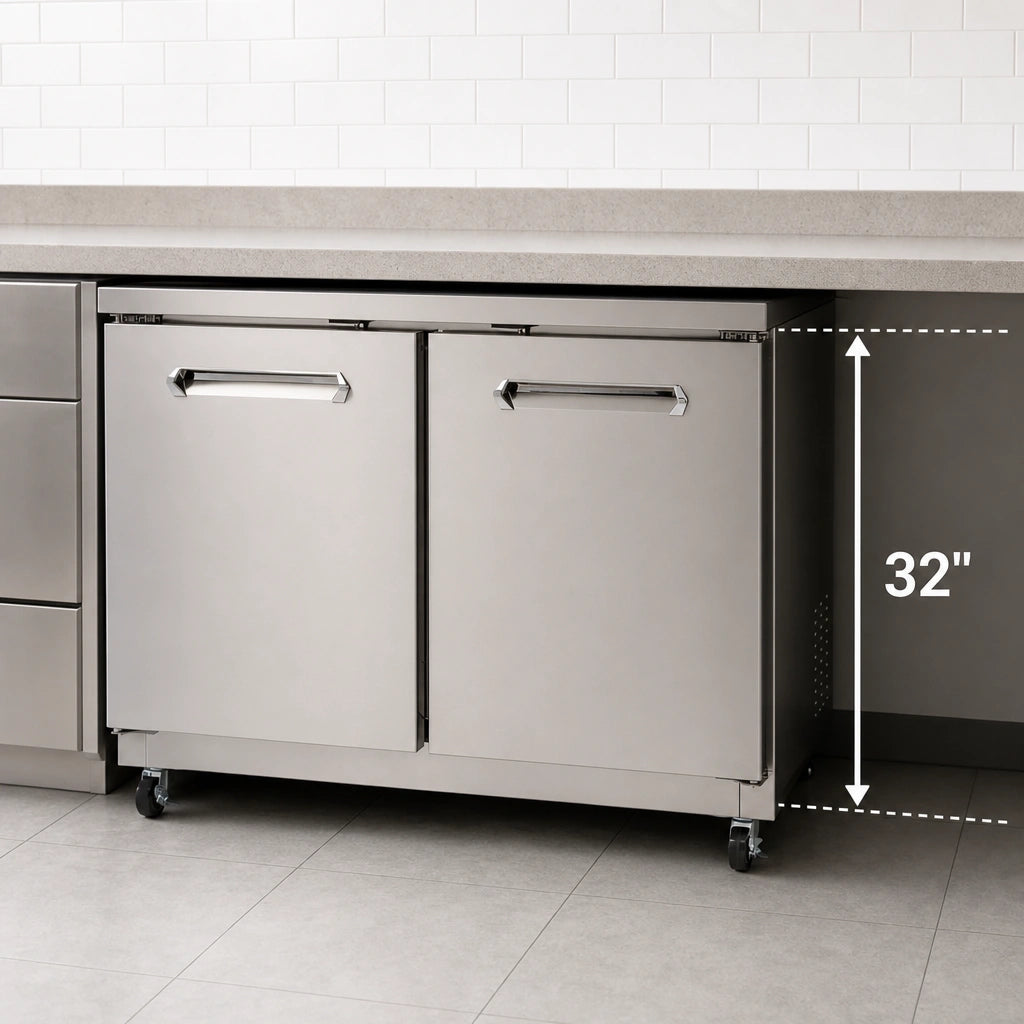

ADA Height Compliant

32-inch tall design is built for ADA-height undercounter applications.

ADA Height Compliant

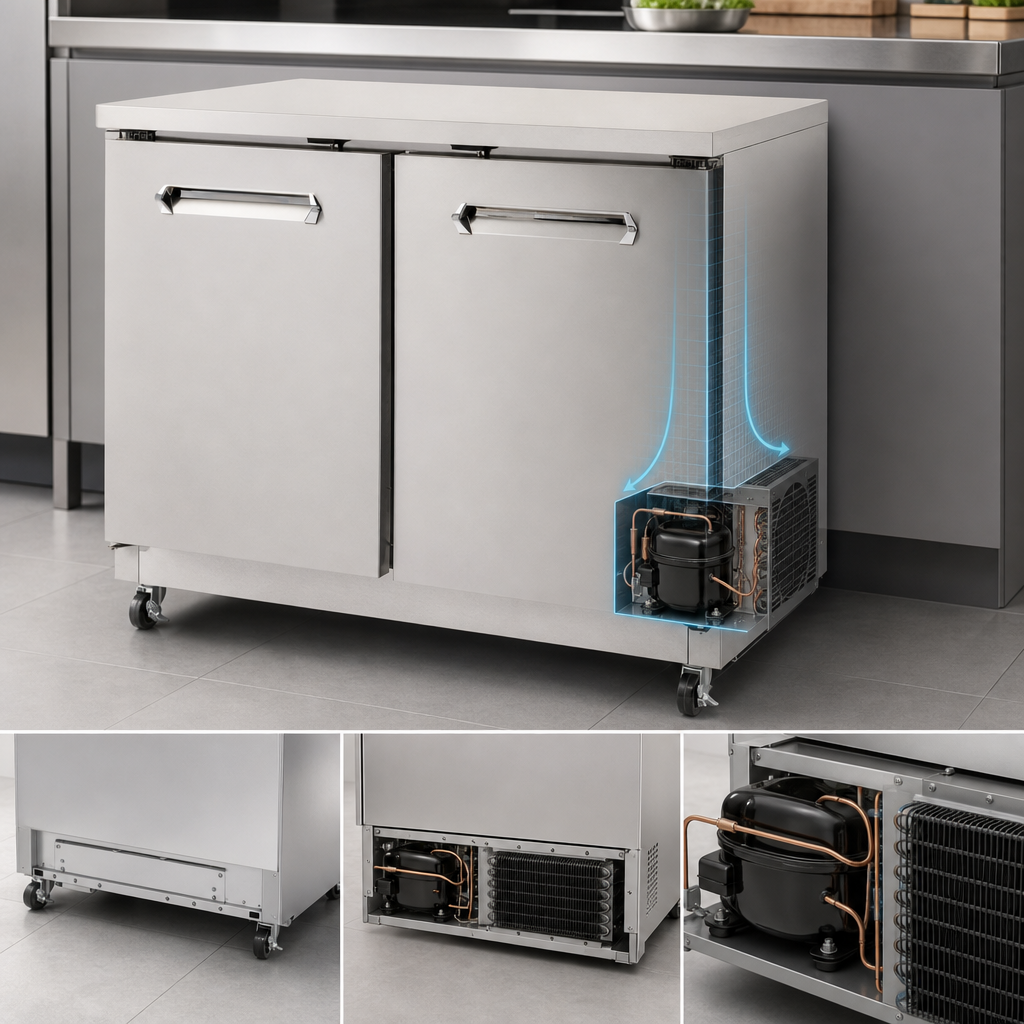

Self-Contained Rear Bottom Mounted Refrigeration

Integrated refrigeration system is positioned at the rear bottom to conserve space and simplify placement.

Self-Contained Rear Bottom Mounted Refrigeration

Digital Temperature Control

Electronic control with an external temperature display provides easy monitoring and simple adjustment.

Automatic Defrost

Automatic defrost cooling system helps reduce manual maintenance.

Fin & Tube Condenser

Condenser design is intended to improve performance in high-temperature environments.

Dual Solid Doors

Includes two solid hinged doors with removable magnetic gaskets for easy cleaning and a secure seal.

Self-Closing Doors with Stay-Open Feature

Doors self-close and can stay open at 90 degrees for more convenient loading and unloading.

Adjustable Vinyl-Coated Steel Shelves

Two adjustable shelves provide flexible storage organization and durable support.

Stainless Steel Construction

Includes a 304 stainless steel worktop and stainless steel interior panels for durability and easy cleaning.

Heavy-Duty Casters

Casters make the unit easier to move and position during installation or cleaning.

R290 Refrigerant

Uses R290 hydrocarbon refrigerant for low environmental impact.

Type Freezer
Style Two-Section
Installation Type Undercounter
Compartments 2
Capacity 8.9 Cu. Ft.
Controls Digital
Temperature Range -10°F to 9°F
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 115 Volts
Amps 3 Amps
Watts 310 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Compressor Horsepower 1/4 HP
Selling Unit Each
Units Per Case 1
Shipping Width 37 Inches
Shipping Depth 30 Inches
Shipping Height 33 Inches
Shipping Weight 229.28 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3/5 Years Warranty

Frequently Asked Questions

It has a gross capacity of 8.9 cu. ft.
Yes. The freezer is 32 inches tall and listed as ADA height compliant.
The listed operating range is approximately -10°F to 9°F.
It requires 115V, 60 Hz, 1-phase power, draws 3 amps, and uses a NEMA 5-15P plug.
Yes. The unit includes an automatic defrost cooling system.
The documentation lists a 3/5 years warranty.
