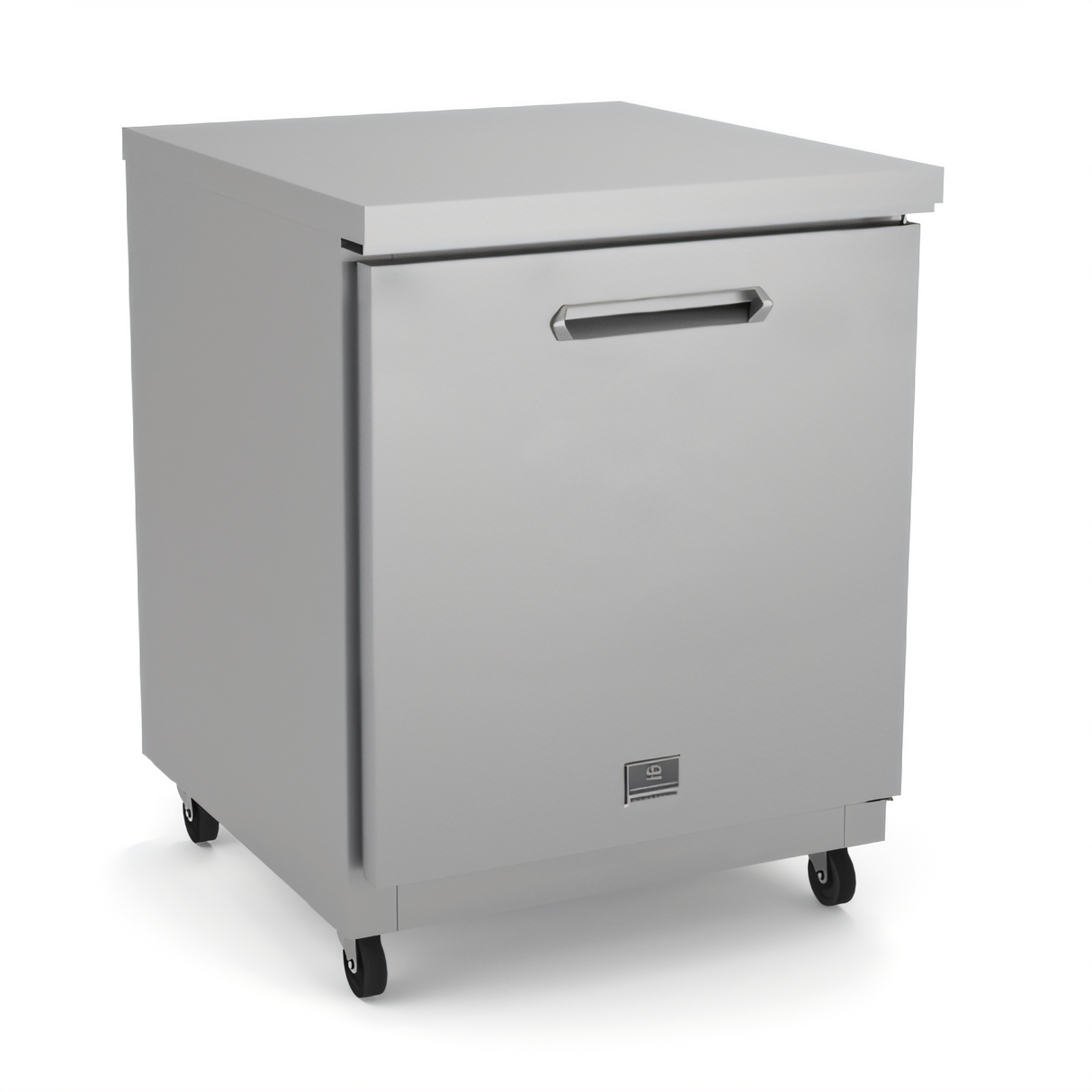

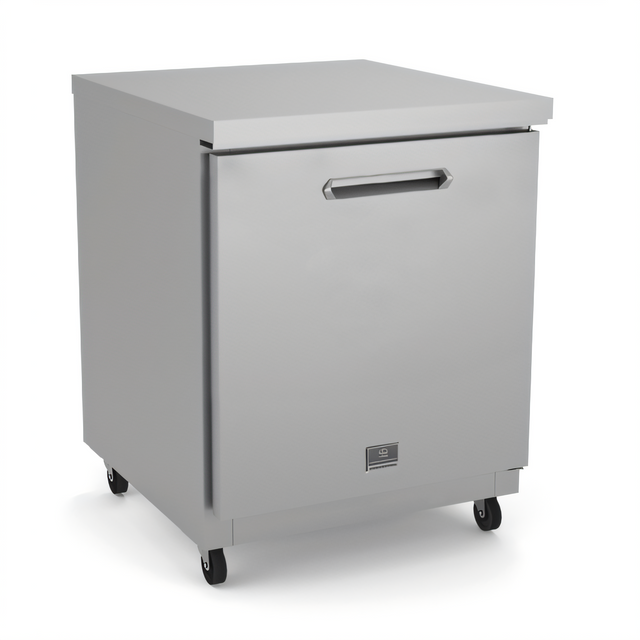

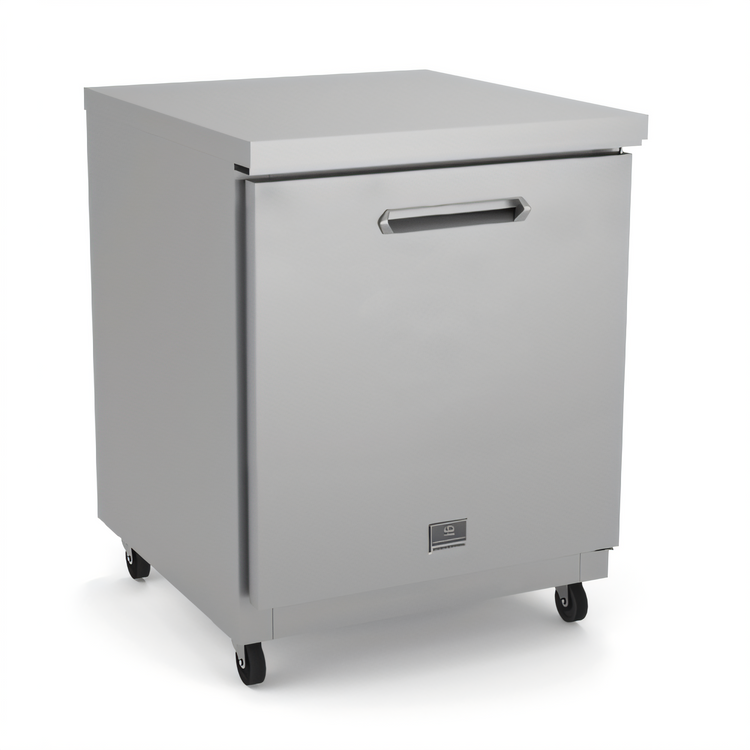

Kelvinator Commercial 1-Door ADA Undercounter Freezer, 27-Inch Wide, 32-Inch Tall, Self-Contained Rear-Mounted, 6.5 Cu. Ft.

SKU: KCHUC27F-32
GTIN: 00819450025262
$2,445.78
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Kelvinator Commercial 1-Door ADA Undercounter Freezer, 27-Inch Wide, 32-Inch Tall, Self-Contained Rear-Mounted, 6.5 Cu. Ft.

Solid Right-Hinged Door, Auto Defrost, R290 Refrigerant

A compact ADA-height undercounter freezer that pairs 6.5 cubic feet of storage with easy-clean features and reliable self-contained refrigeration.

  • ADA-height, 32-inch-tall design fits beneath counters in space-tight kitchens.
  • Self-contained rear-bottom mounted refrigeration with a fin & tube condenser is built for hot commercial environments.
  • External digital temperature display and electronic controls make monitoring and adjustment simple.
  • Automatic defrost and a removable magnetic door gasket help reduce maintenance and speed cleaning.
  • Solid door is self-closing with a 90-degree stay-open feature for easier stocking and service.
  • Stainless steel construction, heavy-duty casters, and one adjustable shelf support daily commercial use.

Overall Dimensions:

27.75"W x 29.92"D x 32.08"H

Product Weight:

161.0 lb

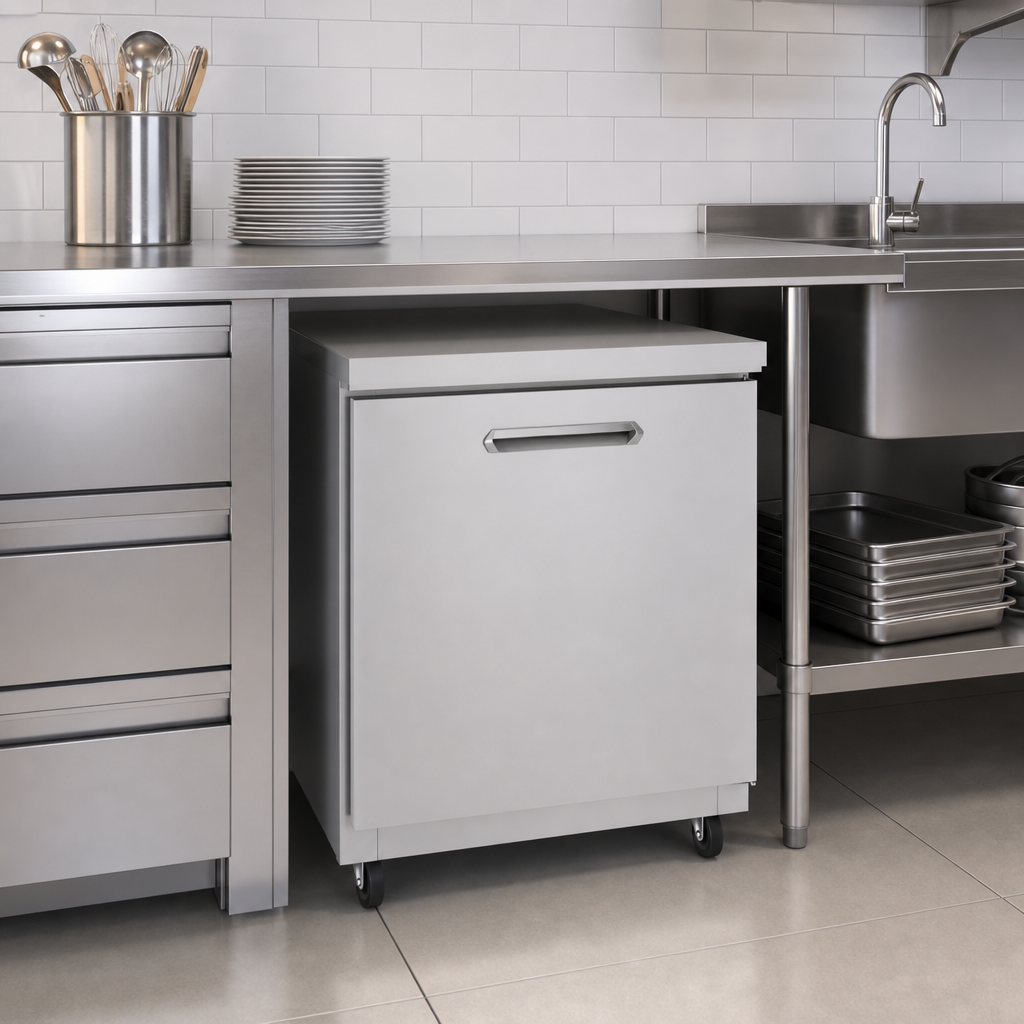

ADA Height Compliant

32-inch-tall cabinet is designed to meet ADA-height requirements for undercounter placement.

ADA Height Compliant

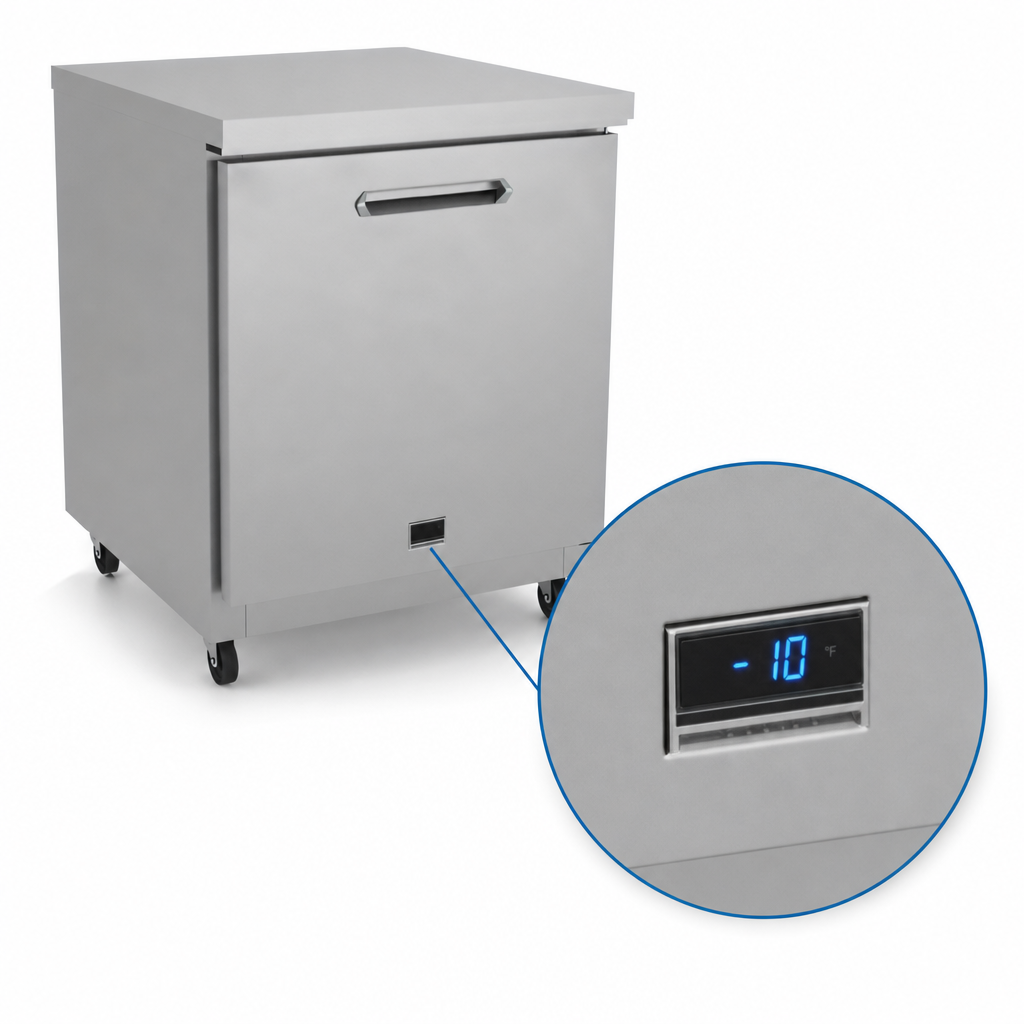

External Digital Temperature Display

Lets operators monitor cabinet temperature at a glance.

External Digital Temperature Display

Electronic Temperature Control

Simple electronic control system provides quick temperature adjustment.

Automatic Defrost

Helps maintain performance and reduces manual defrosting tasks.

Fin & Tube Condenser

Improves performance in high-temperature kitchen environments.

Removable Magnetic Door Gasket

Tool-free gasket removal makes cleaning easier and supports maintenance.

Self-Closing Door with 90-Degree Stay-Open Feature

Door closes automatically but can stay open at 90 degrees for loading and unloading.

On-Site Reversible Door

Door can be reversed during installation for better layout flexibility.

Adjustable Vinyl-Coated Steel Shelf

Includes one adjustable shelf for organizing frozen product storage.

Stainless Steel Construction

Durable stainless steel exterior with 304 stainless steel interior bottom and back panels for commercial durability.

Heavy-Duty Casters

Makes the freezer easier to move for cleaning and repositioning.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant for low-impact, efficient refrigeration operation.

Pre-Wired Heavy-Duty Power Cord

Factory-installed power cord simplifies electrical hookup at installation.

High-Density Polyurethane Insulation

Cabinet insulation helps support temperature retention and energy efficiency.

Type Undercounter Freezer
Style 1 Door
Installation Type Undercounter
Compartments 1
Capacity 6.5 Cubic Feet
Refrigeration Type Self-Contained, Rear Mounted
Controls Digital
Temperature Range -10°F to 9°F
Refrigerant Type R290
Compressor HP 1/4 HP
Voltage 115 Volts
Watts 160 Watts
Amps 1.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Stainless Steel
Interior Finish 304 Stainless Steel and Polystyrene
Shipping Width 28 Inches
Shipping Depth 30 Inches
Shipping Height 34 13/16 Inches
Shipping Weight 161 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3/5 Years

Frequently Asked Questions

The unit operates from approximately -10°F to 9°F.
Yes. The door is reversible on site, and the cutsheet also notes a right-side hinge configuration.
Yes. It includes an automatic defrost cooling system.
It requires 115V / 60 Hz / 1-phase power and uses a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
The freezer has a gross capacity of 6.5 cubic feet.
