Kelvinator Commercial

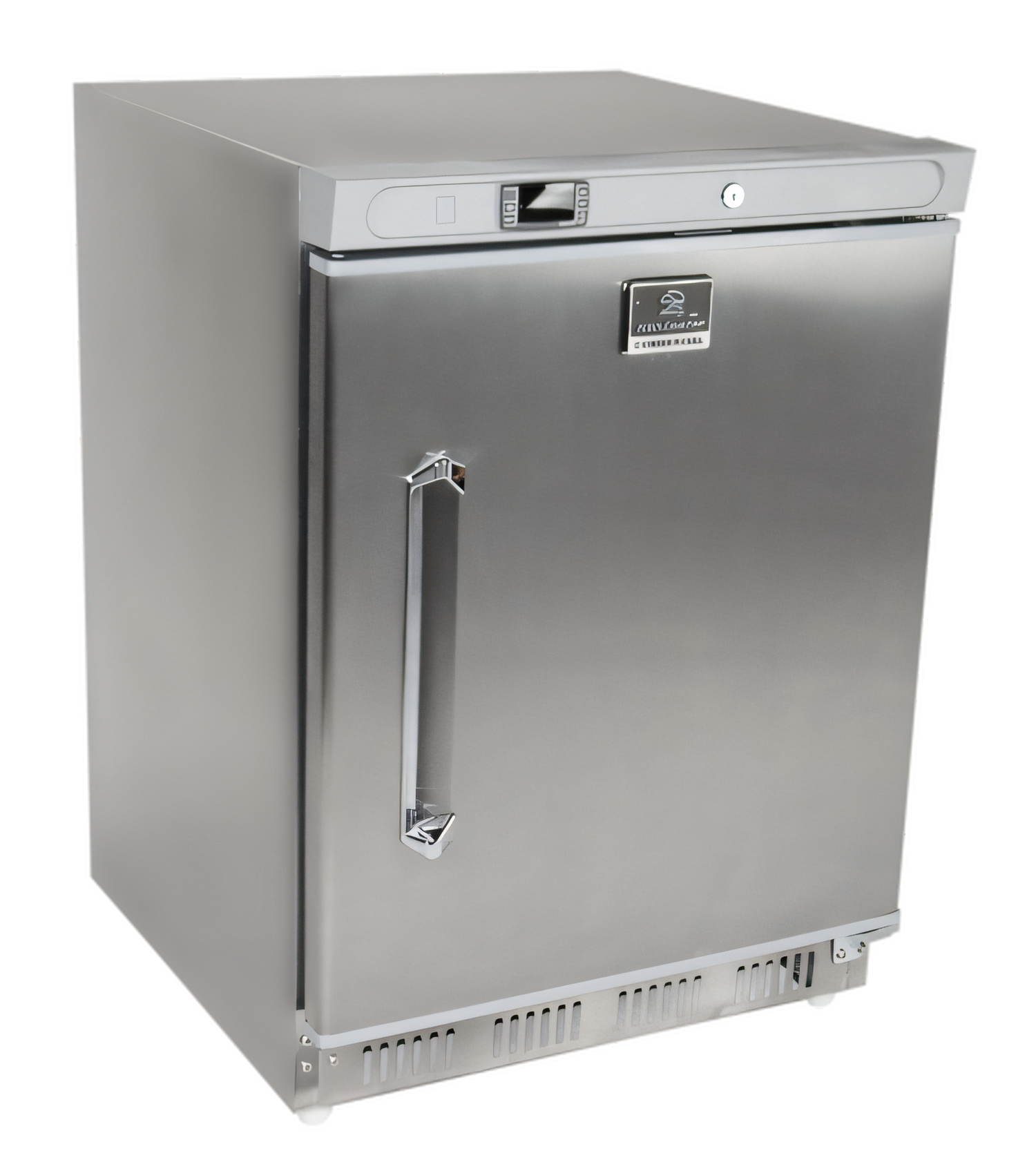

Kelvinator Commercial ADA Height Undercounter Freezer, 23 5/8-Inch Wide, 1 Solid Right-Hinged Door, 4.4 Cu. Ft.

SKU: KCHUC23F
GTIN: 819450023954
$2,053.84
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Kelvinator Commercial ADA Height Undercounter Freezer, 23 5/8-Inch Wide, 1 Solid Right-Hinged Door, 4.4 Cu. Ft.

Self-contained, rear bottom-mounted refrigeration with digital control and auto defrost.

Compact, ADA-compliant frozen storage with digital temperature control, easy-clean components, and efficient R290 refrigeration.

  • ADA height compliant design fits undercounter applications.
  • 4.4 cu. ft. capacity with one solid right-hinged, lockable door.
  • External digital temperature display makes monitoring and adjustments simple.
  • Automatic defrost and fin & tube condenser help maintain performance in demanding kitchens.
  • Includes 3 adjustable vinyl-coated steel shelves and a removable magnetic gasket for easier cleaning.
  • Durable 430 stainless steel worktop, mixed stainless/galvanized exterior, and smooth rolling wheels support everyday use.

Overall Dimensions:

23.62"W x 23.42"D x 33.03"H

Product Weight:

108.0 lb

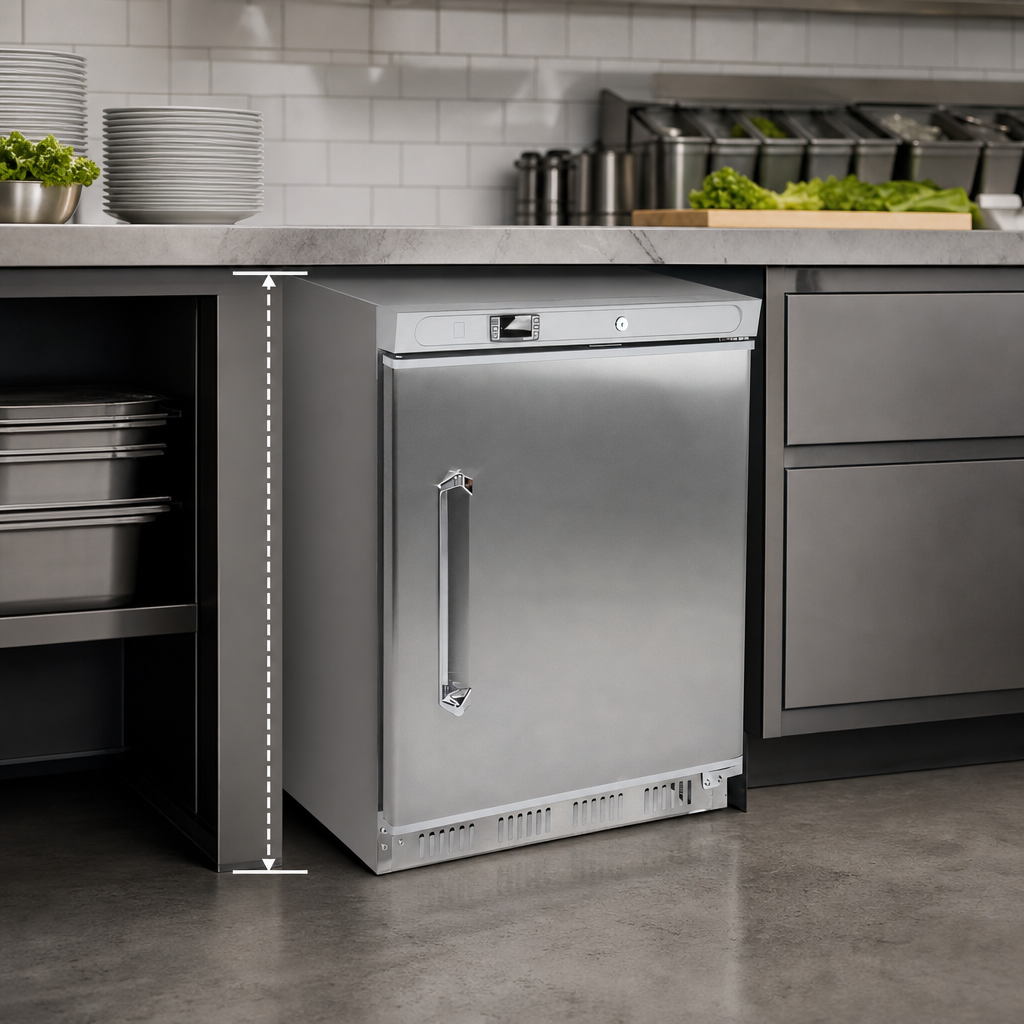

ADA Height Compliant

Sized for ADA-height undercounter applications.

ADA Height Compliant

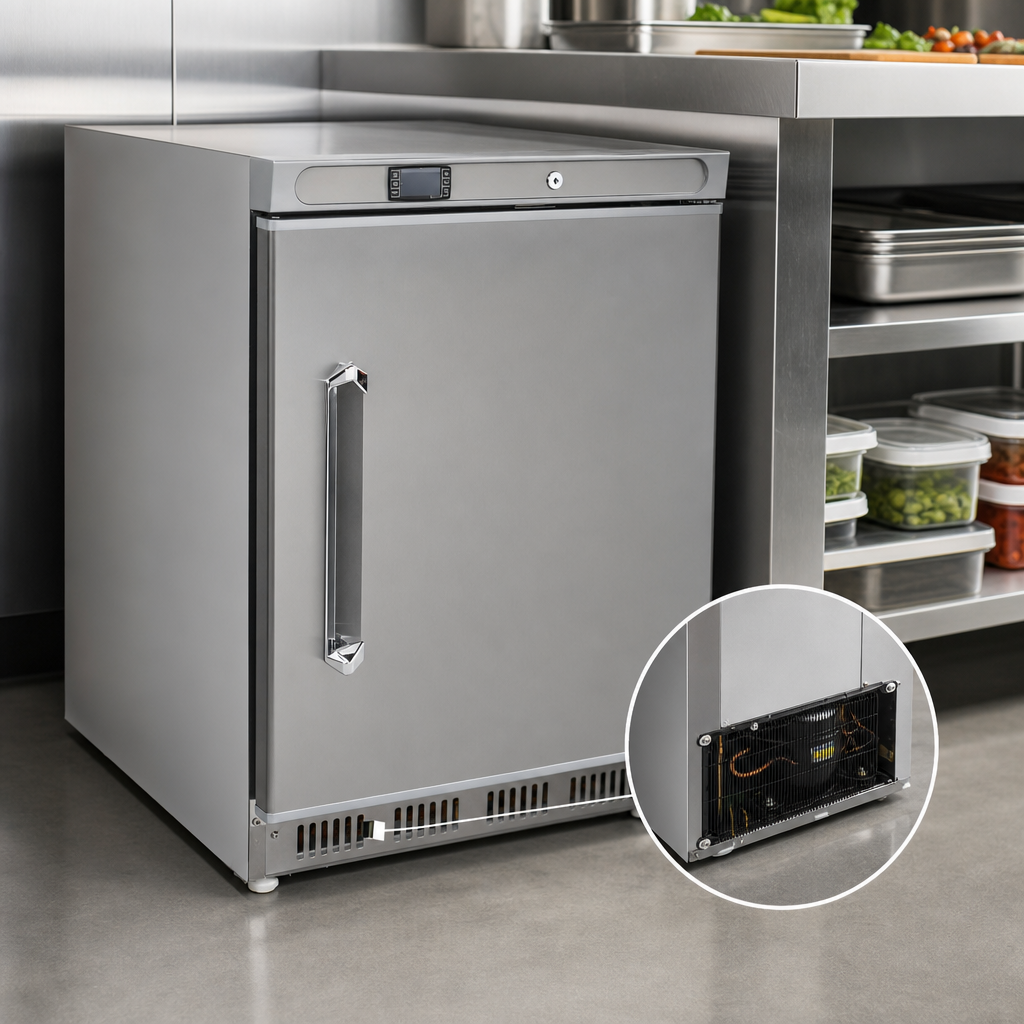

Self-Contained Rear Bottom-Mounted Refrigeration

Built-in refrigeration system simplifies installation and service access.

Self-Contained Rear Bottom-Mounted Refrigeration

External Digital Temperature Control

Digital controller and external display make temperature monitoring easy.

Automatic Defrost

Helps reduce manual maintenance and supports consistent operation.

Lockable Solid Right-Hinged Door

Provides secure storage and includes a removable magnetic gasket for cleaning.

Three Adjustable Vinyl-Coated Steel Shelves

Offers flexible storage organization for frozen product.

Fin & Tube Condenser

Designed to improve performance in high-temperature environments.

430 Stainless Steel Worktop

Durable top surface suited for commercial kitchen use.

R290 Hydrocarbon Refrigerant

Low-GWP refrigerant selected for efficient commercial refrigeration performance.

Smooth Rolling Wheels

Makes the unit easier to position and move for cleaning or installation.

Type Freezer
Style ADA Height
Installation Type Undercounter
Refrigeration Type Self-Contained
Capacity 4.4 Cu. Ft.
Compartments 1
Controls Digital
Temperature Range -7.6°F To -4°F
Material Stainless Steel
Interior Finish White Polystyrene
Finish Galvanized Steel / Stainless Steel
Voltage 115 Volts
Amps 2.0 Amps
Watts 240 Watts
Horsepower 1/4 HP
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Refrigerant Type R290
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 41 5/16 Inches
Shipping Weight 108 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3/5 years

Frequently Asked Questions

Yes, it is listed as ADA height compliant.
The operating temperature range is -7.6°F to -4°F.
It includes 3 adjustable vinyl-coated steel shelves.
It operates on 115V, 60Hz, single-phase power and uses a NEMA 5-15P plug.
Yes, it includes automatic defrost and uses R290 hydrocarbon refrigerant.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
