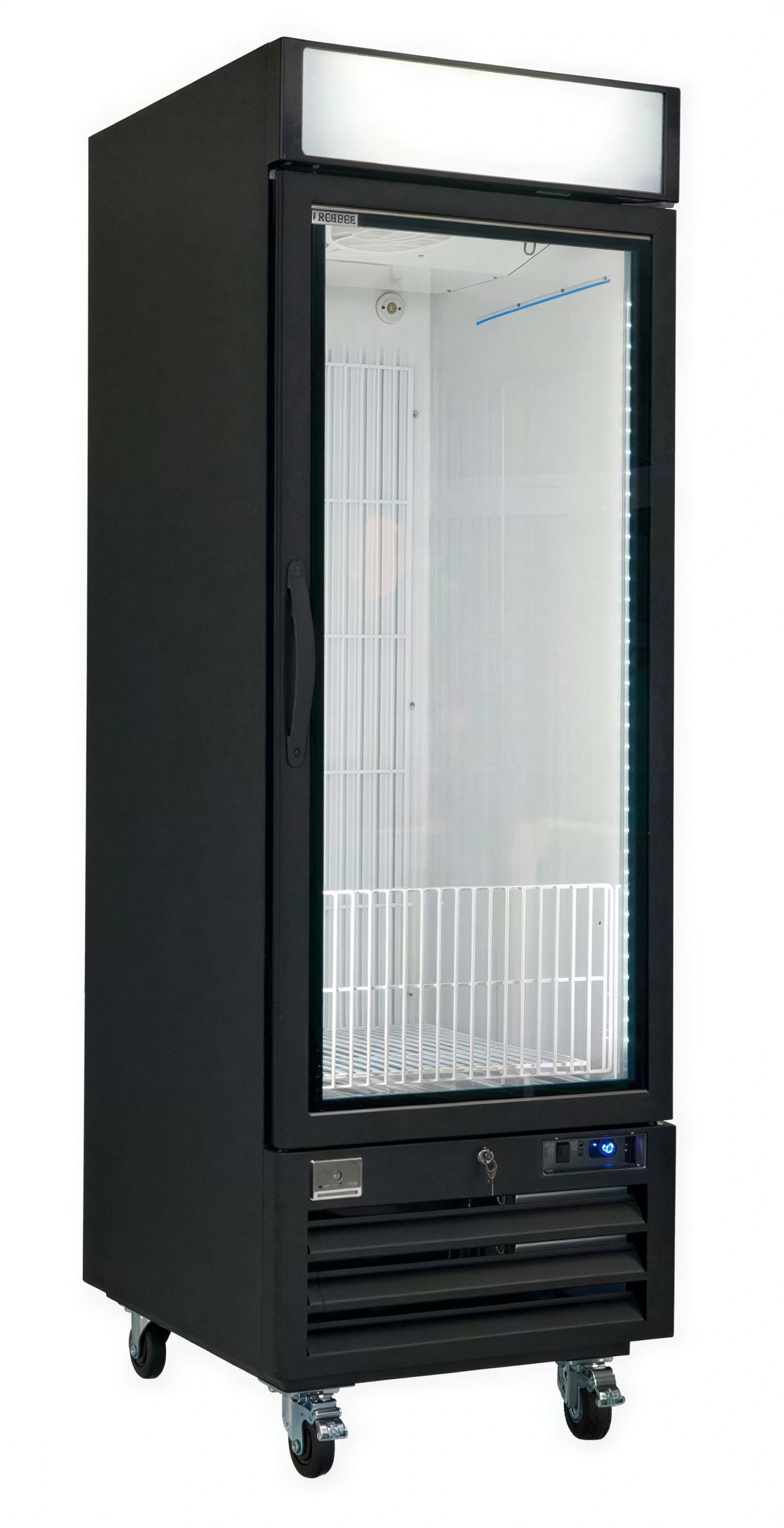

Kelvinator Commercial KCHGICM23FB 23 Cu. Ft. Glass Door Ice Cube Merchandiser Freezer, 1 Section, Black, Bottom-Mount
- Phase
- Single phase
- Dimensions
- 26.77"W × 31.88"D × 83.7"H
- Capacity
- 23 cu. ft.
- Sections
- 1
- Door configuration
- 1 right-hinged glass door
- Door lock
- Yes
Specifications
Description
The Kelvinator Commercial KCHGICM23FB is a one-section, full-height ice cube merchandiser freezer with 23 cu. ft. capacity and a right-hinged glass door.
Its self-contained bottom-mount refrigeration system uses R290 refrigerant and automatic defrost. An external digital temperature controller, interior LED lighting, lockable self-closing door, removable magnetic gasket, and heavy-duty castors support commercial operation.
- Galvanized and black painted steel exterior with a white painted aluminum interior and 304 stainless steel bottom panel.
- Fin-and-tube condenser designed to improve performance in high-temperature environments.
- Customizable decorative illuminated header for merchandising presentation.
Overall Dimensions:
26.77"W x 31.88"D x 83.7"HProduct Weight:

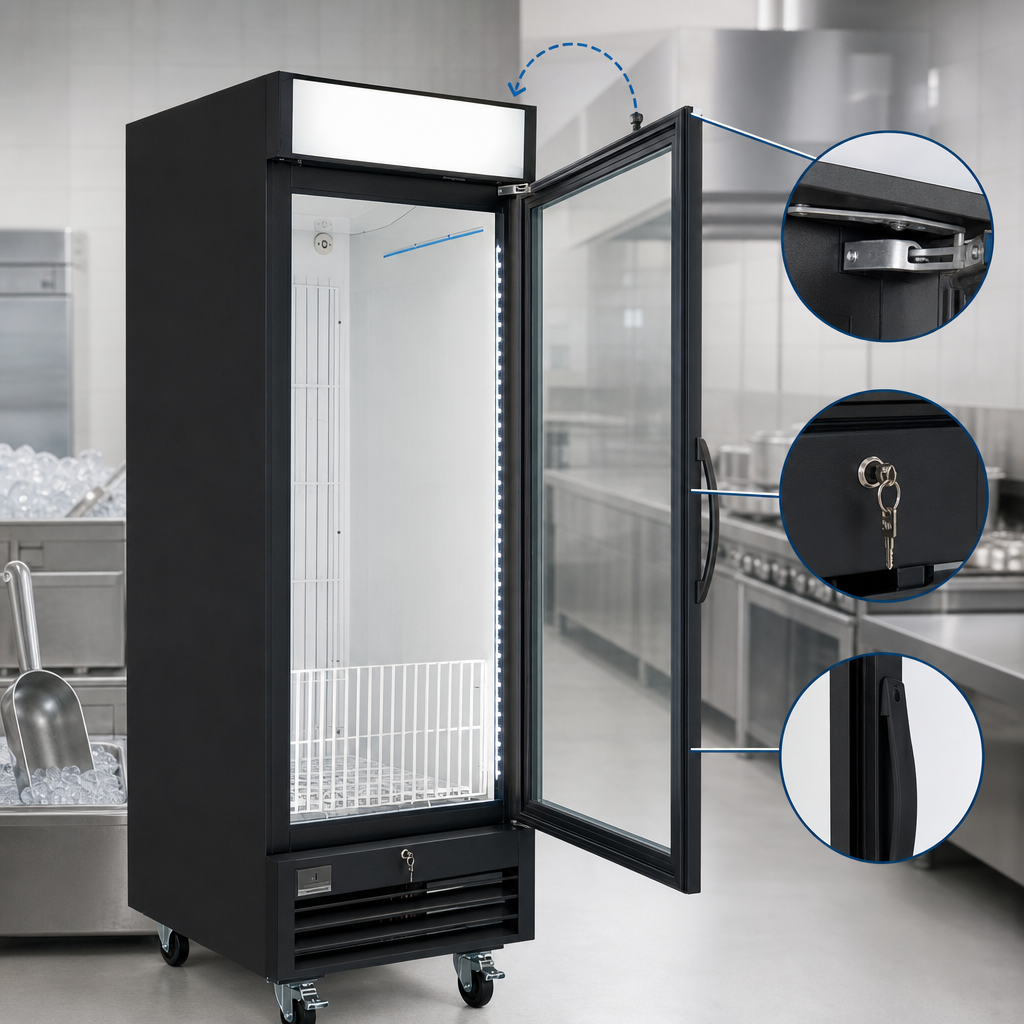

342.0 lbRight-hinged glass door
The lockable glass door is self-closing and includes a 90-degree stay-open feature.
Bottom-mount refrigeration
The self-contained refrigeration system is mounted at the bottom of the cabinet.
Digital temperature control
An external digital temperature controller and display provide temperature setting and monitoring.
Automatic defrost
The freezer uses an automatic defrost system.
Airflow and condenser design
Vinyl-coated steel interior wall spacers support consistent airflow, while the fin-and-tube condenser is designed to improve performance in high-temperature environments.
Interior lighting and header
Bright interior LED lighting includes an on/off switch, and the decorative illuminated header is customizable.
Removable magnetic gasket
The magnetic door gasket is removable for cleaning and can be removed without tools.
Cabinet construction
The cabinet uses galvanized and black painted steel exterior components, white painted aluminum interior panels, a 304 stainless steel bottom panel, and high-density polyurethane insulation.
Heavy-duty castors
Heavy-duty castors support cabinet mobility.
Electrical configuration
The unit operates at 115 V, 60 Hz, single phase, draws 8 A, and uses a NEMA 5-15P plug.
